Commercial
Insulated
Pin Terminals

Filter
1125-80-0511
1125-80-0511
1125-80-0511
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE Brown NO

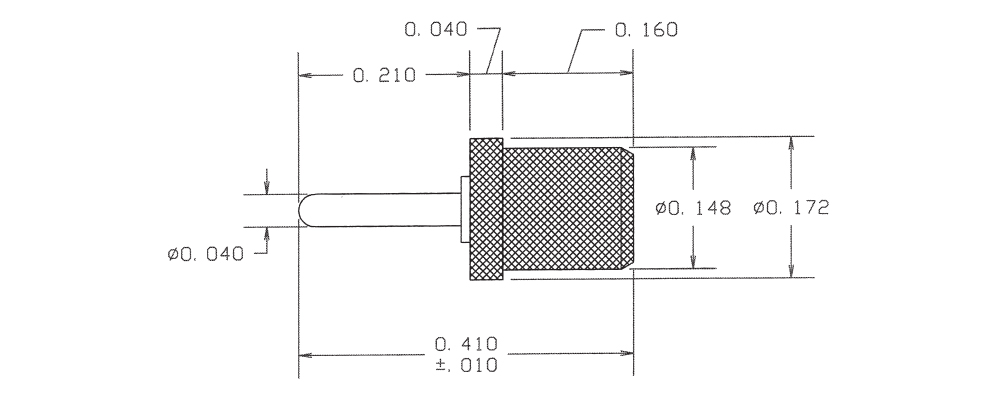

1100-34-0111
1100-34-0111
1100-34-0111
0.410" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE Brown NO

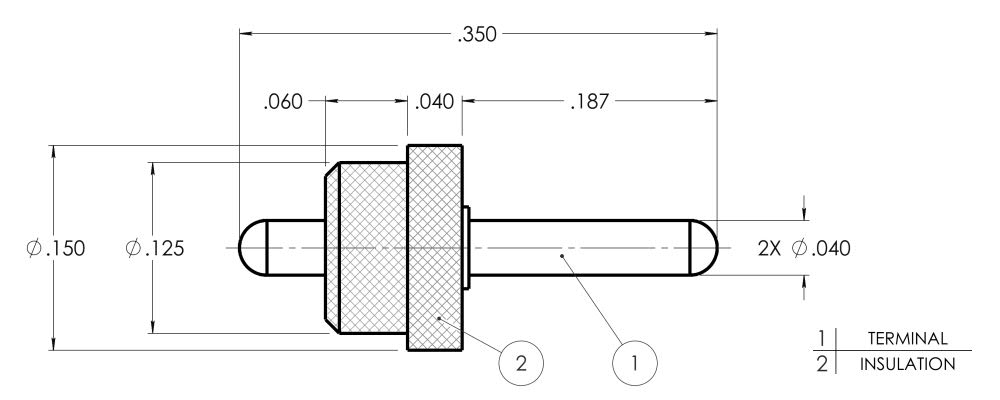

1110-54-08817
1110-54-08817
1110-54-08817
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE Violet NO

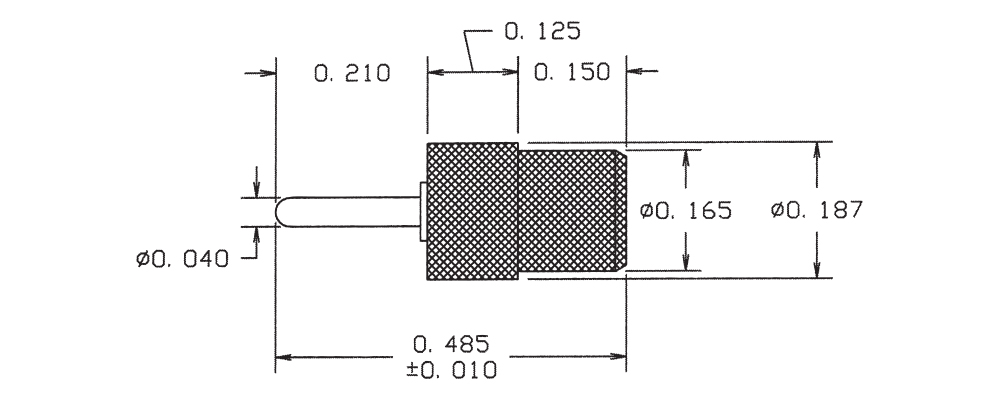

1100-43-0317
1100-43-0317
1100-43-0317
0.485" 0.040 - Press Fit 1/8 0.152 Brass Gold - - PTFE Violet YES

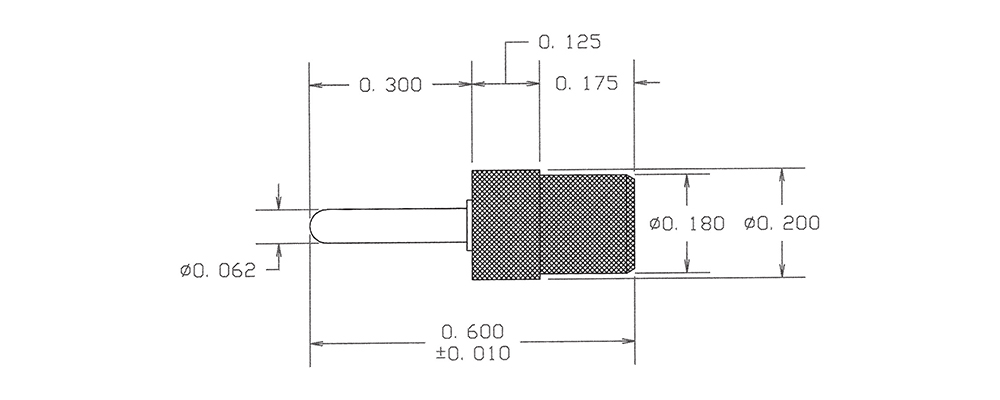

1100-48-04413
1100-48-04413
1100-48-04413
0.600" 0.062 - Press Fit 1/8 0.167 Brass Bright Tin - - PTFE Orange NO

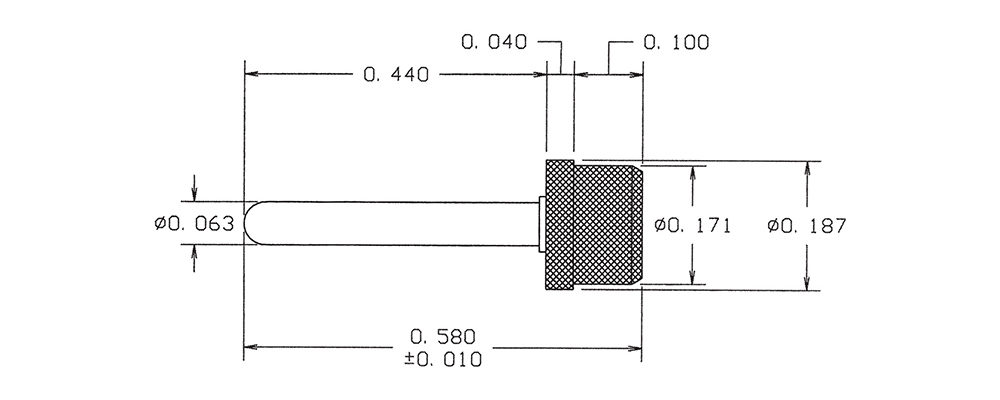

1100-73-0519
1100-73-0519
1100-73-0519
0.580" 0.063 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO

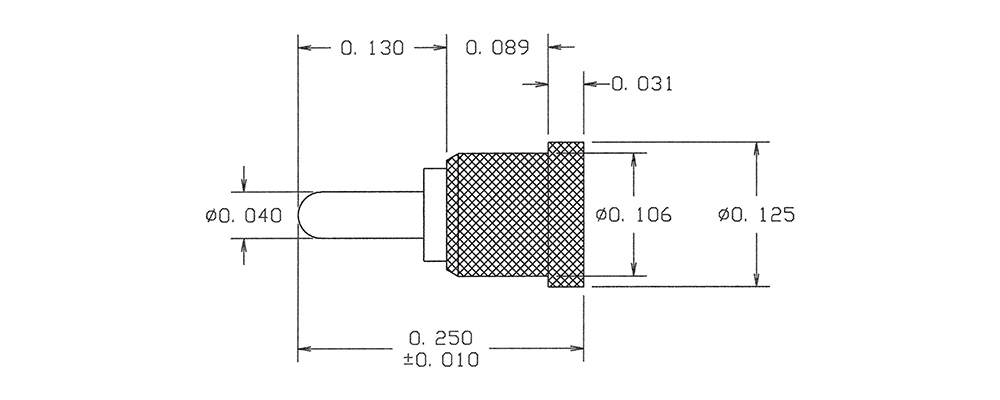

1100R-08A-0115
1100R-08A-0115
1100R-08A-0115
0.250" 0.040 - Press Fit 1/16 0.091 Brass Silver - - PTFE Green YES

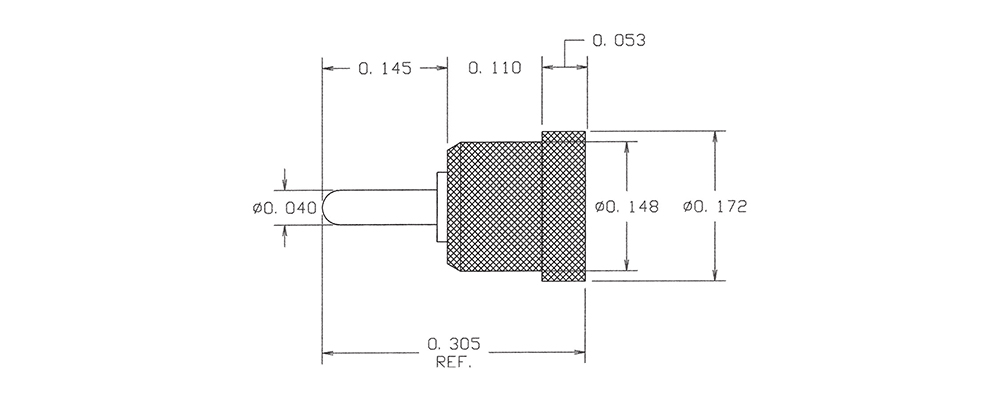

1100R-17-0411
1100R-17-0411
1100R-17-0411
0.305" 0.040 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO

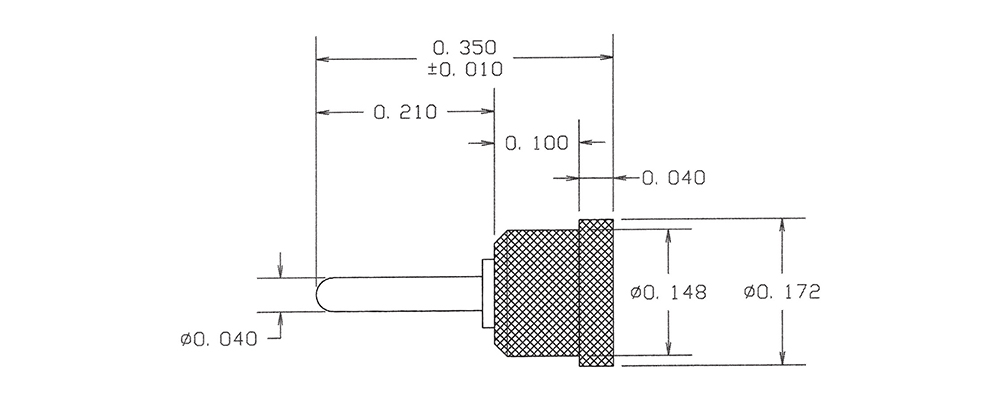

1100R-28-04417
1100R-28-04417
1100R-28-04417
0.350" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Violet YES

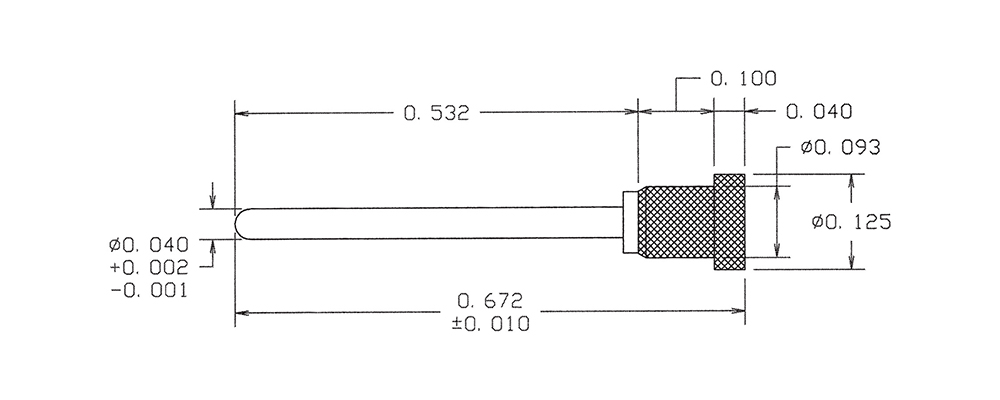

1100R-63-08813
1100R-63-08813
1100R-63-08813
0.672" 0.040 (+0.002/-0.001) - Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Orange NO

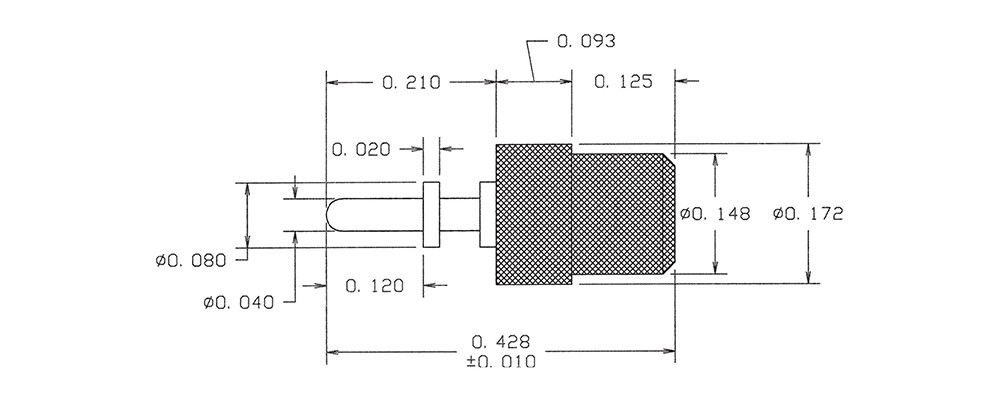

1101-05-0119
1101-05-0119
1101-05-0119
0.428" - - Press Fit 3/32 0.136 Brass Silver - - PTFE White YES

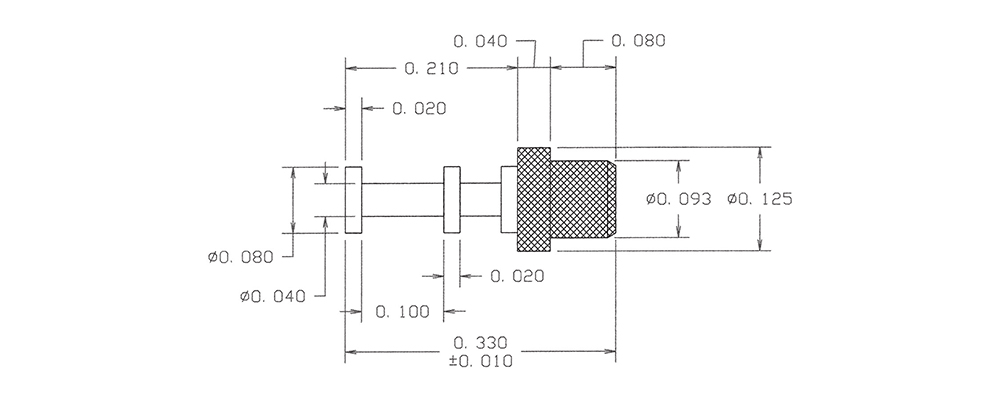

1102-02-0415
1102-02-0415
1102-02-0415
0.330" - - Press Fit 1/32 0.086 Brass Electro-Tin - - PTFE Green YES

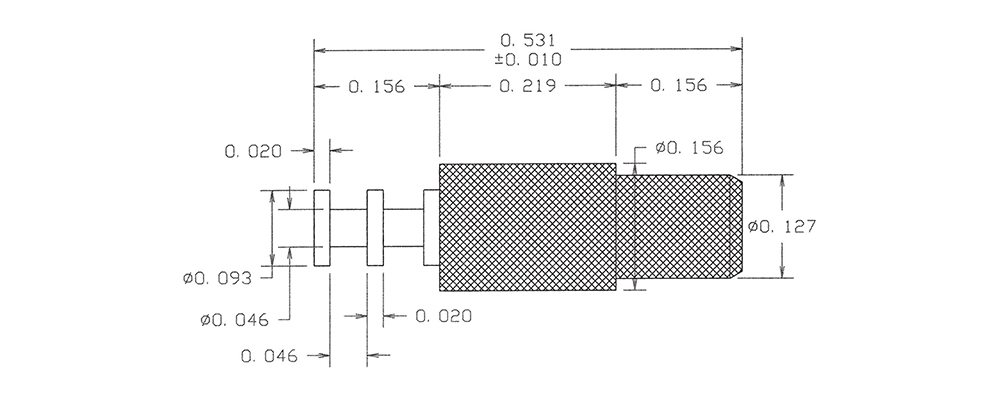

1102-06-0511
1102-06-0511
1102-06-0511
0.531" - - Press Fit 1/16 0.114 Brass Electro Solder - - PTFE Brown NO
1102-11-08817
1102-11-08817
1102-11-08817
0.296" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Violet NO

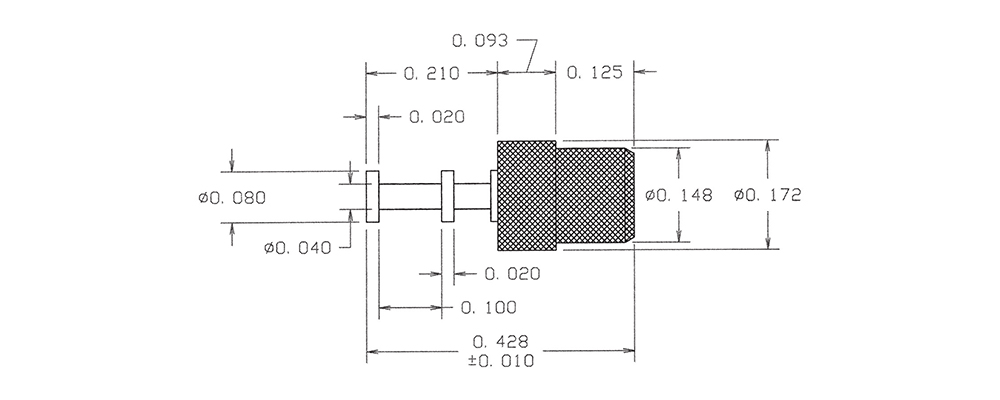

1102-16-0313
1102-16-0313
1102-16-0313
0.428" - - Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO

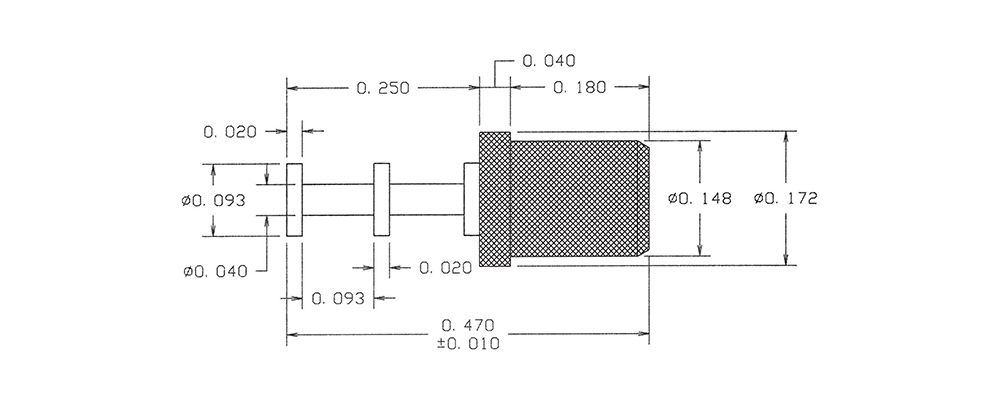

1102-22-0419
1102-22-0419
1102-22-0419
0.470" - - Press Fit 5/32 0.136 Brass Electro-Tin - - PTFE White YES
1102-26-0515
1102-26-0515
1102-26-0515
0.296" - - Press Fit 1/16 0.140 Brass Electro Solder - - PTFE Green NO

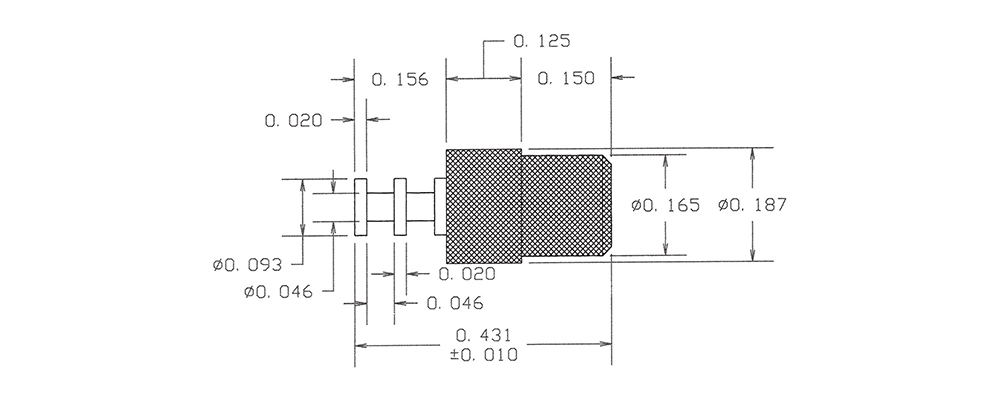

1102-31-0111
1102-31-0111
1102-31-0111
0.431" - - Press Fit 1/8 0.152 Brass Silver - - PTFE Brown NO

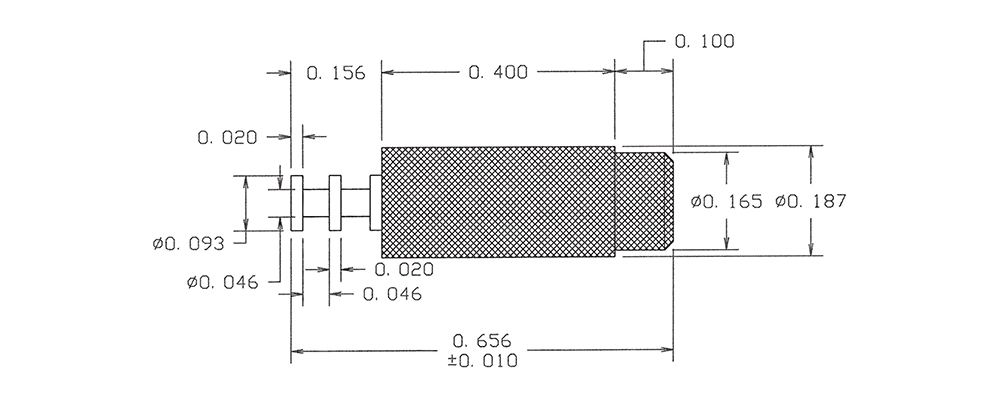

1102-35-0317
1102-35-0317
1102-35-0317
0.656" - - Press Fit 1/16 0.152 Brass Gold - - PTFE Violet YES

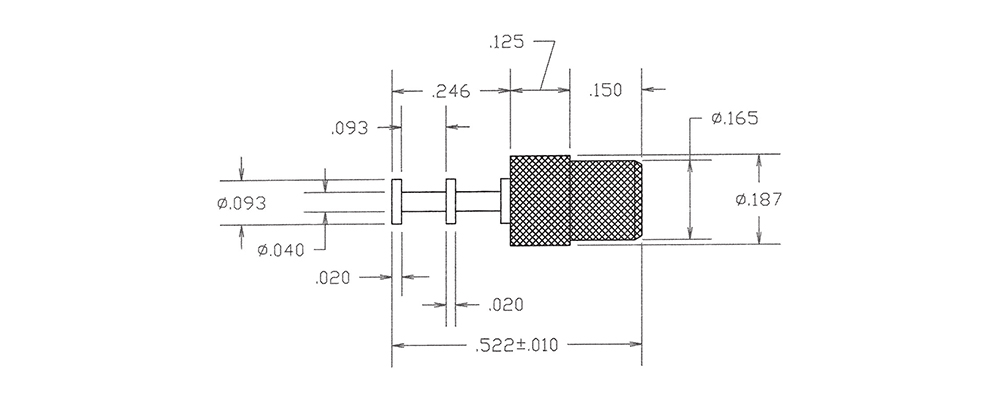

1102-40-04413
1102-40-04413
1102-40-04413
0.522" - - Press Fit 1/8 0.152 Brass Bright Tin - - PTFE Orange NO
