Commercial
Insulated
Pin Terminals

Filter

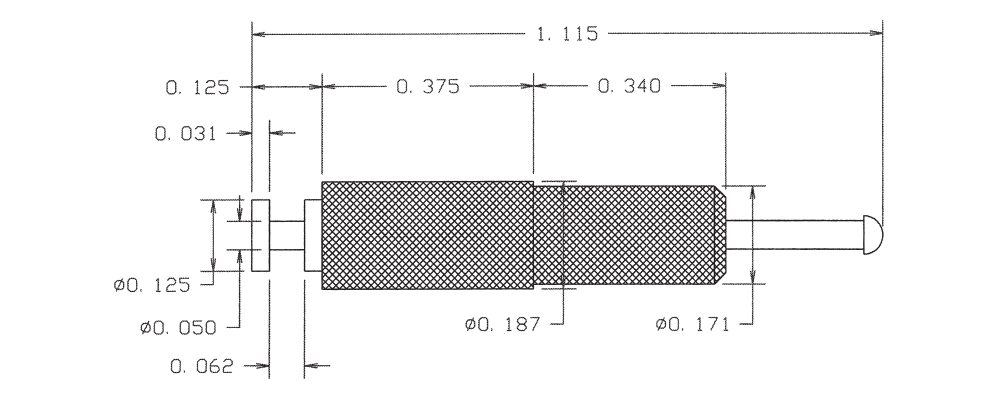

1121-20-0316
1121-20-0316
1121-20-0316
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Gold - - PTFE Blue YES

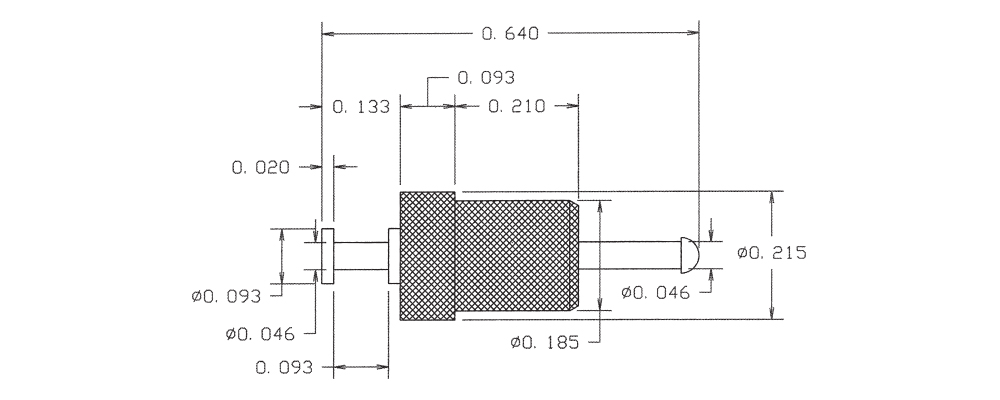

1121-24-04412
1121-24-04412
1121-24-04412
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin - - PTFE Red NO

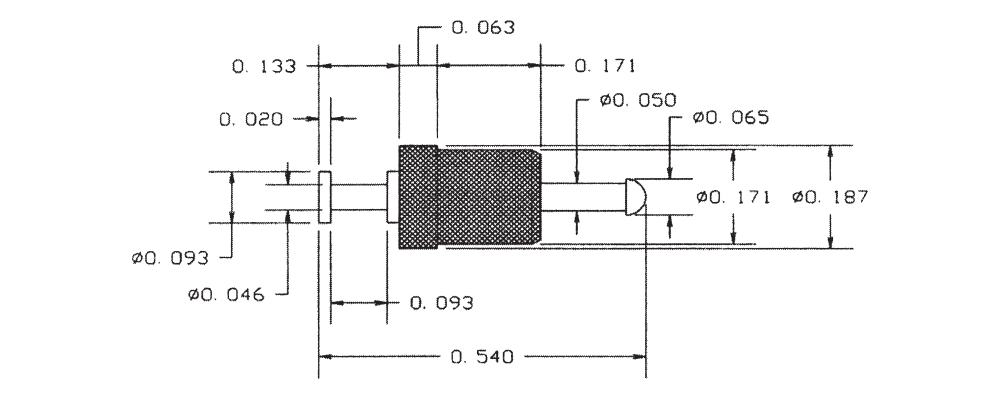

1121-30-0518
1121-30-0518
1121-30-0518
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Gray NO

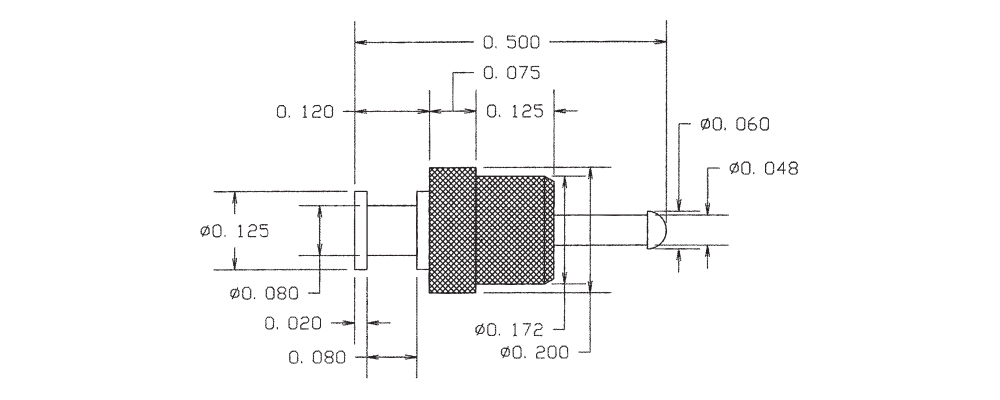

1121-52-0114
1121-52-0114
1121-52-0114
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Yellow NO

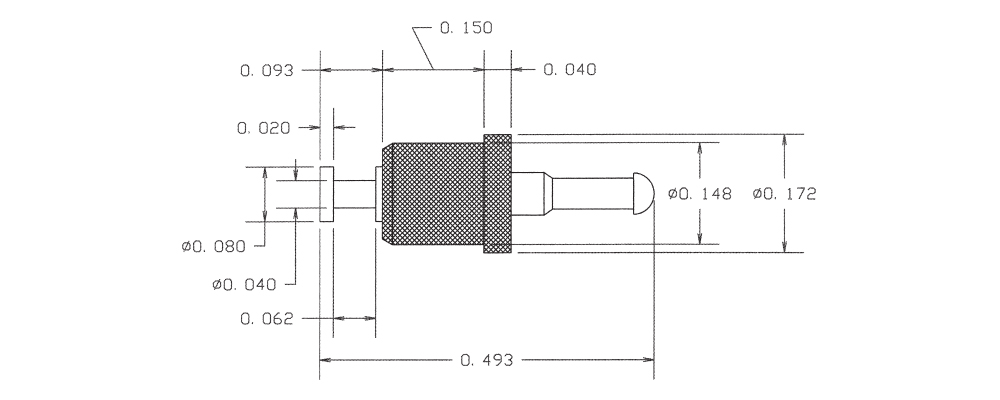

1121R-06-0410
1121R-06-0410
1121R-06-0410
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Black YES

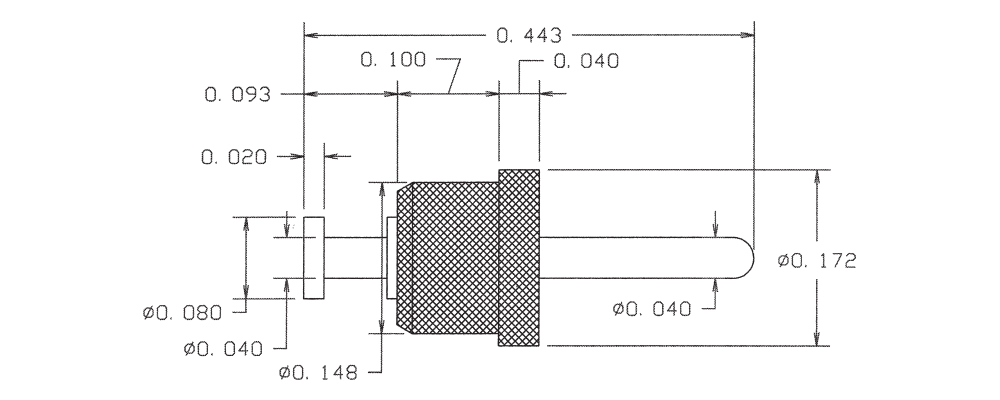

1121R-50-04416
1121R-50-04416
1121R-50-04416
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Blue YES
1123-03-08812
1123-03-08812
1123-03-08812
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Red NO

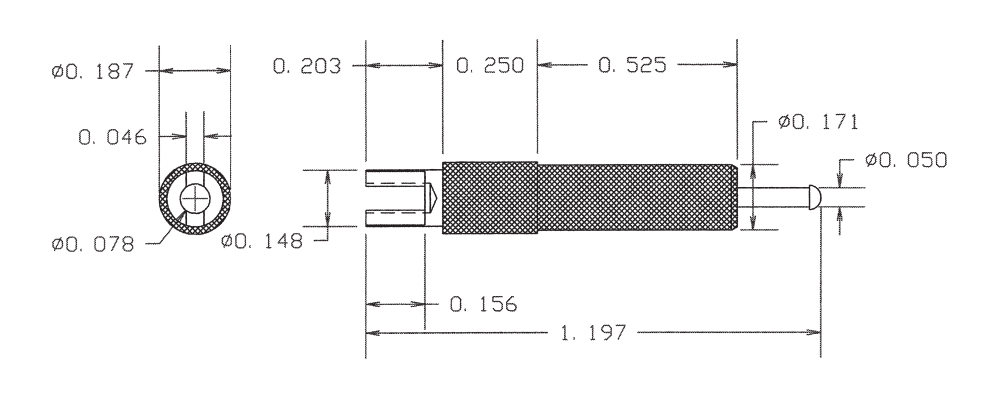

1123-08-0118
1123-08-0118
1123-08-0118
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Silver - - PTFE Gray NO

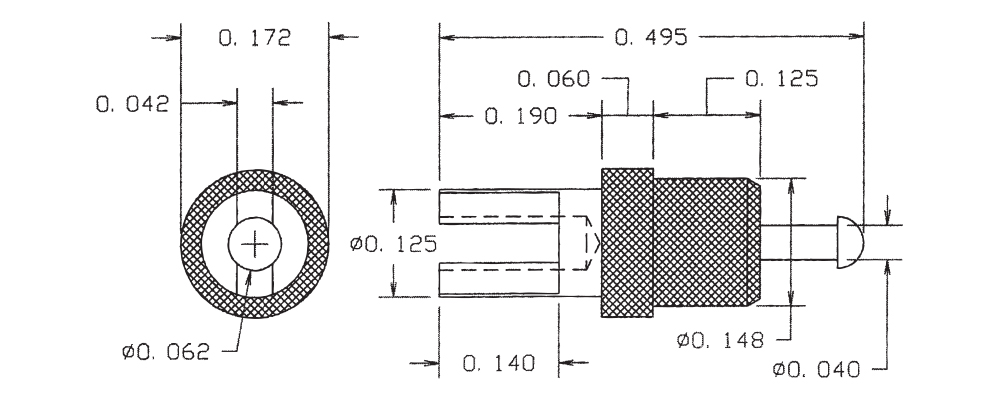

1123-72-0414
1123-72-0414
1123-72-0414
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Yellow NO

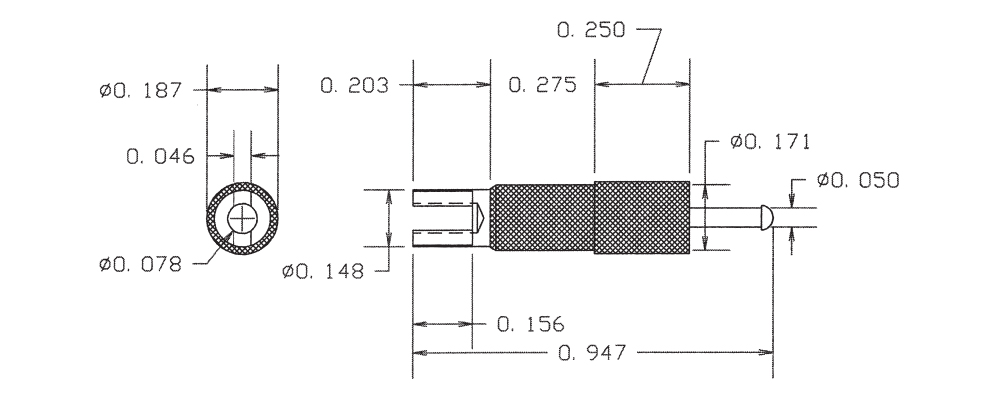

1123R-05-0510
1123R-05-0510
1123R-05-0510
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro Solder - - PTFE Black NO

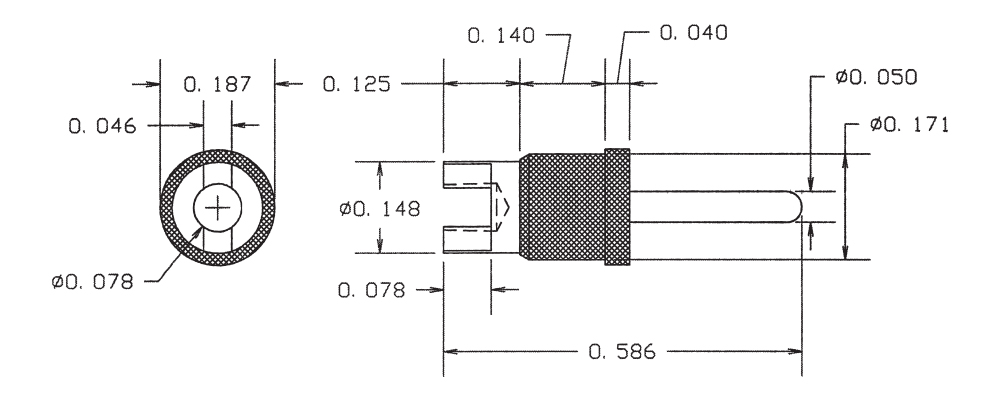

1123R-62-08816
1123R-62-08816
1123R-62-08816
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

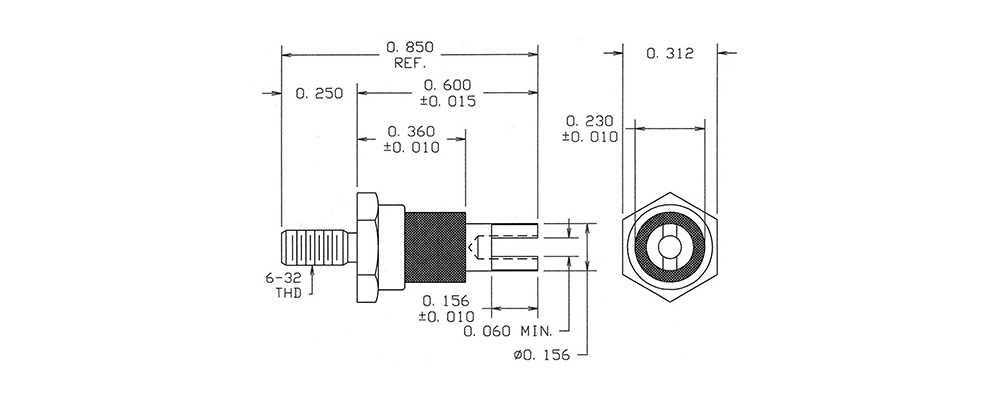

1125-35-0312
1125-35-0312
1125-35-0312
0.850" - - 6-32 Nut 1/8 0.144 Brass Gold Electro-Tin Brass PTFE Red NO

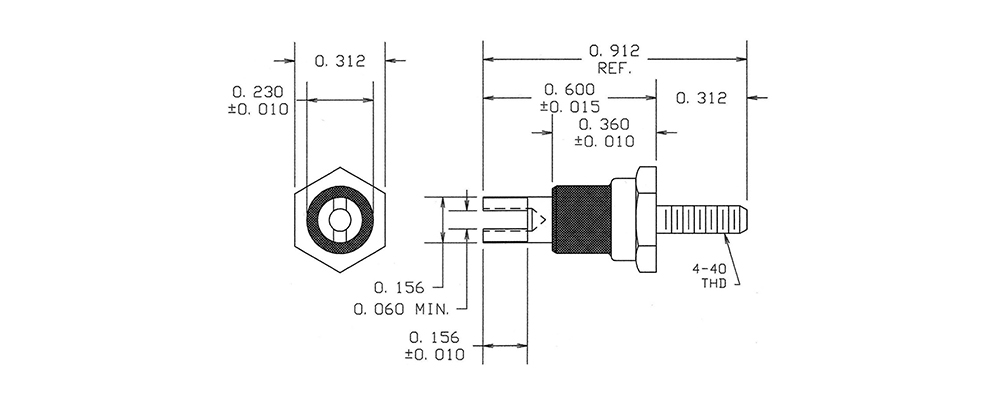

1125-40-0418
1125-40-0418
1125-40-0418
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Gray NO

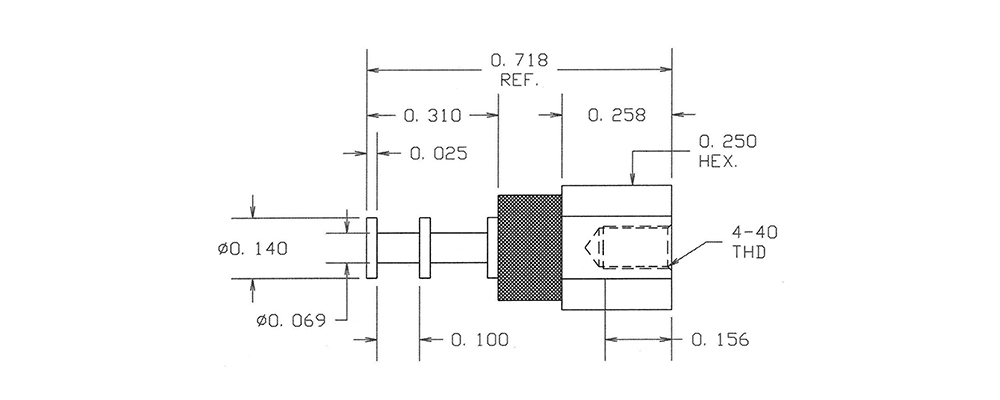

1125-44-0514
1125-44-0514
1125-44-0514
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE Yellow NO

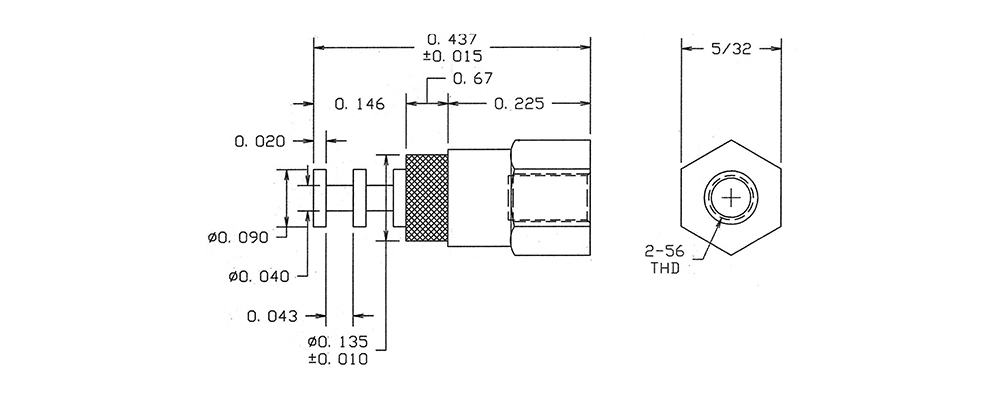

1125-49-0110
1125-49-0110
1125-49-0110
0.437" - - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Silver ZINC Brass PTFE Black YES

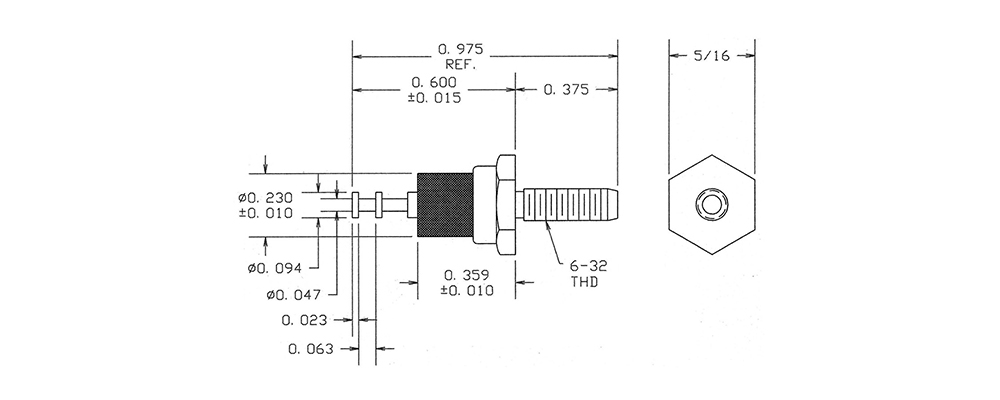

1125-53-0316
1125-53-0316
1125-53-0316
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Gold Electro-Tin Brass PTFE Blue YES

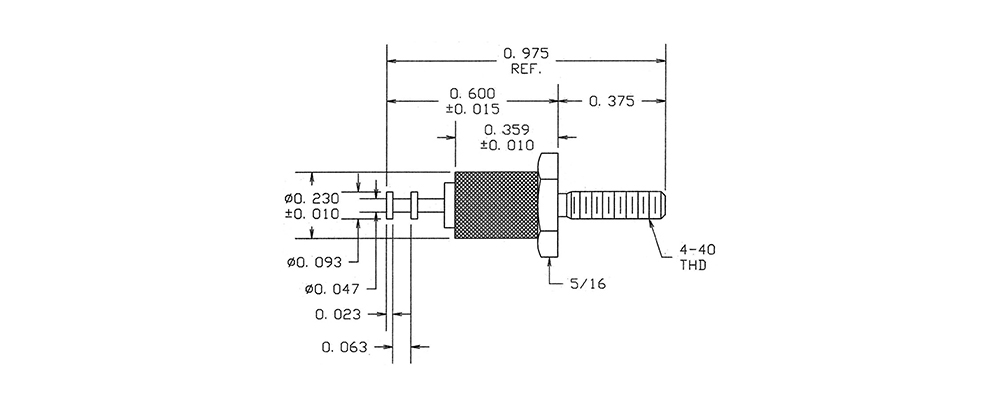

1125-57-04412
1125-57-04412
1125-57-04412
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Red NO

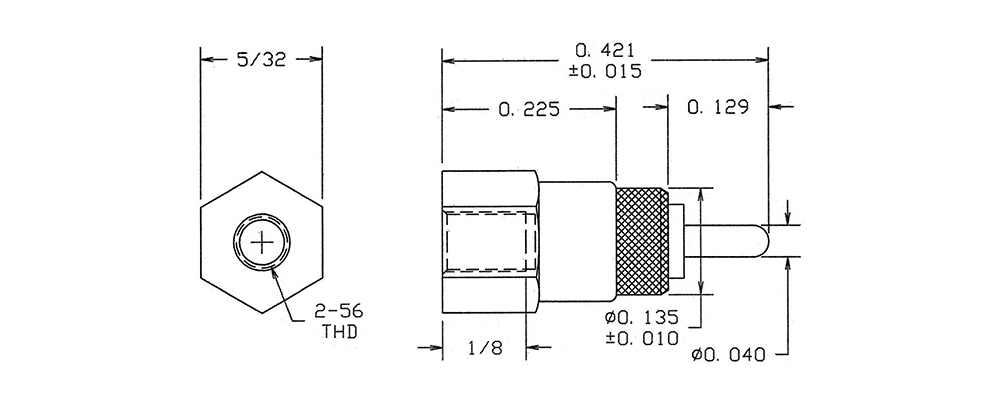

1125-62-0518
1125-62-0518
1125-62-0518
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Gray NO

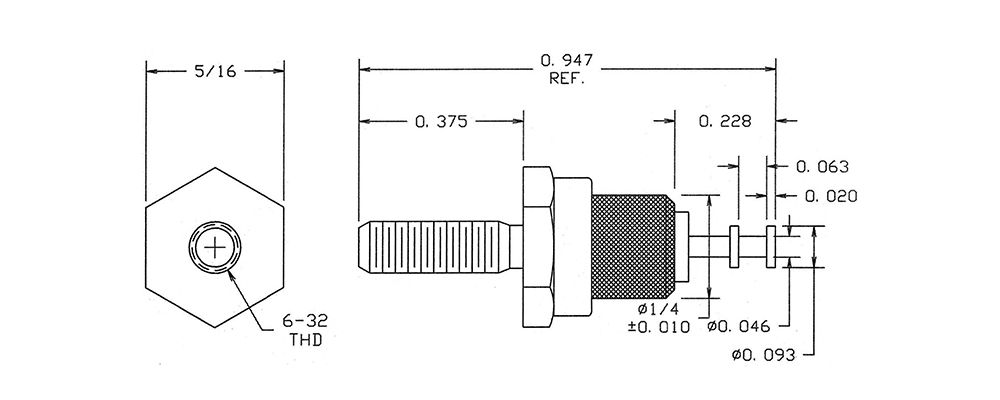

1125-74-0114
1125-74-0114
1125-74-0114
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass PTFE Yellow NO

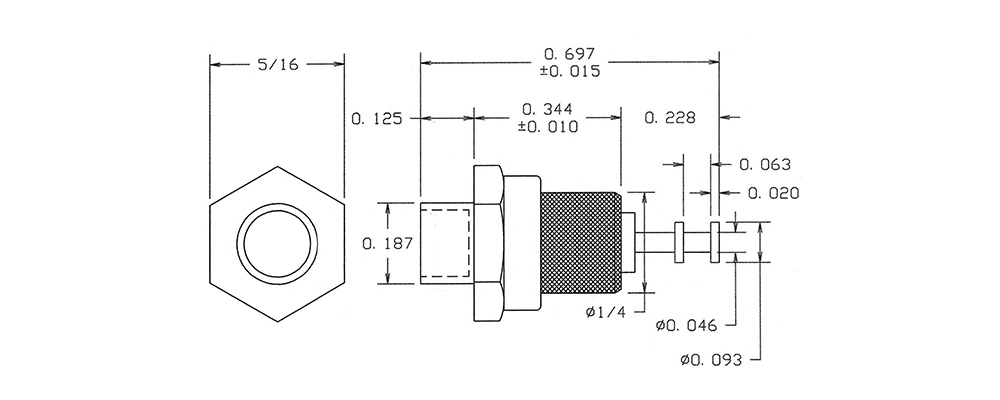

1125-78-0410
1125-78-0410
1125-78-0410
0.697" - - Swage Mount 3/32 0.194 Brass Electro-Tin ZINC Brass PTFE Black YES
