Commercial
Insulated
Pin Terminals

Filter

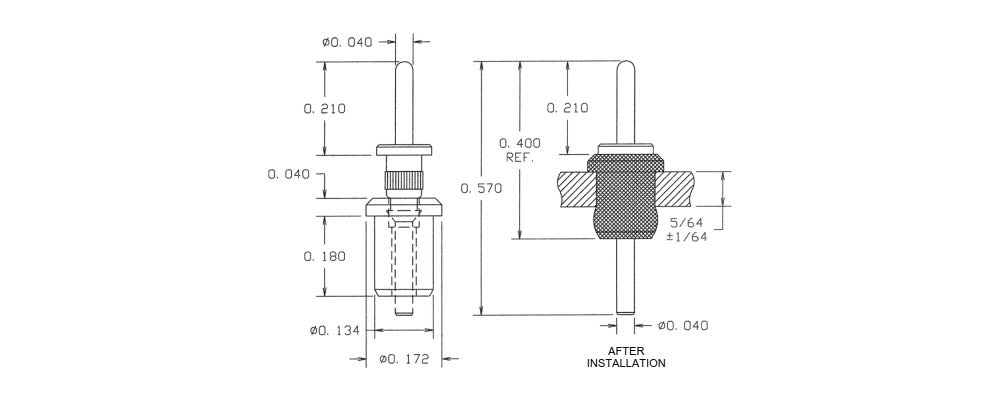

1177-56-08816
1177-56-08816
1177-56-08816
0.570" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO
1177-61-0312
1177-61-0312
1177-61-0312
0.446" 0.040 Pin/Pin PRESS LOCK 1/64 0.138 Brass Gold - - PTFE Red NO
1178R-03-0418
1178R-03-0418
1178R-03-0418
0.650" 0.040 Pin/Pin PRESS LOCK 1/16 - 3/32 0.134 Brass Electro-Tin - - PTFE Gray NO
1178R-10-0514
1178R-10-0514
1178R-10-0514
0.470" 0.040 Pin/Slotted PRESS LOCK 1/32 - 3/32 0.086 Brass Electro Solder - - PTFE Yellow NO
1178R-15-0110
1178R-15-0110
1178R-15-0110
0.390" - - PRESS LOCK 1/32 - 5/64 0.134 Brass Silver - - PTFE Black YES
1102R-95-0316
1102R-95-0316
1102R-95-0316
0.812" - - Press Fit 13/64 0.297 Brass Gold - - PTFE Blue YES
1125-02-04412
1125-02-04412
1125-02-04412
0.578" - - 2-56 Nut 7/64 0.094 Brass Bright Tin Electro-Tin Brass PTFE Red NO
1125-06-0518
1125-06-0518
1125-06-0518
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Gray NO
1125-11-0114
1125-11-0114
1125-11-0114
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Yellow NO
1125-15-0410
1125-15-0410
1125-15-0410
0.578" - - 4-40 Nut 7/64 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Black YES
1125-19-04416
1125-19-04416
1125-19-04416
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Blue YES
1125-23-08812
1125-23-08812
1125-23-08812
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Red NO
1125-28-0118
1125-28-0118
1125-28-0118
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Gray NO
09-2128-1-0414
09-2128-1-0414
09-2128-1-0414
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Yellow NO
1100-47-0510
1100-47-0510
1100-47-0510
0.350" 0.040 - Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Black NO
1100R-22-08816
1100R-22-08816
1100R-22-08816
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Blue NO

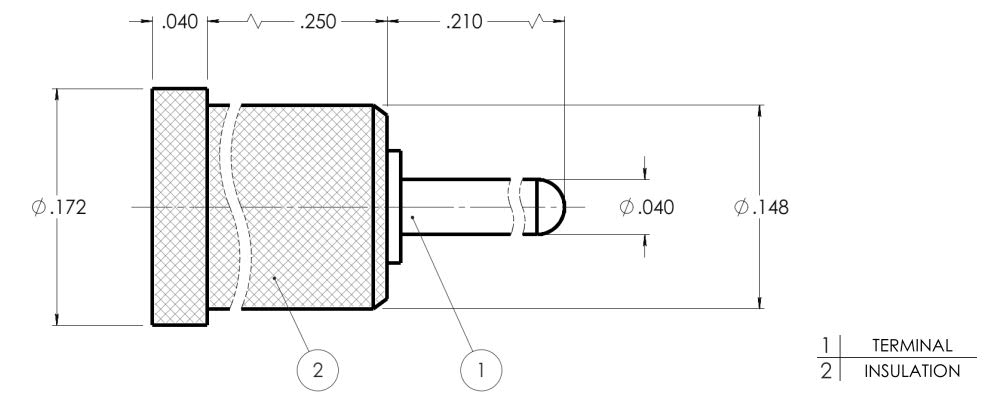

1100R-36-0312
1100R-36-0312
1100R-36-0312
0.390" 0.040 - Press Fit 3/32 0.136 Brass Gold - - PTFE Red NO

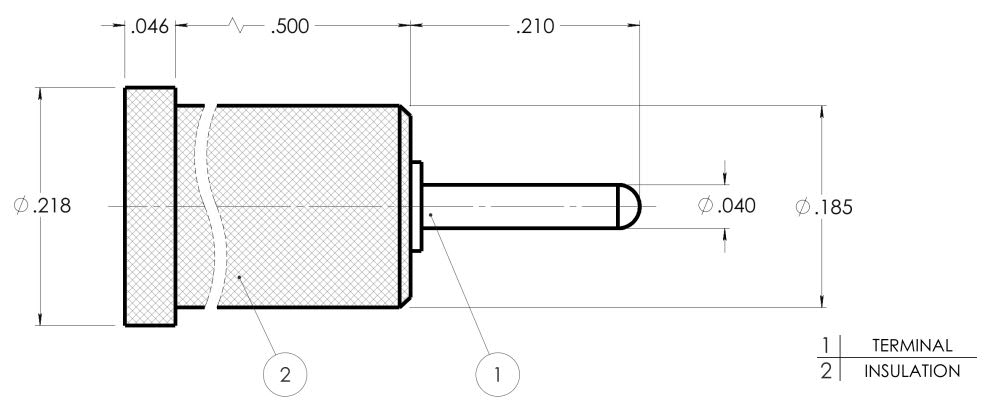

1100R-53-0418
1100R-53-0418
1100R-53-0418
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Gray NO
1100R-70-0514
1100R-70-0514
1100R-70-0514
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Yellow NO
09-2010-1-0114
09-2010-1-0114
09-2010-1-0114
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Yellow NO
