Commercial
Insulated
Pin Terminals

Filter
1151R-09-0413
1151R-09-0413
1151R-09-0413
0.390" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

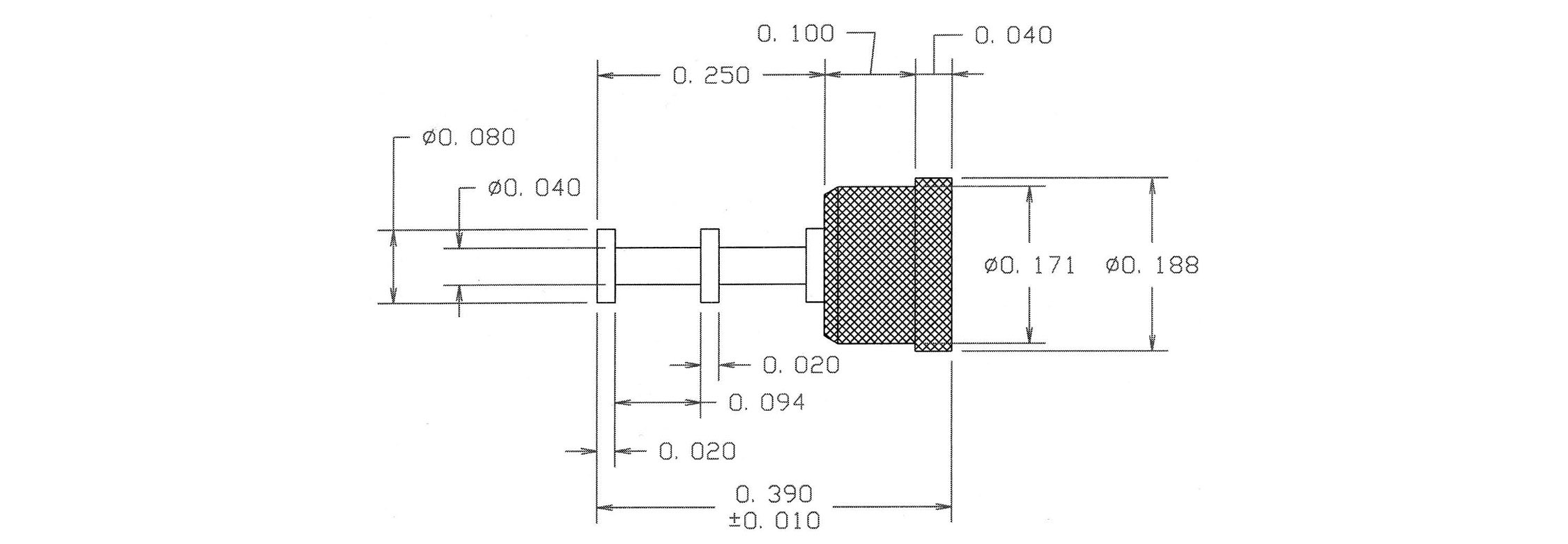

1151R-38-04419
1151R-38-04419
1151R-38-04419
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE White YES

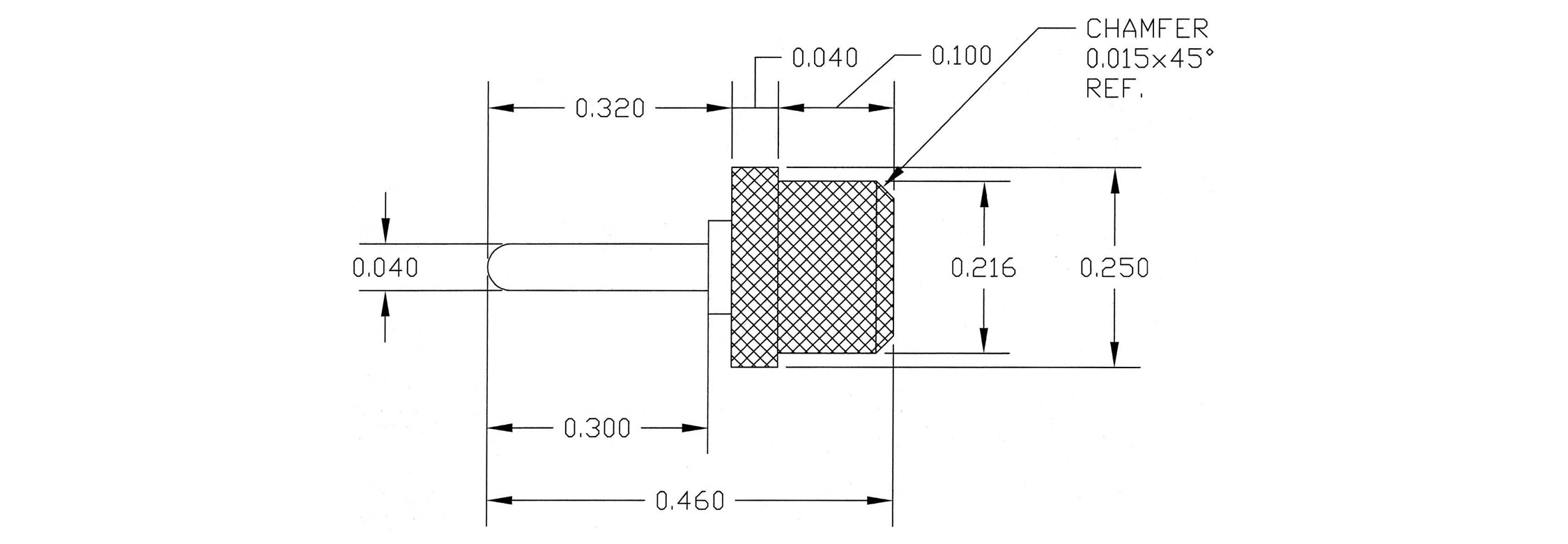

1152-29-08815
1152-29-08815
1152-29-08815
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin-Lead - - PTFE Green NO
1152R-17-0311
1152R-17-0311
1152R-17-0311
0.615" 0.040 - Press Fit 1/8 0.136 Brass Gold - - PTFE Brown NO
1153-06-0417
1153-06-0417
1153-06-0417
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1153-31-0513
1153-31-0513
1153-31-0513
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Orange NO

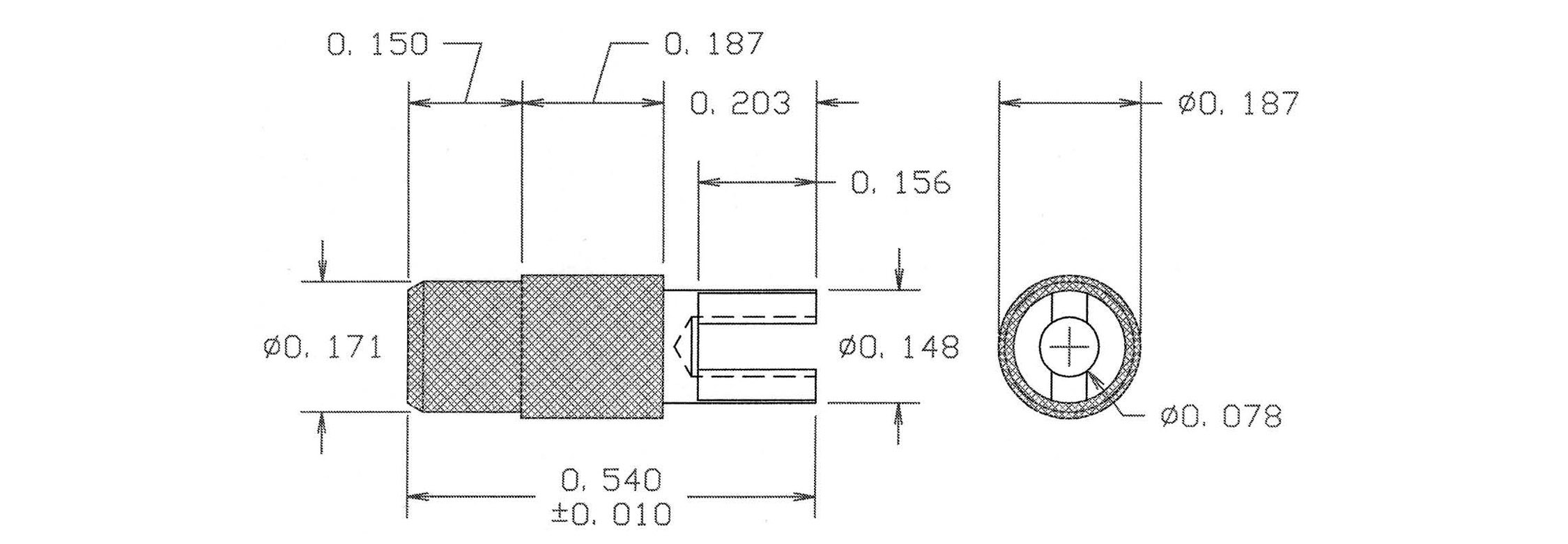

1154-08-08819
1154-08-08819
1154-08-08819
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE White NO
1154-44-0315
1154-44-0315
1154-44-0315
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Green YES
1155-01-04411
1155-01-04411
1155-01-04411
0.427" - - Press Fit Up to 3/16 0.204 Brass Bright Tin - - PTFE Brown NO
1155-07-0517
1155-07-0517
1155-07-0517
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Violet NO
1156-02-0113
1156-02-0113
1156-02-0113
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1156-07-0319
1156-07-0319
1156-07-0319
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE White YES
1156-14-04415
1156-14-04415
1156-14-04415
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Green YES

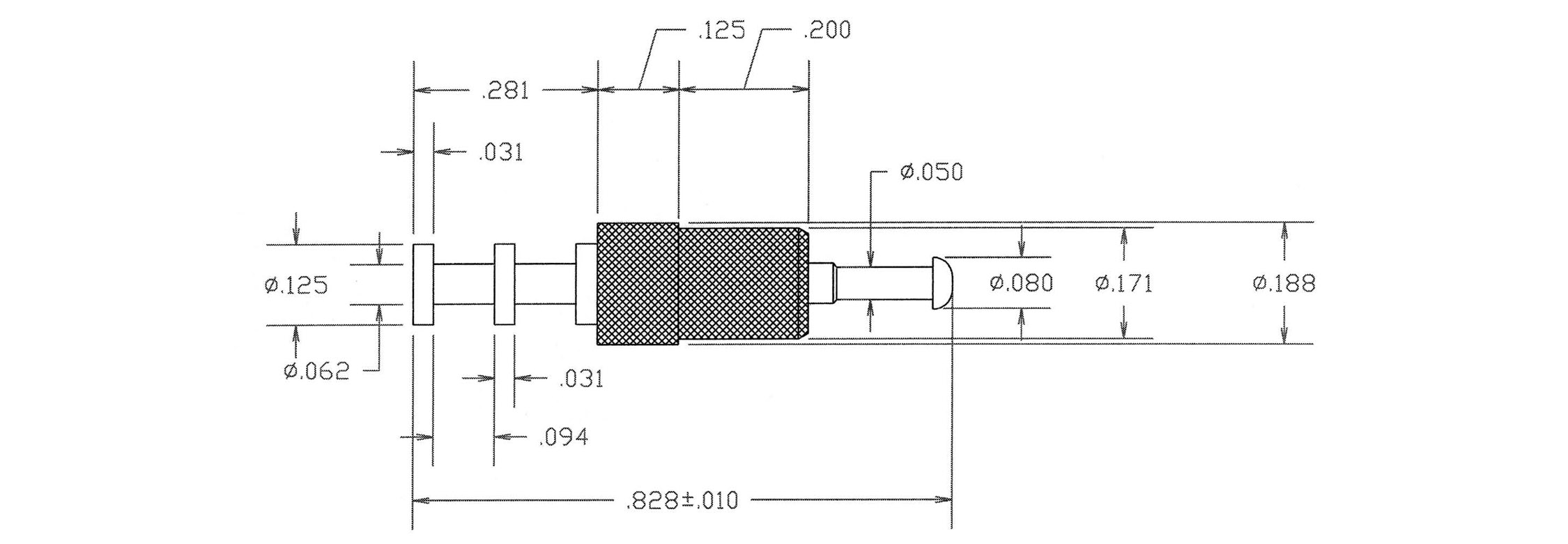

1156-18-08811
1156-18-08811
1156-18-08811
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Bright Tin-Lead - - PTFE Brown NO

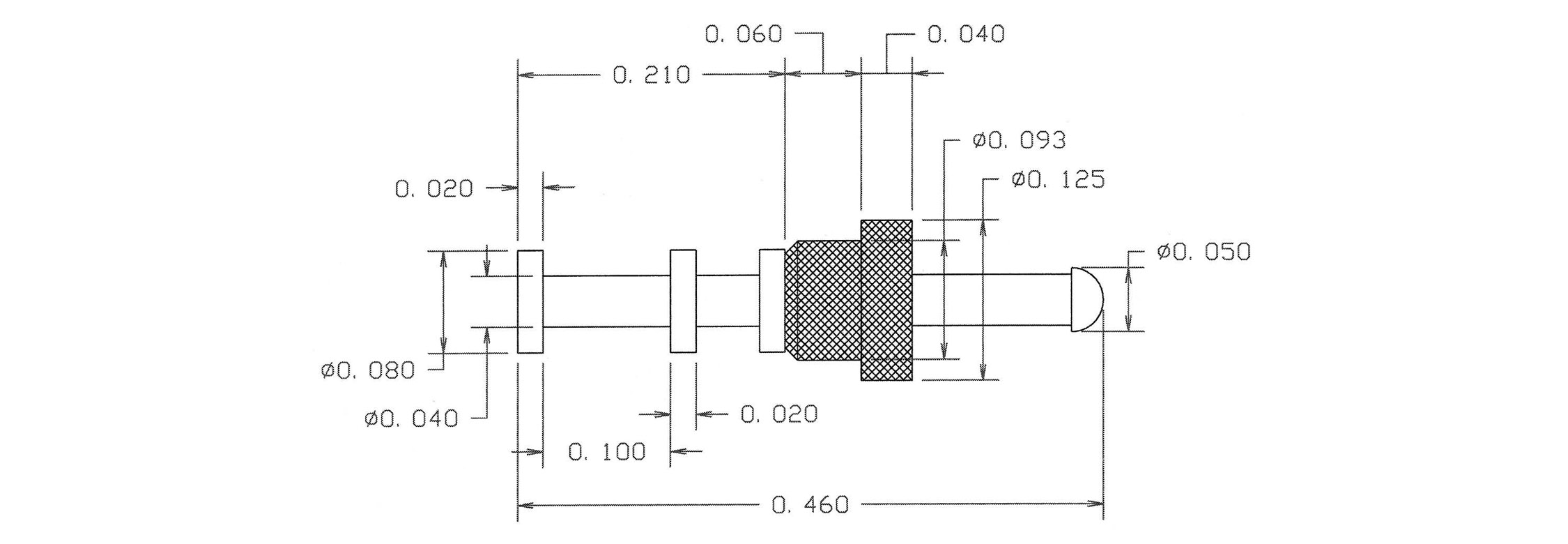

1156R-01-0117
1156R-01-0117
1156R-01-0117
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Violet YES
1157-01-0413
1157-01-0413
1157-01-0413
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1157-06-04419
1157-06-04419
1157-06-04419
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE White YES

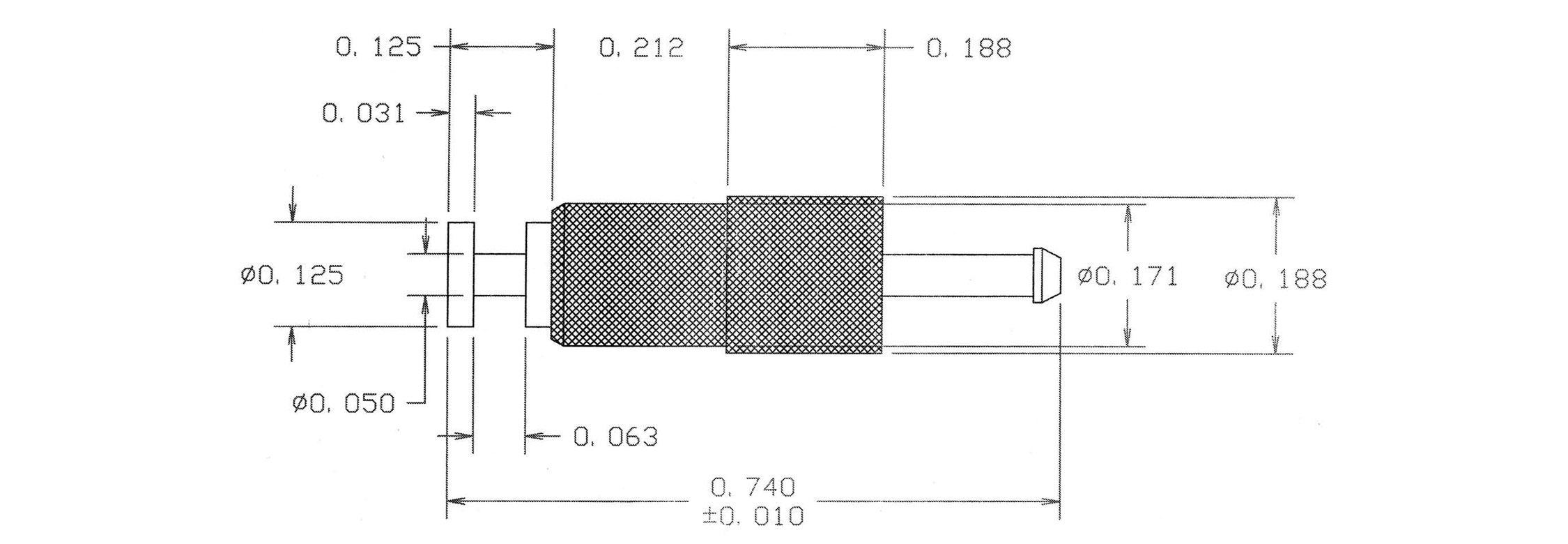

1157R-04-08815
1157R-04-08815
1157R-04-08815
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1160-13-0311
1160-13-0311
1160-13-0311
0.367" 0.085 - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO
1167-20-0417
1167-20-0417
1167-20-0417
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Violet YES
