Commercial
Insulated
Pin Terminals

Filter

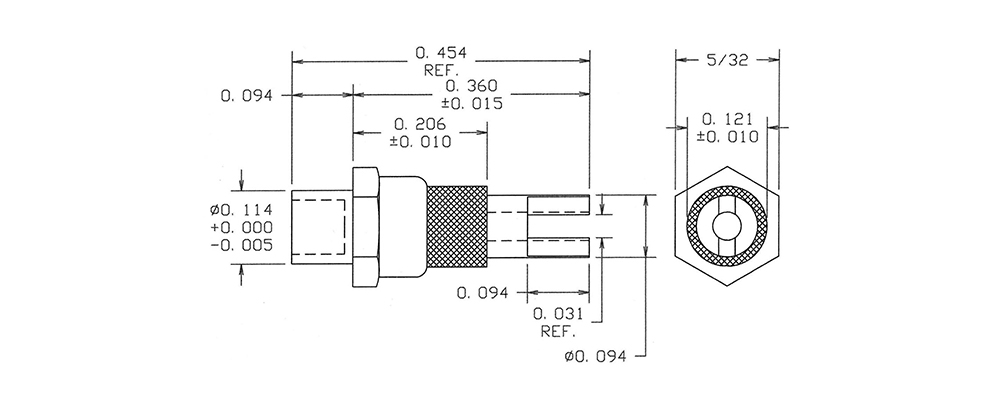

1125-11-0113
1125-11-0113
1125-11-0113
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Orange NO

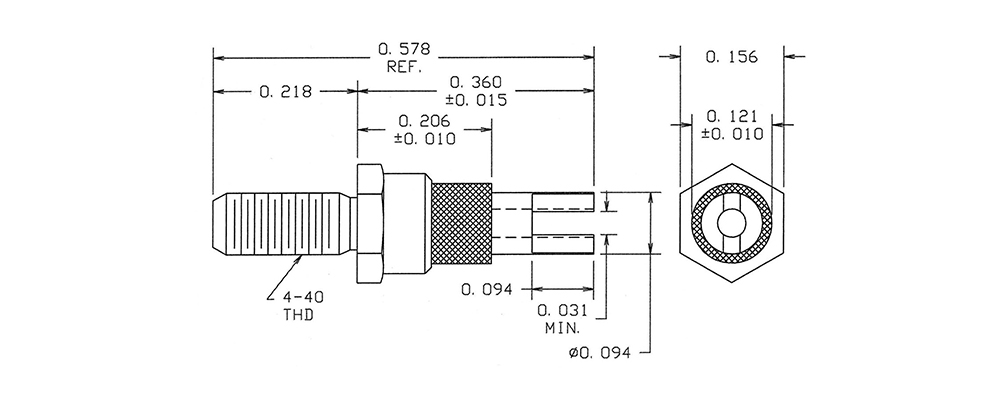

1125-15-0319
1125-15-0319
1125-15-0319
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE White YES

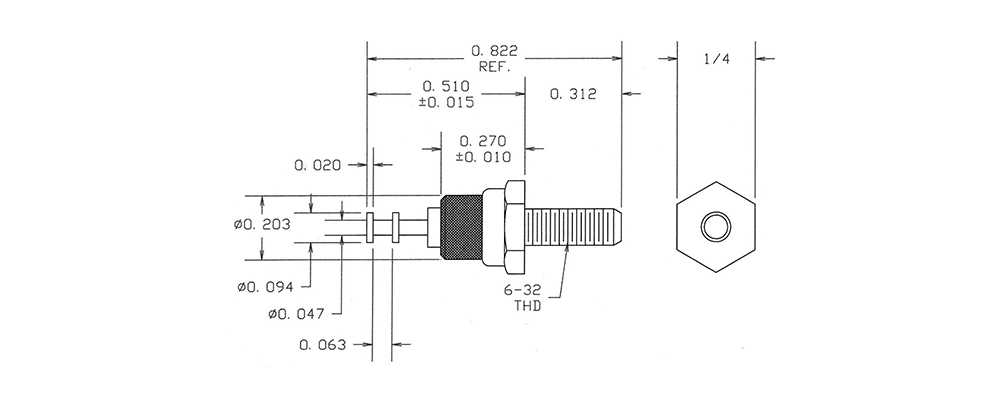

1125-19-04415
1125-19-04415
1125-19-04415
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Green YES

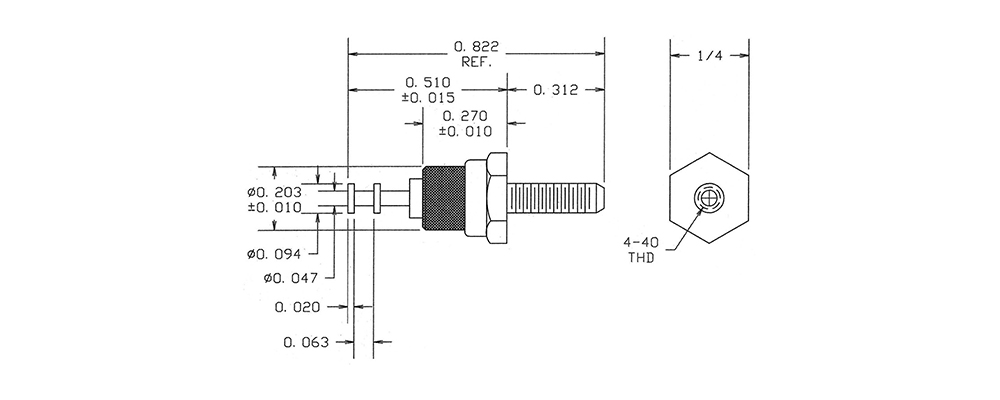

1125-23-08811
1125-23-08811
1125-23-08811
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Bright Tin-Lead Electro-Tin Brass PTFE Brown NO

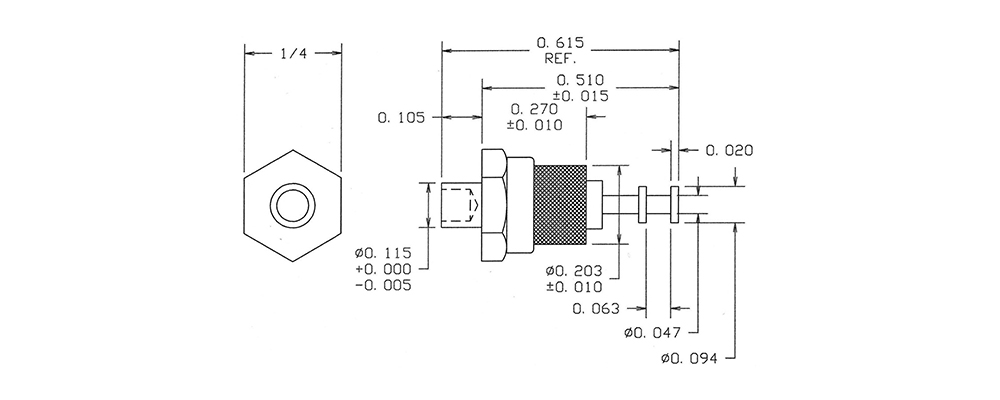

1125-28-0117
1125-28-0117
1125-28-0117
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Violet YES
09-2128-1-0413
09-2128-1-0413
09-2128-1-0413
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO
1100-47-04419
1100-47-04419
1100-47-04419
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE White YES

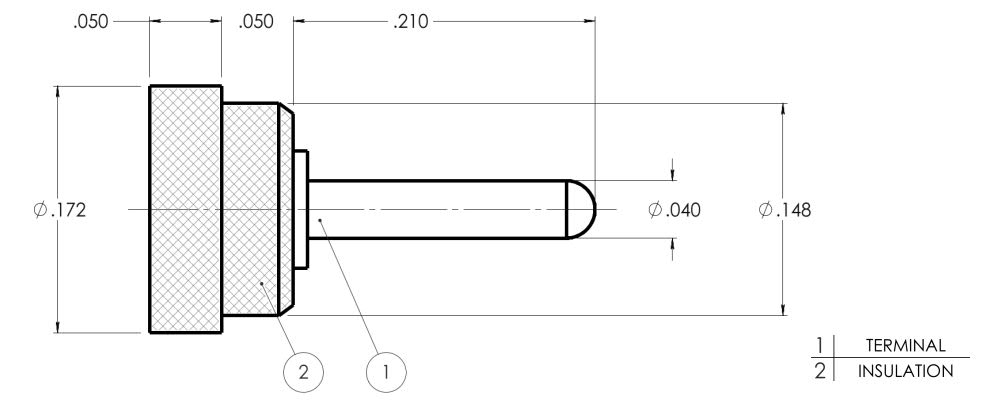

1100R-22-08815
1100R-22-08815
1100R-22-08815
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1100R-36-0311
1100R-36-0311
1100R-36-0311
0.390" 0.040 - Press Fit 3/32 0.136 Brass Gold - - PTFE Brown NO
1100R-53-0417
1100R-53-0417
1100R-53-0417
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Violet YES
1100R-70-0513
1100R-70-0513
1100R-70-0513
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Orange NO
09-2010-1-0113
09-2010-1-0113
09-2010-1-0113
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Orange NO
1102-44-0110
1102-44-0110
1102-44-0110
0.750" - - Press Fit 1/16 0.152 Brass Silver - - PTFE Black YES
09-2078-1-0410
09-2078-1-0410
09-2078-1-0410
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Electro-Tin - - PTFE Black YES
1110-39-0316
1110-39-0316
1110-39-0316
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Gold - - PTFE Blue YES

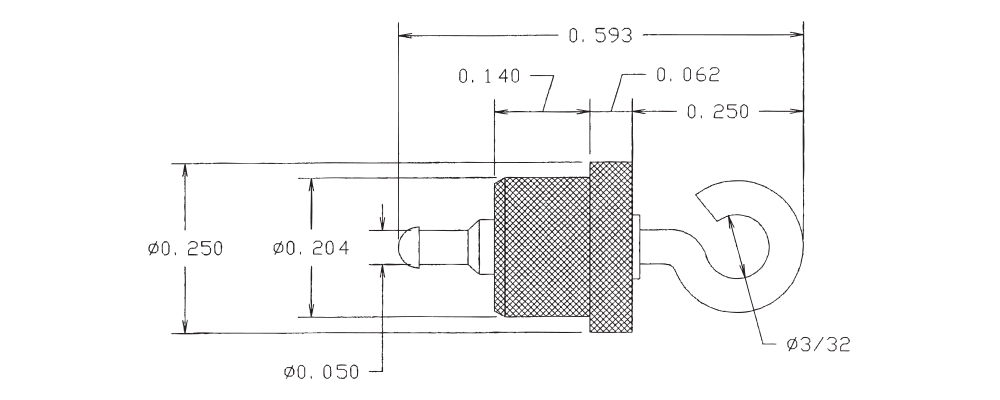

09-2094-1-04416
09-2094-1-04416
09-2094-1-04416
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin - - PTFE Blue YES
1111-19-04412
1111-19-04412
1111-19-04412
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Bright Tin - - PTFE Red NO
09-2101-1-08812
09-2101-1-08812
09-2101-1-08812
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Bright Tin-Lead - - PTFE Red NO
1112-05-0518
1112-05-0518
1112-05-0518
0.200" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Gray NO
09-2112-1-0118
09-2112-1-0118
09-2112-1-0118
0.838" - - 6-32 Nut 1/8 0.144 Brass Silver Nickel Brass PTFE Gray NO
