Commercial
Insulated
Pin Terminals

Filter
1115R-02-0113
1115R-02-0113
1115R-02-0113
0.282" 0.040 - Press Fit 1/32 0.136 Brass Silver - - PTFE Orange NO
1116-26-0319
1116-26-0319
1116-26-0319
0.281" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1117-15-04415
1117-15-04415
1117-15-04415
0.990" - Double Turret/Double Turret 10-32 Nut 1/8 0.196 Brass Bright Tin Nickel Brass PTFE Green YES
1117-19-08811
1117-19-08811
1117-19-08811
1.000" - Double Turret/Double Turret 1/4-28 Nut 1/8 0.257 Brass Bright Tin-Lead Nickel Brass PTFE Brown NO
1117-54-0117
1117-54-0117
1117-54-0117
0.785" 0.029 Pin/Pin 4-40 Nut 1/16 0.120 Brass Silver Nickel Brass PTFE Violet YES
1118-32-0413
1118-32-0413
1118-32-0413
0.346" - TURRET/SLOTTED Press Fit 3/32 0.093 Brass Electro-Tin - - PTFE Orange NO
1119-22-04419
1119-22-04419
1119-22-04419
1.500" 0.030 TURRET/PIN Press Fit 3/32 0.070 Brass Bright Tin - - PTFE White YES
1119-32-08815
1119-32-08815
1119-32-08815
0.836" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Green NO
1121-02-0311
1121-02-0311
1121-02-0311
0.350" 0.040 Turret/Tip Press Fit 1/32 0.113 Brass Gold - - PTFE Brown NO
1121-06-0417
1121-06-0417
1121-06-0417
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Violet YES
1121-11-0513
1121-11-0513
1121-11-0513
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Electro Solder - - PTFE Orange NO

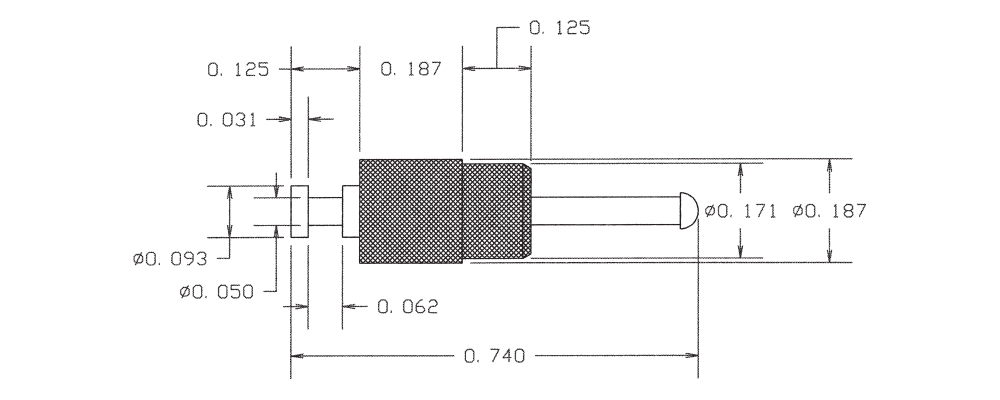

1121-15-08819
1121-15-08819
1121-15-08819
0.740" 0.050 Turret/Tip Press Fit 3/32 0.158 Brass Bright Tin-Lead - - PTFE White NO
1121-20-0315
1121-20-0315
1121-20-0315
1.115" 0.050 Turret/Tip Press Fit 9/32 0.158 Brass Gold - - PTFE Green YES
1121-24-04411
1121-24-04411
1121-24-04411
0.640" 0.046 Turret/Tip Press Fit Up to 3/16 0.172 Brass Bright Tin - - PTFE Brown NO
1121-30-0517
1121-30-0517
1121-30-0517
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Electro Solder - - PTFE Violet NO
1121-52-0113
1121-52-0113
1121-52-0113
0.500" 0.048 Turret/Tip Press Fit 3/32 0.158 Brass Silver - - PTFE Orange NO
1121R-06-0319
1121R-06-0319
1121R-06-0319
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE White YES
1121R-50-04415
1121R-50-04415
1121R-50-04415
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Green YES
1123-03-08811
1123-03-08811
1123-03-08811
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1123-08-0117
1123-08-0117
1123-08-0117
1.197" 0.050 TIP/SLOTTED Press Fit 15/32 0.158 Brass Silver - - PTFE Violet YES
