Commercial
Insulated
Pin Terminals

Filter
1111-50-0513
1111-50-0513
1111-50-0513
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Orange NO
1111-57-08819
1111-57-08819
1111-57-08819
0.680" 0.040 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE White NO
1111R-09-0315
1111R-09-0315
1111R-09-0315
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Gold - - PTFE Green YES
1111R-14-04411
1111R-14-04411
1111R-14-04411
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Brown NO
1112-06-0517
1112-06-0517
1112-06-0517
0.233" - - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Violet NO
1112-14-0113
1112-14-0113
1112-14-0113
0.293" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1112-65-0319
1112-65-0319
1112-65-0319
0.155" - - Press Fit 1/32 0.058 Brass Gold - - PTFE White YES

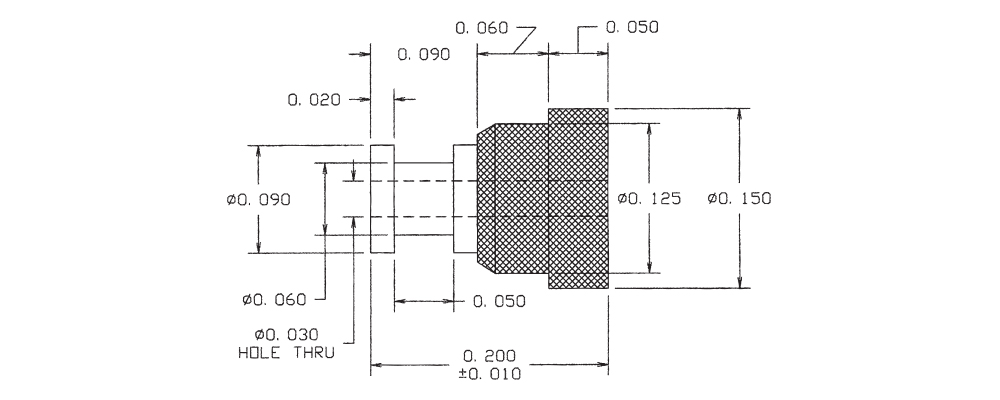

1112R-05-04415
1112R-05-04415
1112R-05-04415
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Green YES
1112R-61-08811
1112R-61-08811
1112R-61-08811
0.200" - - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Brown NO
1113-03-0117
1113-03-0117
1113-03-0117
0.333" - - Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1113-57-0413
1113-57-0413
1113-57-0413
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1114-03-04419
1114-03-04419
1114-03-04419
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin - - PTFE White YES

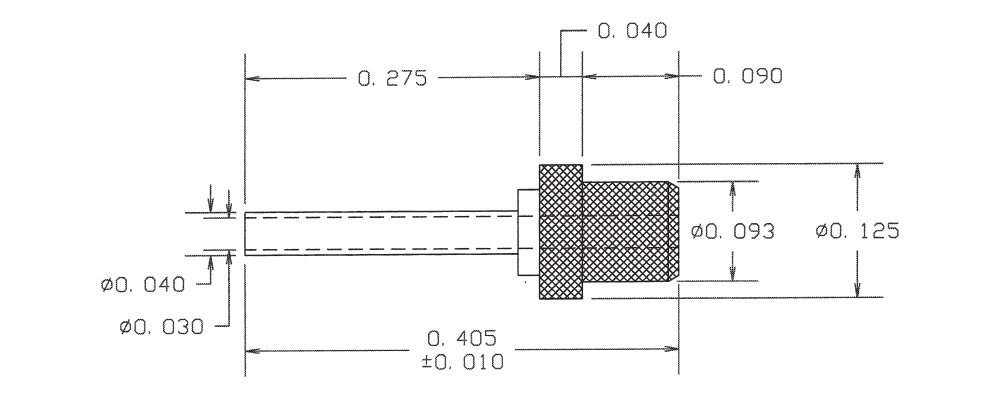

1114-07-08815
1114-07-08815
1114-07-08815
0.405" 0.040 - Press Fit 1/32 0.086 Brass Bright Tin-Lead - - PTFE Green NO
1114-50-0311
1114-50-0311
1114-50-0311
0.270" 0.060 - Press Fit 1/16 0.136 Brass Gold - - PTFE Brown NO
1114-74-0417
1114-74-0417
1114-74-0417
0.367" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Violet YES
1114R-12-0513
1114R-12-0513
1114R-12-0513
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Orange NO

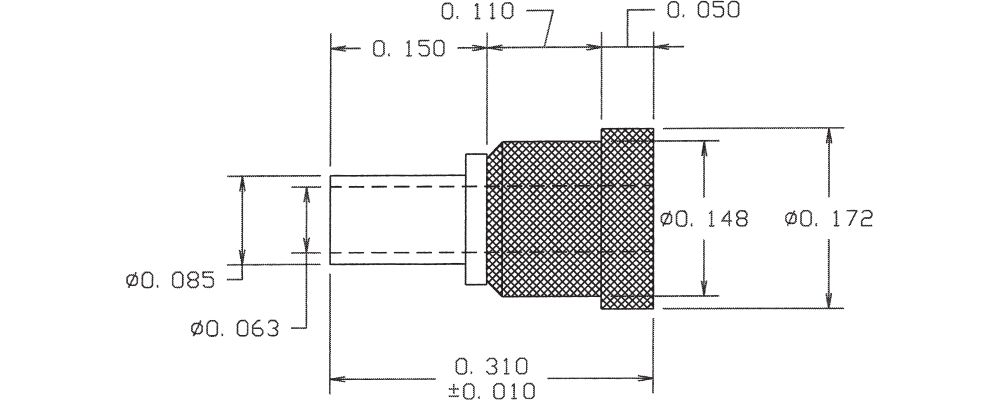

1114R-19-08819
1114R-19-08819
1114R-19-08819
0.310" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE White NO
1114R-80-0315
1114R-80-0315
1114R-80-0315
0.380" 0.055 - Press Fit 1/32 0.136 Brass Gold - - PTFE Green YES
1115-06-04411
1115-06-04411
1115-06-04411
0.367" 0.040 - Press Fit 1/16 0.187 Brass Bright Tin - - PTFE Brown NO
1115-50-0517
1115-50-0517
1115-50-0517
0.353" - - Press Fit 3/32 0.187 Brass Electro Solder - - PTFE Violet NO
