Commercial
Insulated
Pin Terminals

Filter
1123-72-0413
1123-72-0413
1123-72-0413
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Electro-Tin - - PTFE Orange NO
1123R-05-04419
1123R-05-04419
1123R-05-04419
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Bright Tin - - PTFE White YES
1123R-62-08815
1123R-62-08815
1123R-62-08815
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1125-35-0311
1125-35-0311
1125-35-0311
0.850" - - 6-32 Nut 1/8 0.144 Brass Gold Electro-Tin Brass PTFE Brown NO
1125-40-0417
1125-40-0417
1125-40-0417
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Violet YES
1125-44-0513
1125-44-0513
1125-44-0513
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro Solder ZINC Brass PTFE Orange NO

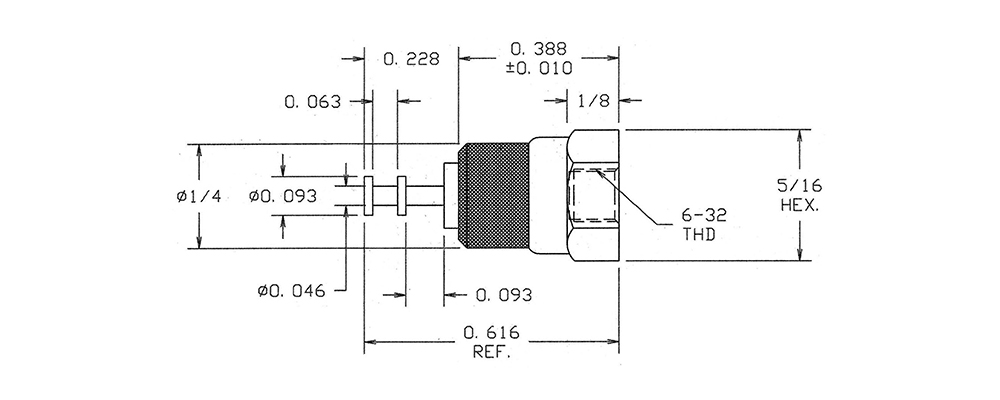

1125-48-08819
1125-48-08819
1125-48-08819
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE White NO
1125-53-0315
1125-53-0315
1125-53-0315
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Gold Electro-Tin Brass PTFE Green YES
1125-57-04411
1125-57-04411
1125-57-04411
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Bright Tin Electro-Tin Brass PTFE Brown NO
1125-62-0517
1125-62-0517
1125-62-0517
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Electro Solder ZINC Brass PTFE Violet NO
1125-74-0113
1125-74-0113
1125-74-0113
0.947" - - 6-32 Nut Up to 1/4 0.144 Brass Silver ZINC Brass PTFE Orange NO
1125-78-0319
1125-78-0319
1125-78-0319
0.697" - - Swage Mount 3/32 0.194 Brass Gold ZINC Brass PTFE White YES
1125-83-04415
1125-83-04415
1125-83-04415
0.725" - - Swage Mount 3/32 0.191 Brass Bright Tin Electro-Tin Brass PTFE Green YES
1125-87-08811
1125-87-08811
1125-87-08811
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Bright Tin-Lead ZINC Brass PTFE Brown NO
1125-93-0117
1125-93-0117
1125-93-0117
0.594" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Silver ZINC Brass PTFE Violet YES
1125-97-0413
1125-97-0413
1125-97-0413
0.672" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Orange NO
1126-27-04419
1126-27-04419
1126-27-04419
0.484" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE White YES
1126-33-08815
1126-33-08815
1126-33-08815
1.172" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin-Lead ZINC Brass PTFE Green NO
1126-38-0311
1126-38-0311
1126-38-0311
1.469" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass PTFE Brown NO
1126-42-0417
1126-42-0417
1126-42-0417
0.766" - - 6-32 Nut 1/8 0.144 Brass Electro-Tin ZINC Brass PTFE Violet YES
