Commercial
Non-Insulated
Terminals

Filter

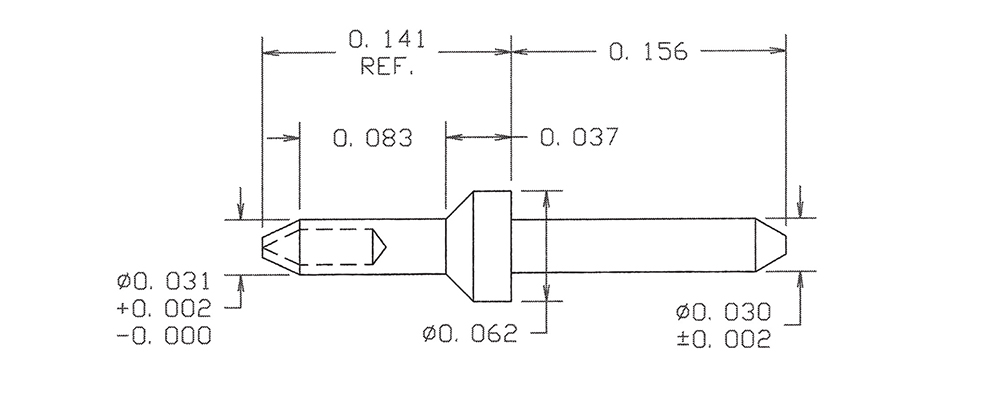

09-7115-2-05
09-7115-2-05
09-7115-2-05
0.297" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro Solder NO

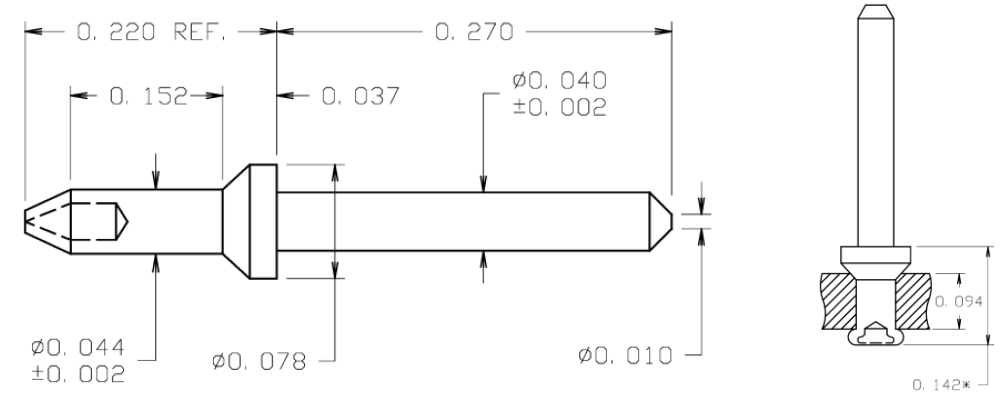

09-7148-3-035
09-7148-3-035
09-7148-3-035
0.453" 0.040 - RIVET MOUNT 0.152" 3/32 0.048 Brass Gold YES

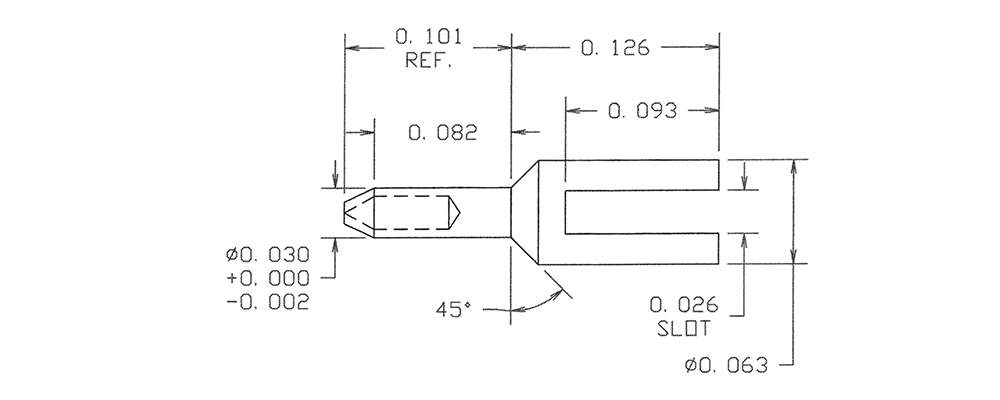

09-7180-2-088
09-7180-2-088
09-7180-2-088
0.227" - - RIVET MOUNT 0.083" 1/16 0.032 Brass Bright Tin-Lead NO

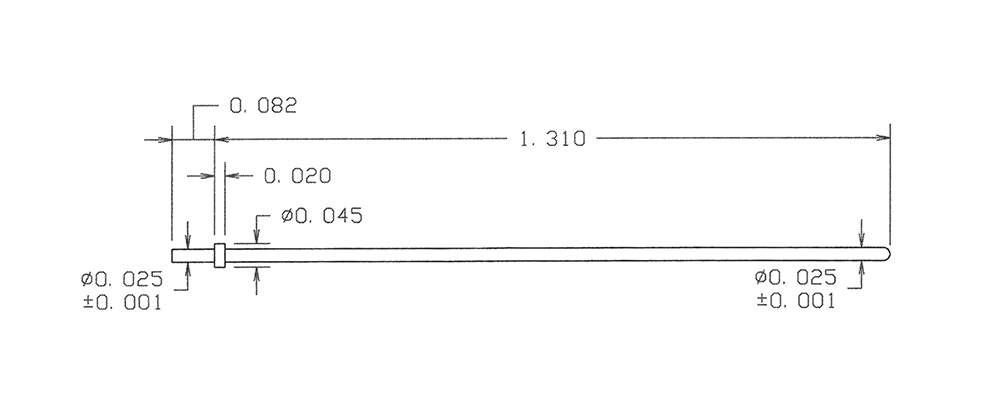

09-8021-2-04
09-8021-2-04
09-8021-2-04
1.392" 0.025 - Solder 0.082" 1/16 0.028 Brass Electro-Tin YES

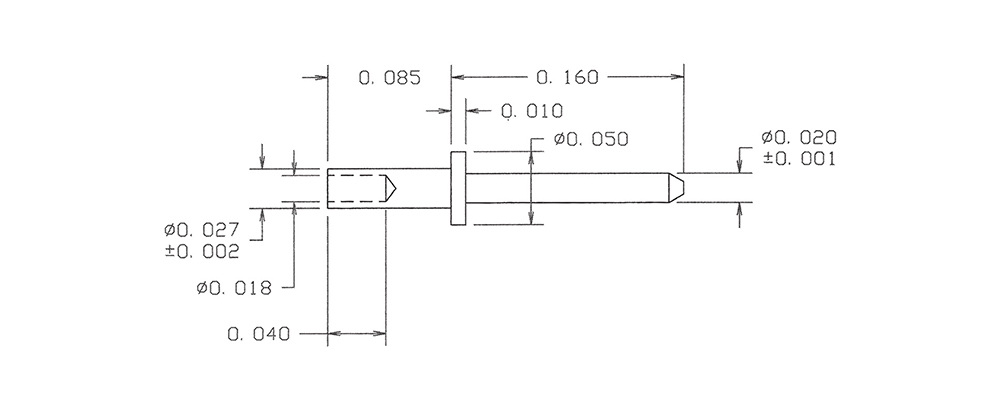

09-8056-2-088
09-8056-2-088
09-8056-2-088
0.245" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Bright Tin-Lead NO

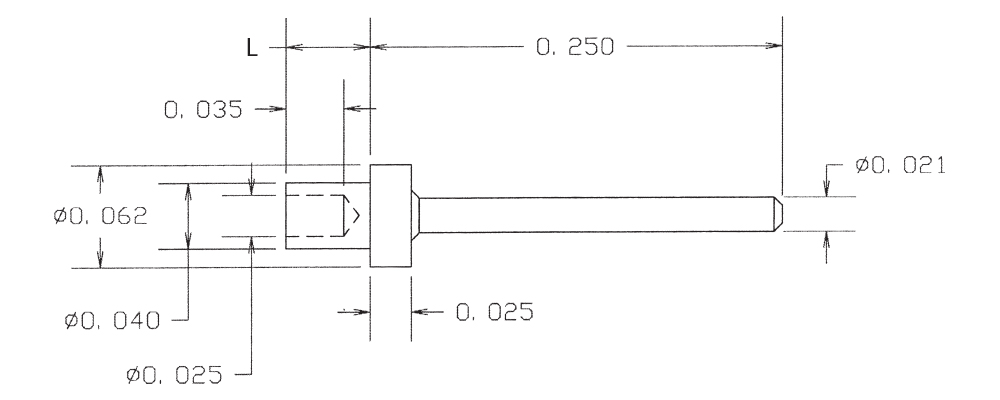

09-8096-1-04
09-8096-1-04
09-8096-1-04
0.301" 0.021 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

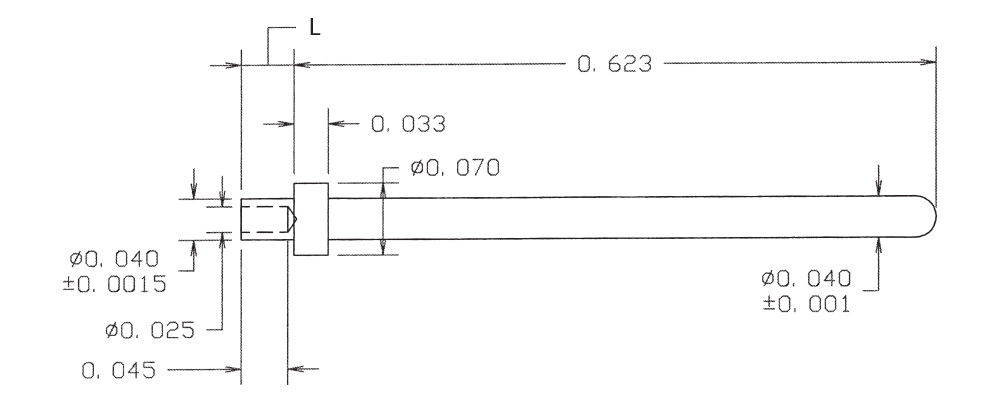

09-8154-1-01
09-8154-1-01
09-8154-1-01
0.674" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

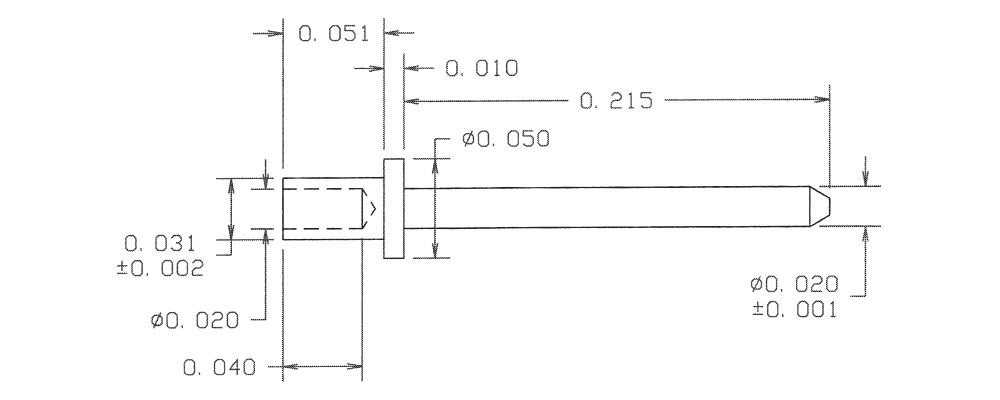

09-8181-1-044
09-8181-1-044
09-8181-1-044
0.276" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Bright Tin YES

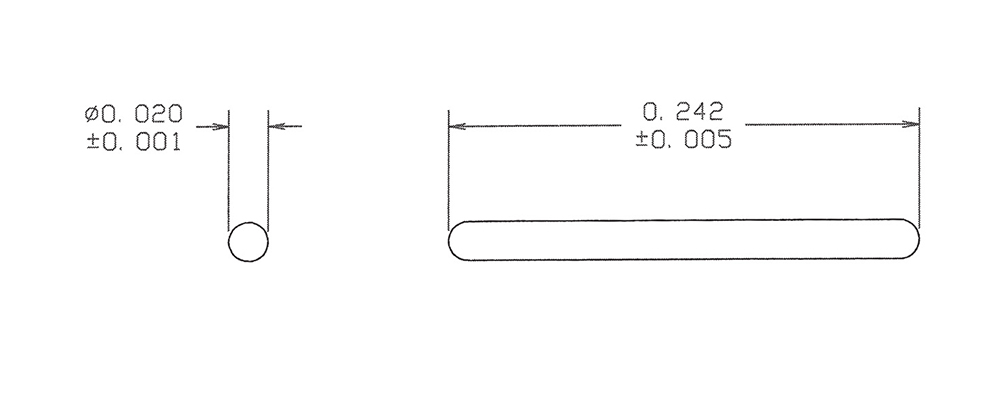

09-8345-1-04
09-8345-1-04
09-8345-1-04
0.242" 0.020 - - - - - Phosphor Bronze Electro-Tin YES

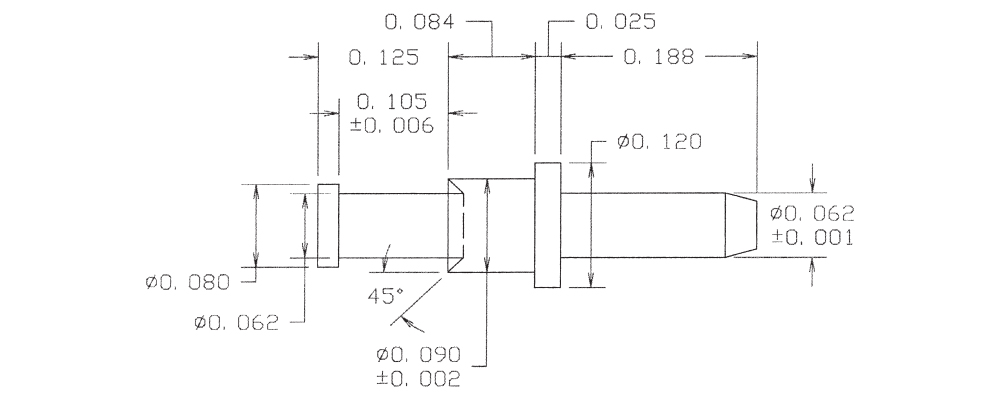

09-8586-2-035
09-8586-2-035
09-8586-2-035
0.422" 0.062 TURRET/PIN Swage Mount 0.084" 1/16 0.094 Brass Gold YES

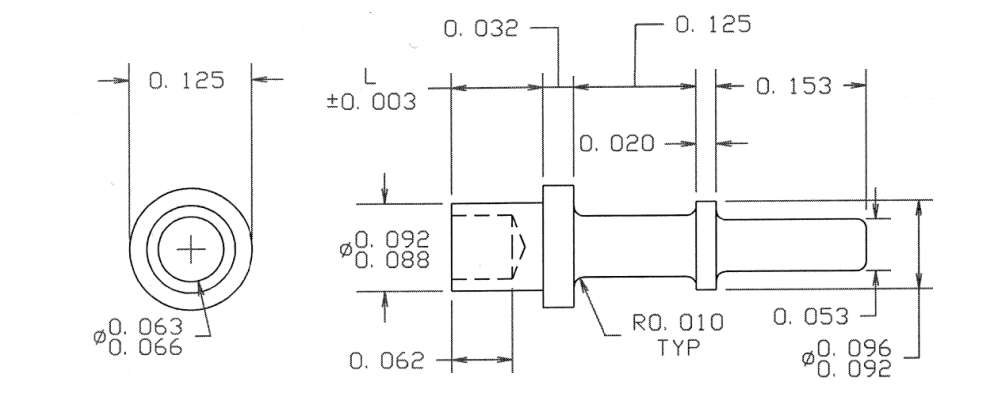

09-8705-3-01
09-8705-3-01
09-8705-3-01
0.471" - - Swage Mount 0.141" 3/32 0.094 LEADED Red Brass Silver YES

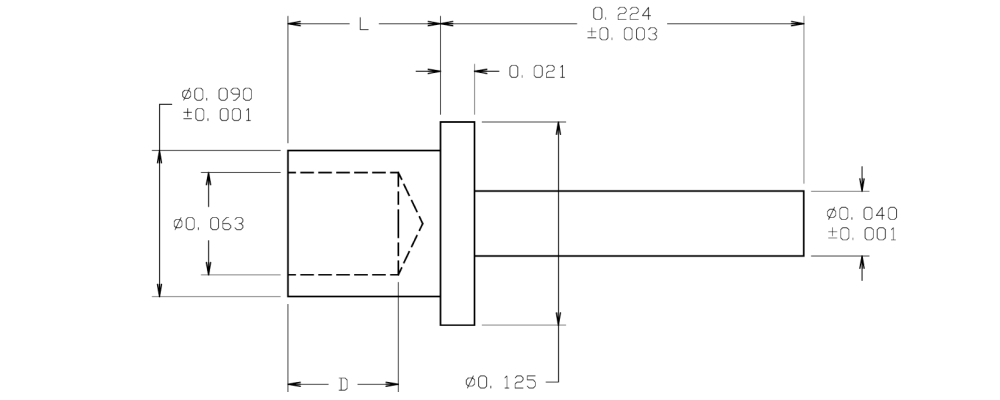

09-8816-2-05
09-8816-2-05
09-8816-2-05
0.318" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Electro Solder NO

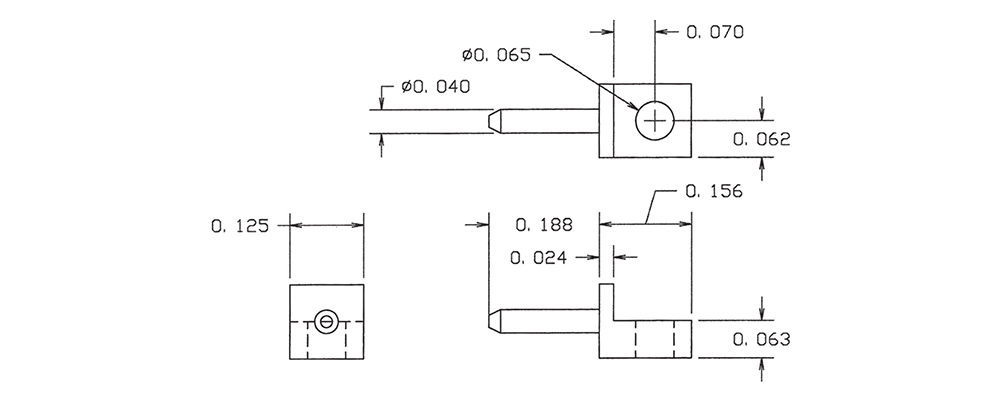

09-9501-1-04
09-9501-1-04
09-9501-1-04
0.344" 0.040 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Electro-Tin YES

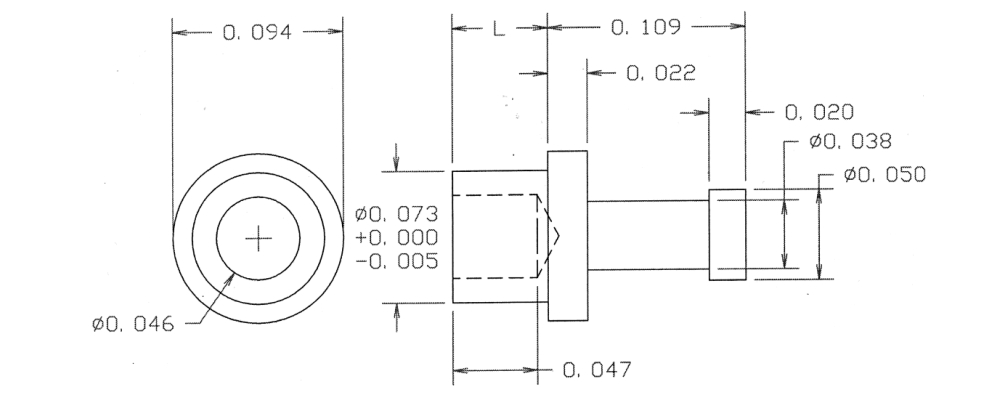

10-105-2-044
10-105-2-044
10-105-2-044
0.193" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES

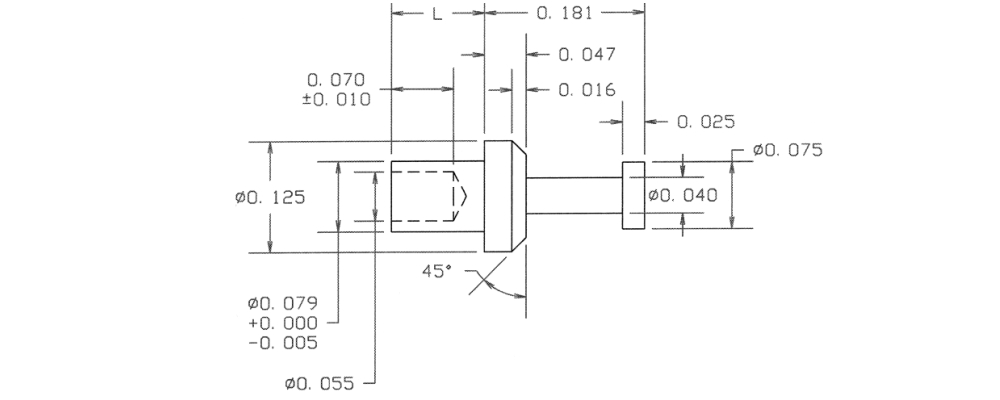

10-112-3-044
10-112-3-044
10-112-3-044
0.316" - - Swage Mount 0.135" 3/32 0.082 Brass Bright Tin YES

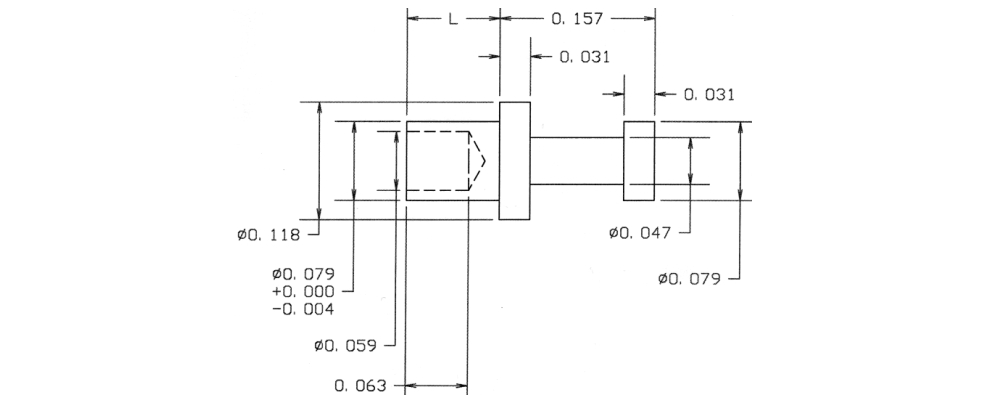

10-134-2-088
10-134-2-088
10-134-2-088
0.251" - - Swage Mount 0.094" 1/16 0.081 Brass Bright Tin-Lead NO

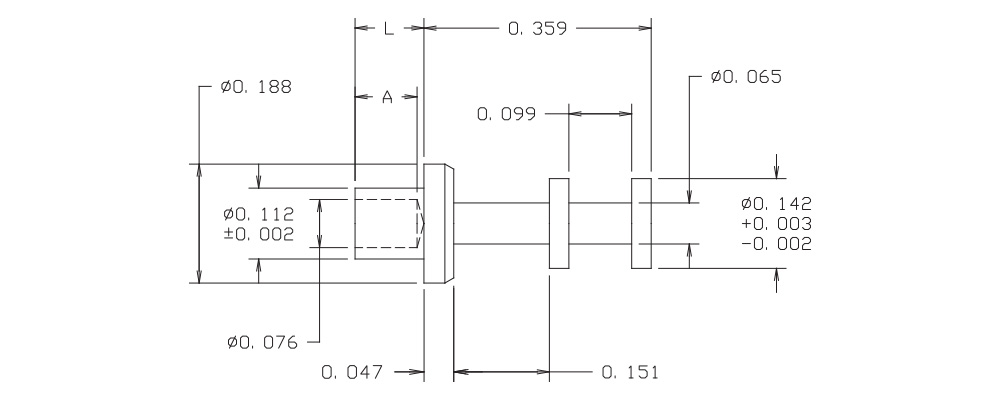

10-204-4-044
10-204-4-044
10-204-4-044
0.531" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin YES

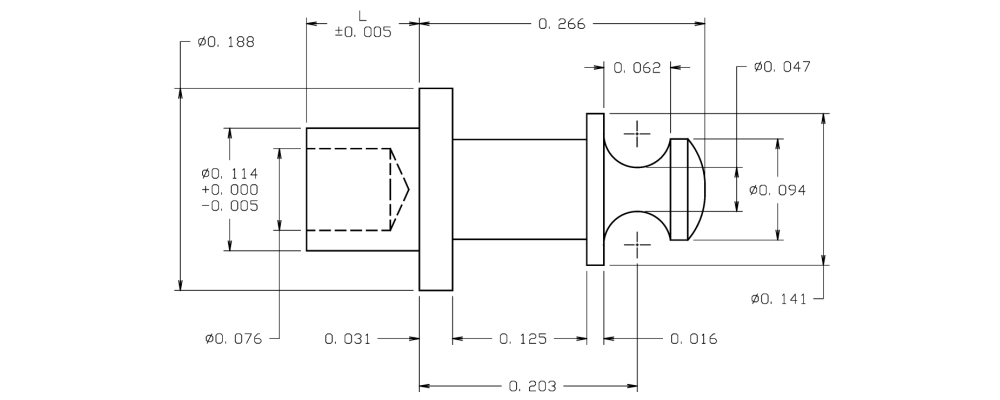

10-212-3-01
10-212-3-01
10-212-3-01
0.401" - - Swage Mount 0.135" 3/32 0.116 Brass Silver YES

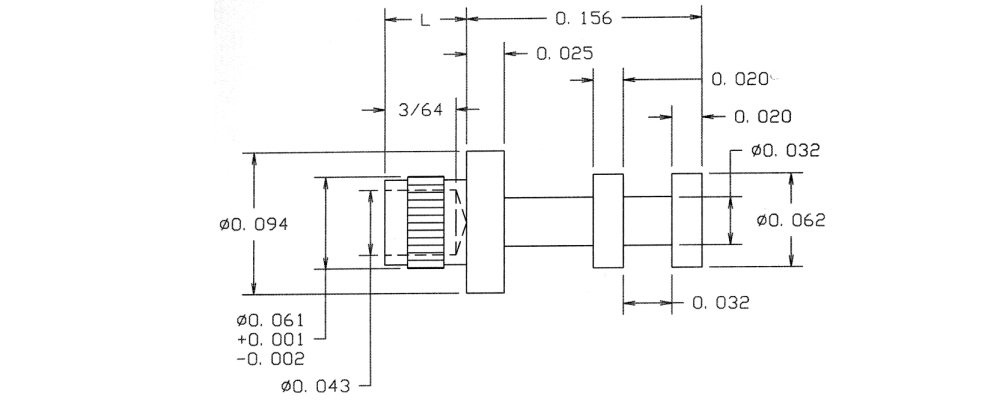

10-220-1-044
10-220-1-044
10-220-1-044
0.210" - - Swage Mount 0.054" 1/32 0.064 Brass Bright Tin YES

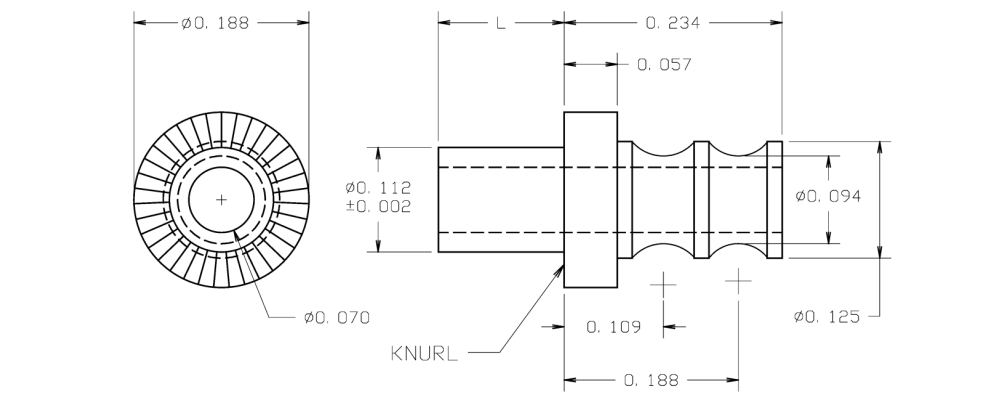

10-230-4-01
10-230-4-01
10-230-4-01
0.399" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES
