Commercial
Non-Insulated
Terminals

Filter

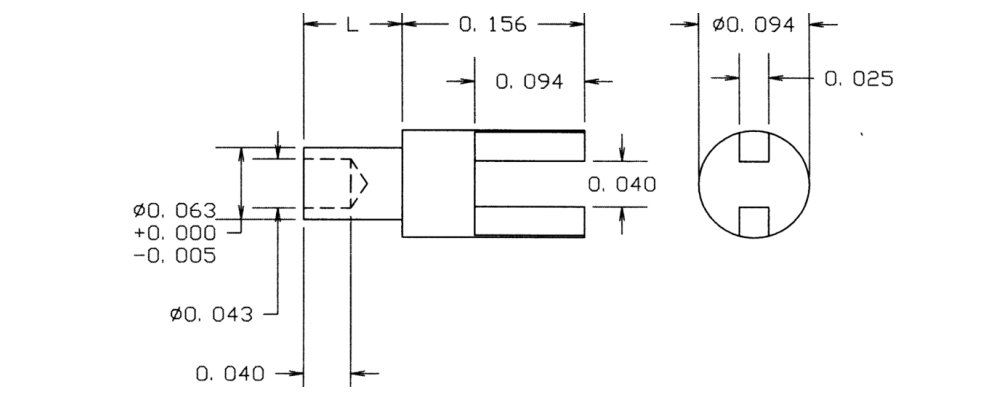

10-459-5-04
10-459-5-04
10-459-5-04
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Electro-Tin YES
10-459-11-04
10-459-11-04
10-459-11-04
0.193" - - Swage Mount 0.037" 1/64 0.064 Brass Electro-Tin YES

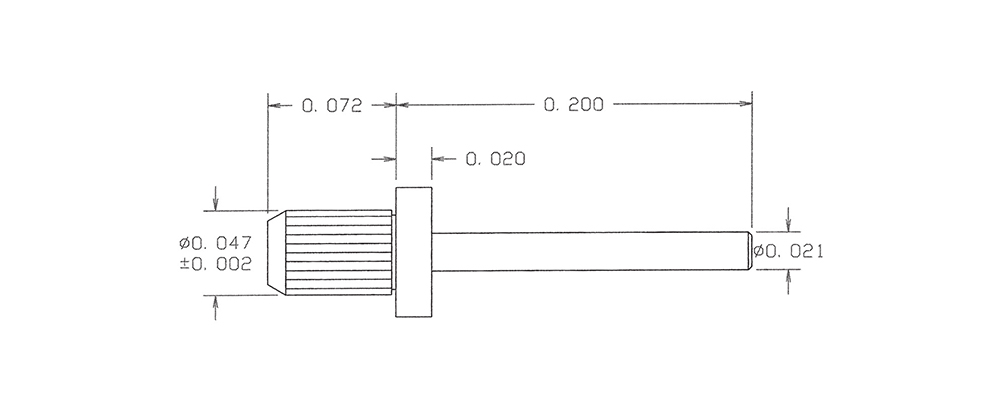

09-8049-1-088
09-8049-1-088
09-8049-1-088
0.272" 0.021 - Press Fit/Solder 0.072" 1/64 TO 1/16 0.0465 Brass Bright Tin-Lead NO

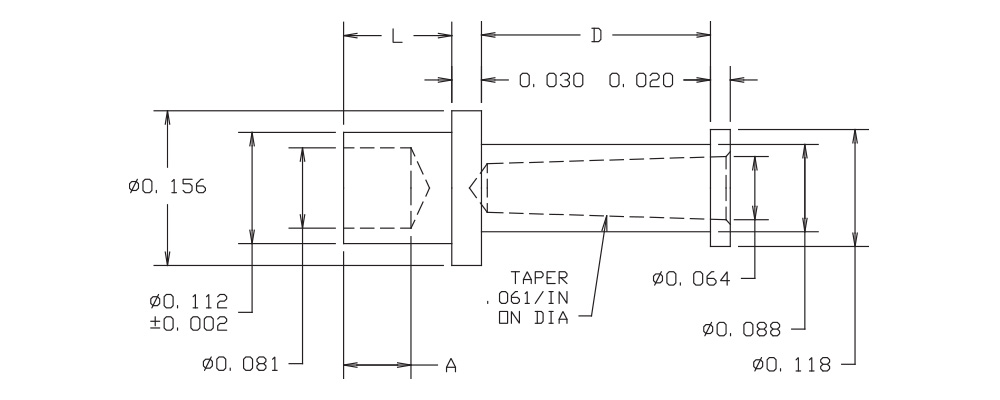

10-814-4-035
10-814-4-035
10-814-4-035
0.422" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES

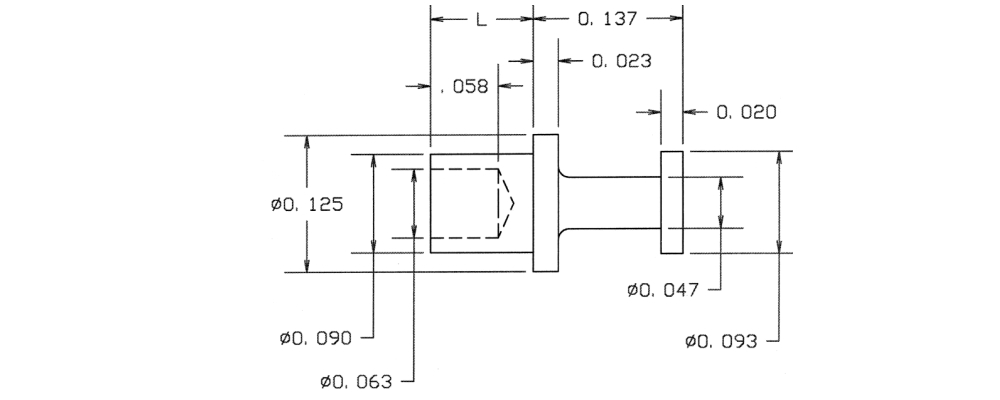

10-130-4-035
10-130-4-035
10-130-4-035
0.278" - - Swage Mount 0.141" 1/8 0.094 Brass Gold YES
10-119-4-035
10-119-4-035
10-119-4-035
0.393" - - Swage Mount 0.165" 1/8 0.082 Brass Gold YES

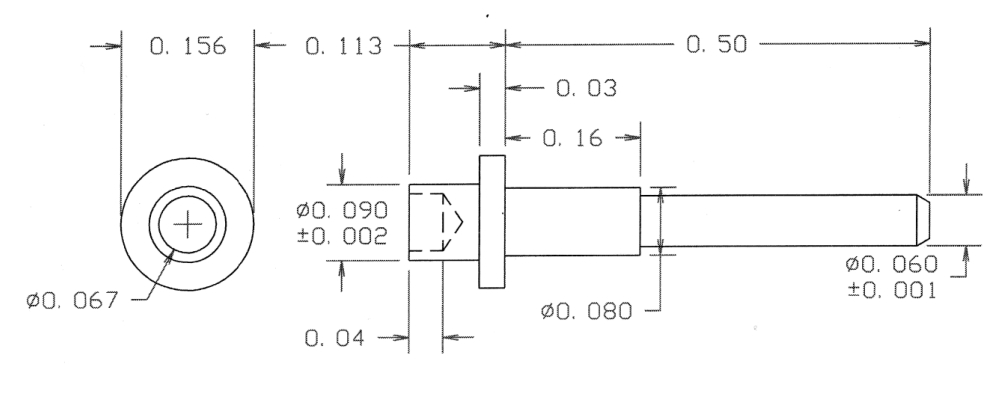

09-8735-2-04
09-8735-2-04
09-8735-2-04
0.613" 0.060 - Swage Mount 0.113" 3/32 0.094 Brass Electro-Tin YES

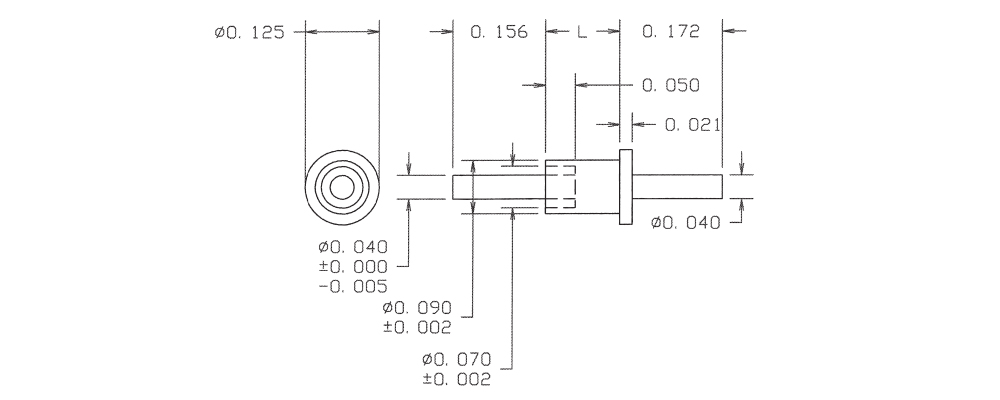

10-857-3-044
10-857-3-044
10-857-3-044
0.453" 0.040 Pin/Pin Swage Mount 0.125" 3/32 0.094 Brass Bright Tin YES

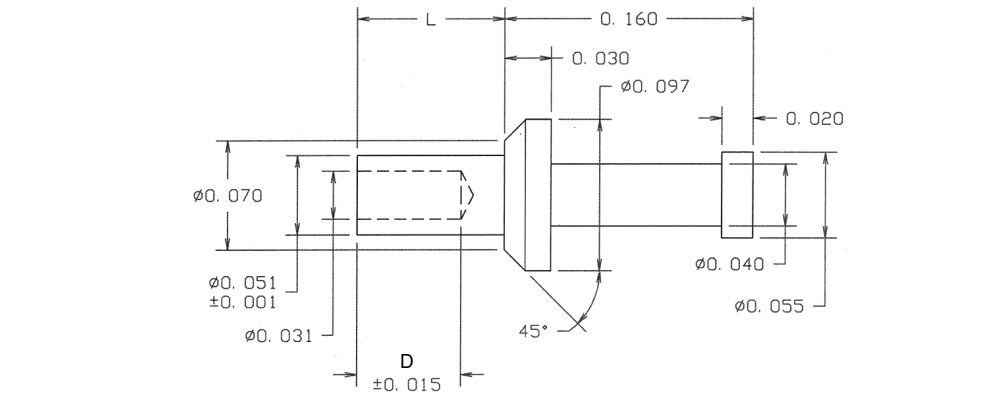

09-7016-4-04
09-7016-4-04
09-7016-4-04
0.310" - - Swage Mount 0.150" 1/8 0.055 Brass Electro-Tin YES

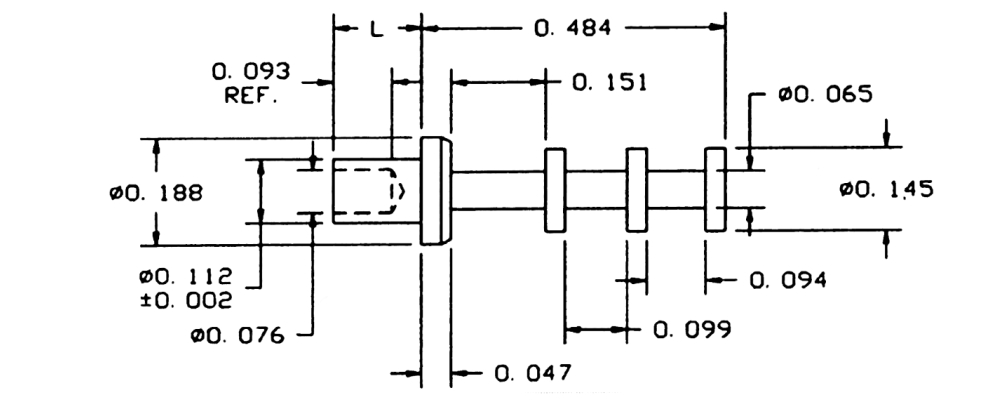

10-602-4-035
10-602-4-035
10-602-4-035
0.656" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES
10-576-3-044
10-576-3-044
10-576-3-044
0.416" - Turret/Turret Swage Mount 0.135" 3/32 0.120 Brass Bright Tin YES

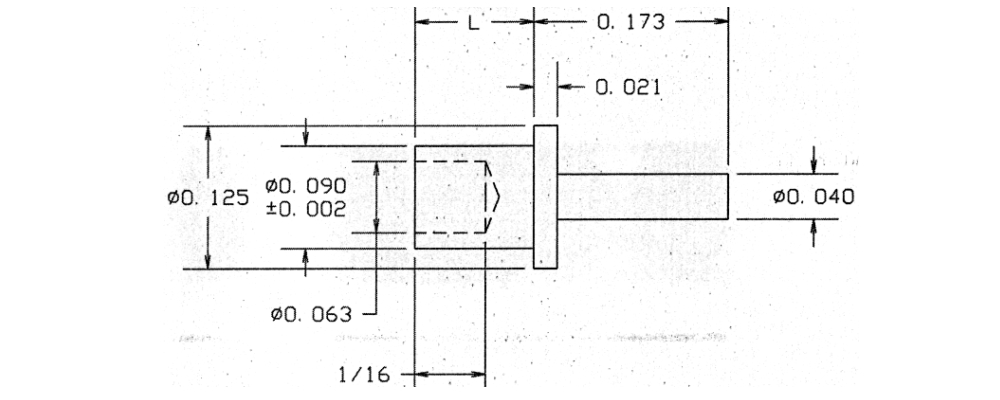

10-820-2-01
10-820-2-01
10-820-2-01
0.278" 0.040 - Swage Mount 0.105" 1/16 0.094 Brass Silver YES

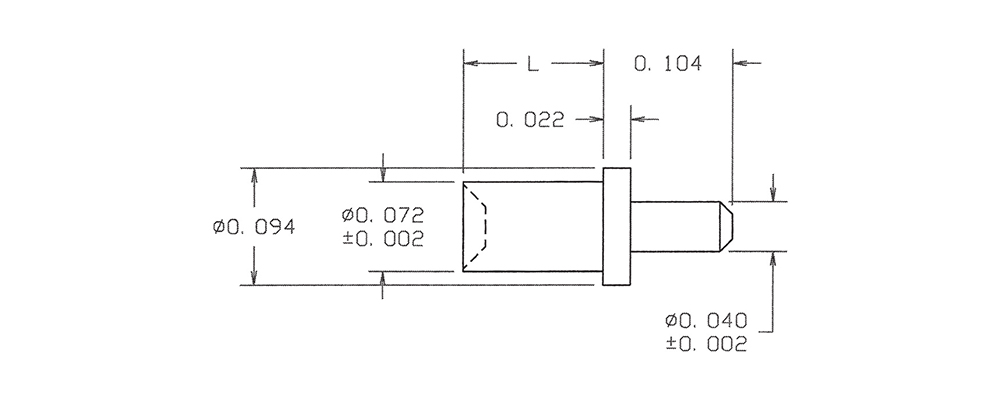

09-8171-1-044
09-8171-1-044
09-8171-1-044
0.155" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Bright Tin YES

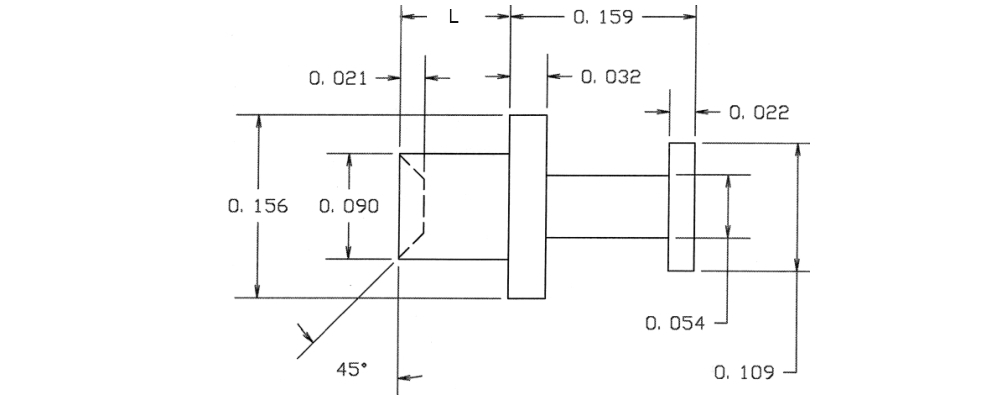

10-109-6-03
10-109-6-03
10-109-6-03
0.378" - - Swage Mount 0.219" 3/16 0.094 Brass Gold YES
10-8015-6-044
10-8015-6-044
10-8015-6-044
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Bright Tin YES

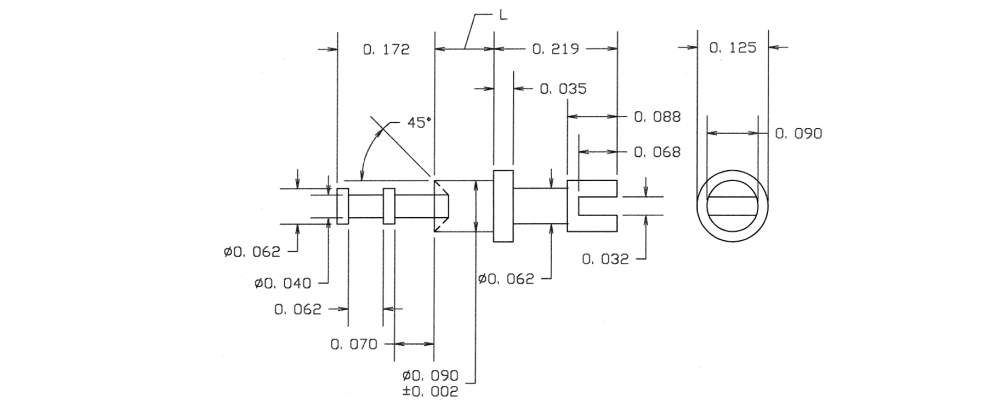

10-419-4-044
10-419-4-044
10-419-4-044
0.556" - SLOTTED/DOUBLE TURRET Swage Mount 0.165" 1/8 0.094 Brass Bright Tin YES

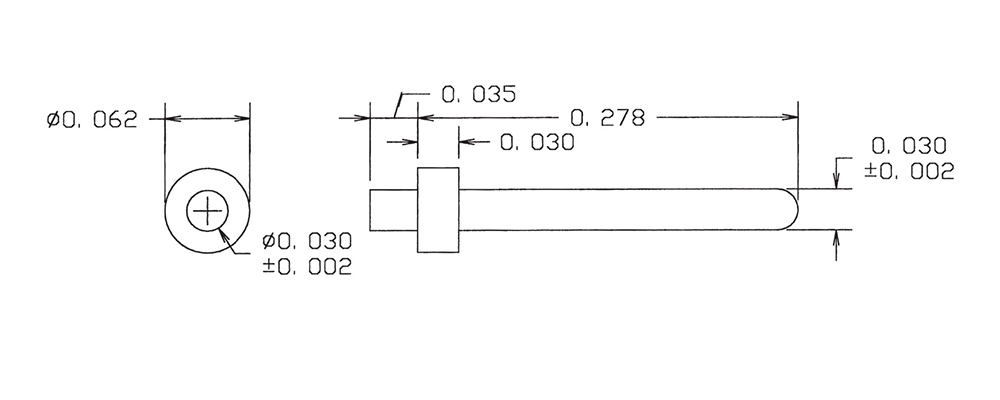

09-8538-1-044
09-8538-1-044
09-8538-1-044
0.313" 0.030 - Solder 0.035" 1/64 0.033 Brass Bright Tin YES
09-8171-1-05
09-8171-1-05
09-8171-1-05
0.155" 0.040 - Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO
10-605-2-03
10-605-2-03
10-605-2-03
0.445" - - Swage Mount 0.105" 1/16 0.090 Brass Gold YES

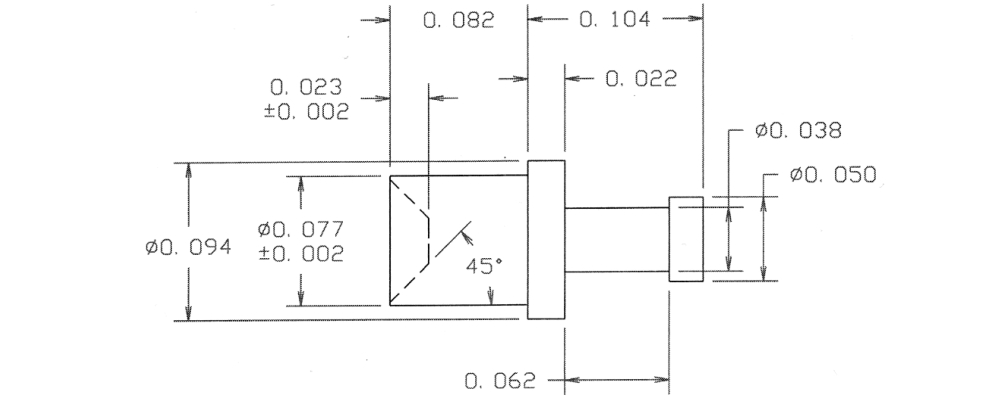

09-0252-2-088
09-0252-2-088
09-0252-2-088
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin-Lead NO
