Commercial
Non-Insulated
Terminals

Filter
10-808-2-095
10-808-2-095
10-808-2-095
0.580" - - Swage Mount 0.109" 1/16 0.094 Brass Hot Solder Dip NO
10-808-8-088
10-808-8-088
10-808-8-088
0.768" - - Swage Mount 0.297" 1/4 0.094 Brass Bright Tin-Lead NO

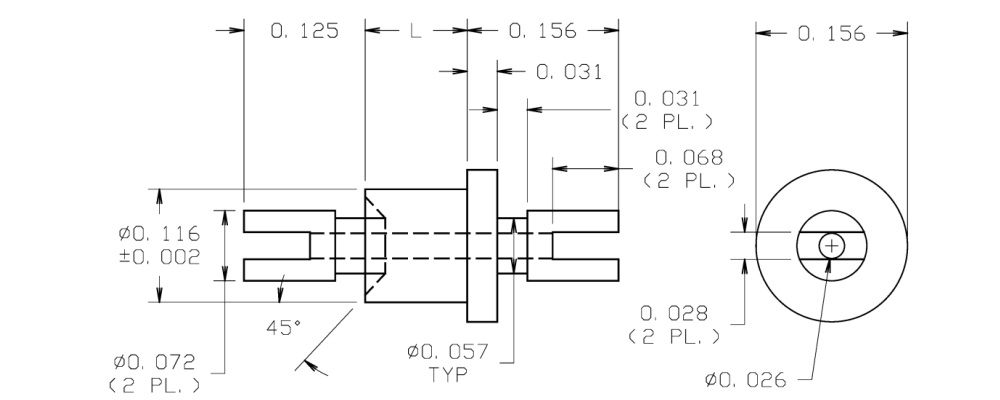

10-492-4-04
10-492-4-04
10-492-4-04
0.446" - Slotted/Slotted Swage Mount 0.165" 1/8 0.120 Brass Electro-Tin YES

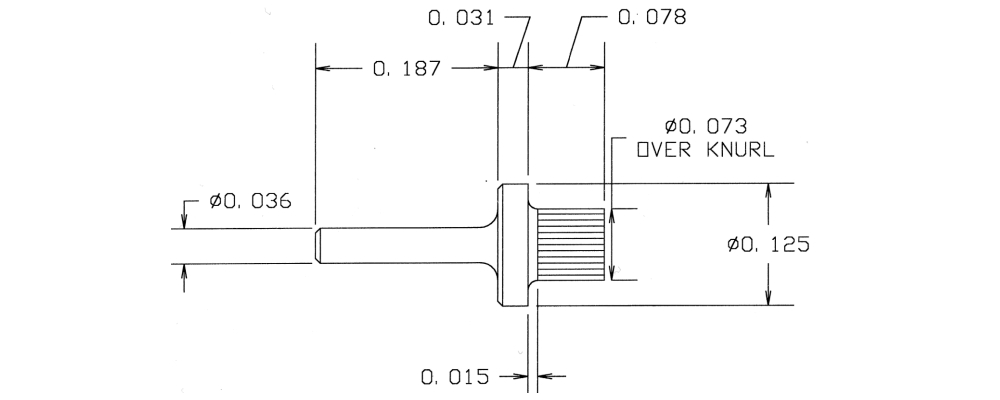

09-0049-2-088
09-0049-2-088
09-0049-2-088
0.296" - - Press Fit/Solder 0.078" 1/16 0.073 Brass Bright Tin-Lead NO

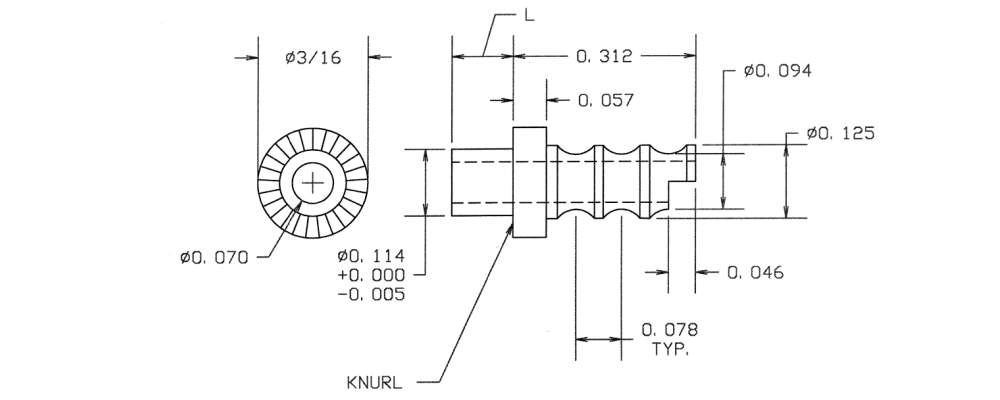

10-422-4-04
10-422-4-04
10-422-4-04
0.477" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES
10-714-3-035
10-714-3-035
10-714-3-035
0.697" - DOUBLE TURRET/THREAD Swage Mount 0.135" 3/32 0.204 Brass Gold YES
10-714-4-05
10-714-4-05
10-714-4-05
0.727" - DOUBLE TURRET/THREAD Swage Mount 0.165" 1/8 0.204 Brass Electro Solder NO

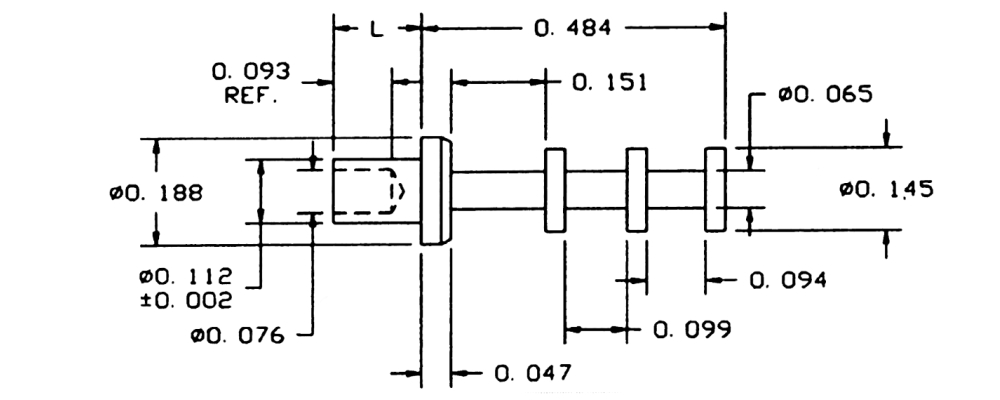

10-602-4-088
10-602-4-088
10-602-4-088
0.656" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO

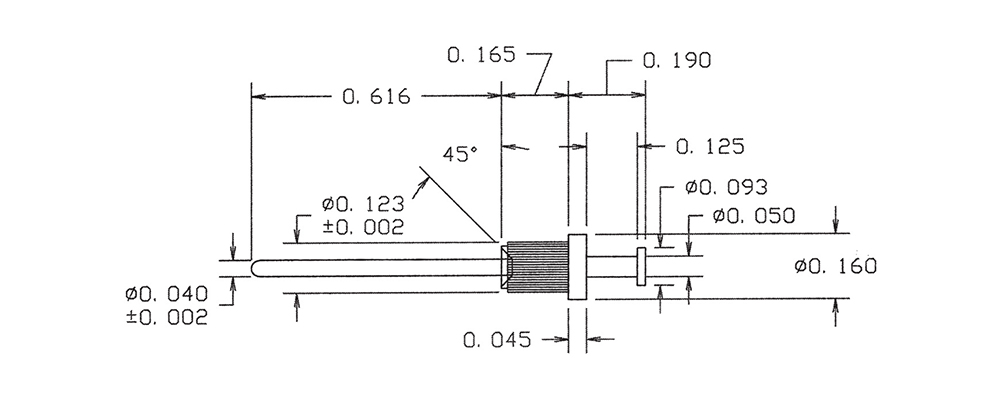

09-0038-4-035
09-0038-4-035
09-0038-4-035
0.971" 0.040 TURRET/PIN Swage Mount 0.165" 1/8 0.125 Brass Gold YES

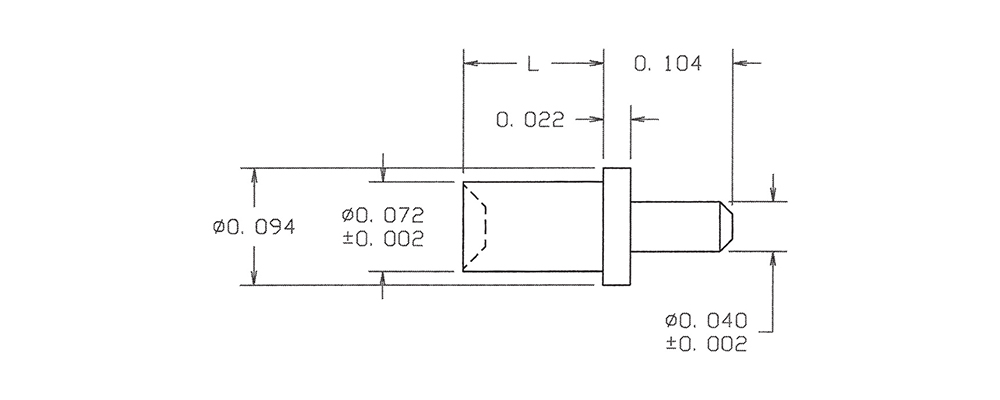

09-8171-4-05
09-8171-4-05
09-8171-4-05
0.249" 0.040 - Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO

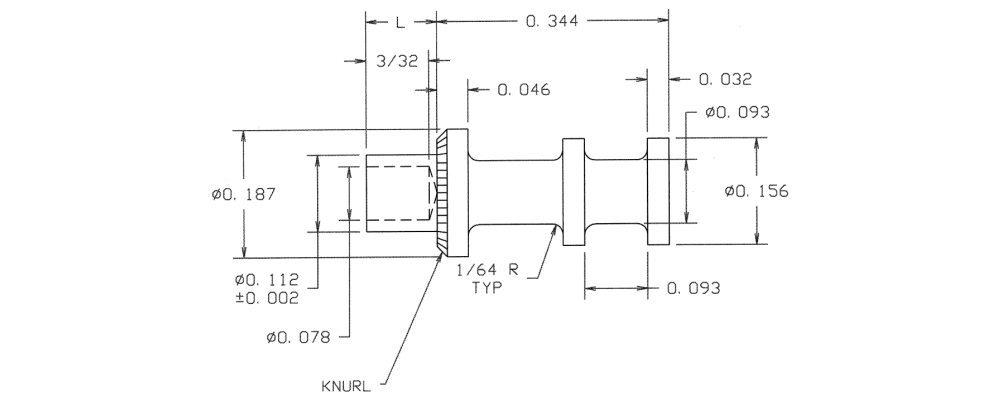

10-217-3-035
10-217-3-035
10-217-3-035
0.479" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES

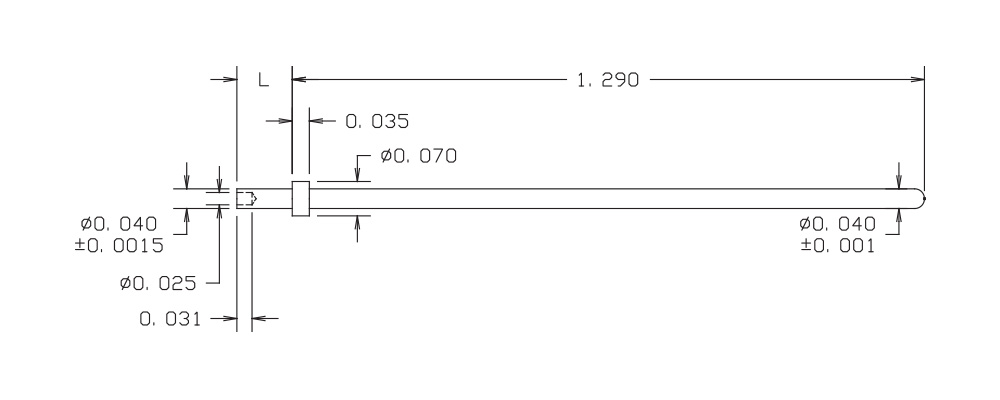

09-8165-3-044
09-8165-3-044
09-8165-3-044
1.403" 0.040 - Swage Mount 0.113" 3/32 0.043 Brass Bright Tin YES

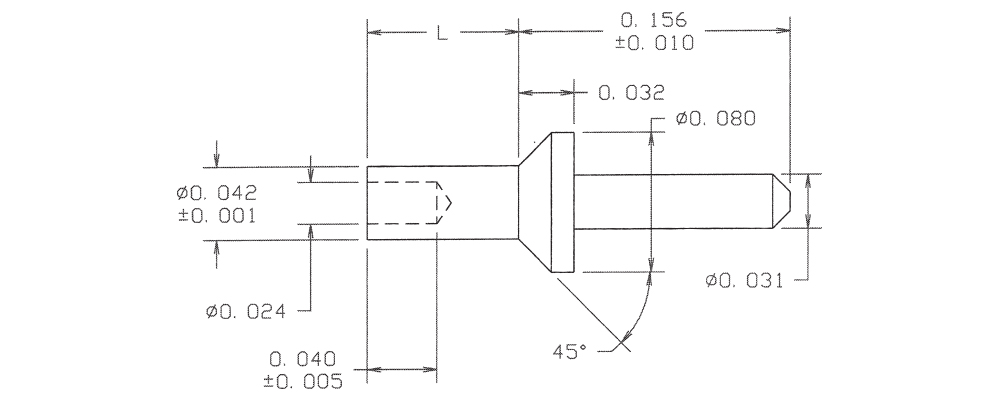

09-8169-2-04
09-8169-2-04
09-8169-2-04
0.243" 0.031 - Swage Mount 0.087" 1/16 0.0465 Brass Electro-Tin YES

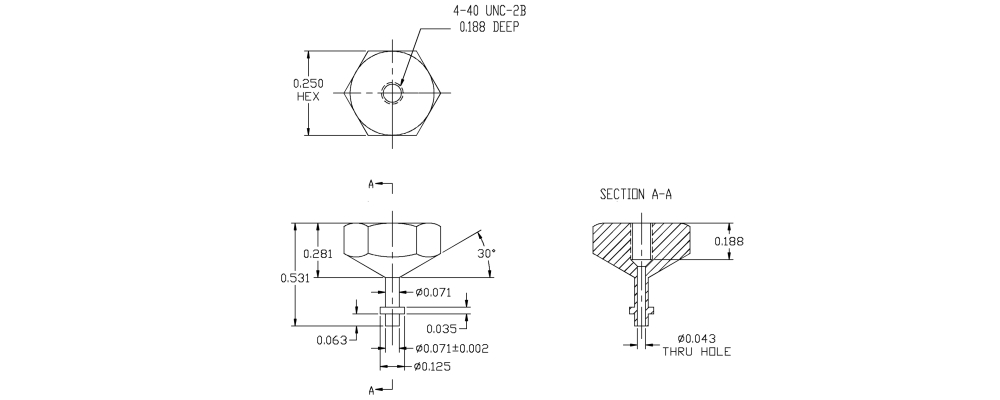

09-0377-1-035
09-0377-1-035
09-0377-1-035
0.531" - - Swage Mount 0.063" 1/32 0.076 Brass Gold YES
10-313-1-01
10-313-1-01
10-313-1-01
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Silver YES
10-302-4-05
10-302-4-05
10-302-4-05
0.303" - - Swage Mount 0.147" 1/8 0.067 Brass Electro Solder NO
10-602-1-05
10-602-1-05
10-602-1-05
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Electro Solder NO
09-0180-1-088
09-0180-1-088
09-0180-1-088
0.289" - - Swage Mount 0.062" 1/32 0.062 Brass Bright Tin-Lead NO
10-306-4-088
10-306-4-088
10-306-4-088
0.353" - - Swage Mount 0.165" 1/8 0.113 Brass Bright Tin-Lead NO
09-0252-2-088
09-0252-2-088
09-0252-2-088
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin-Lead NO
