Commercial
Non-Insulated
Terminals

10-8017-2-088
10-8017-2-088
10-8017-2-088
0.252" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Bright Tin-Lead NO
09-6007-1-088
09-6007-1-088
09-6007-1-088
0.555" 0.025 SQ. - Press Fit/Solder 0.080" 1/16 0.055 Brass Bright Tin-Lead NO
10-312-5-044
10-312-5-044
10-312-5-044
0.523" - - Swage Mount 0.195" 5/32 0.082 Brass Bright Tin YES
10-240-1-05
10-240-1-05
10-240-1-05
0.439" - - Swage Mount 0.075" 1/32 0.116 Brass Electro Solder NO
09-8072-2-03
09-8072-2-03
09-8072-2-03
0.460" 0.020 (+0.000/-0.001) - Swage Mount 0.085" 1/16 0.031 Brass Gold YES
10-891-2-088
10-891-2-088
10-891-2-088
0.382" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO
09-0235-1-01
09-0235-1-01
09-0235-1-01
0.690" - TURRET/DOUBLE TURRET Solder 0.228" 3/32 0.106 LEADED Red Brass Silver YES
10-814-3-04
10-814-3-04
10-814-3-04
0.391" - - Swage Mount 0.141" 3/32 0.116 Brass Electro-Tin YES
10-471-6-04
10-471-6-04
10-471-6-04
0.365" - - Swage Mount 0.209" 3/16 0.067 Brass Electro-Tin YES
10-867-2-04
10-867-2-04
10-867-2-04
0.238" 0.030 - Swage Mount 0.084" 1/16 0.067 Brass Electro-Tin YES
10-108-11-05
10-108-11-05
10-108-11-05
0.130" - - Swage Mount 0.037" 1/64 0.067 Brass Electro Solder NO

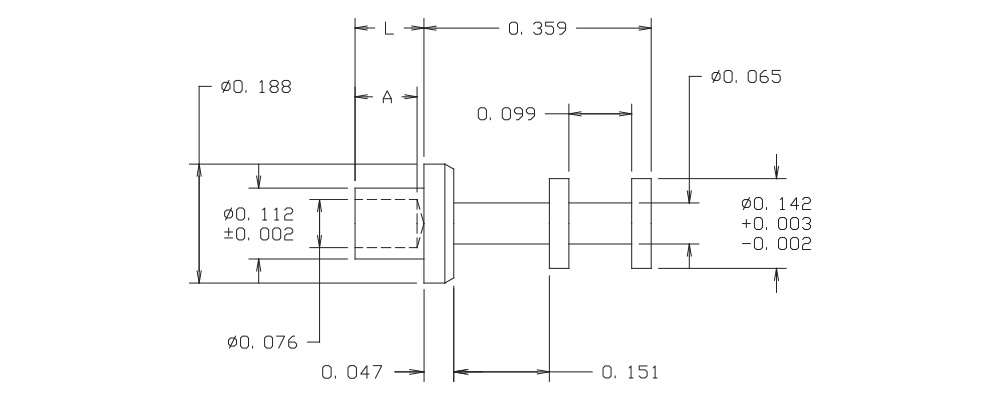

10-204-1-044
10-204-1-044
10-204-1-044
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Bright Tin YES
09-8152-1-03
09-8152-1-03
09-8152-1-03
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Gold YES
10-323-2-044
10-323-2-044
10-323-2-044
0.240" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES
09-8423-3-095
09-8423-3-095
09-8423-3-095
0.240" 0.025 - Swage Mount 0.115" 3/32 0.036 Brass Hot Solder Dip NO
09-8617-2-095
09-8617-2-095
09-8617-2-095
0.834" 0.020 - Swage Mount 0.084" 1/16 0.043 Brass Hot Solder Dip NO
09-8188-1-035
09-8188-1-035
09-8188-1-035
0.137" 0.025 - Swage Mount 0.047" 1/32 0.035 Brass Gold YES
10-834-3-035
10-834-3-035
10-834-3-035
0.500" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Gold YES
09-7020-2B-035
09-7020-2B-035
09-7020-2B-035
0.245" - - Swage Mount 0.105" 1/16 0.059 Brass Gold YES
09-0252-2-088
09-0252-2-088
09-0252-2-088
0.186" - - Swage Mount 0.082" 1/16 0.081 Brass Bright Tin-Lead NO
