Commercial
Insulated
Pin Terminals

Filter
1111-50-04415
1111-50-04415
1111-50-04415
0.531" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin - - PTFE Green YES

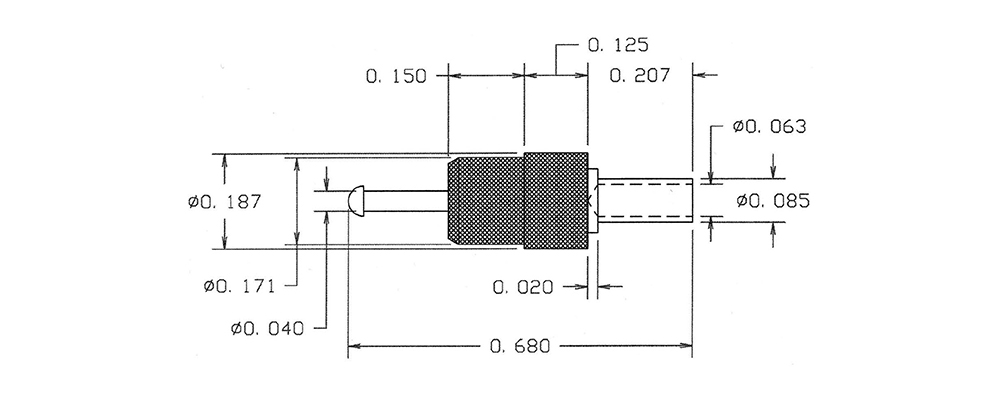

1111-57-08811
1111-57-08811
1111-57-08811
0.680" 0.040 - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Brown NO
1111R-09-0117
1111R-09-0117
1111R-09-0117
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.136 Brass Silver - - PTFE Violet YES
1111R-14-0413
1111R-14-0413
1111R-14-0413
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro-Tin - - PTFE Orange NO
1112-06-04419
1112-06-04419
1112-06-04419
0.233" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE White YES

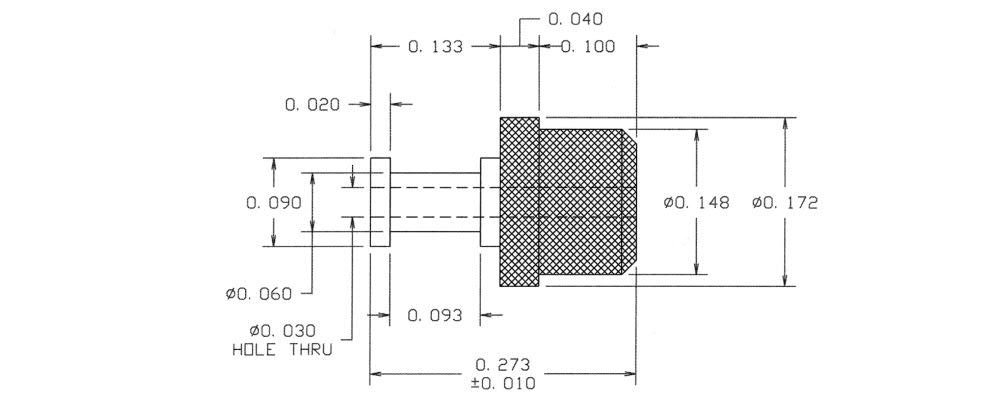

1112-13-08815
1112-13-08815
1112-13-08815
0.273" - - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Green NO
1112-65-0311
1112-65-0311
1112-65-0311
0.155" - - Press Fit 1/32 0.058 Brass Gold - - PTFE Brown NO

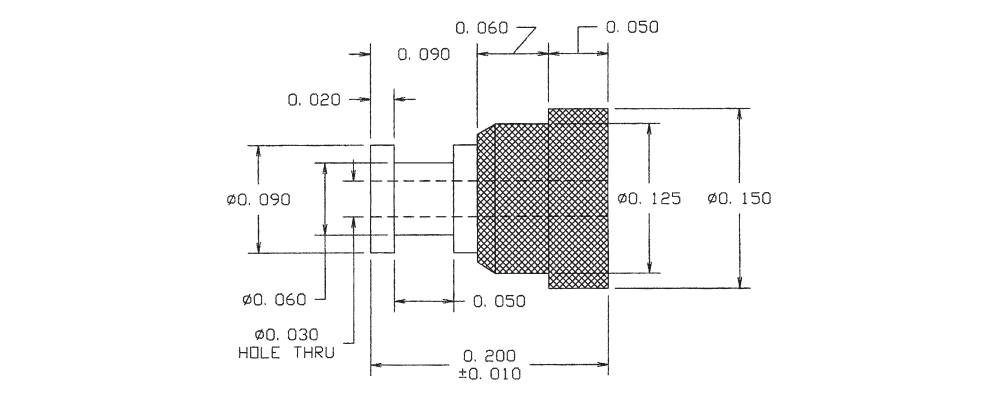

1112R-05-0417
1112R-05-0417
1112R-05-0417
0.200" - - Press Fit 1/32 0.113 Brass Electro-Tin - - PTFE Violet YES
1112R-61-0513
1112R-61-0513
1112R-61-0513
0.200" - - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Orange NO

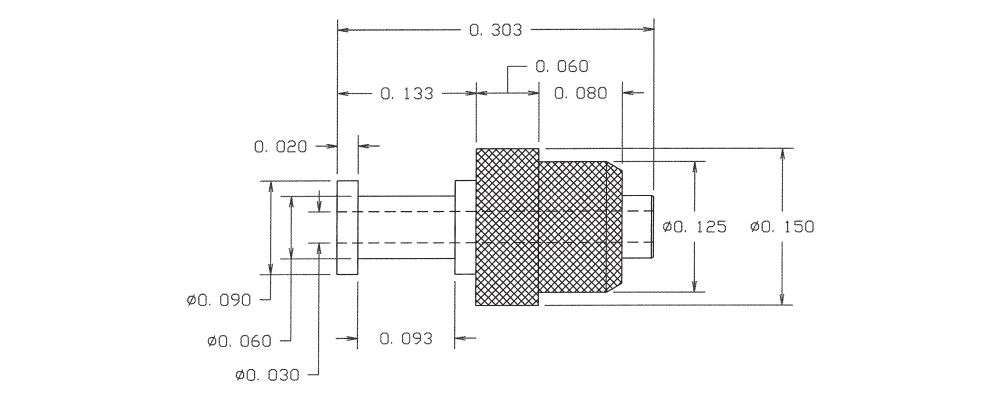

1113-02-08819
1113-02-08819
1113-02-08819
0.303" - - Press Fit 1/32 0.113 Brass Bright Tin-Lead - - PTFE White NO
1113-57-0315
1113-57-0315
1113-57-0315
0.407" 0.040 PIN/Solder CUP Press Fit 1/32 0.136 Brass Gold - - PTFE Green YES
1114-03-04411
1114-03-04411
1114-03-04411
0.215" 0.040 - Press Fit 1/64 0.086 Brass Bright Tin - - PTFE Brown NO

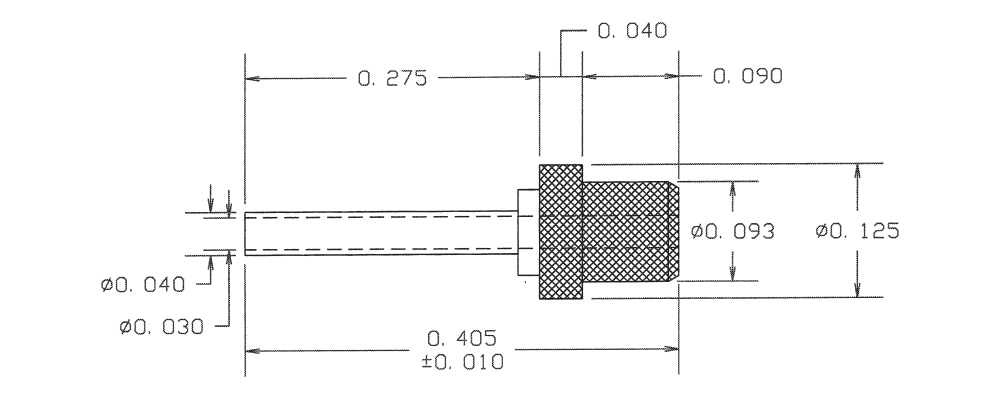

1114-07-0517
1114-07-0517
1114-07-0517
0.405" 0.040 - Press Fit 1/32 0.086 Brass Electro Solder - - PTFE Violet NO
1114-50-0113
1114-50-0113
1114-50-0113
0.270" 0.060 - Press Fit 1/16 0.136 Brass Silver - - PTFE Orange NO
1114-74-0319
1114-74-0319
1114-74-0319
0.367" - - Press Fit 1/16 0.136 Brass Gold - - PTFE White YES
1114R-12-04415
1114R-12-04415
1114R-12-04415
0.247" 0.045 (+0.000/-0.005) - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Green YES

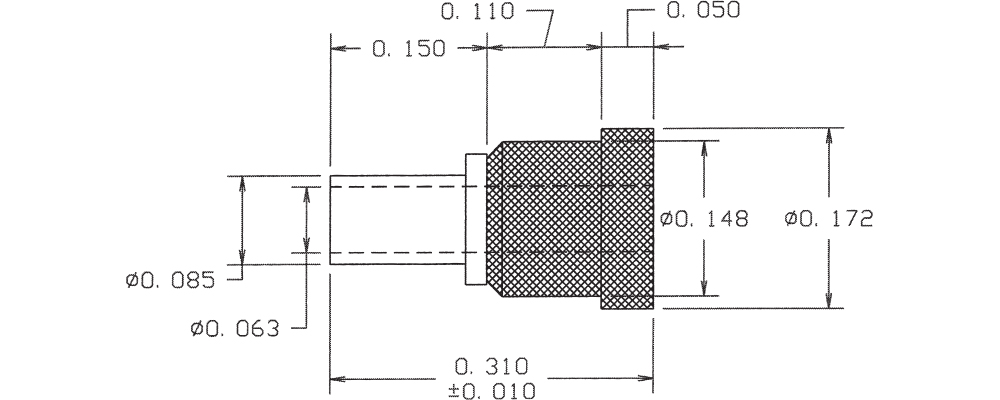

1114R-19-08811
1114R-19-08811
1114R-19-08811
0.310" 0.085 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Brown NO
1114R-80-0117
1114R-80-0117
1114R-80-0117
0.380" 0.055 - Press Fit 1/32 0.136 Brass Silver - - PTFE Violet YES
1115-06-0413
1115-06-0413
1115-06-0413
0.367" 0.040 - Press Fit 1/16 0.187 Brass Electro-Tin - - PTFE Orange NO
1115-50-04419
1115-50-04419
1115-50-04419
0.353" - - Press Fit 3/32 0.187 Brass Bright Tin - - PTFE White YES
