Commercial
Insulated
Pin Terminals

Filter

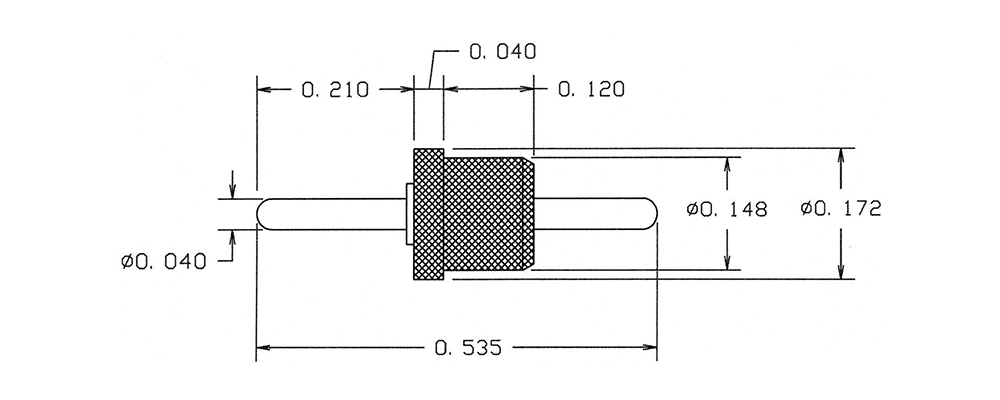

1110-24-0315
1110-24-0315
1110-24-0315
0.535" 0.040 Pin/Pin Press Fit 3/32 0.136 Brass Gold - - PTFE Green YES

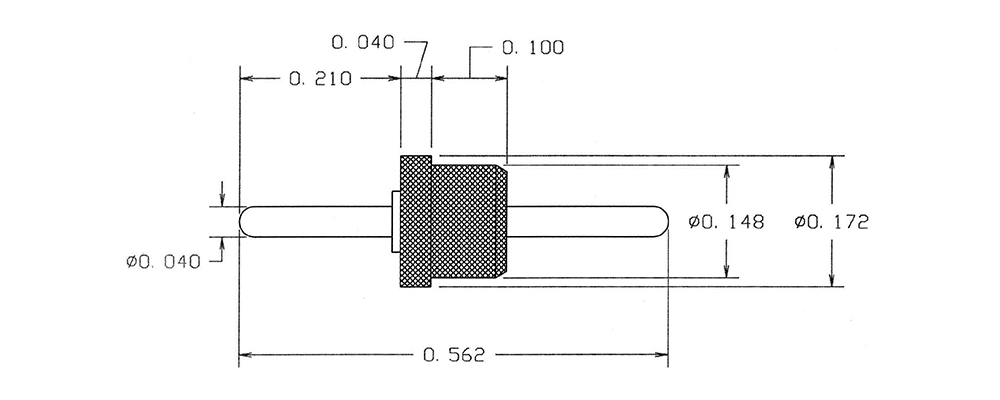

1110-28-04411
1110-28-04411
1110-28-04411
0.562" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Brown NO

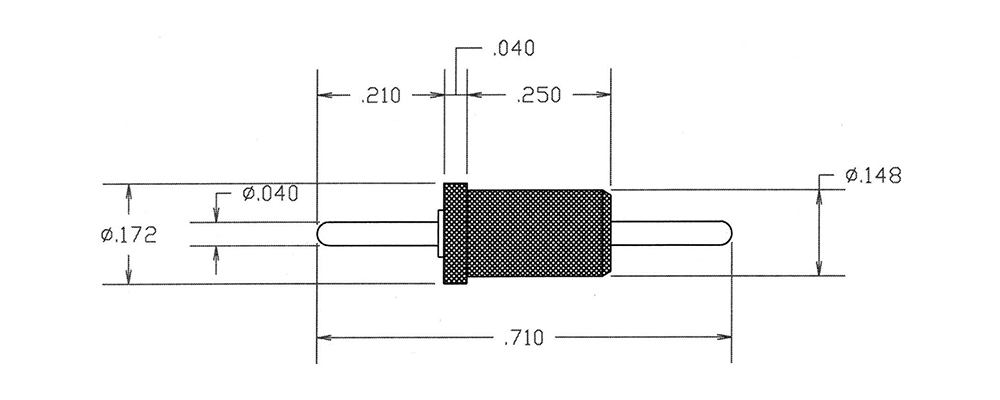

1110-32-0517
1110-32-0517
1110-32-0517
0.710" 0.040 Pin/Pin Press Fit Up to 3/16 0.136 Brass Electro Solder - - PTFE Violet NO

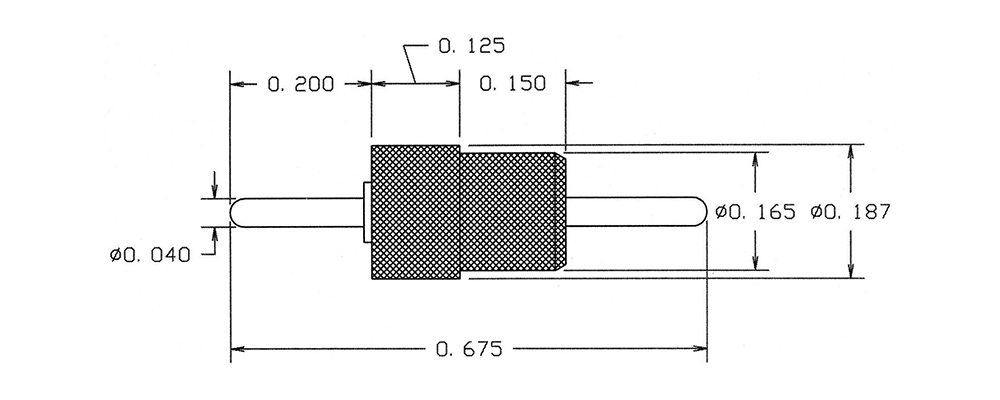

1110-40-0113
1110-40-0113
1110-40-0113
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Silver - - PTFE Orange NO

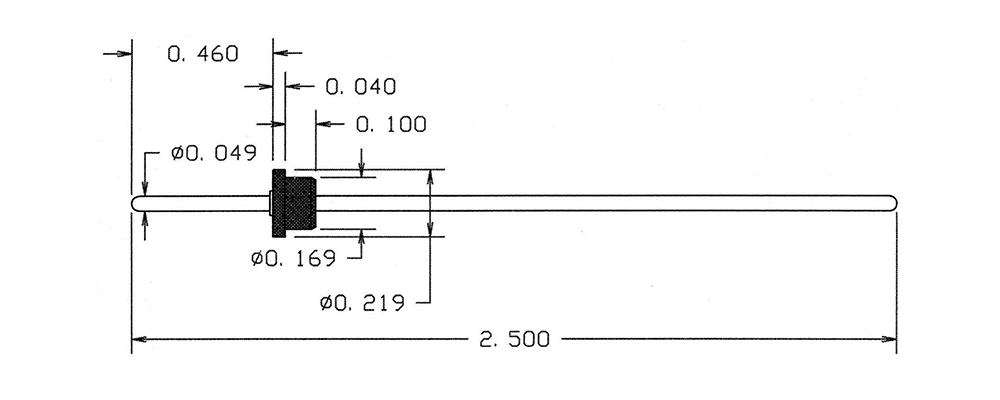

1110-44-0319
1110-44-0319
1110-44-0319
2.500" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Gold - - PTFE White YES

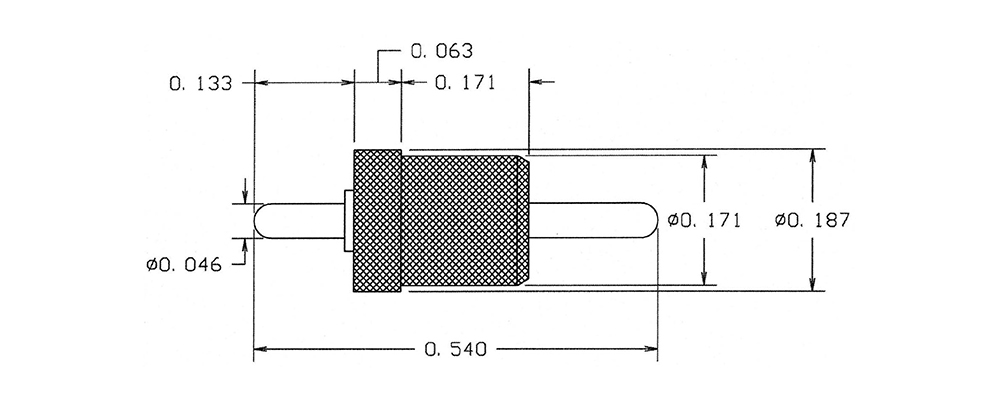

1110-48-04415
1110-48-04415
1110-48-04415
0.540" 0.046 Pin/Pin Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Green YES

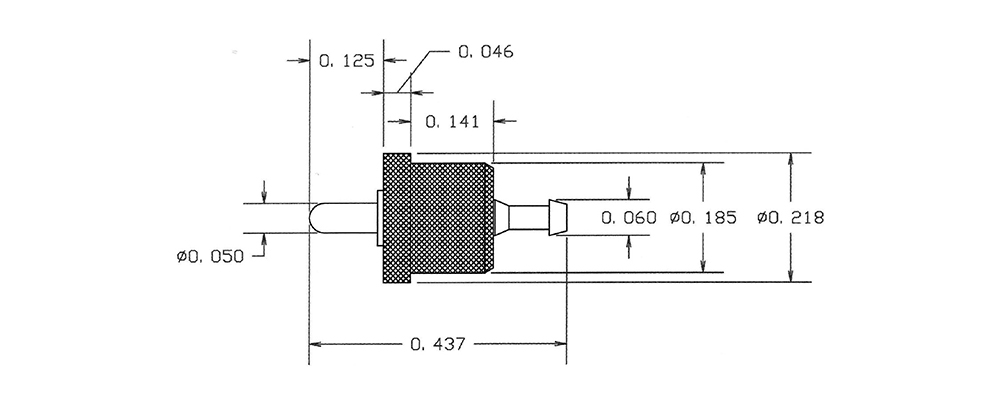

1110-53-08811
1110-53-08811
1110-53-08811
0.437" 0.050 TURRET/PIN Press Fit 3/32 0.172 Brass Bright Tin-Lead - - PTFE Brown NO

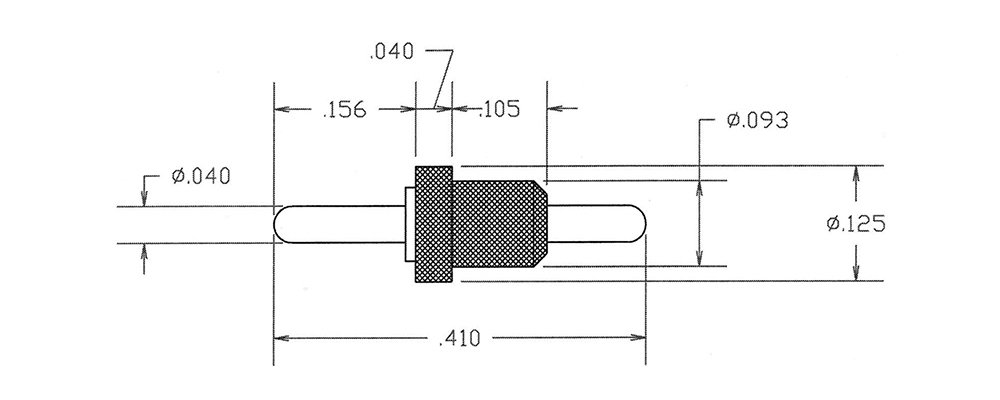

1110-61-0117
1110-61-0117
1110-61-0117
0.410" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Silver - - PTFE Violet YES

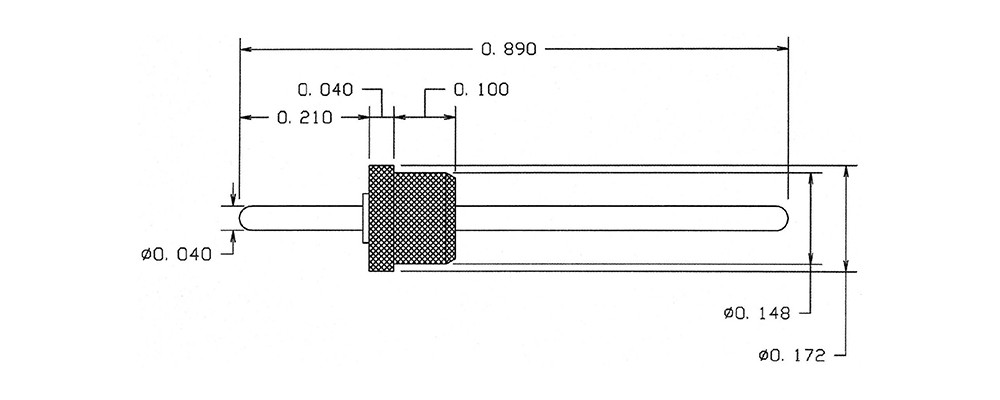

1110-66-0413
1110-66-0413
1110-66-0413
0.890" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Orange NO

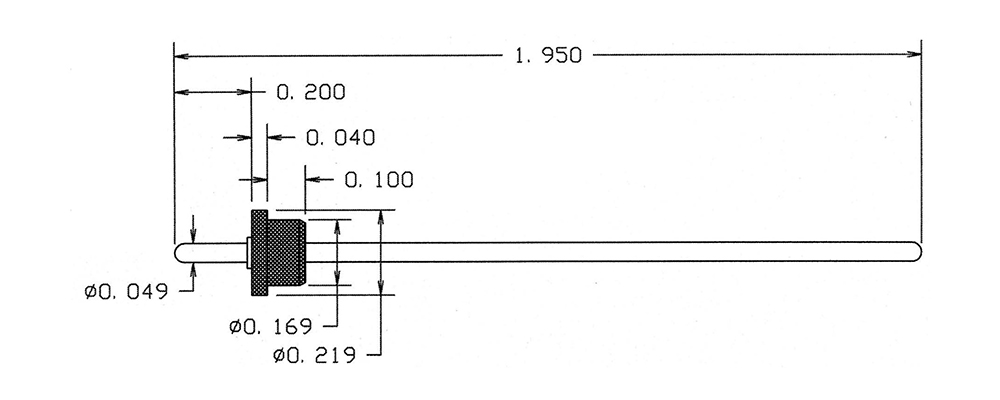

1110-70-04419
1110-70-04419
1110-70-04419
1.950" 0.049 Pin/Pin Press Fit 1/16 0.156 Brass Bright Tin - - PTFE White YES

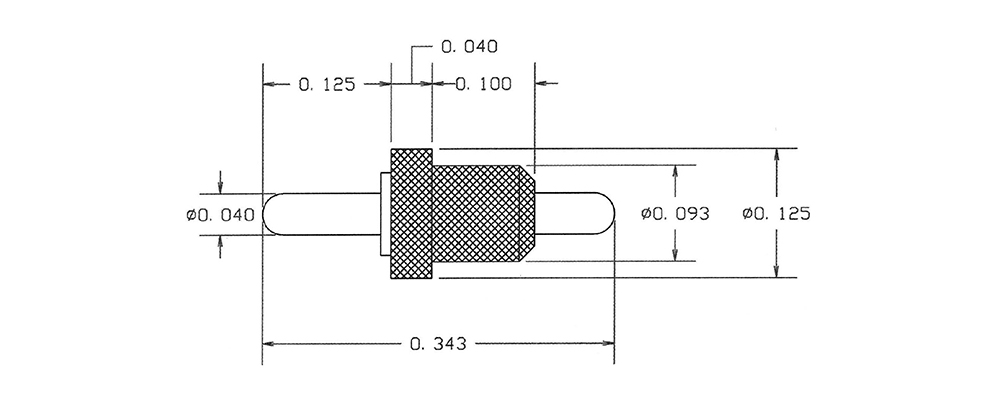

1110-75-08815
1110-75-08815
1110-75-08815
0.343" 0.040 Pin/Pin Press Fit 1/16 0.086 Brass Bright Tin-Lead - - PTFE Green NO

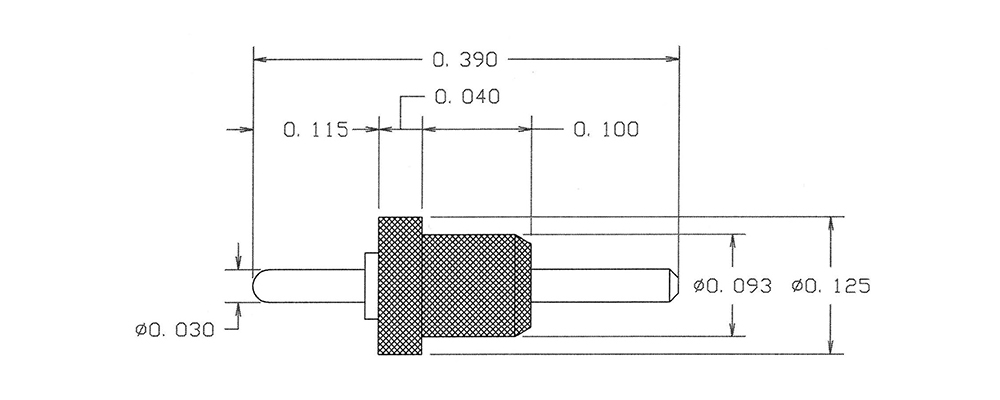

1110-93-0311
1110-93-0311
1110-93-0311
0.390" 0.035 Pin/Pin Press Fit 1/16 0.086 Brass Gold - - PTFE Brown NO

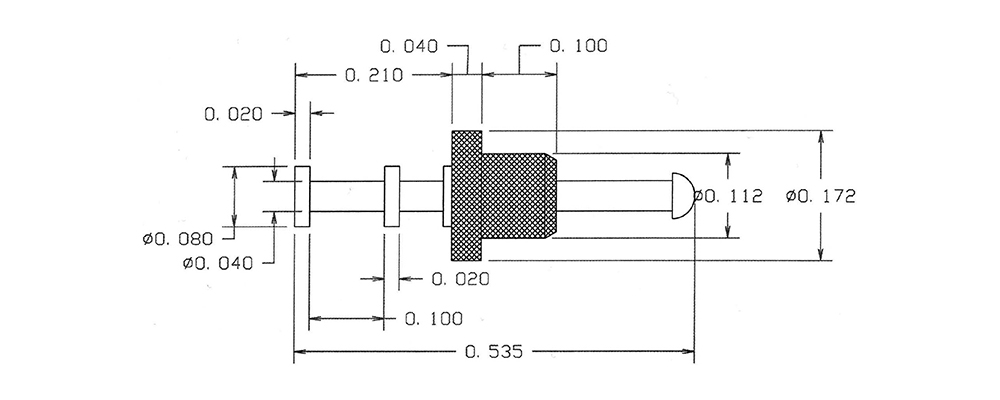

1111-02-0417
1111-02-0417
1111-02-0417
0.535" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.101 Brass Electro-Tin - - PTFE Violet YES

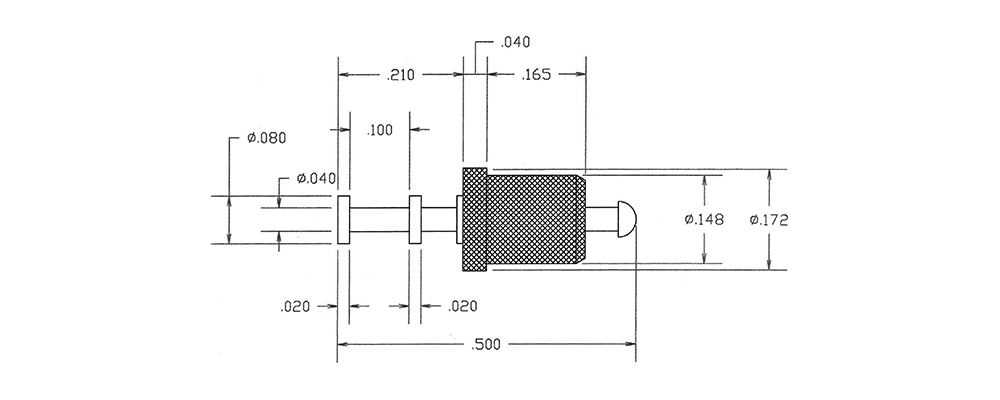

1111-10-0513
1111-10-0513
1111-10-0513
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Electro Solder - - PTFE Orange NO

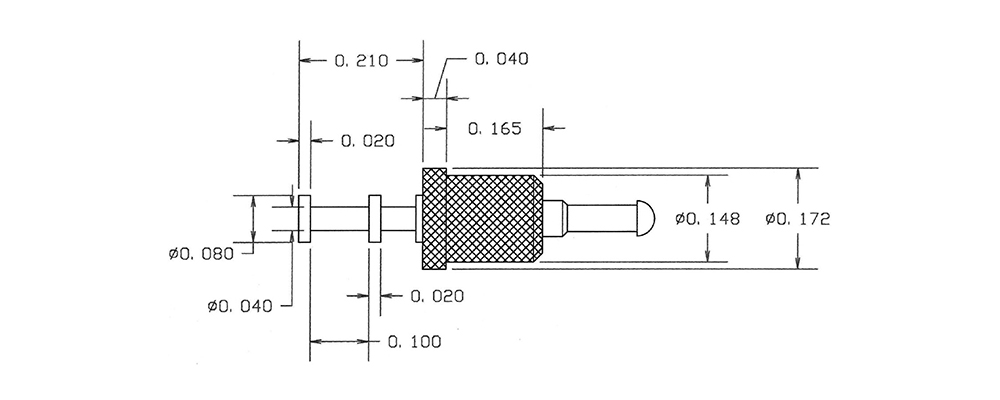

1111-14S-08819
1111-14S-08819
1111-14S-08819
0.609" 0.040 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Bright Tin-Lead - - PTFE White NO

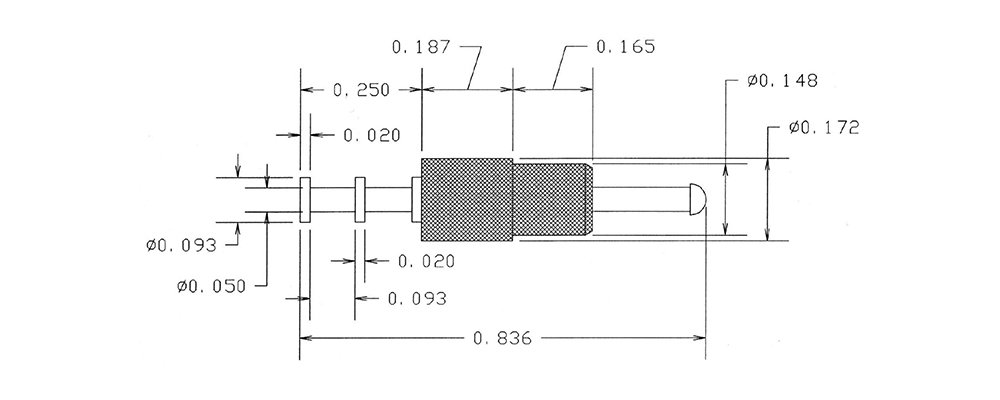

1111-20-0315
1111-20-0315
1111-20-0315
0.836" 0.050 DOUBLE Turret/Tip Press Fit 1/8 0.136 Brass Gold - - PTFE Green YES

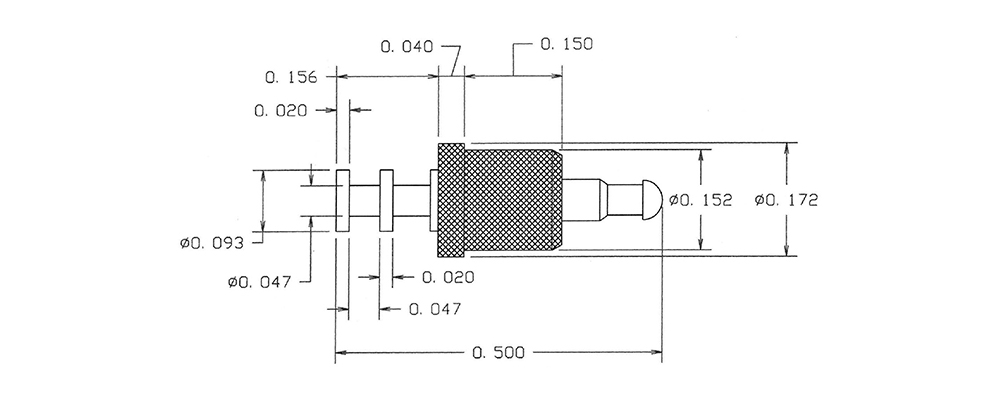

1111-24-04411
1111-24-04411
1111-24-04411
0.500" 0.047 DOUBLE Turret/Tip Press Fit 1/8 0.140 Brass Bright Tin - - PTFE Brown NO

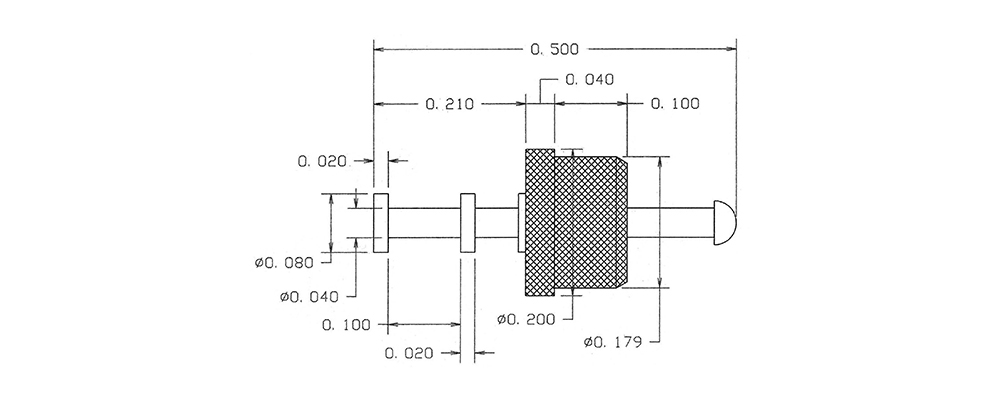

1111-33-0517
1111-33-0517
1111-33-0517
0.500" 0.040 DOUBLE Turret/Tip Press Fit 1/16 0.166 Brass Electro Solder - - PTFE Violet NO

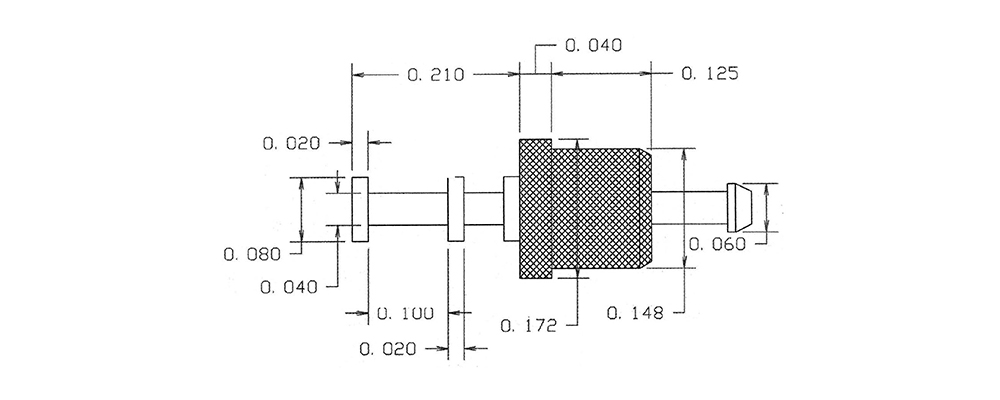

1111-38-0113
1111-38-0113
1111-38-0113
0.500" - DOUBLE Turret/Turret Press Fit 3/32 0.136 Brass Silver - - PTFE Orange NO

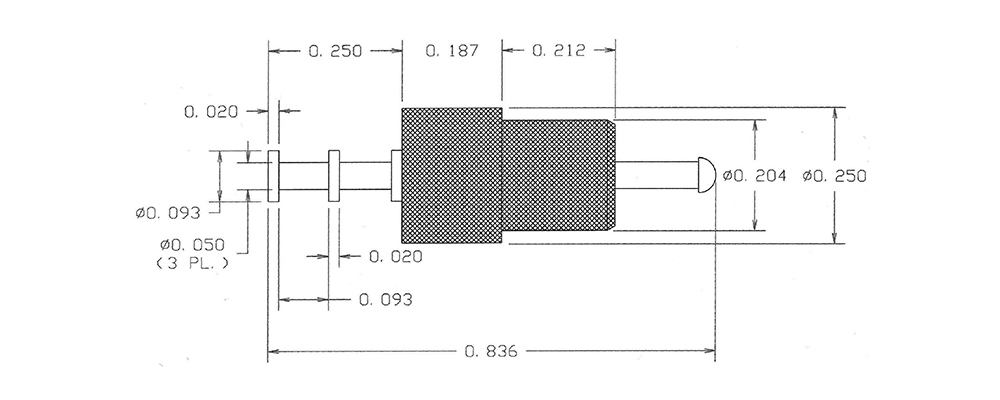

1111-44-0319
1111-44-0319
1111-44-0319
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.191 Brass Gold - - PTFE White YES
