Commercial
Insulated
Pin Terminals

Filter

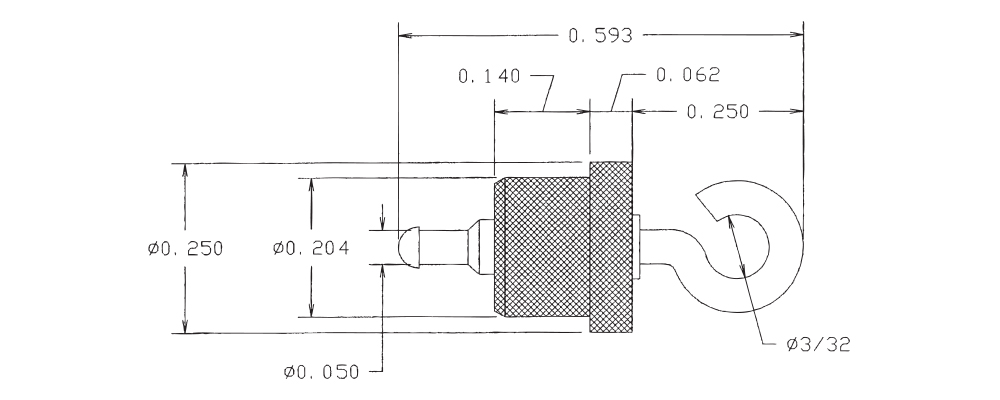

09-2094-1-0416
09-2094-1-0416
09-2094-1-0416
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Electro-Tin - - PTFE Blue YES

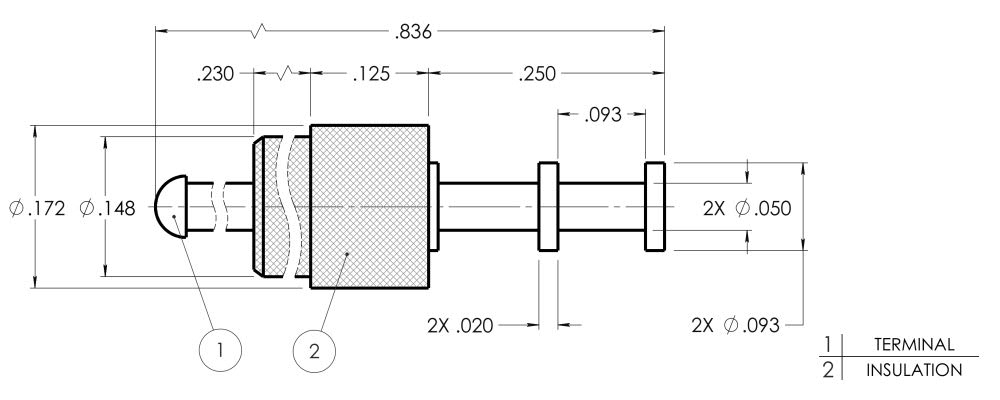

1111-19-0412
1111-19-0412
1111-19-0412
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.136 Brass Electro-Tin - - PTFE Red NO

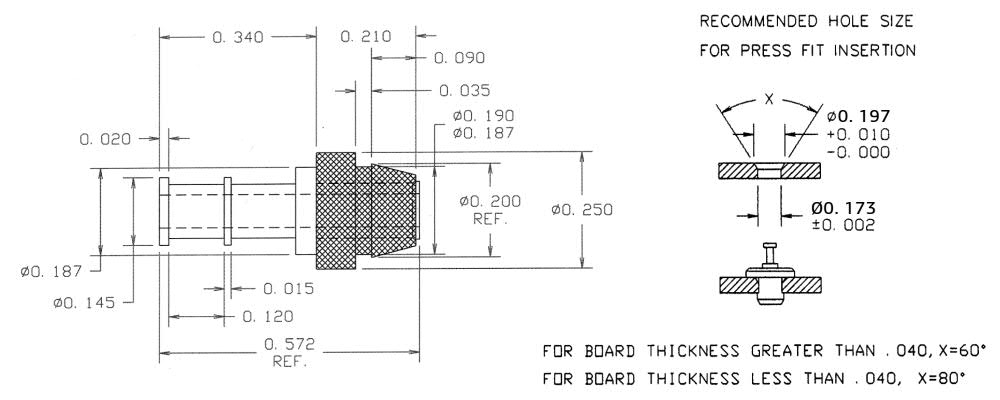

09-2101-1-0512
09-2101-1-0512
09-2101-1-0512
0.572" - - PRESS LOCK 1/32 - 1/16 0.173 Brass Electro Solder - - PTFE Red NO

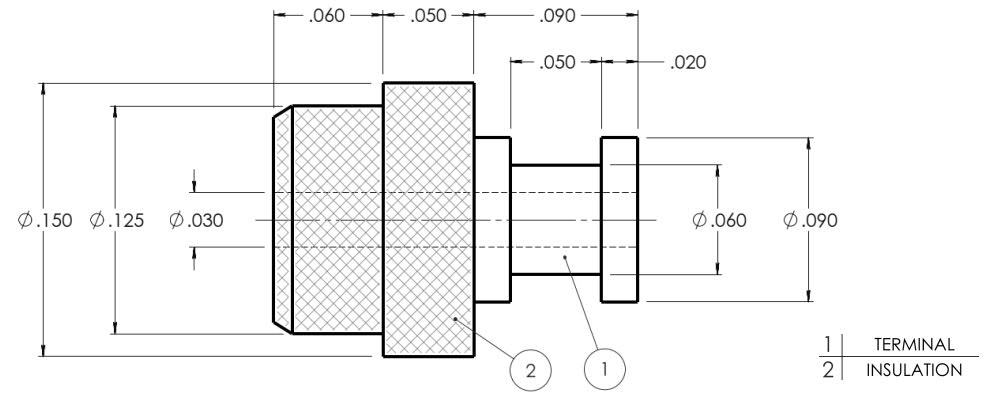

1112-05-04418
1112-05-04418
1112-05-04418
0.200" - - Press Fit 1/32 0.113 Brass Bright Tin - - PTFE Gray NO

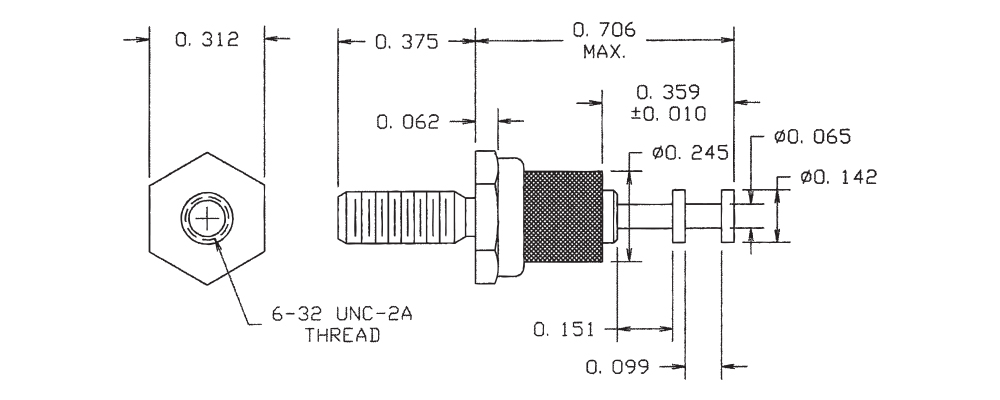

09-2111-1-08818
09-2111-1-08818
09-2111-1-08818
1.081" - - 6-32 Nut Up to 1/4 0.144 Brass Bright Tin-Lead Nickel Brass PTFE Gray NO

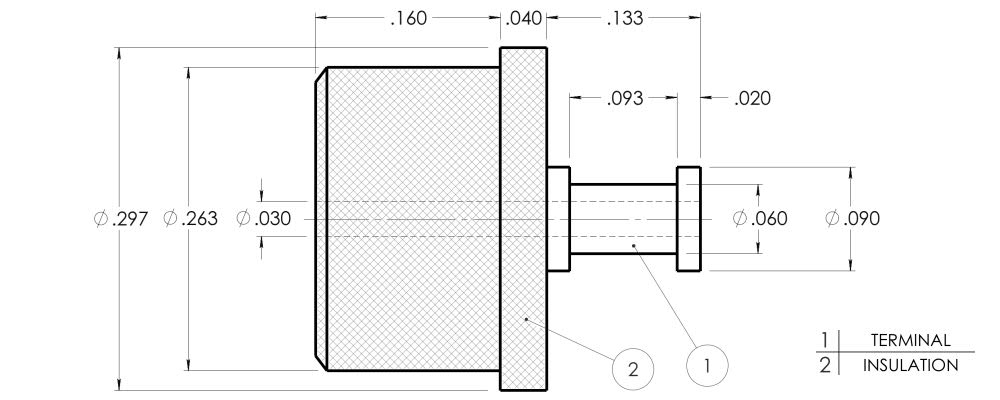

1112-20-08814
1112-20-08814
1112-20-08814
0.333" - - Press Fit 1/8 0.250 Brass Bright Tin-Lead - - PTFE Yellow NO

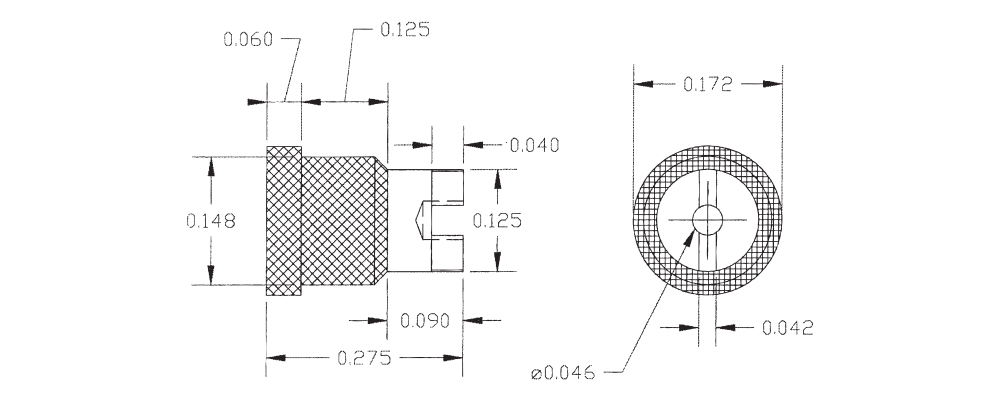

09-2121-1-0314
09-2121-1-0314
09-2121-1-0314
0.275" - - Press Fit 5/64 0.136 Brass Gold - - PTFE Yellow NO

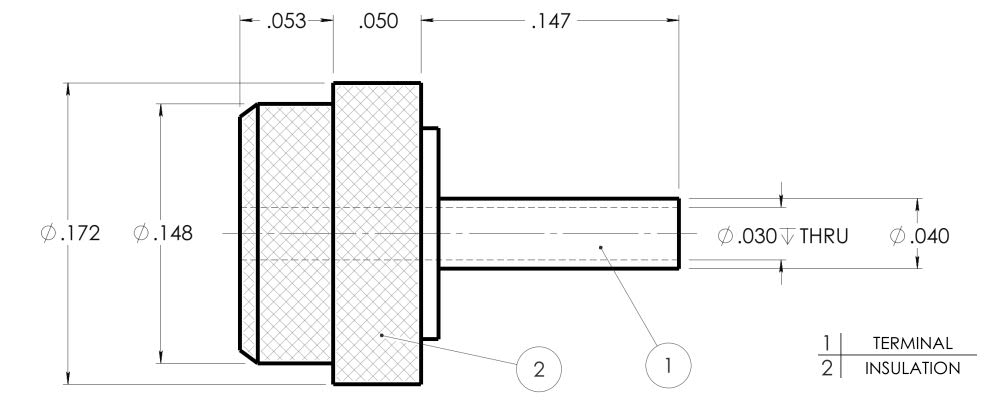

1114-18-0310
1114-18-0310
1114-18-0310
0.250" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Black YES

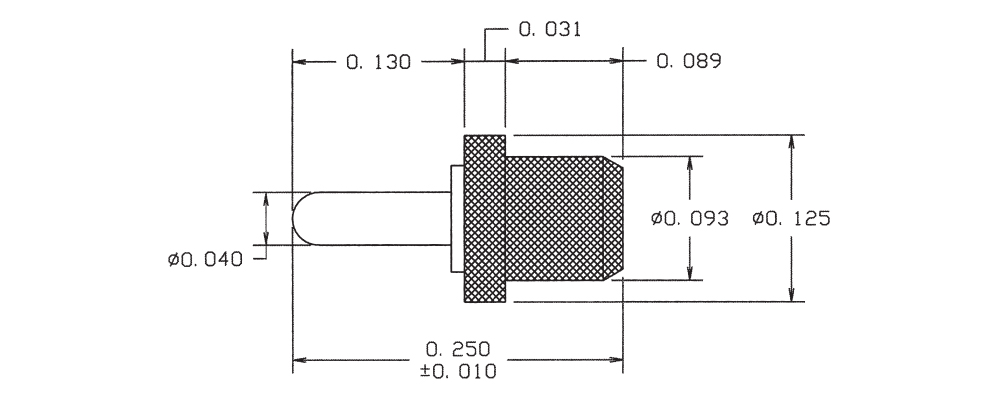

1100-04-04410
1100-04-04410
1100-04-04410
0.250" 0.040 - Press Fit 3/64 0.086 Brass Bright Tin - - PTFE Black YES
1114-24-0416
1114-24-0416
1114-24-0416
0.367" 0.085 - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Blue YES

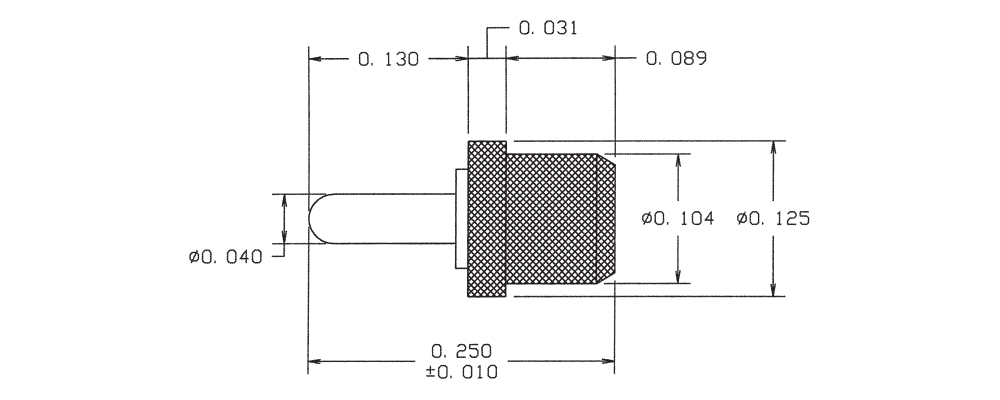

1100-08-0516
1100-08-0516
1100-08-0516
0.250" 0.040 - Press Fit 3/64 0.091 Brass Electro Solder - - PTFE Blue NO

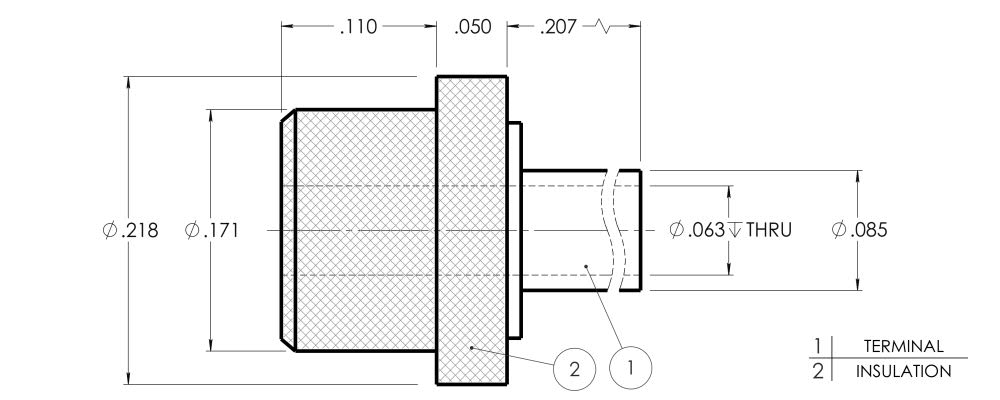

1114-27-0512
1114-27-0512
1114-27-0512
0.367" 0.085 - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE Red NO

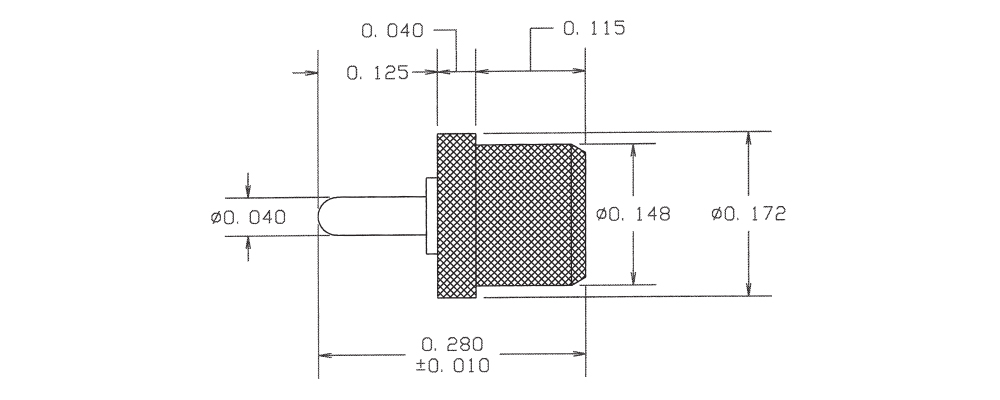

1100-14-0112
1100-14-0112
1100-14-0112
0.280" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE Red NO

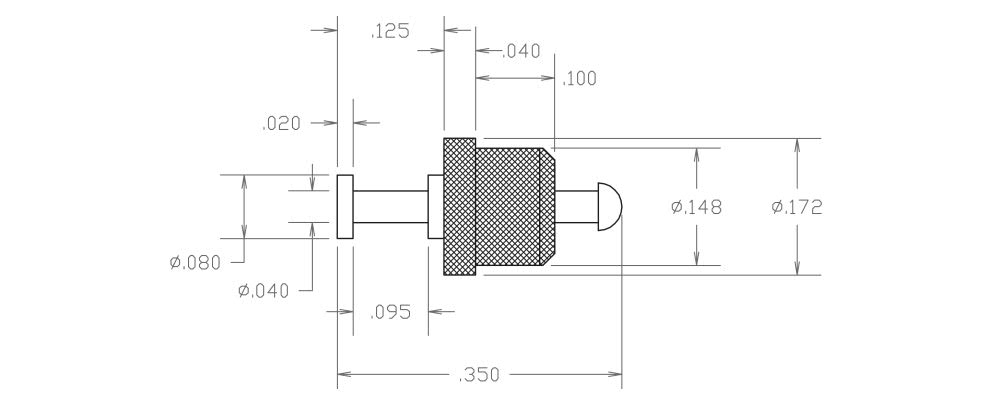

1121-08-08818
1121-08-08818
1121-08-08818
0.350" 0.040 Turret/Tip Press Fit 3/32 0.136 Brass Bright Tin-Lead - - PTFE Gray NO

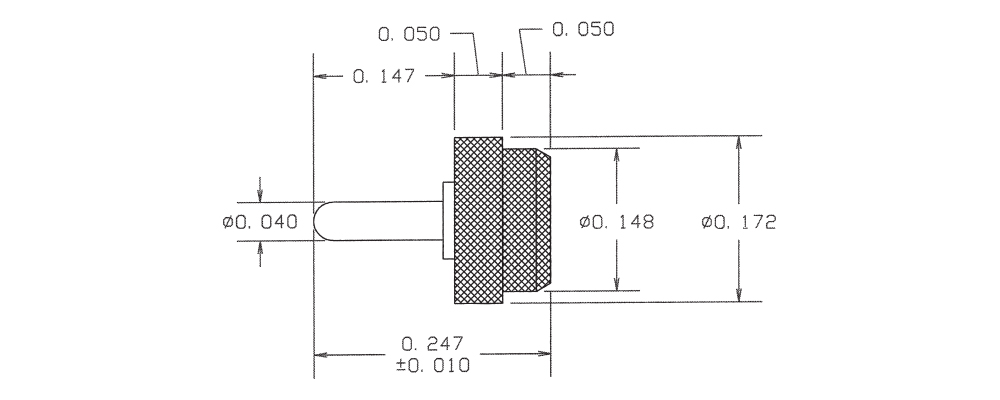

1100-18-0318
1100-18-0318
1100-18-0318
0.247" 0.040 - Press Fit 1/32 0.136 Brass Gold - - PTFE Gray NO

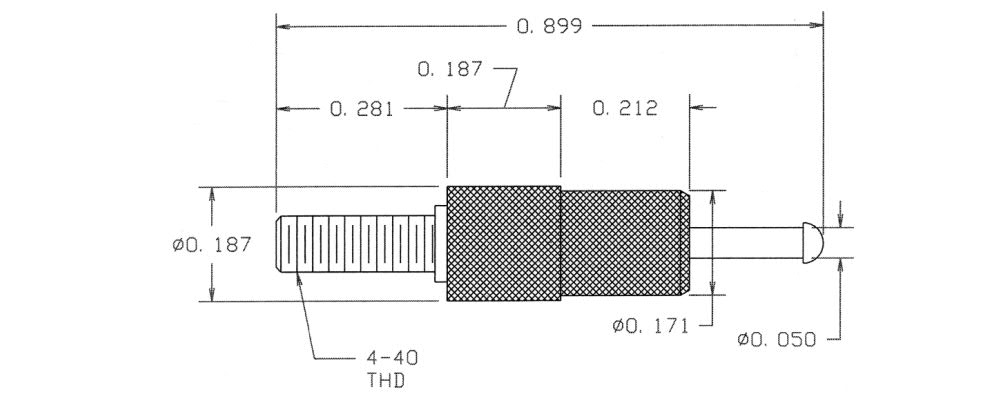

1124-10-0314
1124-10-0314
1124-10-0314
0.899" 0.050 THREAD/TIP Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Yellow NO

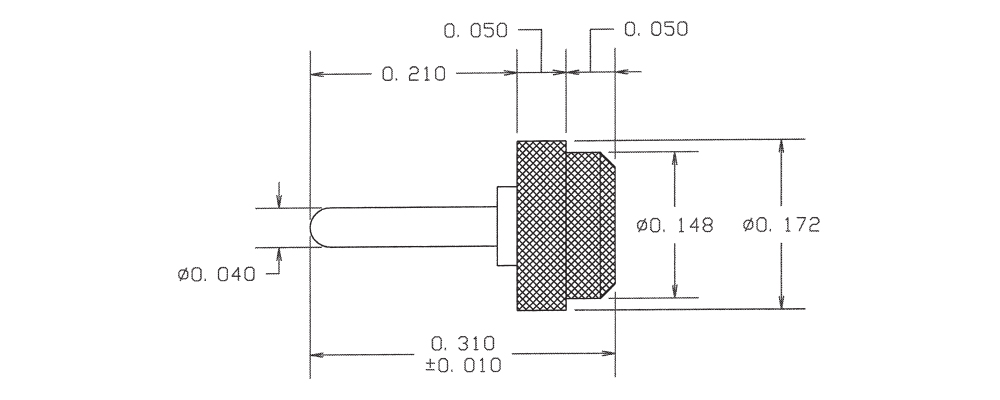

1100-22-04414
1100-22-04414
1100-22-04414
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin - - PTFE Yellow NO
1125-80-04410
1125-80-04410
1125-80-04410
0.594" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Bright Tin ZINC Brass PTFE Black YES

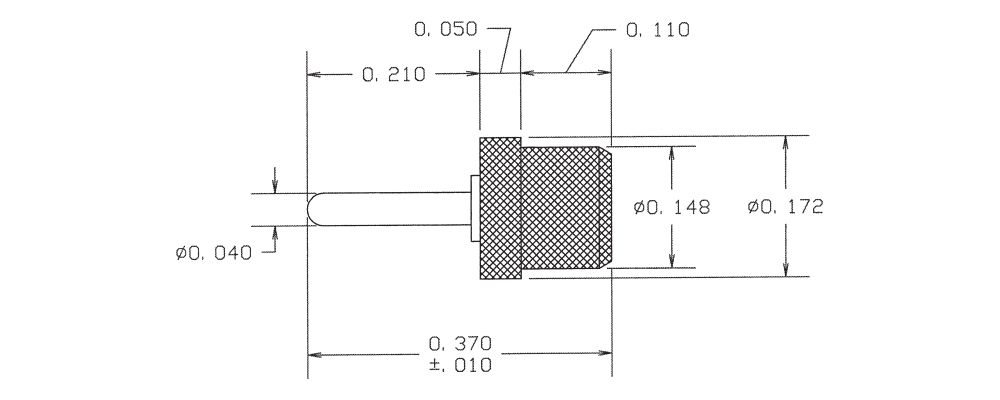

1100-32-08810
1100-32-08810
1100-32-08810
0.370" 0.040 - Press Fit 1/16 0.136 Brass Bright Tin-Lead - - PTFE Black NO
1110-54-0516
1110-54-0516
1110-54-0516
0.350" 0.040 Pin/Pin Press Fit 1/32 0.113 Brass Electro Solder - - PTFE Blue NO
