Commercial
Insulated
Pin Terminals

Filter

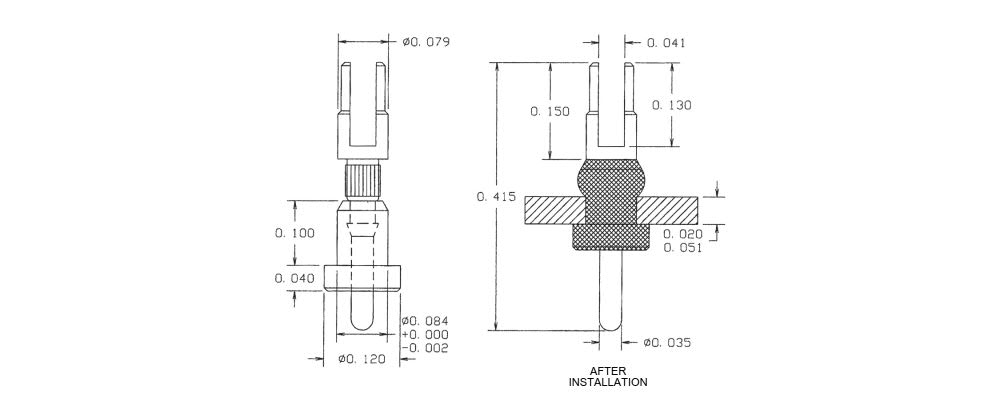

1178R-14-08817
1178R-14-08817
1178R-14-08817
0.415" 0.035 Pin/Slotted PRESS LOCK 1/64 - 3/64 0.086 Brass Bright Tin-Lead - - PTFE Violet NO
1102R-95-0313
1102R-95-0313
1102R-95-0313
0.812" - - Press Fit 13/64 0.297 Brass Gold - - PTFE Orange NO
1125-02-0419
1125-02-0419
1125-02-0419
0.578" - - 2-56 Nut 7/64 0.094 Brass Electro-Tin Electro-Tin Brass PTFE White YES
1125-06-0515
1125-06-0515
1125-06-0515
0.414" - - Swage Mount 1/32 0.116 ±0.002 Brass Electro Solder Electro-Tin Brass PTFE Green NO
1125-11-0111
1125-11-0111
1125-11-0111
0.454" - - Swage Mount 1/16 0.116 ±0.002 Brass Silver Electro-Tin Brass PTFE Brown NO
1125-15-0317
1125-15-0317
1125-15-0317
0.578" - - 4-40 Nut 7/64 0.120 Brass Gold Electro-Tin Brass PTFE Violet YES
1125-19-04413
1125-19-04413
1125-19-04413
0.822" - - 6-32 Nut Up to 3/16 0.144 Brass Bright Tin Electro-Tin Brass PTFE Orange NO
1125-23-0519
1125-23-0519
1125-23-0519
0.822" - - 4-40 Nut Up to 3/16 0.120 Brass Electro Solder Electro-Tin Brass PTFE White NO
1125-28-0115
1125-28-0115
1125-28-0115
0.615" - - Swage Mount 1/16 0.116 ±0.001 Brass Silver Electro-Tin Brass PTFE Green YES
09-2128-1-0411
09-2128-1-0411
09-2128-1-0411
0.443" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1100-47-04417
1100-47-04417
1100-47-04417
0.350" 0.040 - Press Fit 1/16 0.166 Brass Bright Tin - - PTFE Violet YES
1100R-22-08813
1100R-22-08813
1100R-22-08813
0.310" 0.040 - Press Fit 1/32 0.136 Brass Bright Tin-Lead - - PTFE Orange NO

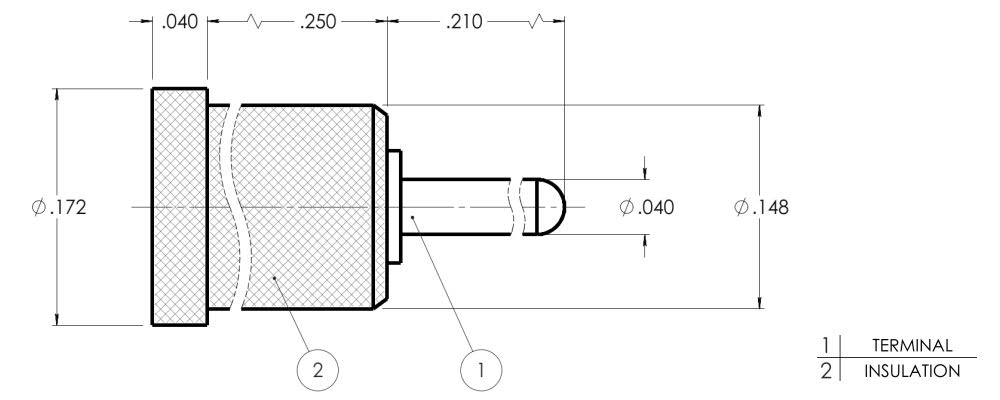

1100R-36-0119
1100R-36-0119
1100R-36-0119
0.390" 0.040 - Press Fit 3/32 0.136 Brass Silver - - PTFE White YES

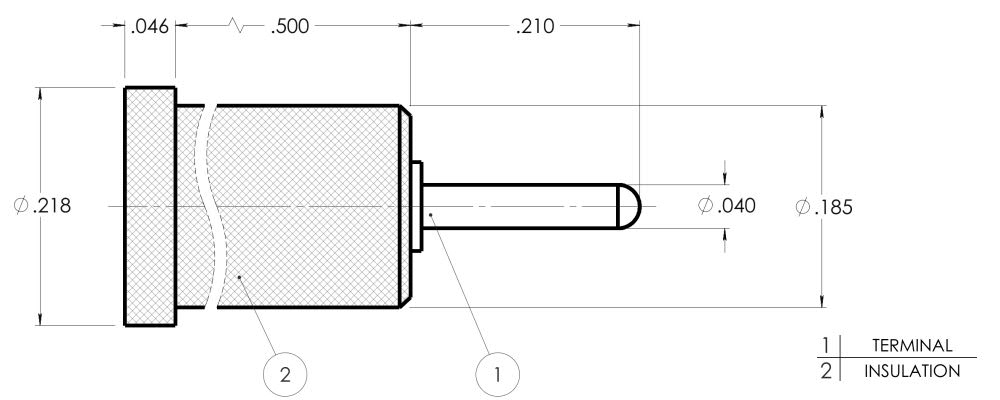

1100R-53-0415
1100R-53-0415
1100R-53-0415
0.756" 0.040 - Press Fit 15/32 0.172 Brass Electro-Tin - - PTFE Green YES
1100R-70-0511
1100R-70-0511
1100R-70-0511
0.750" 0.040 - Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Brown NO
09-2010-1-0111
09-2010-1-0111
09-2010-1-0111
0.436" 0.040 Pin/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO
1102-43-08818
1102-43-08818
1102-43-08818
0.796" - - Press Fit 1/8 0.152 Brass Bright Tin-Lead - - PTFE Gray NO

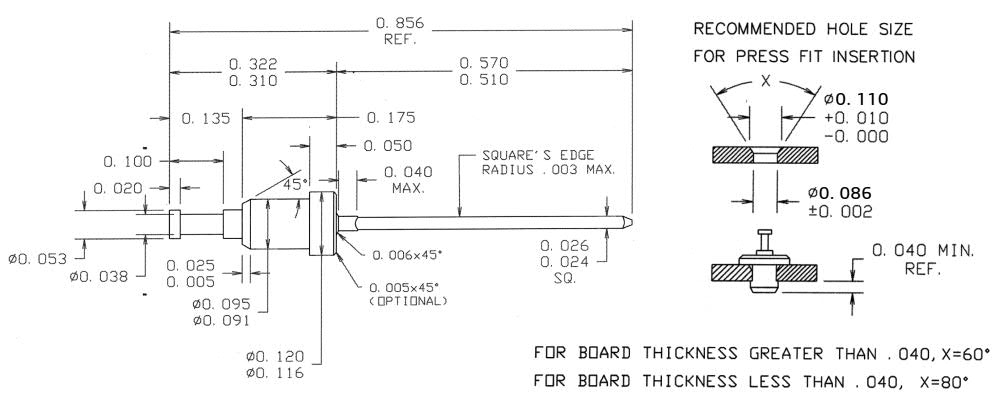

09-2078-1-0318
09-2078-1-0318
09-2078-1-0318
0.856" 0.025 SQ. TURRET/PIN Press Fit 5/64 0.086 Brass Gold - - PTFE Gray NO

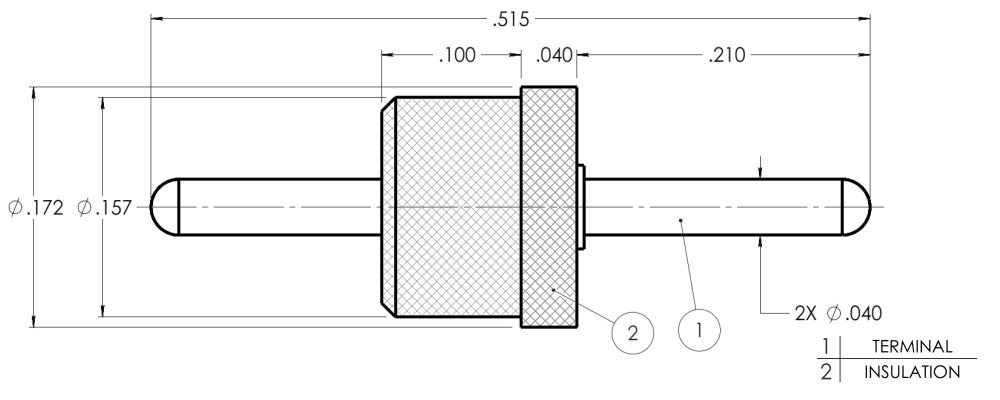

1110-39-0314
1110-39-0314
1110-39-0314
0.515" 0.040 Pin/Pin Press Fit 1/16 0.144 Brass Gold - - PTFE Yellow NO

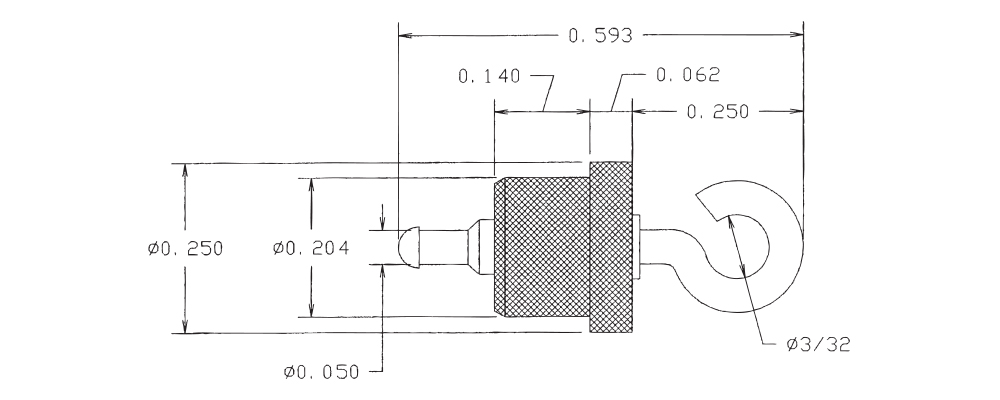

09-2094-1-04414
09-2094-1-04414
09-2094-1-04414
0.593" 0.050 ± 0.010 Pin/Hook Press Fit 3/32 0.191 Brass Bright Tin - - PTFE Yellow NO
