Commercial
Insulated
Pin Terminals

Filter
1157-06-04417
1157-06-04417
1157-06-04417
1.115" 0.050 TURRET/PIN Press Fit 11/32 0.158 Brass Bright Tin - - PTFE Violet YES

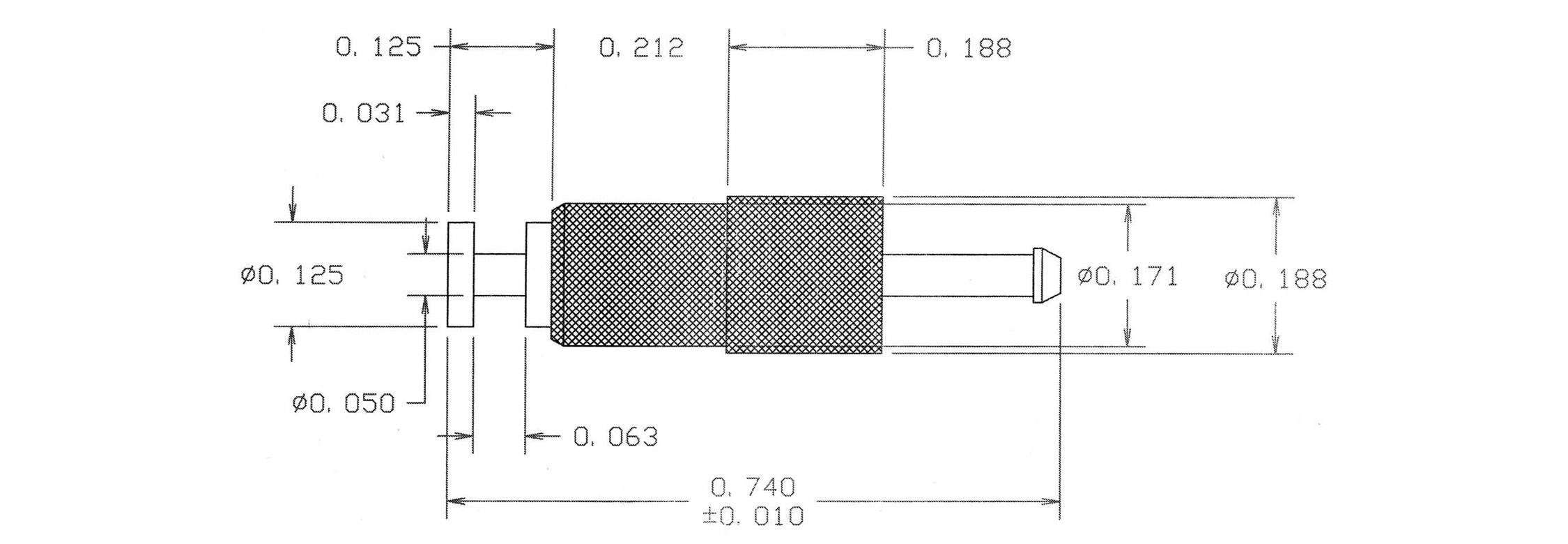

1157R-04-08813
1157R-04-08813
1157R-04-08813
0.740" 0.050 TURRET/PIN Press Fit Up to 3/16 0.158 Brass Bright Tin-Lead - - PTFE Orange NO
1160-13-0119
1160-13-0119
1160-13-0119
0.367" 0.085 - Press Fit 1/16 0.136 Brass Silver - - PTFE White YES
1167-20-0415
1167-20-0415
1167-20-0415
0.843" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1167-67-0511
1167-67-0511
1167-67-0511
0.875" - - 6-32 Nut 1/8 0.144 Brass Electro Solder ZINC Brass DIALLYL PHTHALATE Brown NO
1169-08-08817
1169-08-08817
1169-08-08817
0.499" - - 2-56 Nut 1/32 0.094 Brass Bright Tin-Lead ZINC Brass DIALLYL PHTHALATE Violet NO
1169-37-0313
1169-37-0313
1169-37-0313
0.750" - - 4-40 Nut 1/8 0.120 Brass Gold ZINC Brass DIALLYL PHTHALATE Orange YES

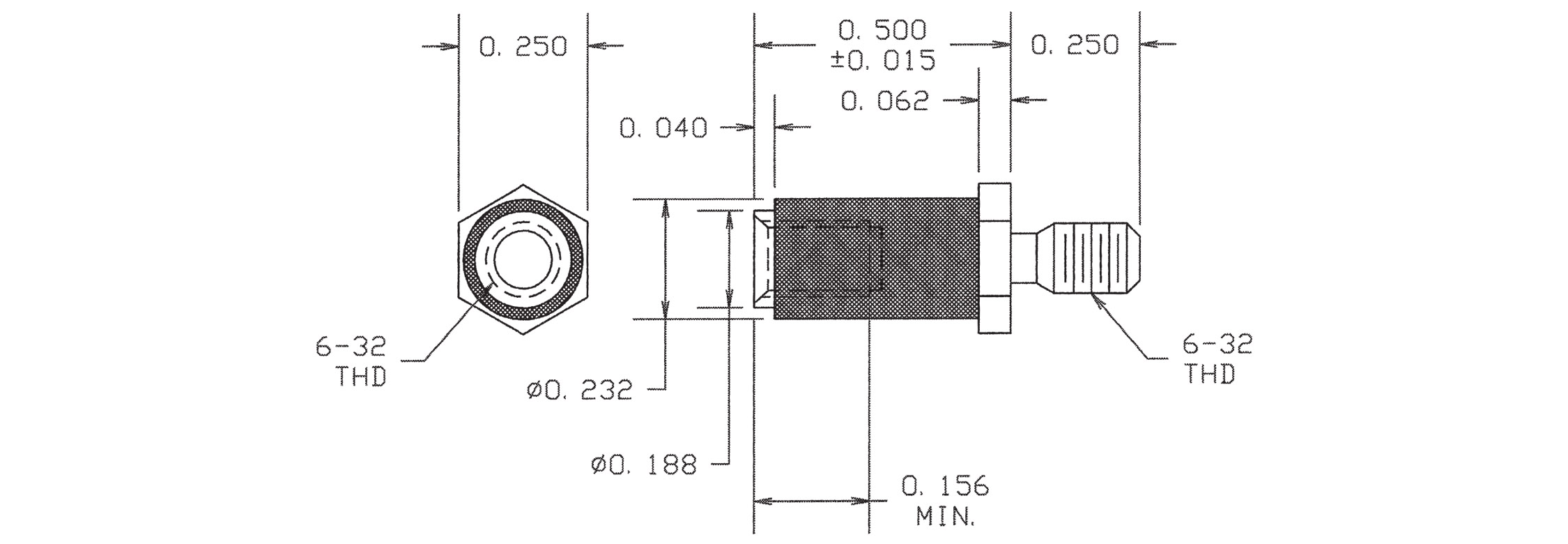

1170-03-07519
1170-03-07519
1170-03-07519
0.750" - - 6-32 Nut 1/8 0.144 Brass ZINC ZINC Brass DIALLYL PHTHALATE White YES
1170-22-0415
1170-22-0415
1170-22-0415
0.968" - - 6-32 Nut Up to 1/4 0.144 Brass Electro-Tin ZINC Brass DIALLYL PHTHALATE Green YES
1175-012-0511
1175-012-0511
1175-012-0511
0.640" 0.047 Pin/Pin PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Brown NO

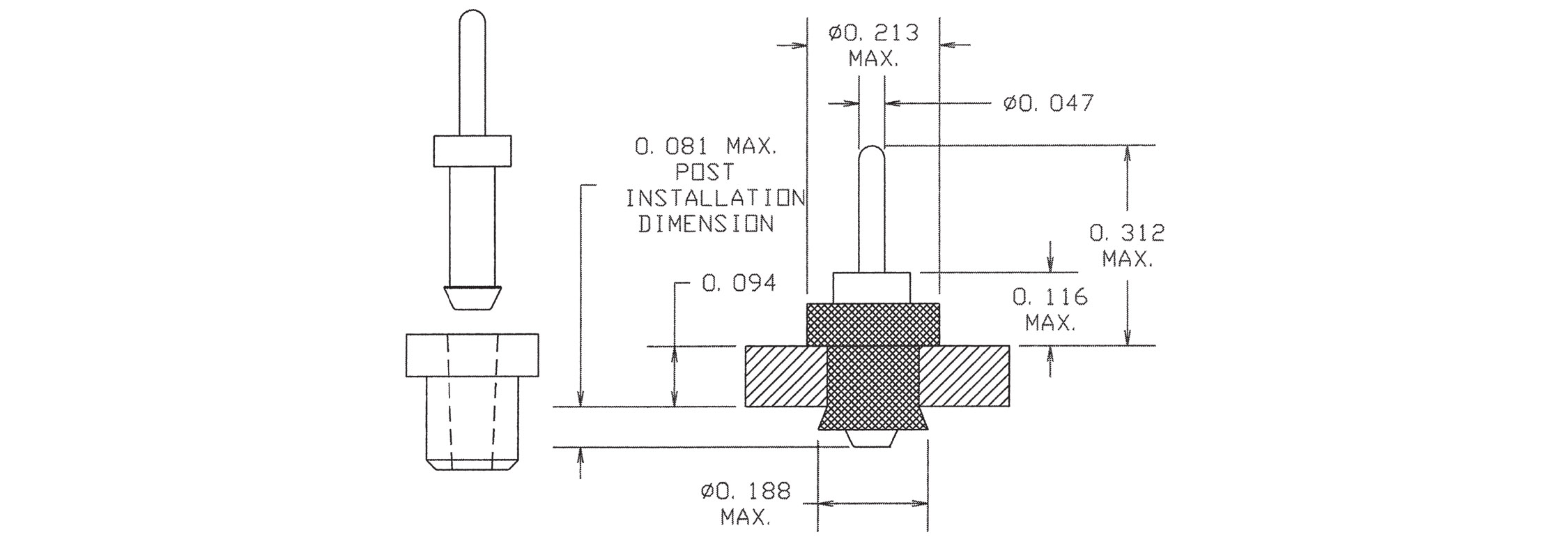

1175-023-08817
1175-023-08817
1175-023-08817
0.487" 0.047 - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Bright Tin-Lead - - PTFE Violet NO
1175-351-0313
1175-351-0313
1175-351-0313
0.342" - - PRESS LOCK 1/32 0.142 (+0.003/-0.001) Brass Gold - - PTFE Orange NO
1175-372-0419
1175-372-0419
1175-372-0419
0.736" 0.040 DOUBLE TURRET/PIN PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Electro-Tin - - PTFE White YES

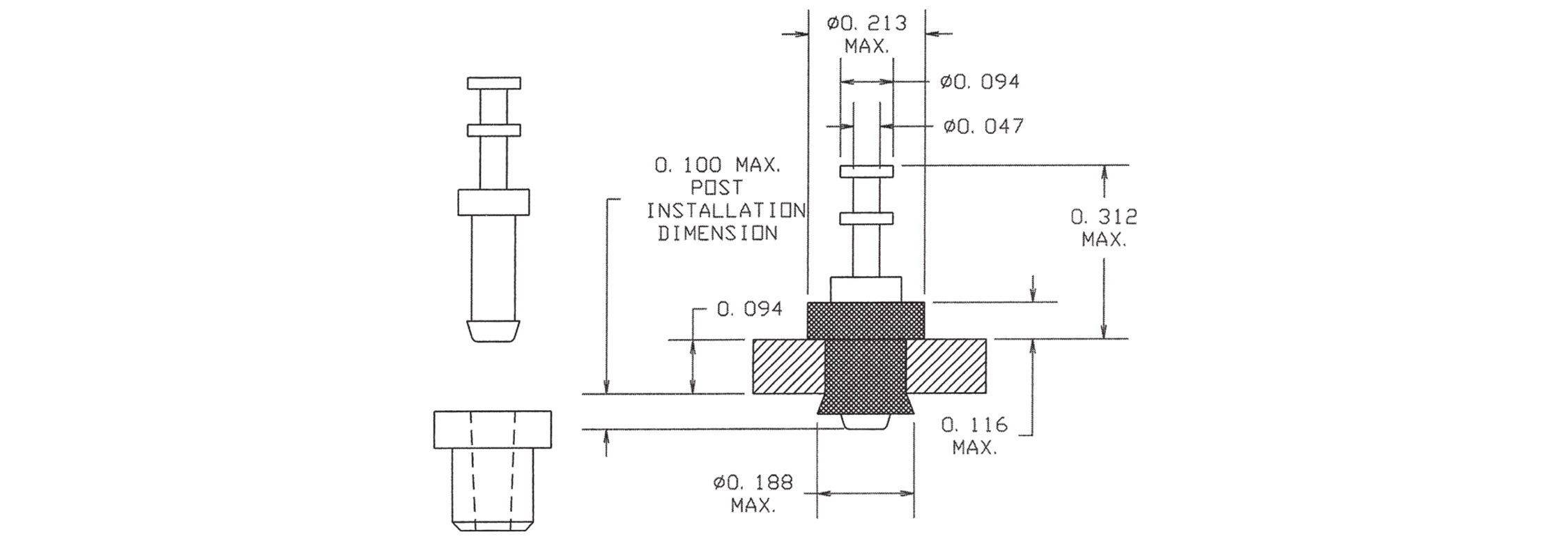

1175-403-0515
1175-403-0515
1175-403-0515
0.506" - - PRESS LOCK 3/32 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE Green NO
1175-414-0111
1175-414-0111
1175-414-0111
0.642" - DOUBLE Turret/Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Silver - - PTFE Brown NO
1175-424-0317
1175-424-0317
1175-424-0317
0.756" - Double Turret/Double Turret PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Gold - - PTFE Violet YES
1175-434-04413
1175-434-04413
1175-434-04413
0.537" - - PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Bright Tin - - PTFE Orange NO

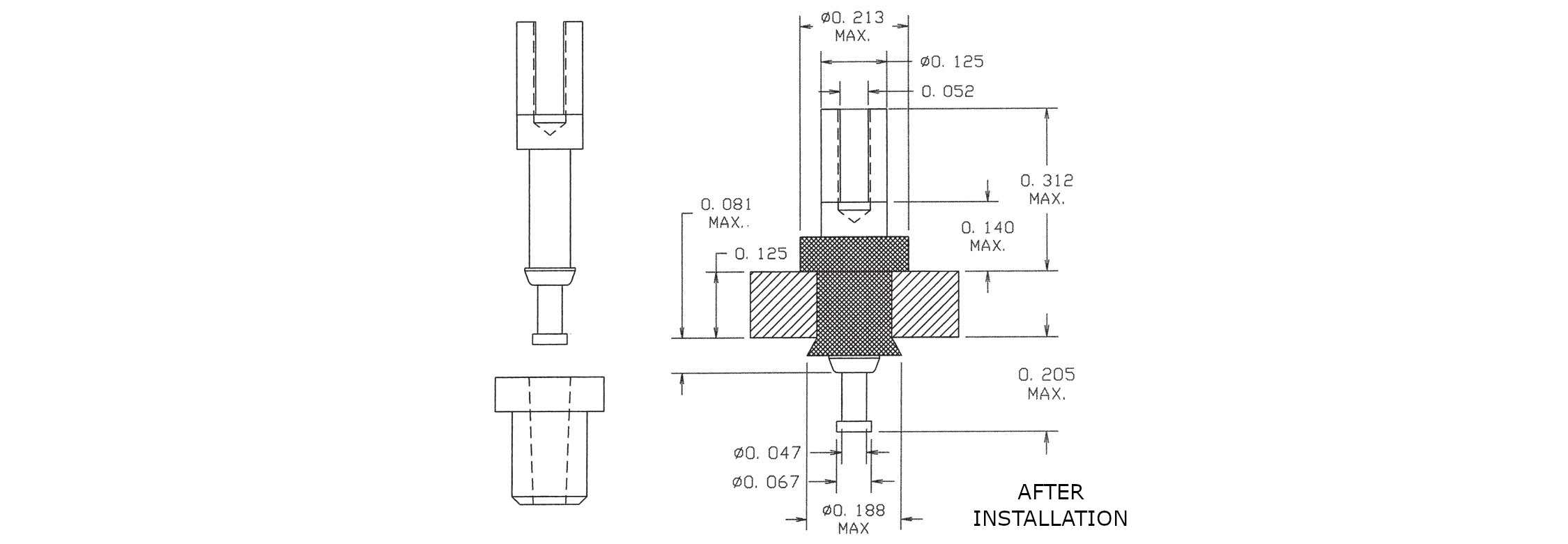

1175-444-0519
1175-444-0519
1175-444-0519
0.642" - TURRET/SLOTTED PRESS LOCK 1/8 0.142 (+0.003/-0.001) Brass Electro Solder - - PTFE White NO

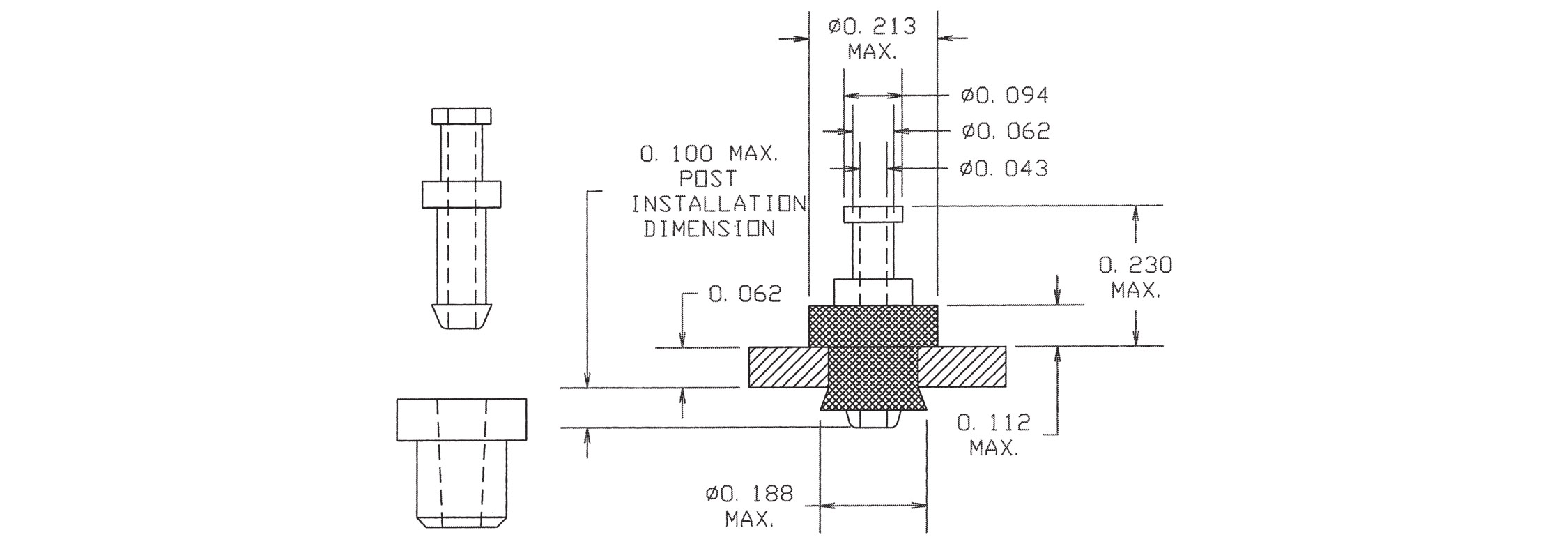

1175-462-0115
1175-462-0115
1175-462-0115
0.392" - - PRESS LOCK 1/16 0.142 (+0.003/-0.001) Brass Silver - - PTFE Green YES
1175-473-0411
1175-473-0411
1175-473-0411
0.575" - - PRESS LOCK 3/32 0.188 (+0.003/-0.001) Brass Electro-Tin - - PTFE Brown NO
