Commercial
Insulated
Pin Terminals

Filter
1151-11-0317
1151-11-0317
1151-11-0317
0.455" - - Press Fit 1/8 0.136 Brass Gold - - PTFE Violet YES
1151-19-04413
1151-19-04413
1151-19-04413
0.444" - - Press Fit 1/16 0.136 Brass Bright Tin - - PTFE Orange NO

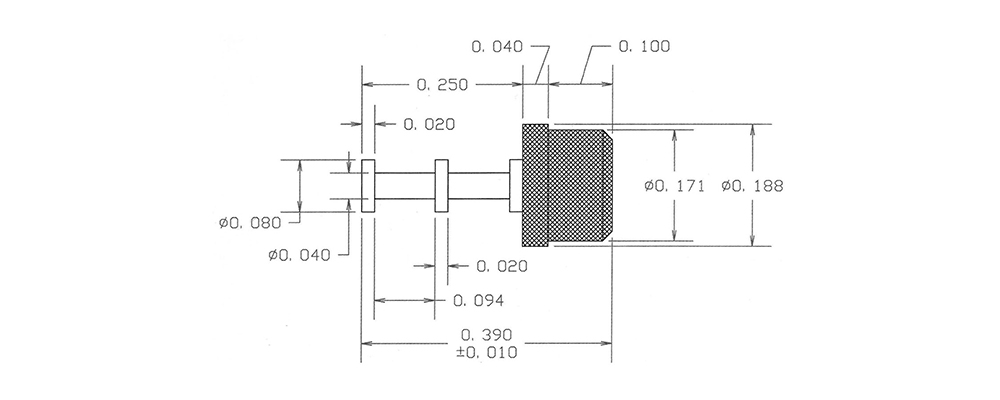

1151-38-0519
1151-38-0519
1151-38-0519
0.390" - - Press Fit 1/16 0.158 Brass Electro Solder - - PTFE White NO
1151-51-0115
1151-51-0115
1151-51-0115
1.234" - - Press Fit 5/32 0.203 Brass Silver - - PTFE Green YES
1151R-09-0411
1151R-09-0411
1151R-09-0411
0.390" - - Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
1151R-38-04417
1151R-38-04417
1151R-38-04417
0.390" - - Press Fit 1/16 0.158 Brass Bright Tin - - PTFE Violet YES

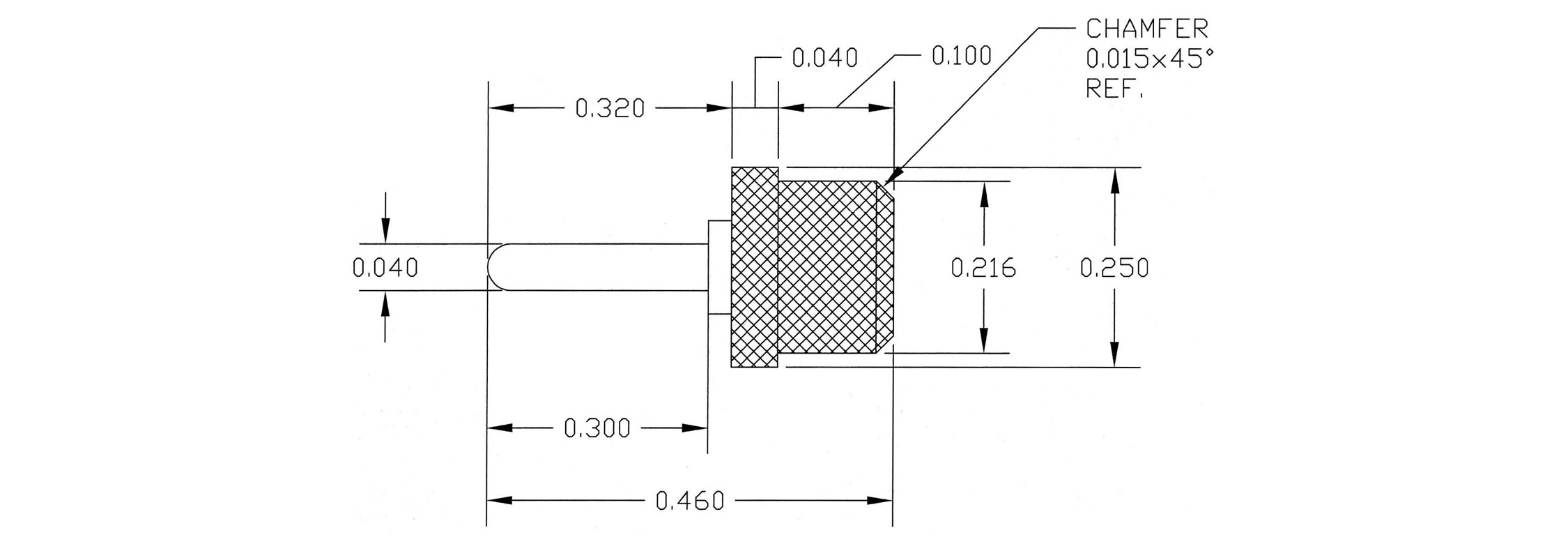

1152-29-08813
1152-29-08813
1152-29-08813
0.460" 0.040 - Press Fit 1/16 0.204 Brass Bright Tin-Lead - - PTFE Orange NO
1152R-17-0119
1152R-17-0119
1152R-17-0119
0.615" 0.040 - Press Fit 1/8 0.136 Brass Silver - - PTFE White YES

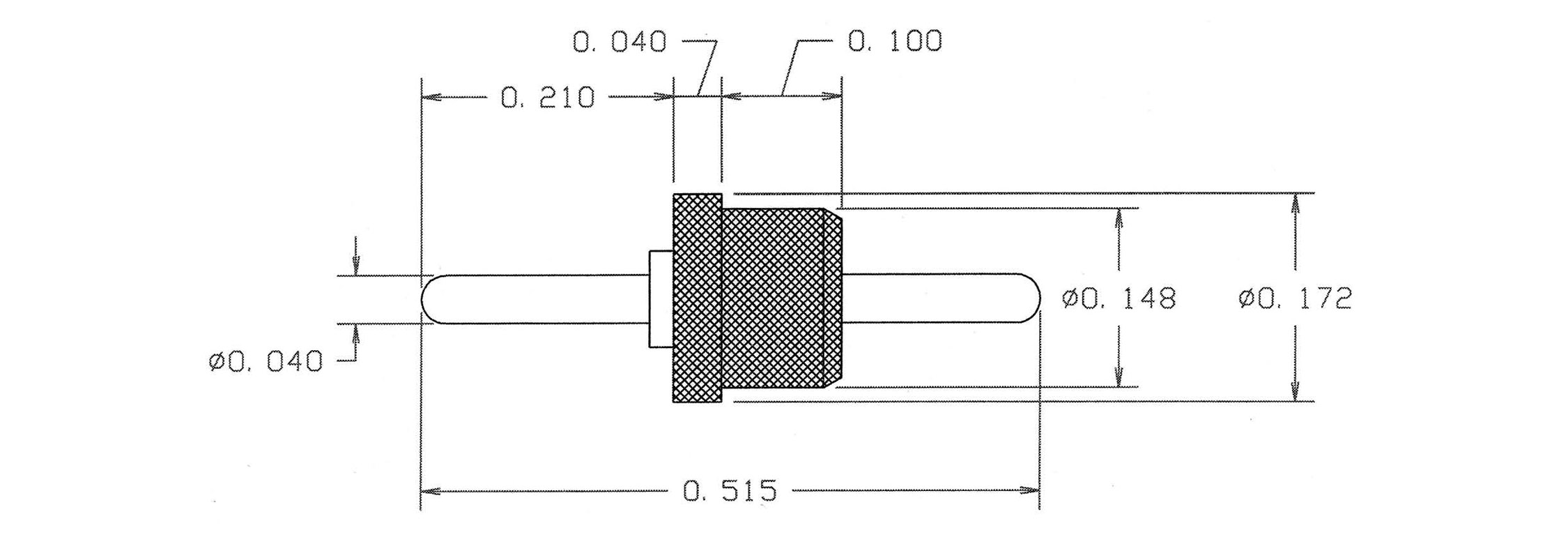

1153-06-0415
1153-06-0415
1153-06-0415
0.515" 0.040 Pin/Pin Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES
1153-31-0511
1153-31-0511
1153-31-0511
0.675" 0.040 Pin/Pin Press Fit 1/8 0.152 Brass Electro Solder - - PTFE Brown NO

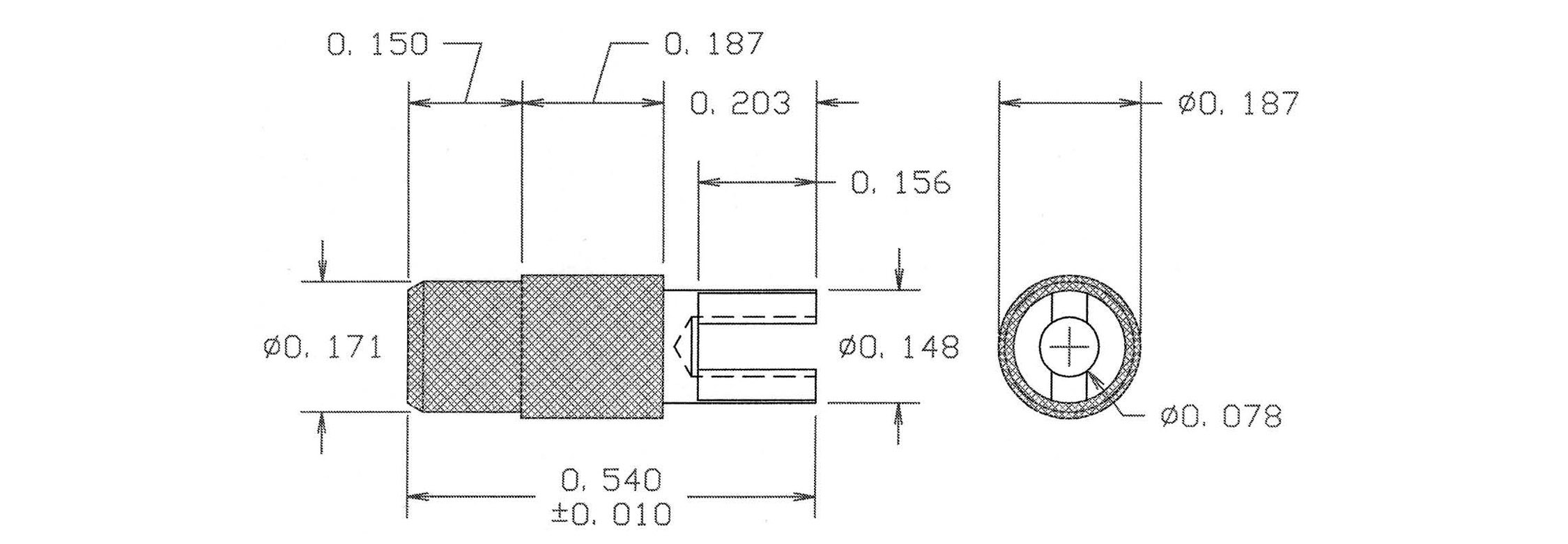

1154-08-08817
1154-08-08817
1154-08-08817
0.540" - - Press Fit 1/8 0.158 Brass Bright Tin-Lead - - PTFE Violet NO
1154-44-0313
1154-44-0313
1154-44-0313
0.821" 0.050 Pin/Slotted Press Fit Up to 3/16 0.158 Brass Gold - - PTFE Orange NO

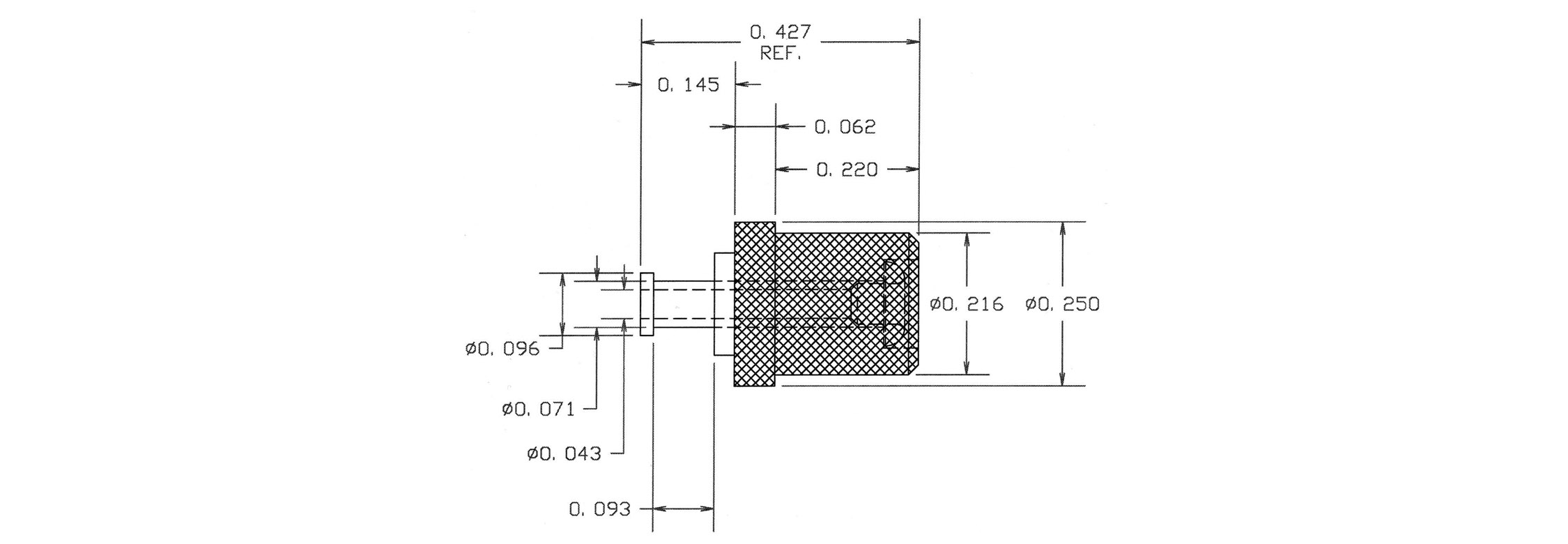

1155-01-0419
1155-01-0419
1155-01-0419
0.427" - - Press Fit Up to 3/16 0.204 Brass Electro-Tin - - PTFE White YES

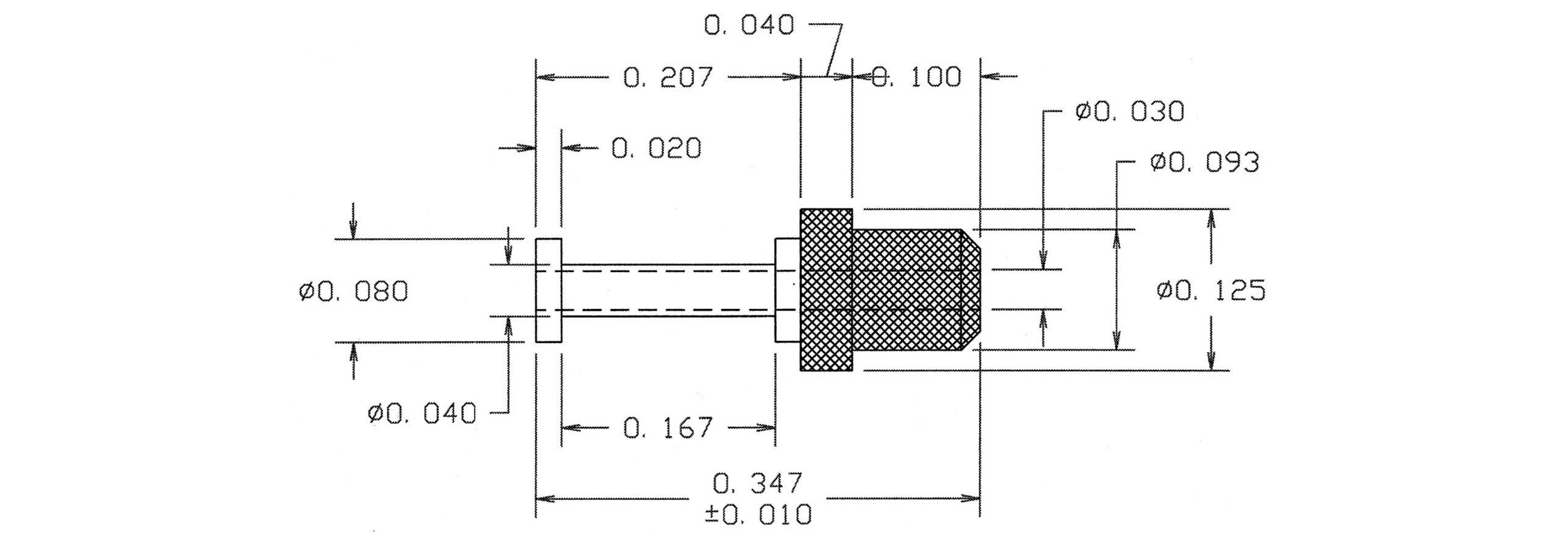

1155-07-0515
1155-07-0515
1155-07-0515
0.347" - - Press Fit 1/16 0.086 Brass Electro Solder - - PTFE Green NO

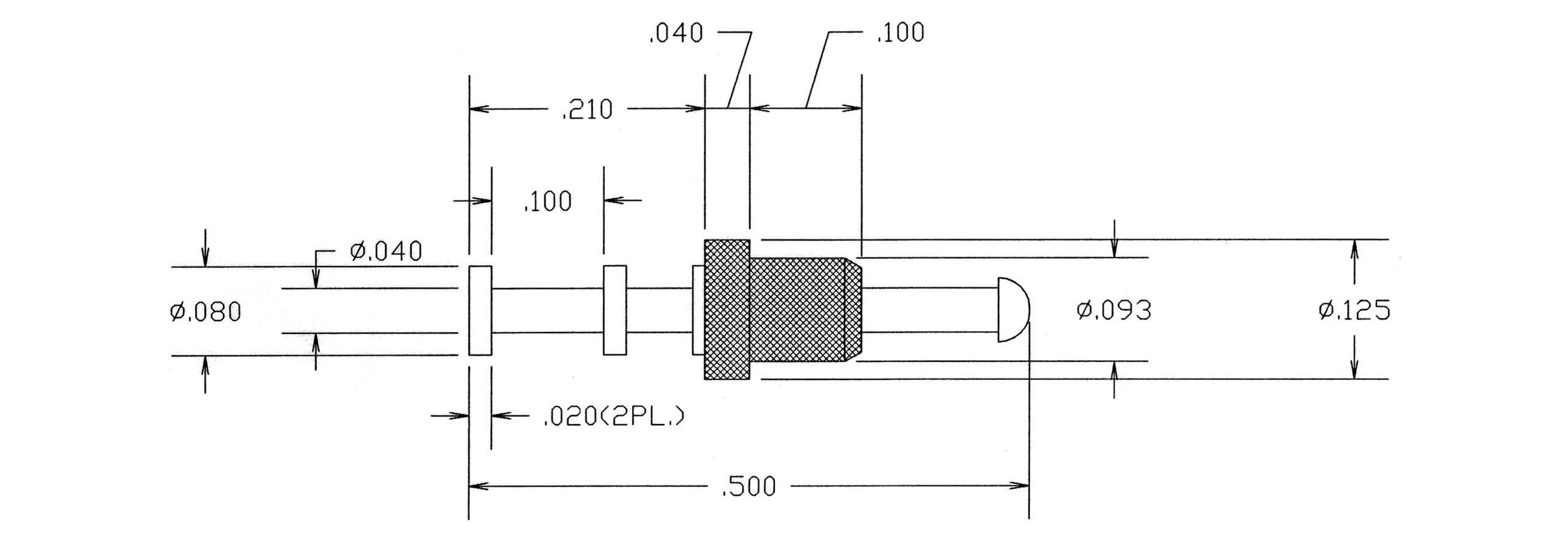

1156-02-0111
1156-02-0111
1156-02-0111
0.500" 0.035 DOUBLE Turret/Tip Press Fit 1/16 0.086 Brass Silver - - PTFE Brown NO

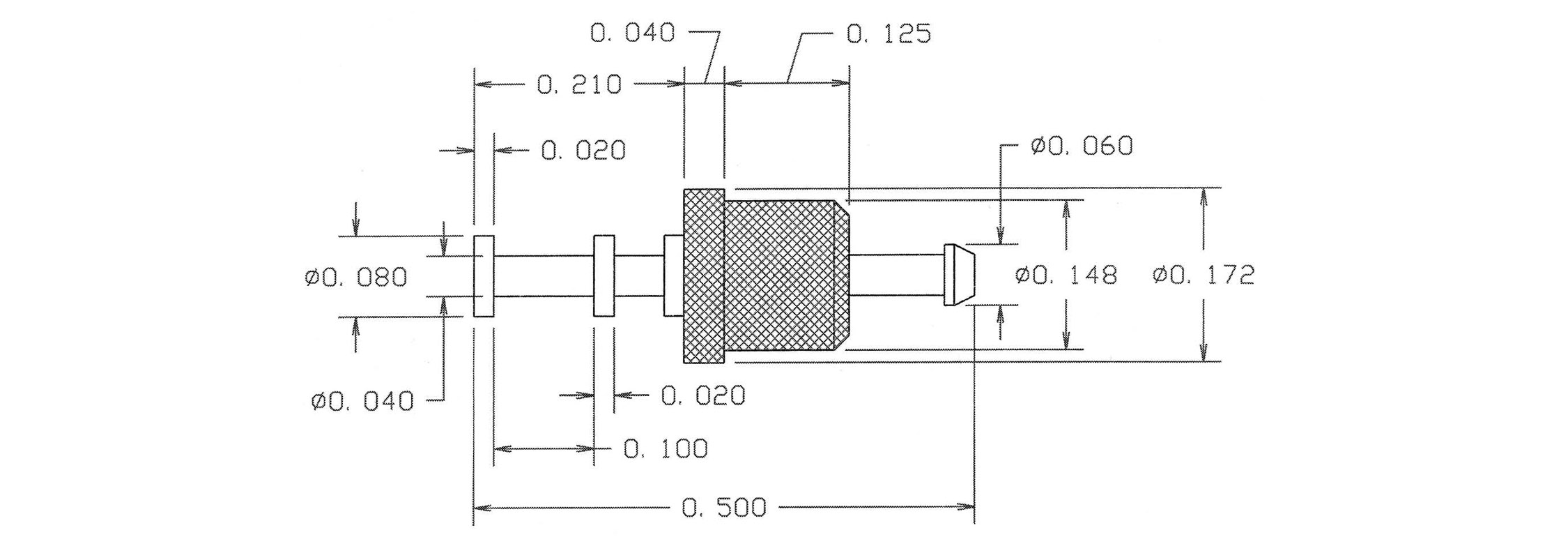

1156-07-0317
1156-07-0317
1156-07-0317
0.500" 0.040 DOUBLE TURRET/PIN Press Fit 3/32 0.136 Brass Gold - - PTFE Violet YES

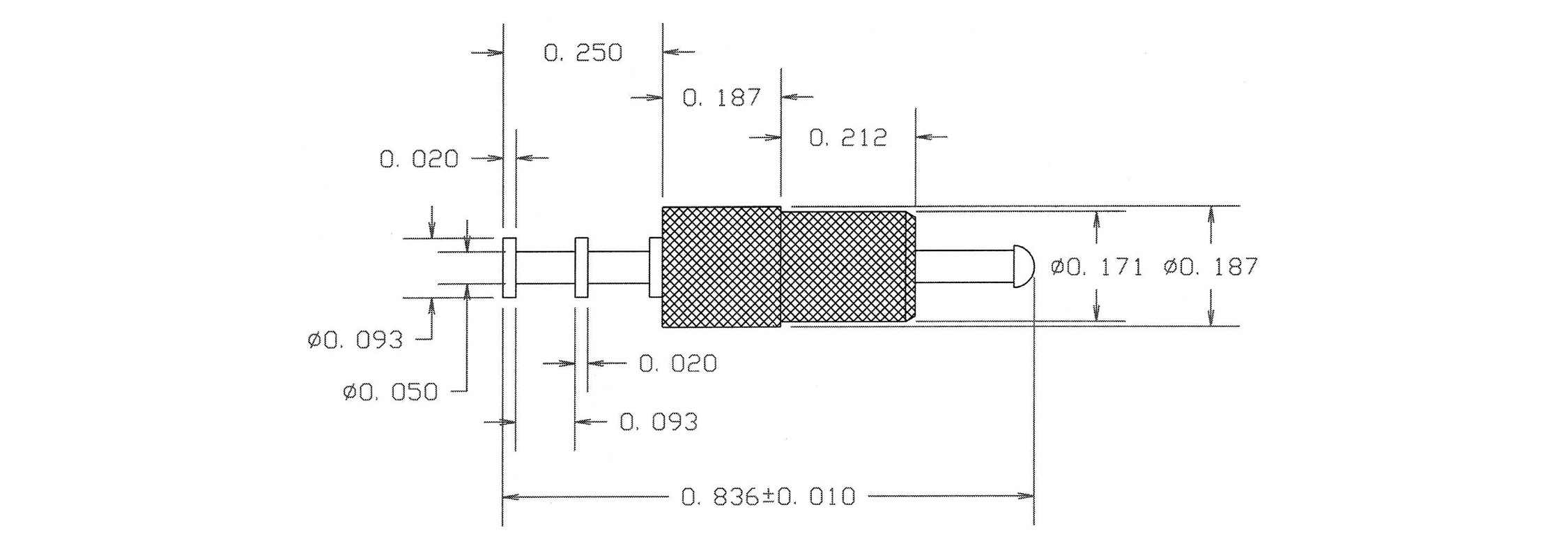

1156-14-04413
1156-14-04413
1156-14-04413
0.836" 0.050 DOUBLE Turret/Tip Press Fit Up to 3/16 0.158 Brass Bright Tin - - PTFE Orange NO

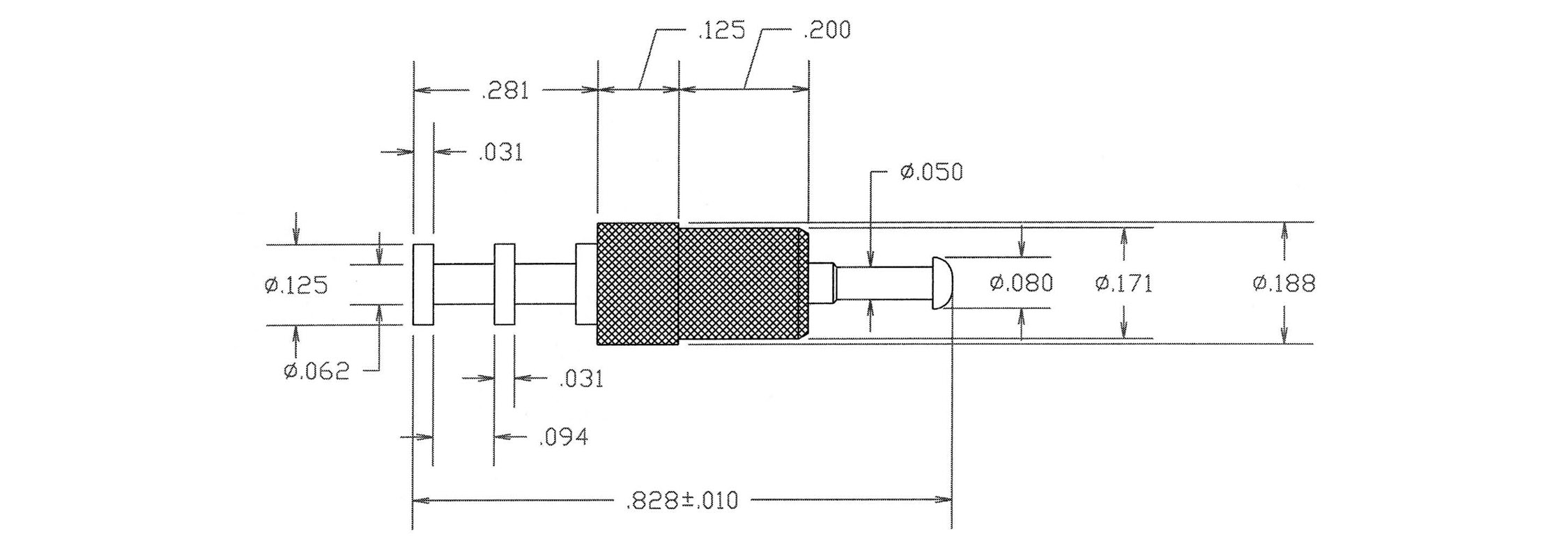

1156-18-0519
1156-18-0519
1156-18-0519
0.828" 0.050 DOUBLE Turret/Tip Press Fit 5/32 0.158 Brass Electro Solder - - PTFE White NO

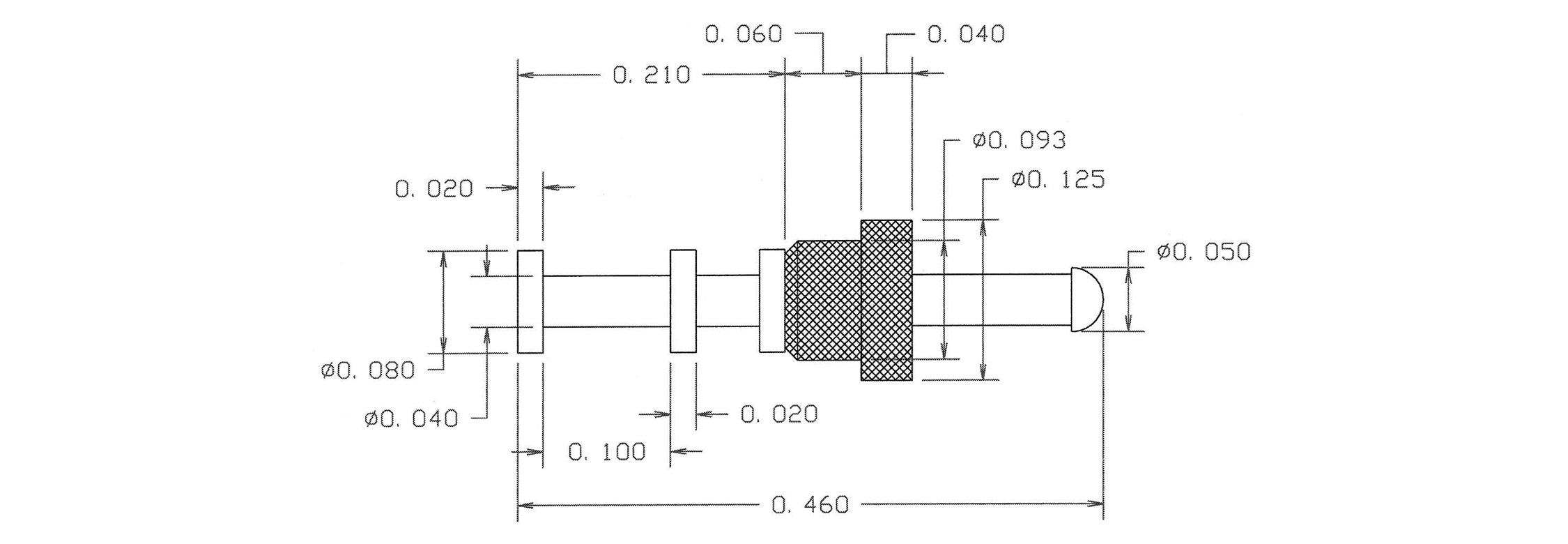

1156R-01-0115
1156R-01-0115
1156R-01-0115
0.460" 0.040 DOUBLE Turret/Tip Press Fit 1/32 0.086 Brass Silver - - PTFE Green YES

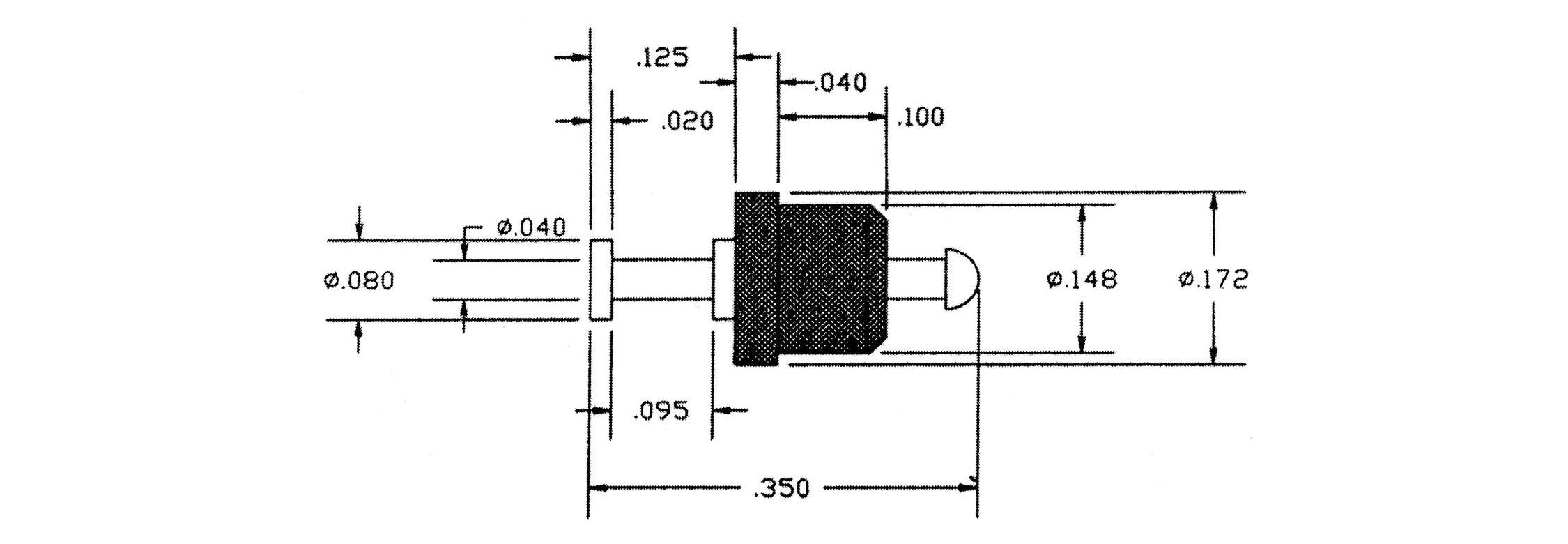

1157-01-0411
1157-01-0411
1157-01-0411
0.350" 0.040 Turret/Tip Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Brown NO
