Commercial
Non-Insulated
Terminals

Filter

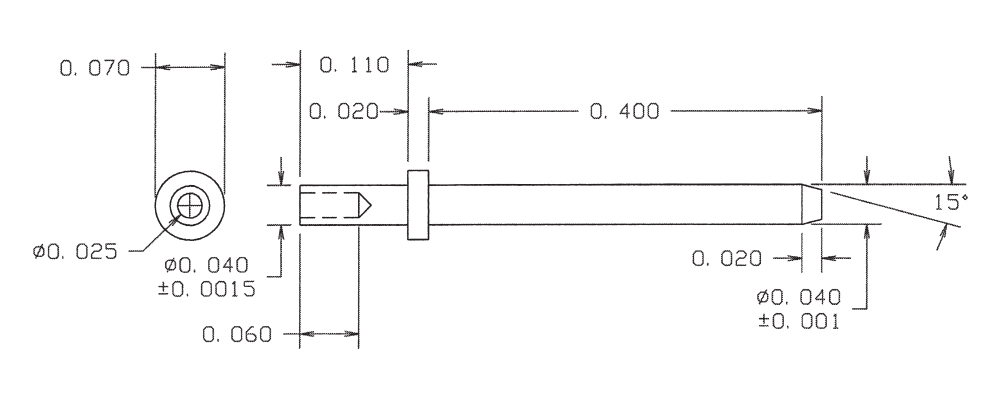

09-8400-3-044
09-8400-3-044
09-8400-3-044
0.530" 0.040 - Swage Mount 0.110" 1/16 0.043 Brass Bright Tin YES

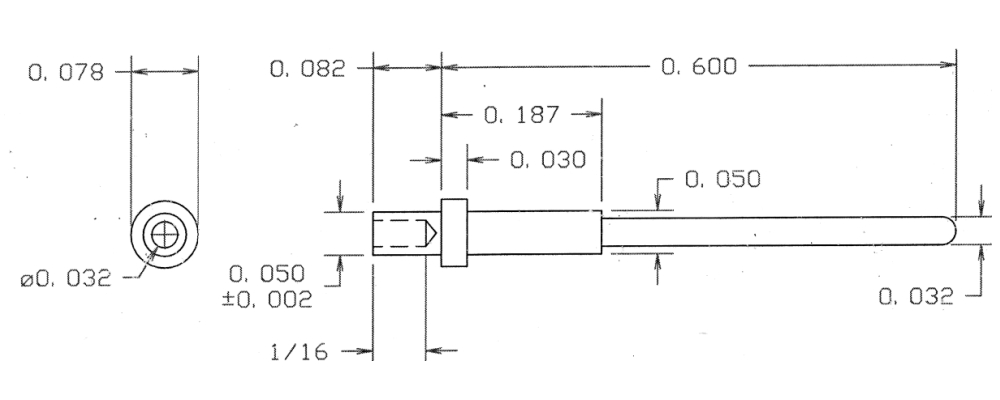

09-8618-2-095
09-8618-2-095
09-8618-2-095
0.682" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Hot Solder Dip NO

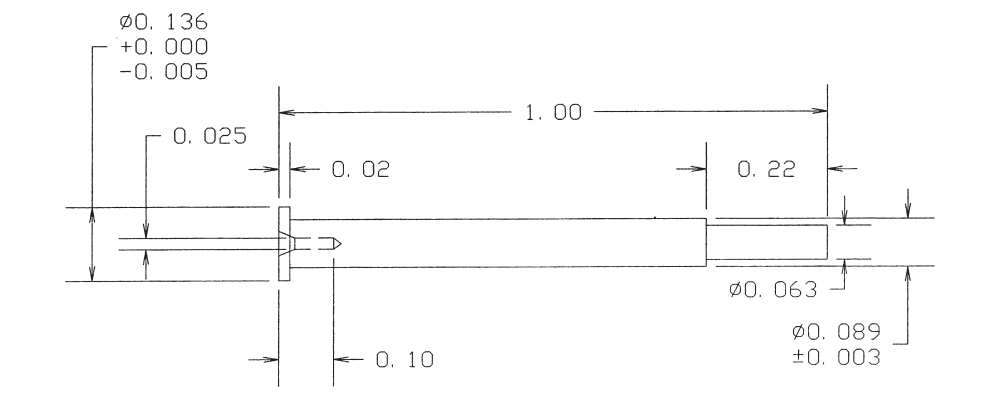

09-8725-1-044
09-8725-1-044
09-8725-1-044
1.000" 0.063 - - - - - Beryllium Copper Bright Tin YES

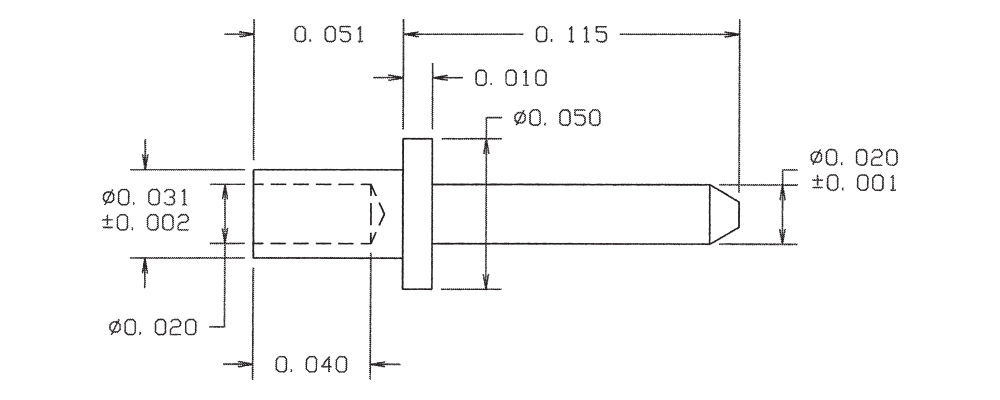

09-8828-1-04
09-8828-1-04
09-8828-1-04
0.166" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Electro-Tin YES

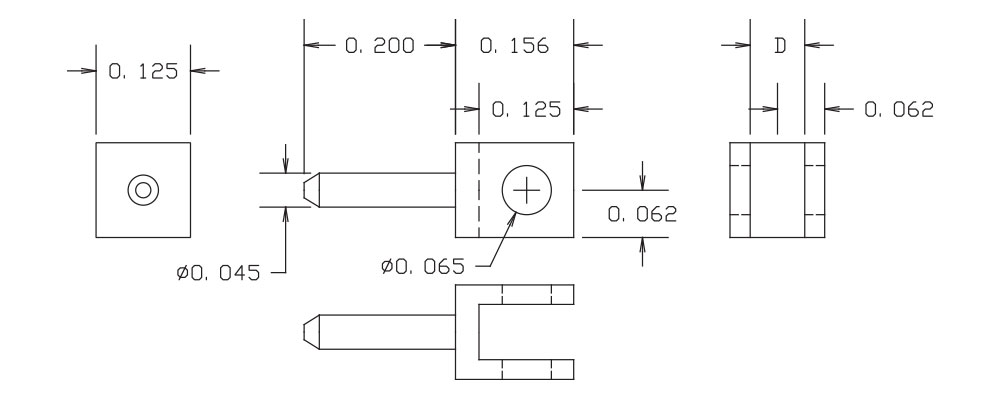

09-9504-2-044
09-9504-2-044
09-9504-2-044
0.356" 0.045 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Bright Tin YES

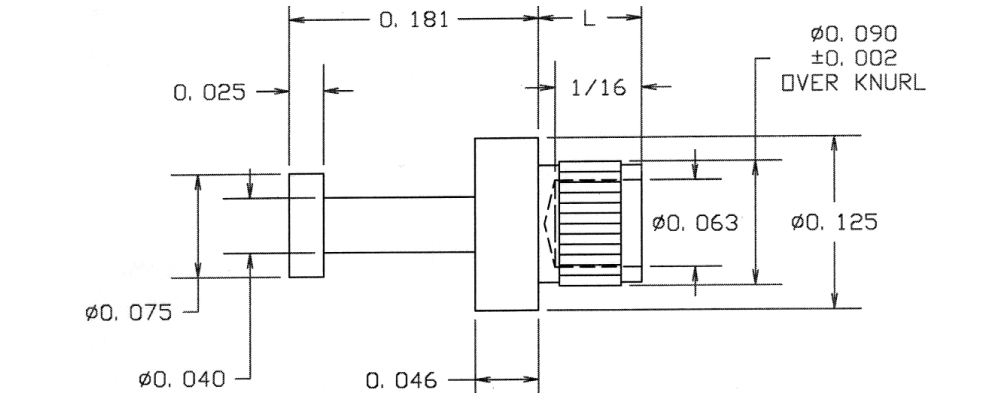

10-106-4-035
10-106-4-035
10-106-4-035
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Gold YES
10-114-3-095
10-114-3-095
10-114-3-095
0.209" - - Swage Mount 0.115" 3/32 0.043 Brass Hot Solder Dip NO
10-135-4-03
10-135-4-03
10-135-4-03
0.530" - - Swage Mount 0.171" 1/8 0.116 Brass Gold YES
10-205-4-035
10-205-4-035
10-205-4-035
0.525" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-214-2A-05
10-214-2A-05
10-214-2A-05
0.250" - - Swage Mount 0.096" 1/16 0.067 Brass Electro Solder NO
10-221-2-044
10-221-2-044
10-221-2-044
0.297" - - Swage Mount 0.084" 1/16 0.076 Brass Bright Tin YES

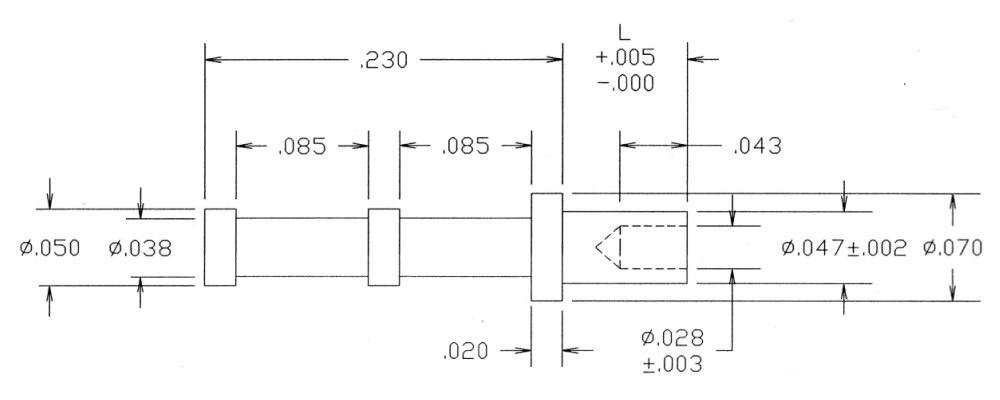

10-232-2-095
10-232-2-095
10-232-2-095
0.310" - - Swage Mount 0.080" 1/16 0.052 Brass Hot Solder Dip NO

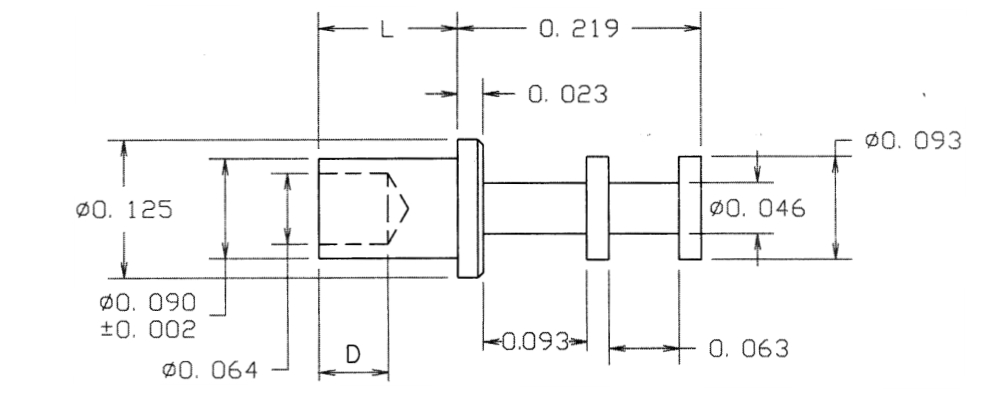

10-259-2-044
10-259-2-044
10-259-2-044
0.312" - - Swage Mount 0.093" 1/16 0.094 Brass Bright Tin YES

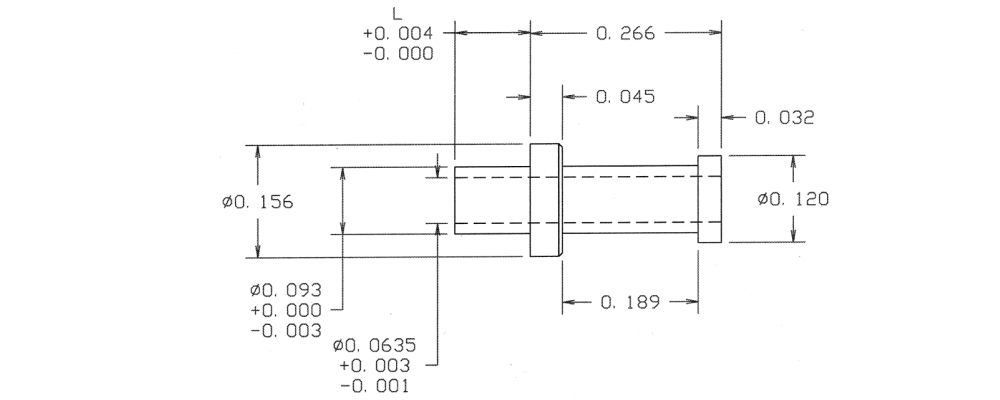

10-307-3-035
10-307-3-035
10-307-3-035
0.401" - - Swage Mount 0.135" 3/32 0.096 Brass Gold YES
10-315-3-088
10-315-3-088
10-315-3-088
0.463" - - Swage Mount 0.135" 3/32 0.082 Brass Bright Tin-Lead NO

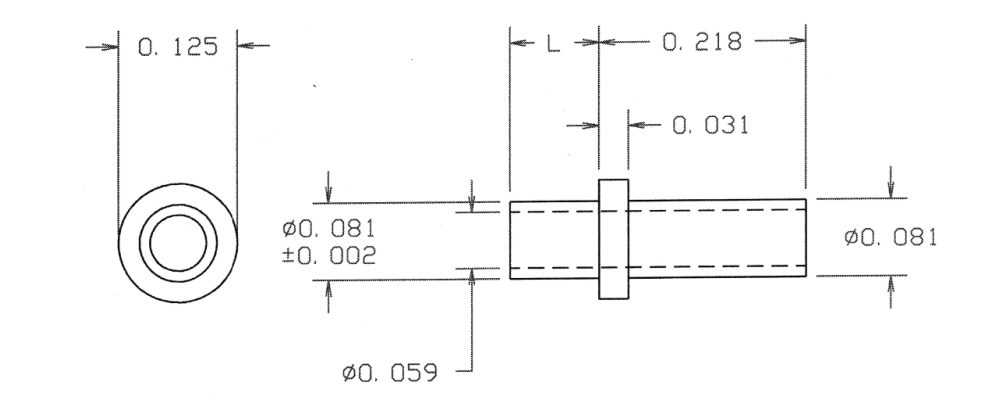

10-330-2-04
10-330-2-04
10-330-2-04
0.327" - - Swage Mount 0.109" 1/16 0.086 Brass Electro-Tin YES

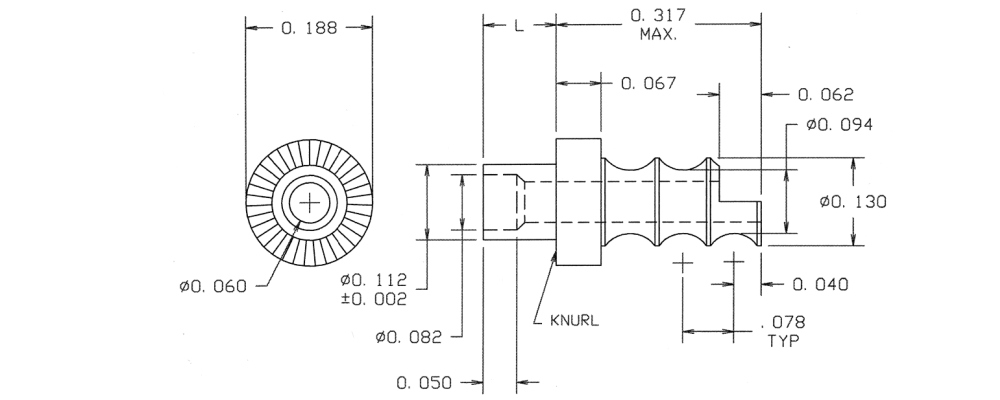

10-405-1-01
10-405-1-01
10-405-1-01
0.395" - - Swage Mount 0.078" 1/32 0.116 Brass Silver YES

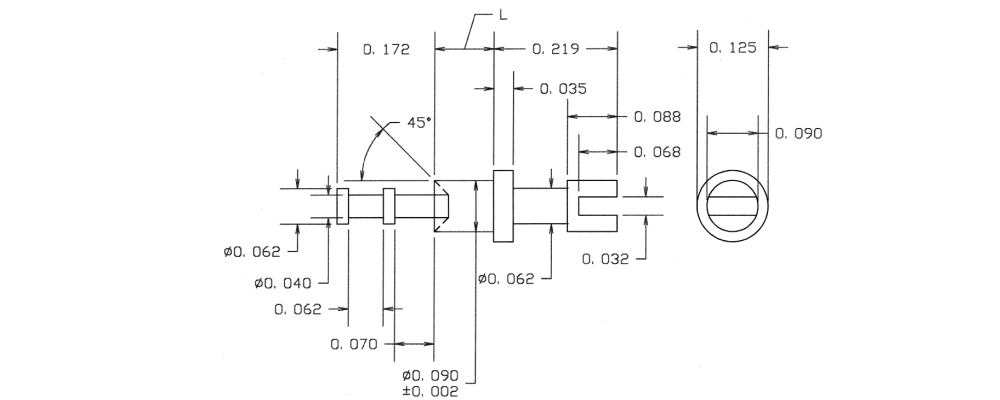

10-419-2-044
10-419-2-044
10-419-2-044
0.496" - SLOTTED/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Bright Tin YES
10-432-6-03
10-432-6-03
10-432-6-03
0.667" - - Swage Mount 0.230" 3/16 0.161 Brass Gold YES
10-446-4-088
10-446-4-088
10-446-4-088
0.538" - SLOTTED/DOUBLE TURRET Swage Mount 0.156" 1/8 0.096 Brass Bright Tin-Lead NO
