Commercial
Non-Insulated
Terminals

Filter

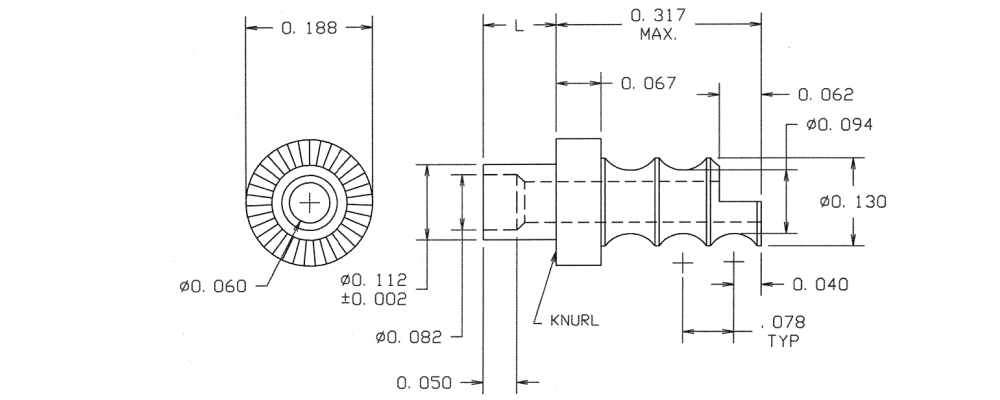

10-405-1-03
10-405-1-03
10-405-1-03
0.395" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES
10-419-2-05
10-419-2-05
10-419-2-05
0.496" - SLOTTED/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO
10-432-6-035
10-432-6-035
10-432-6-035
0.667" - - Swage Mount 0.230" 3/16 0.161 Brass Gold YES
10-446-4-095
10-446-4-095
10-446-4-095
0.538" - SLOTTED/DOUBLE TURRET Swage Mount 0.156" 1/8 0.096 Brass Hot Solder Dip NO
10-462-6-095
10-462-6-095
10-462-6-095
0.365" - - Swage Mount 0.209" 3/16 0.052 Brass Hot Solder Dip NO
10-490-3-03
10-490-3-03
10-490-3-03
0.541" - TURRET/SLOTTED Swage Mount 0.135" 3/32 0.120 Brass Gold YES

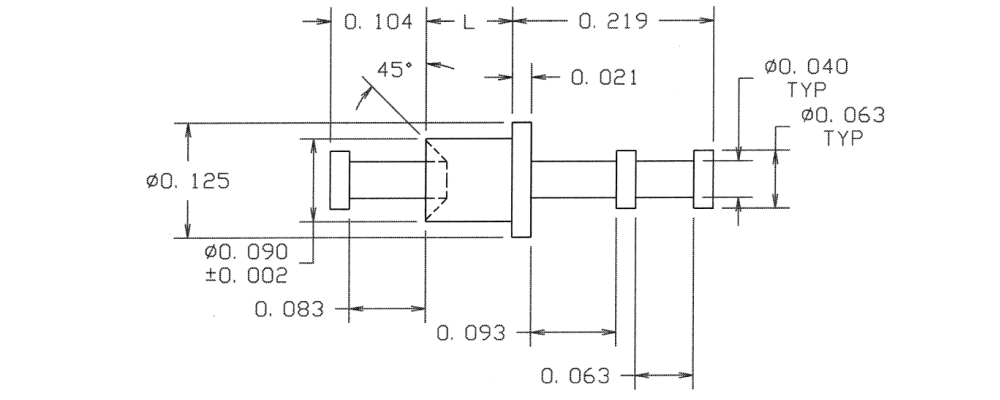

10-505-1-03
10-505-1-03
10-505-1-03
0.385" - TURRET/DOUBLE TURRET Swage Mount 0.062" 1/32 0.094 Brass Gold YES
10-511-2-03
10-511-2-03
10-511-2-03
0.777" - Double Turret/Double Turret Swage Mount 0.105" 1/16 0.116 Brass Gold YES
10-520-4-03
10-520-4-03
10-520-4-03
1.102" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.266 Brass Gold YES
10-532-5-03
10-532-5-03
10-532-5-03
0.663" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.159 Brass Gold YES
10-550-4-03
10-550-4-03
10-550-4-03
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Gold YES

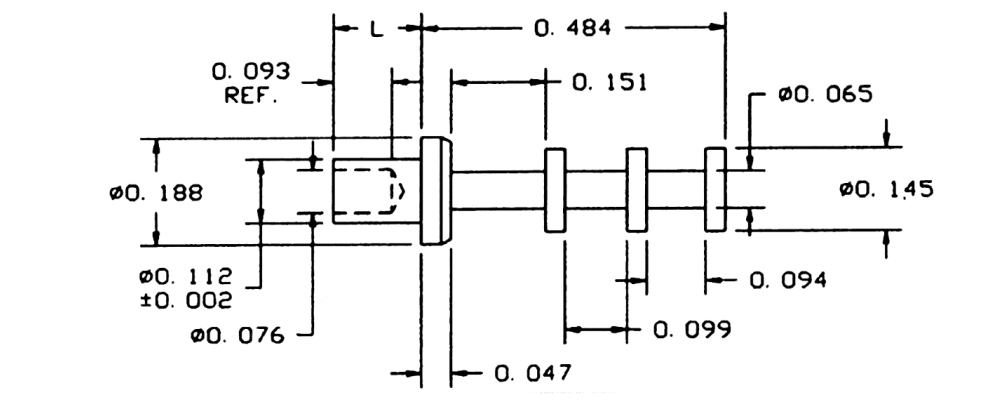

10-602-1-03
10-602-1-03
10-602-1-03
0.562" - - Swage Mount 0.078" 1/32 0.116 Brass Gold YES
10-702-12-088
10-702-12-088
10-702-12-088
0.732" - - 4-40 - - 4-40 THREAD Brass Bright Tin-Lead NO

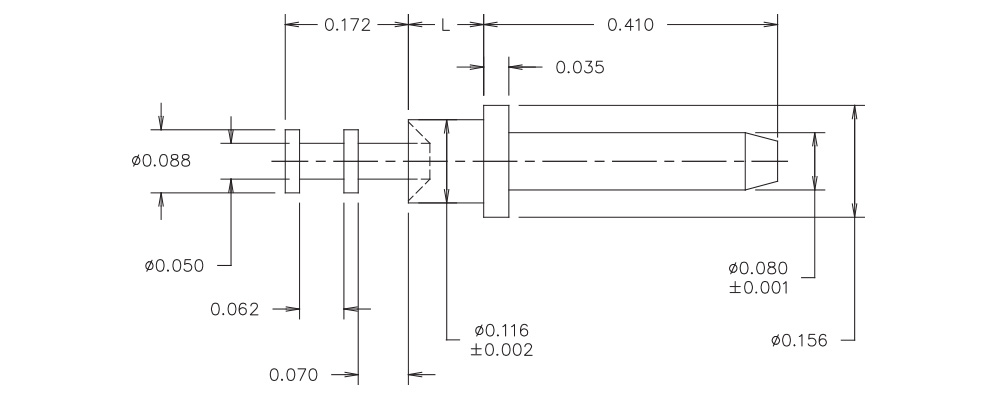

10-8007-2-04
10-8007-2-04
10-8007-2-04
0.687" 0.080 DOUBLE TURRET/PIN Swage Mount 0.105" 1/16 0.120 Brass Electro-Tin YES
10-8018-1-03
10-8018-1-03
10-8018-1-03
0.371" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

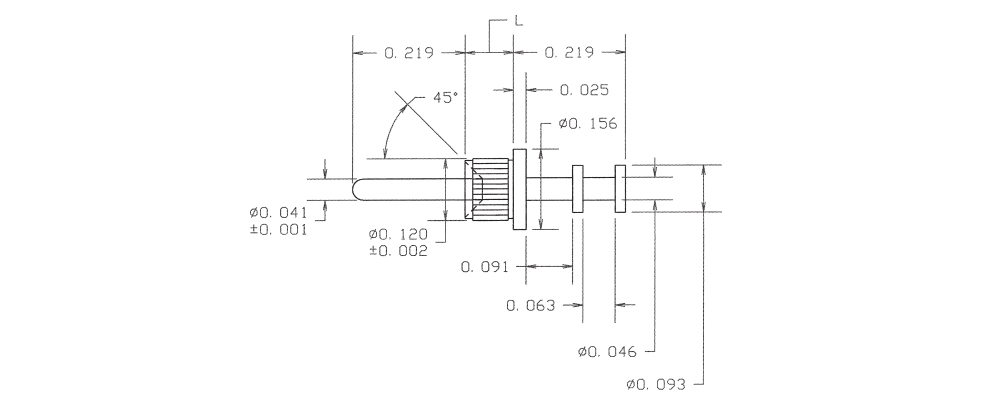

10-804-3-035
10-804-3-035
10-804-3-035
0.563" 0.041 DOUBLE TURRET/PIN Swage Mount 0.125" 3/32 0.125 Brass Gold YES
10-810-2-04
10-810-2-04
10-810-2-04
0.421" - - Swage Mount 0.109" 1/16 0.1495 Brass Electro-Tin YES
10-817-3-01
10-817-3-01
10-817-3-01
0.661" - - Swage Mount 0.141" 3/32 0.1495 Brass Silver YES
10-829-2-03
10-829-2-03
10-829-2-03
0.219" 0.050 - Swage Mount 0.094" 1/16 0.063 Brass Gold YES
10-838-1-035
10-838-1-035
10-838-1-035
0.594" 0.050 Pin/Pin Swage Mount 0.063" 1/32 0.111 Brass Gold YES
