Commercial
Non-Insulated
Terminals

Filter
10-520-3-095
10-520-3-095
10-520-3-095
1.072" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.266 Brass Hot Solder Dip NO
10-532-4-095
10-532-4-095
10-532-4-095
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Hot Solder Dip NO
10-550-3-095
10-550-3-095
10-550-3-095
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.206 Brass Hot Solder Dip NO
10-601-6-095
10-601-6-095
10-601-6-095
0.520" - - Swage Mount 0.219" 3/16 0.094 Brass Hot Solder Dip NO

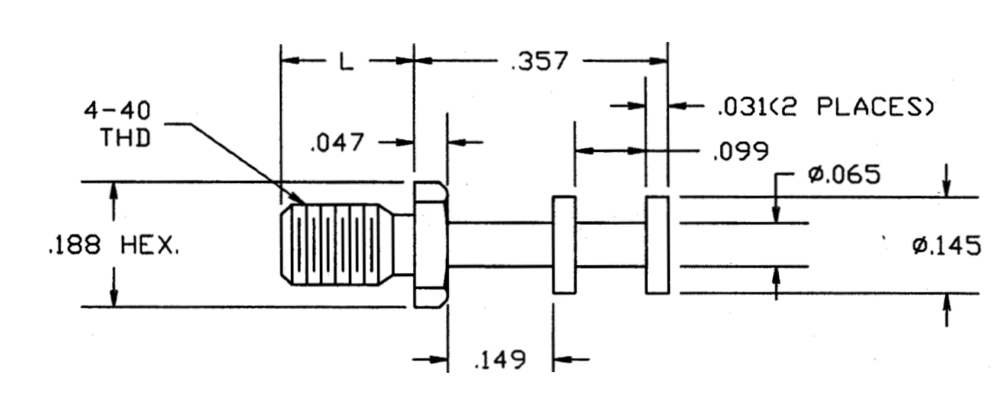

10-702-12-044
10-702-12-044
10-702-12-044
0.732" - - 4-40 - - 4-40 THREAD Brass Bright Tin YES

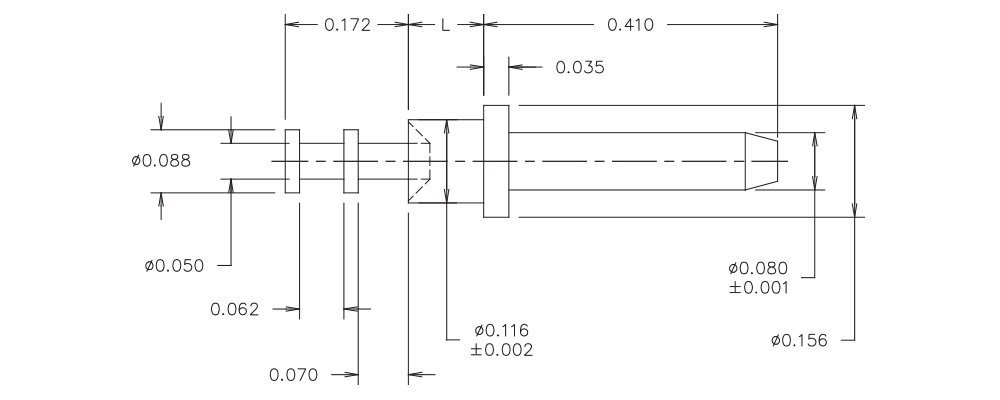

10-8007-2-03
10-8007-2-03
10-8007-2-03
0.687" 0.080 DOUBLE TURRET/PIN Swage Mount 0.105" 1/16 0.120 Brass Gold YES

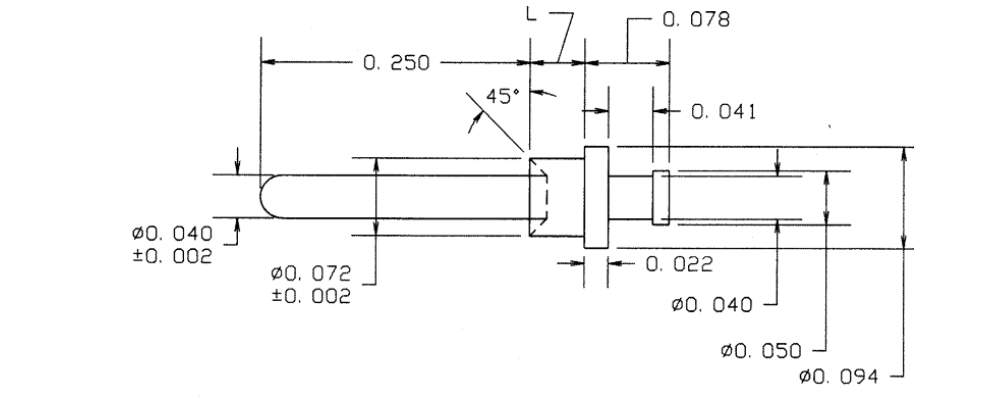

10-801-8-095
10-801-8-095
10-801-8-095
0.598" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Hot Solder Dip NO

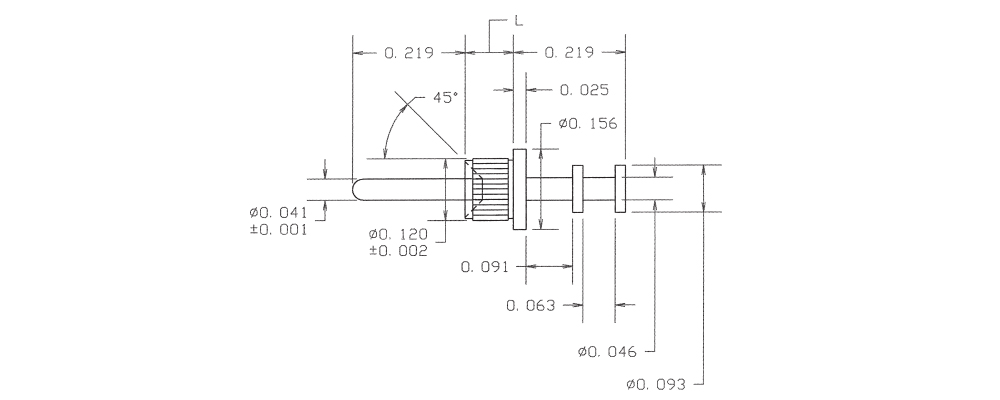

10-804-3-01
10-804-3-01
10-804-3-01
0.563" 0.041 DOUBLE TURRET/PIN Swage Mount 0.125" 3/32 0.125 Brass Silver YES

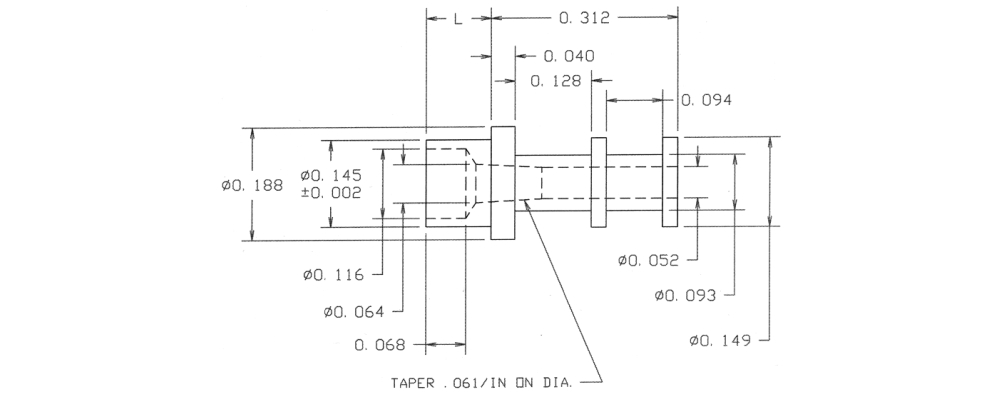

10-810-2-03
10-810-2-03
10-810-2-03
0.421" - - Swage Mount 0.109" 1/16 0.1495 Brass Gold YES
10-817-2-05
10-817-2-05
10-817-2-05
0.629" - - Swage Mount 0.109" 1/16 0.1495 Brass Electro Solder NO

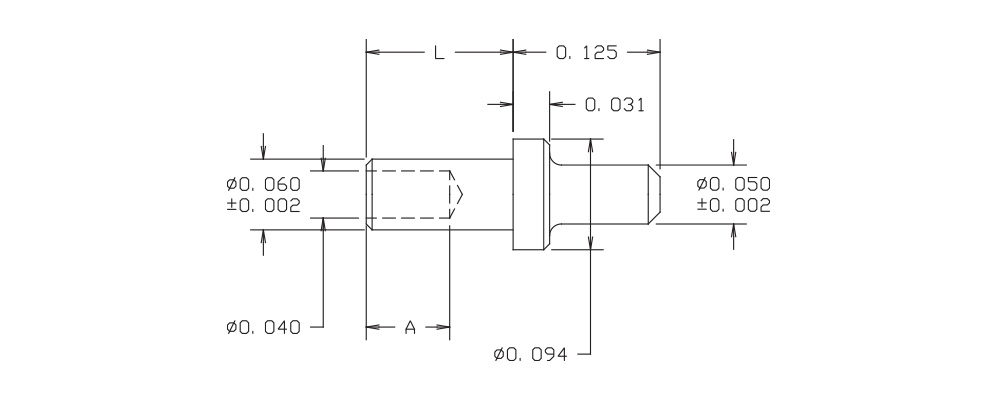

10-829-11-095
10-829-11-095
10-829-11-095
0.172" 0.050 - Swage Mount 0.047" 1/64 0.063 Brass Hot Solder Dip NO
10-838-1-01
10-838-1-01
10-838-1-01
0.594" 0.050 Pin/Pin Swage Mount 0.063" 1/32 0.111 Brass Silver YES

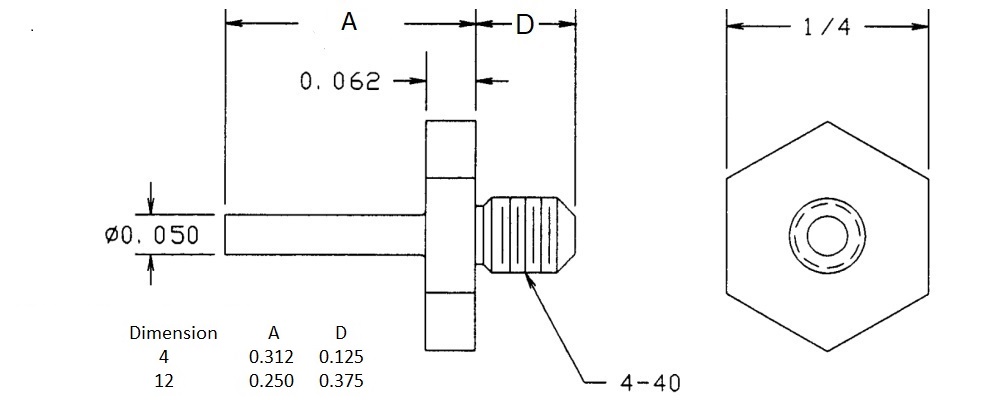

10-855-4-044
10-855-4-044
10-855-4-044
0.437" 0.050 - 4-40 - - 4-40 THREAD Brass Bright Tin YES

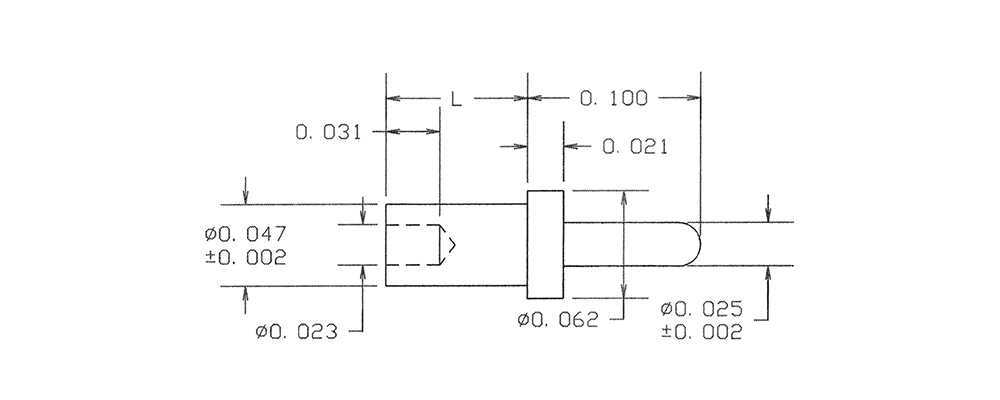

10-875-2-035
10-875-2-035
10-875-2-035
0.182" 0.025 - Swage Mount 0.082" 1/16 0.052 Brass Gold YES
10-895-3-02
10-895-3-02
10-895-3-02
0.900" 0.020 - - - - - Brass Nickel YES

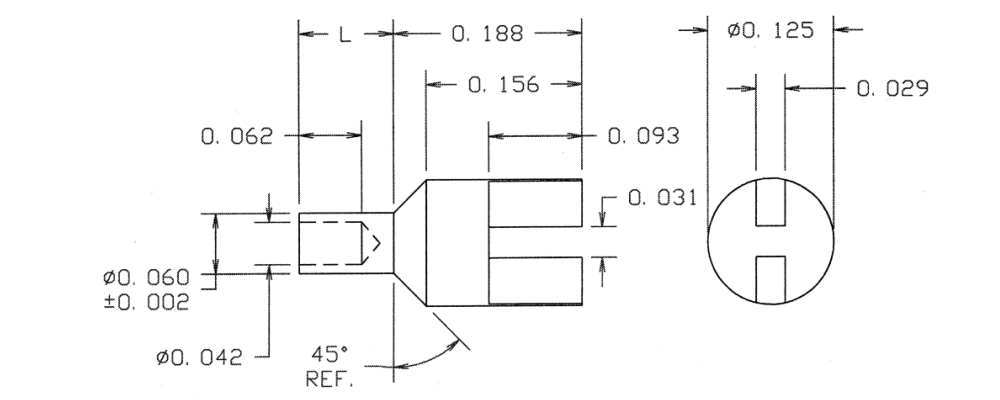

10-914-1-044
10-914-1-044
10-914-1-044
0.250" - - Swage Mount 0.062" 1/32 0.0635 Brass Bright Tin YES
10-925-4-044
10-925-4-044
10-925-4-044
0.311" 0.025 - Swage Mount 0.156" 1/8 0.0625 Brass Bright Tin YES

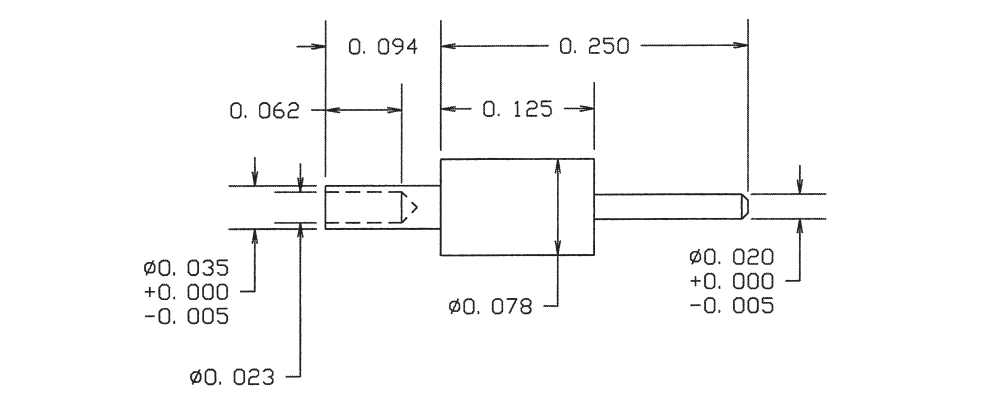

10-963-2-05
10-963-2-05
10-963-2-05
0.344" 0.020 (+0.000/-0.005) - Swage Mount 0.094" 1/16 0.036 Brass Electro Solder NO

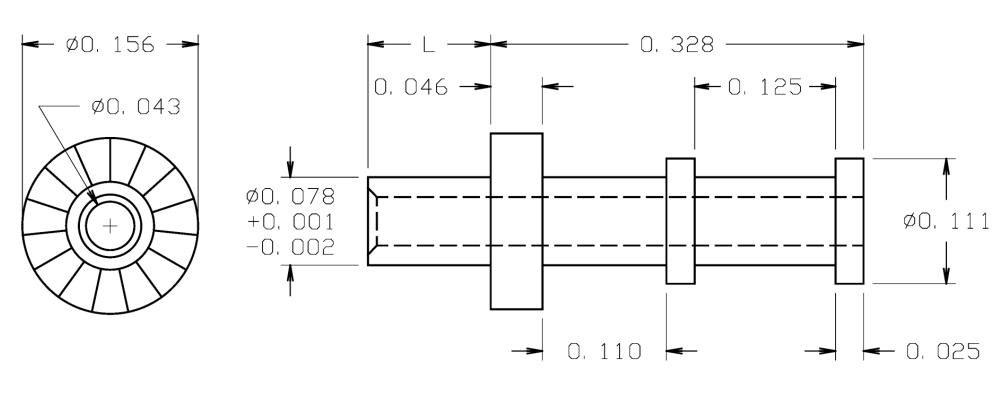

14-348-4-03
14-348-4-03
14-348-4-03
0.500" - - Swage Mount 0.172" 1/8 0.082 LEADED Red Brass Gold YES

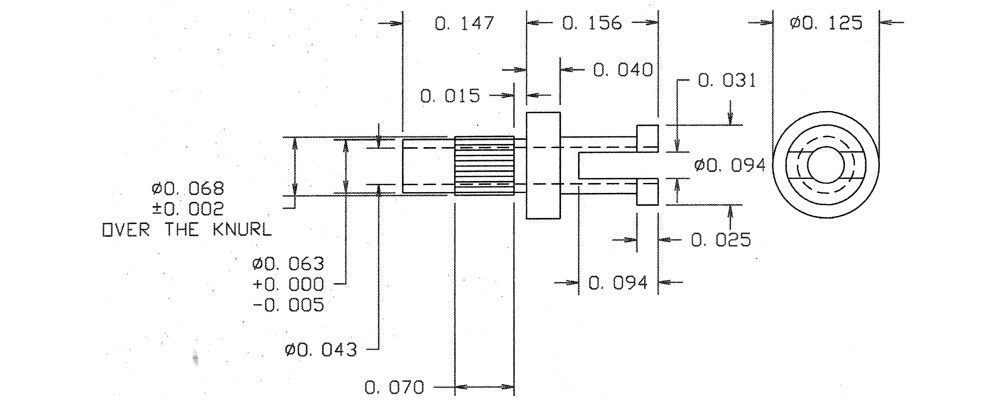

09-0149-4-035
09-0149-4-035
09-0149-4-035
0.303" - - Swage Mount 0.147" 1/8 0.070 Brass Gold YES
