Commercial
Non-Insulated
Terminals

Filter

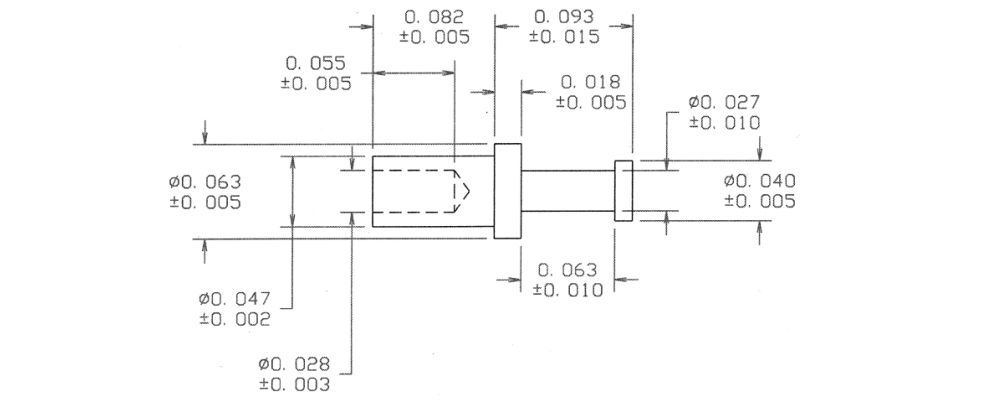

09-0249-2-035
09-0249-2-035
09-0249-2-035
0.175" - - Swage Mount 0.082" 1/16 0.070 Brass Gold YES

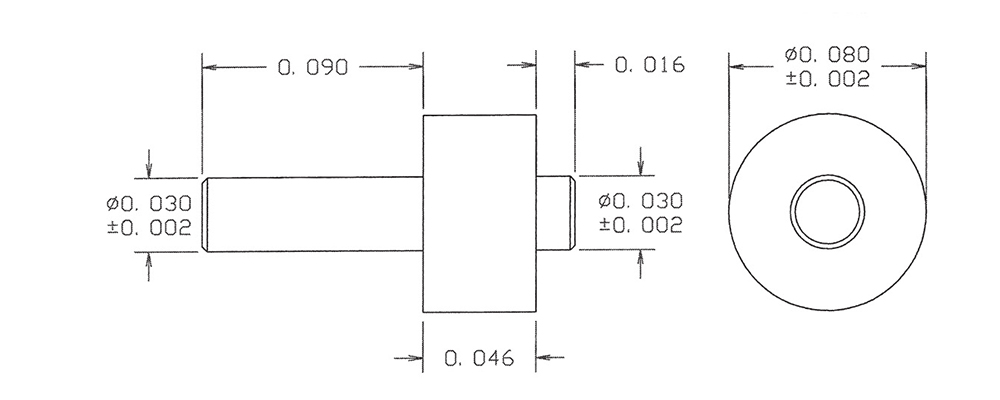

09-0295-2-01
09-0295-2-01
09-0295-2-01
0.152" 0.030 - Solder 0.090" 1/64 TO 1/16 0.032 Brass Silver YES

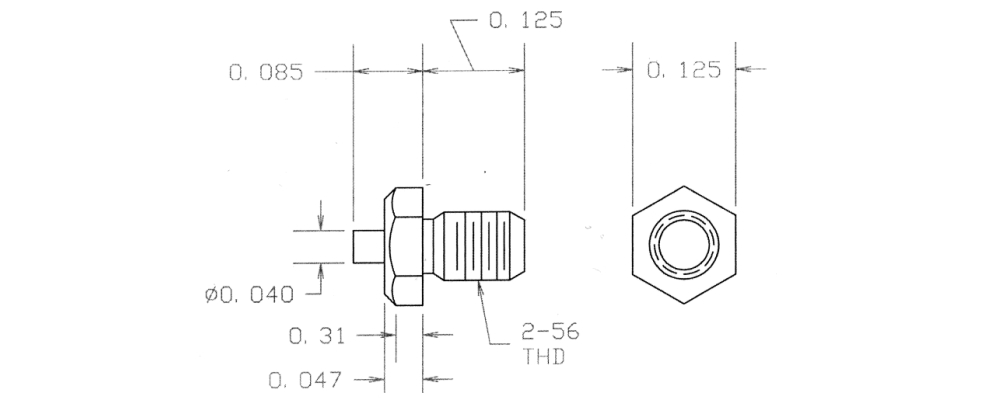

09-0357-4-01
09-0357-4-01
09-0357-4-01
0.210" - - 2-56 - - 2-56 THREAD Brass Silver YES

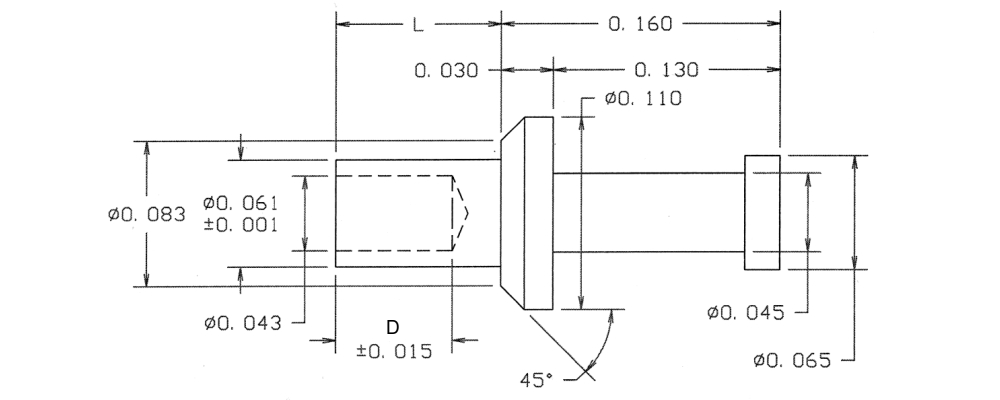

09-7013-3-04
09-7013-3-04
09-7013-3-04
0.285" - - Swage Mount 0.125" 3/32 0.067 LEADED Red Brass Electro-Tin YES

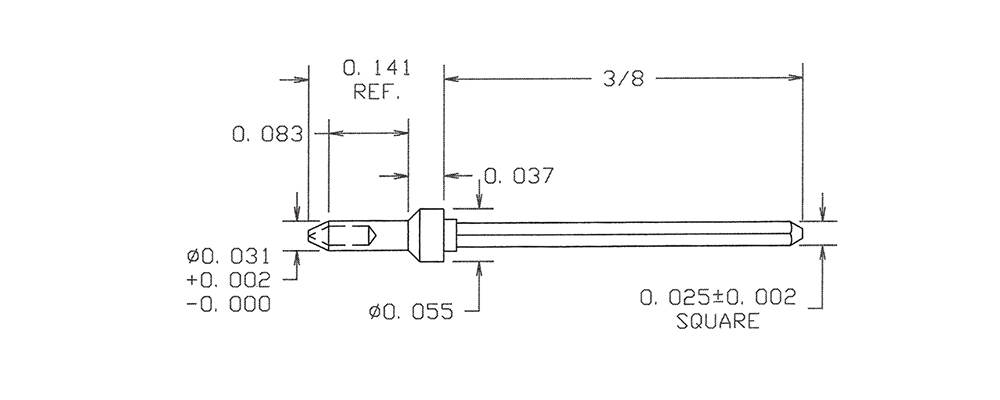

09-7122-1-044
09-7122-1-044
09-7122-1-044
0.516" 0.025 SQ. - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin YES

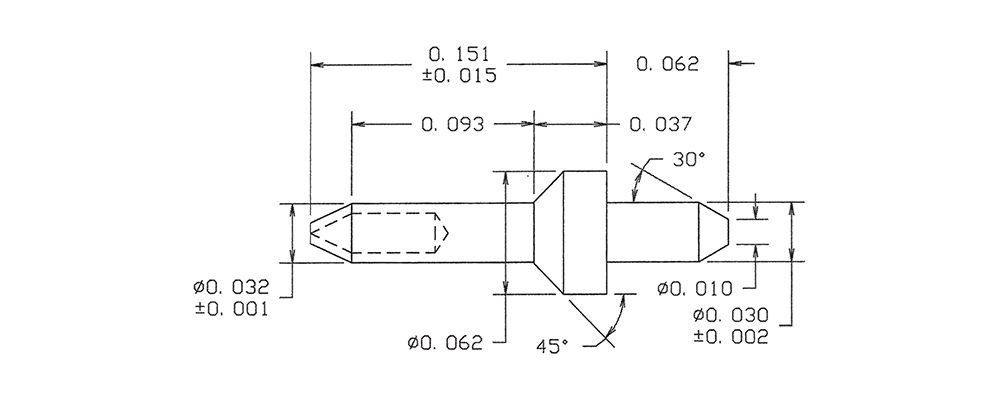

09-7152-2-03
09-7152-2-03
09-7152-2-03
0.213" 0.030 - RIVET MOUNT 0.093" 1/16 0.035 Brass Gold YES

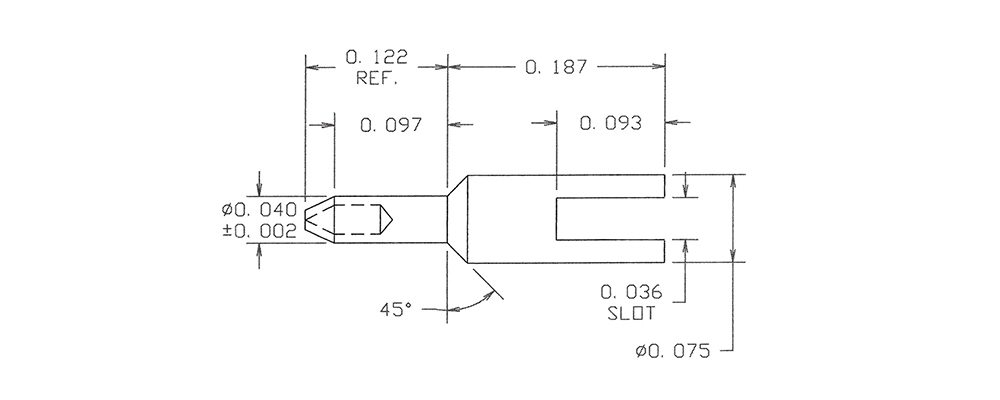

09-7184-2B-05
09-7184-2B-05
09-7184-2B-05
0.309" - - RIVET MOUNT 0.097" 9/128 0.044 Brass Electro Solder NO

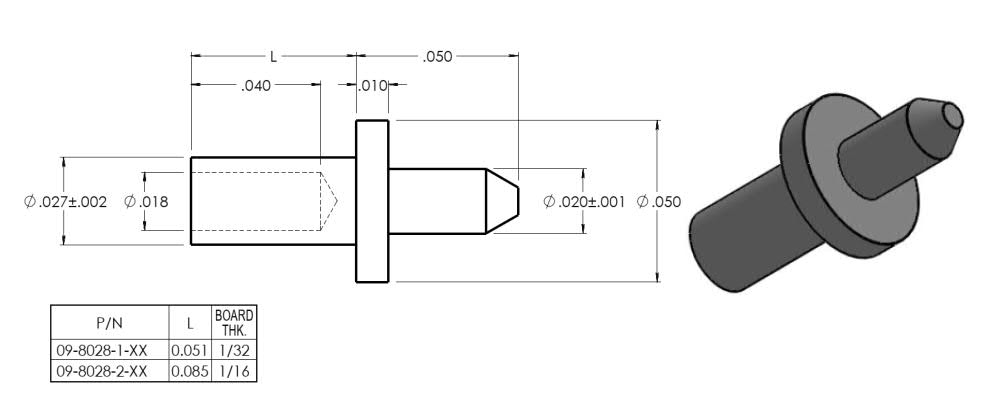

09-8028-2-035
09-8028-2-035
09-8028-2-035
0.135" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Gold YES

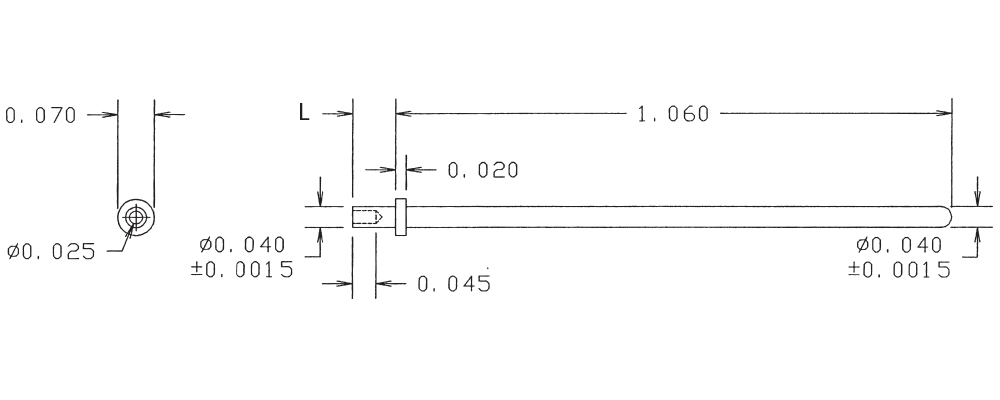

09-8061-1-05
09-8061-1-05
09-8061-1-05
1.111" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Electro Solder NO

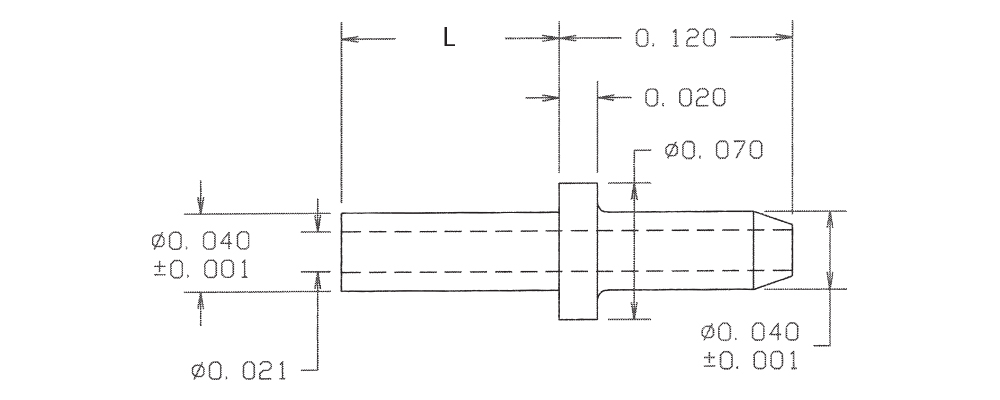

09-8113-2-035
09-8113-2-035
09-8113-2-035
0.202" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Gold YES

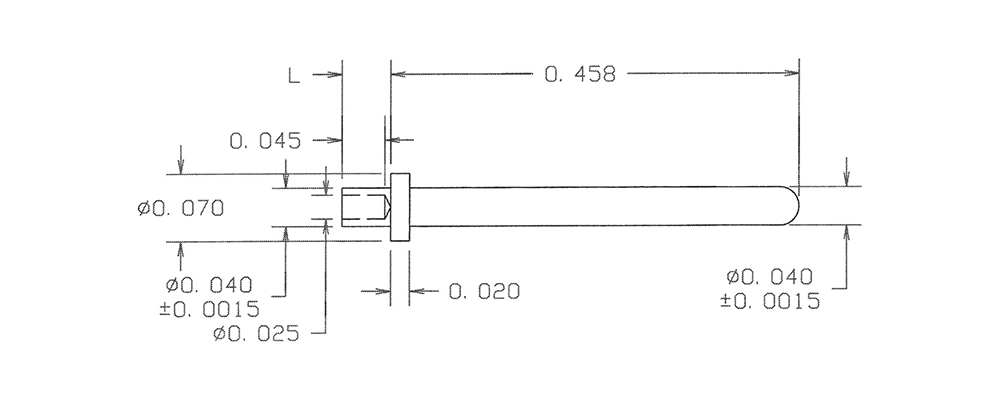

09-8157-1-088
09-8157-1-088
09-8157-1-088
0.509" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO
09-8186-2-04
09-8186-2-04
09-8186-2-04
0.145" 0.025 - Swage Mount 0.075" 1/16 0.035 Brass Electro-Tin YES

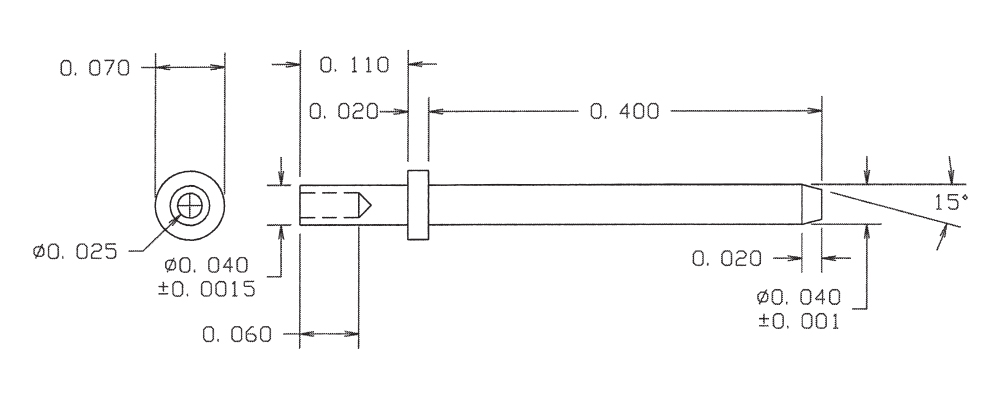

09-8400-3-035
09-8400-3-035
09-8400-3-035
0.530" 0.040 - Swage Mount 0.110" 1/16 0.043 Brass Gold YES

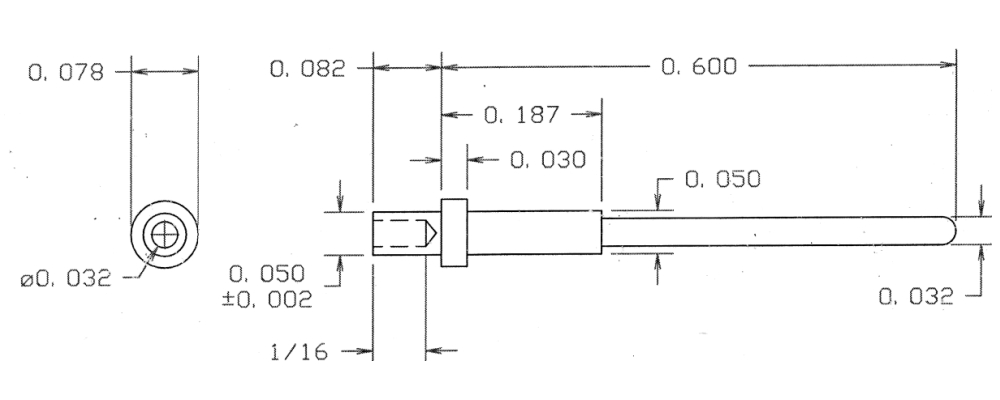

09-8618-2-05
09-8618-2-05
09-8618-2-05
0.682" 0.032 - Swage Mount 0.082" 1/16 0.055 Brass Electro Solder NO

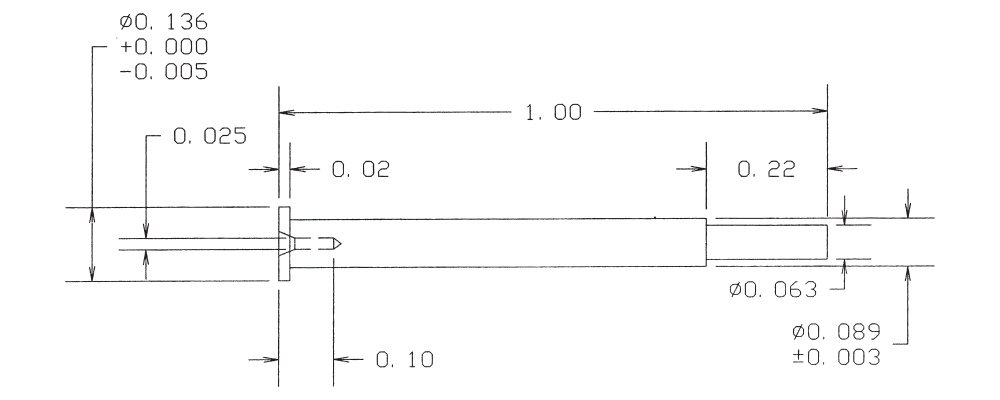

09-8725-1-035
09-8725-1-035
09-8725-1-035
1.000" 0.063 - - - - - Beryllium Copper Gold YES

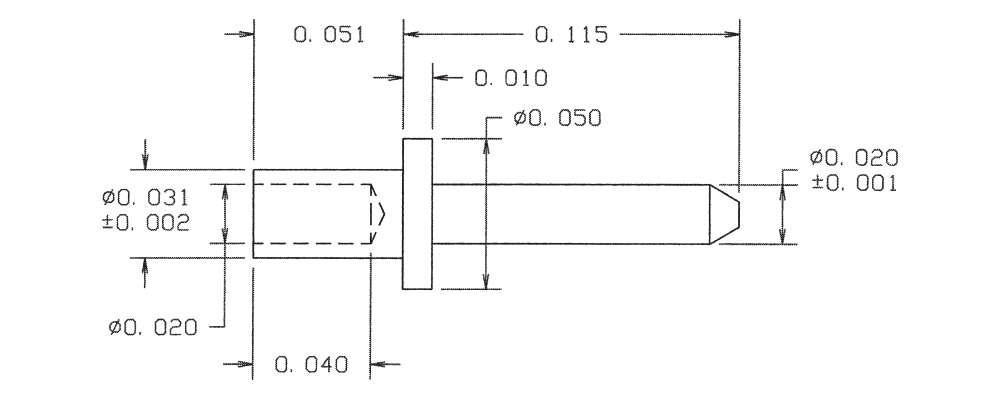

09-8828-1-03
09-8828-1-03
09-8828-1-03
0.166" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

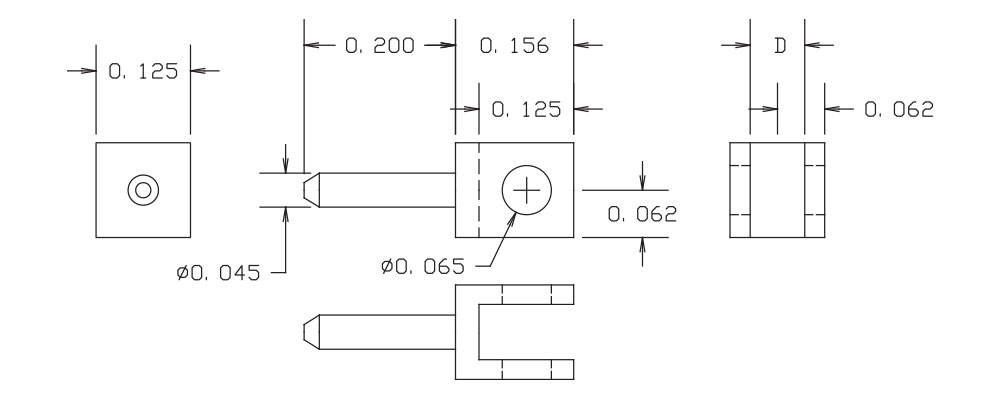

09-9504-2-035
09-9504-2-035
09-9504-2-035
0.356" 0.045 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Gold YES

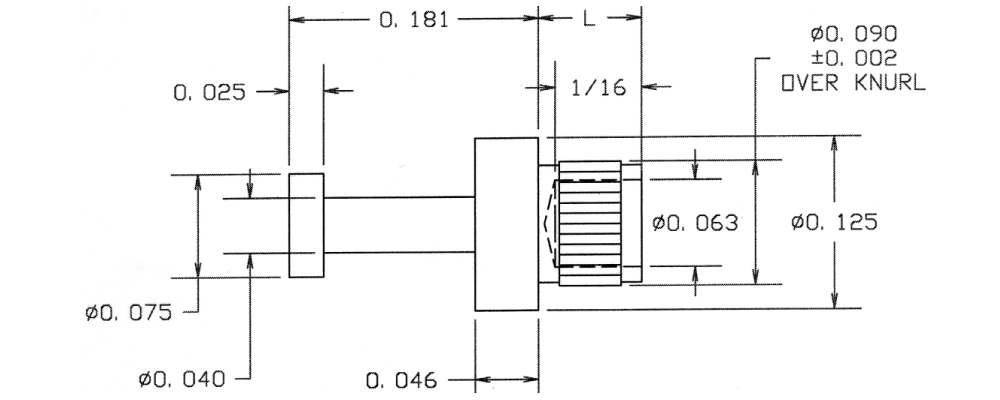

10-106-4-01
10-106-4-01
10-106-4-01
0.346" - - Swage Mount 0.165" 1/8 0.094 Brass Silver YES
10-114-3-05
10-114-3-05
10-114-3-05
0.209" - - Swage Mount 0.115" 3/32 0.043 Brass Electro Solder NO
10-135-3-095
10-135-3-095
10-135-3-095
0.499" - - Swage Mount 0.140" 3/32 0.116 Brass Hot Solder Dip NO
