Commercial
Non-Insulated
Terminals

Filter

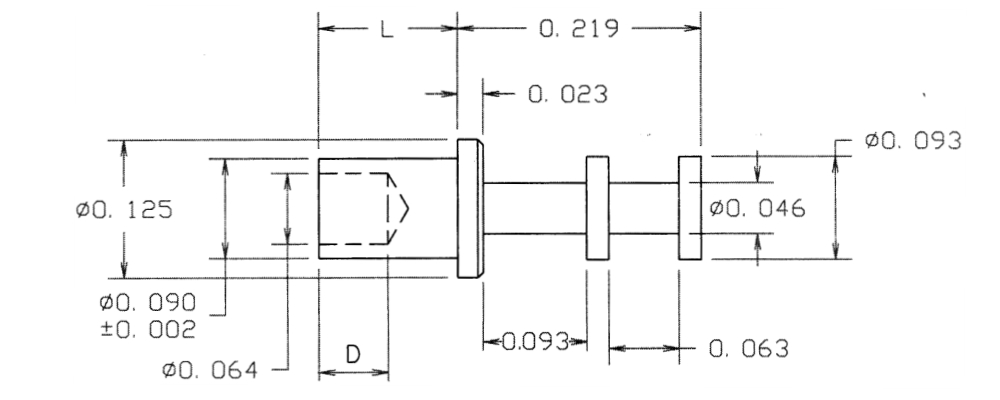

10-259-2-03
10-259-2-03
10-259-2-03
0.312" - - Swage Mount 0.093" 1/16 0.094 Brass Gold YES

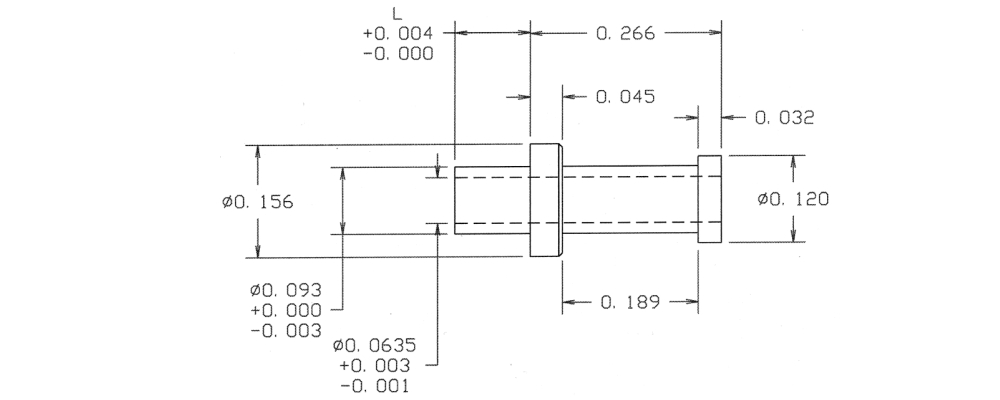

10-307-2-088
10-307-2-088
10-307-2-088
0.371" - - Swage Mount 0.105" 1/16 0.096 Brass Bright Tin-Lead NO
10-315-3-04
10-315-3-04
10-315-3-04
0.463" - - Swage Mount 0.135" 3/32 0.082 Brass Electro-Tin YES

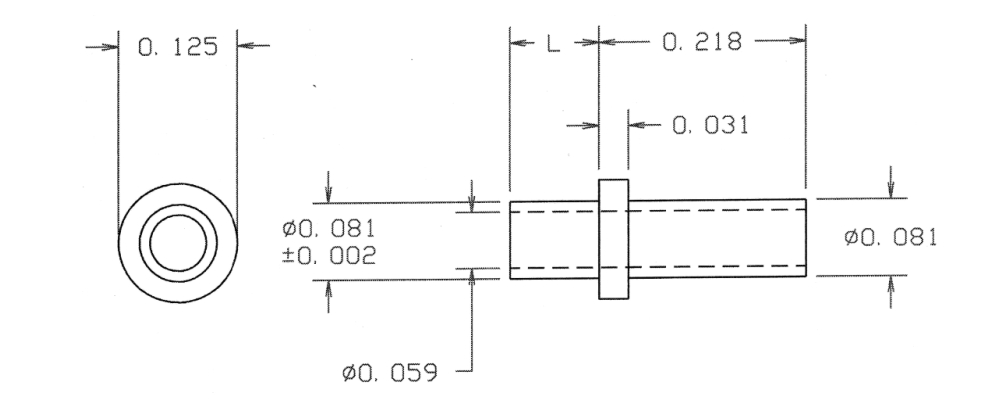

10-330-2-01
10-330-2-01
10-330-2-01
0.327" - - Swage Mount 0.109" 1/16 0.086 Brass Silver YES
10-404-4-044
10-404-4-044
10-404-4-044
0.482" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES

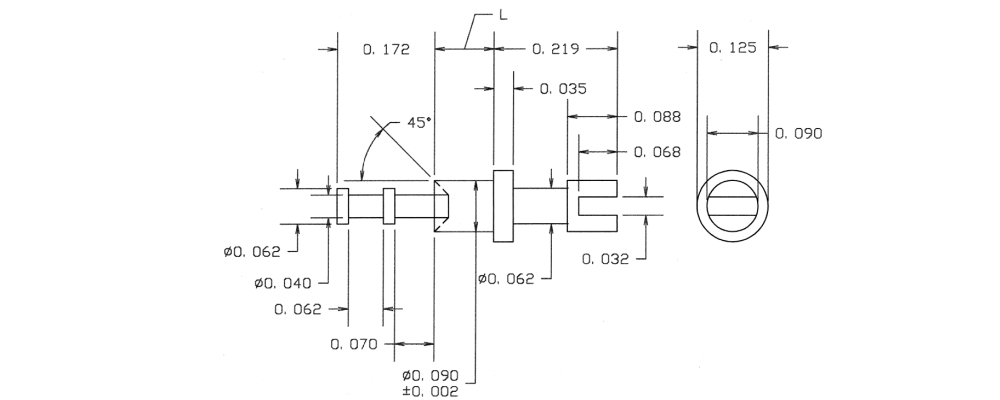

10-419-2-03
10-419-2-03
10-419-2-03
0.496" - SLOTTED/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Gold YES
10-432-5-05
10-432-5-05
10-432-5-05
0.632" - - Swage Mount 0.195" 5/32 0.161 Brass Electro Solder NO
10-446-4-04
10-446-4-04
10-446-4-04
0.538" - SLOTTED/DOUBLE TURRET Swage Mount 0.156" 1/8 0.096 Brass Electro-Tin YES
10-462-6-04
10-462-6-04
10-462-6-04
0.365" - - Swage Mount 0.209" 3/16 0.052 Brass Electro-Tin YES
10-490-2-044
10-490-2-044
10-490-2-044
0.511" - TURRET/SLOTTED Swage Mount 0.105" 1/16 0.120 Brass Bright Tin YES
10-504-4-05
10-504-4-05
10-504-4-05
0.563" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.094 Brass Electro Solder NO
10-510-4-05
10-510-4-05
10-510-4-05
0.532" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Electro Solder NO
10-520-3-05
10-520-3-05
10-520-3-05
1.072" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.266 Brass Electro Solder NO
10-532-4-05
10-532-4-05
10-532-4-05
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Electro Solder NO
10-550-3-05
10-550-3-05
10-550-3-05
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.206 Brass Electro Solder NO
10-601-6-05
10-601-6-05
10-601-6-05
0.520" - - Swage Mount 0.219" 3/16 0.094 Brass Electro Solder NO

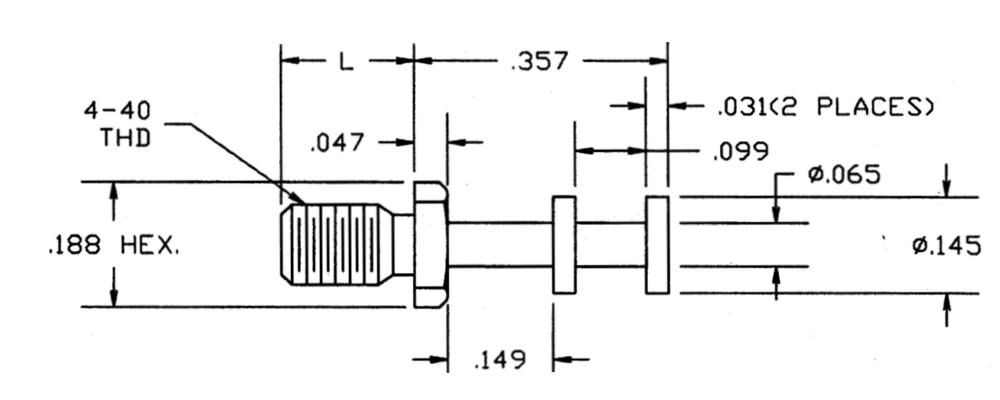

10-702-12-035
10-702-12-035
10-702-12-035
0.732" - - 4-40 - - 4-40 THREAD Brass Gold YES

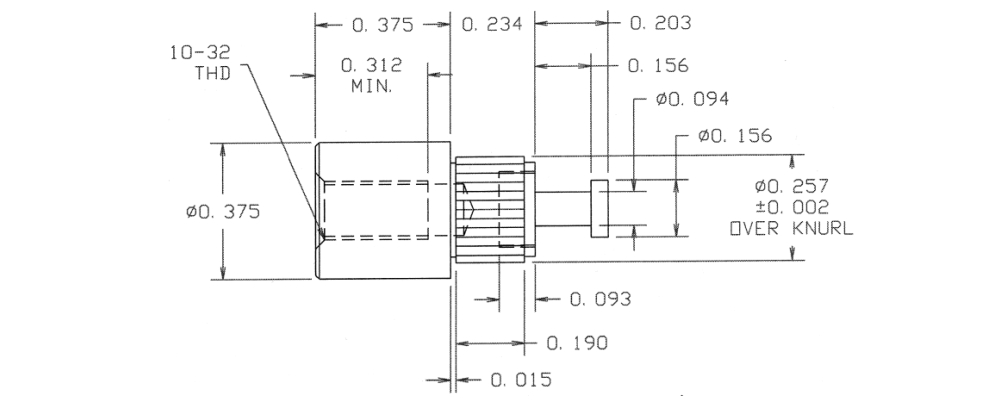

10-756-6-088
10-756-6-088
10-756-6-088
0.812" - TURRET/THREAD Swage Mount 0.234" 3/16 0.250 Brass Bright Tin-Lead NO

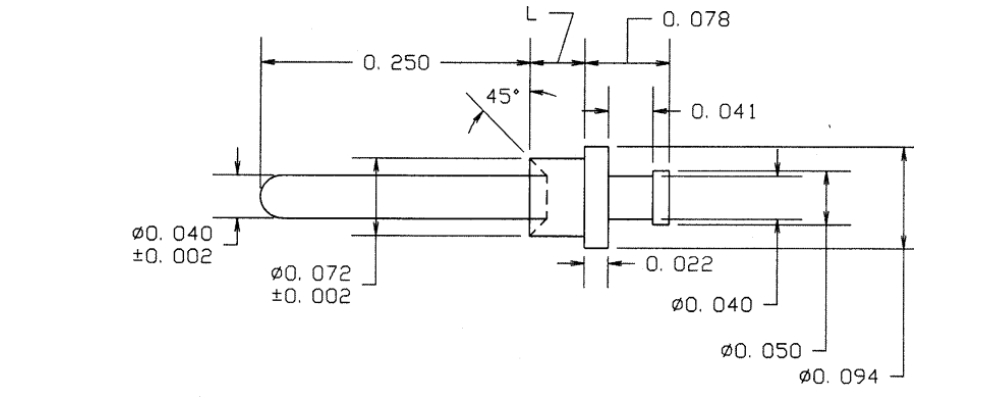

10-801-8-05
10-801-8-05
10-801-8-05
0.598" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Electro Solder NO

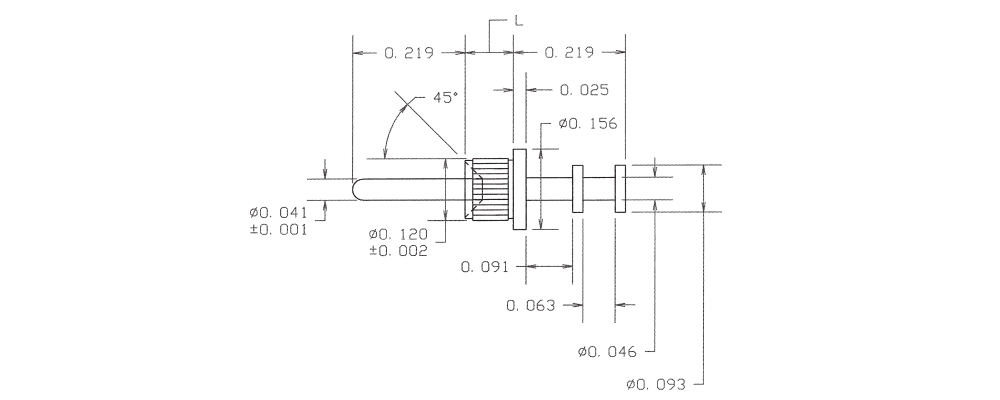

10-804-2-05
10-804-2-05
10-804-2-05
0.532" 0.041 DOUBLE TURRET/PIN Swage Mount 0.094" 1/16 0.125 Brass Electro Solder NO
