Commercial
Non-Insulated
Terminals

Filter
10-404-4-04
10-404-4-04
10-404-4-04
0.482" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES

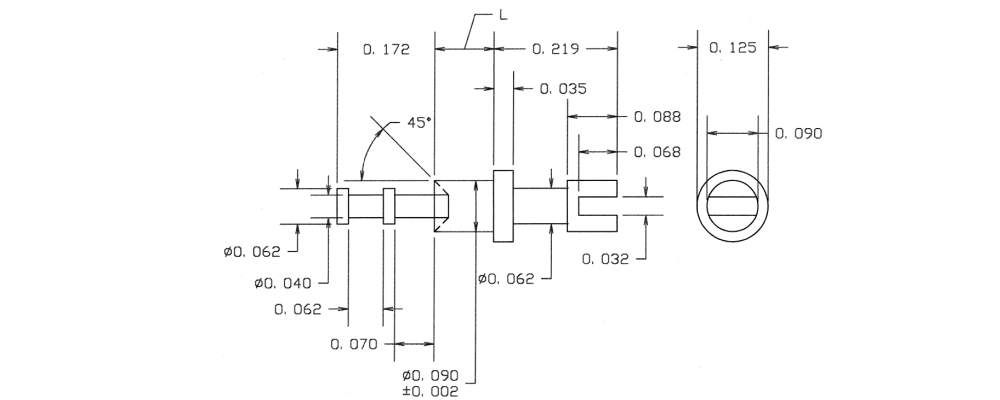

10-419-2-01
10-419-2-01
10-419-2-01
0.496" - SLOTTED/DOUBLE TURRET Swage Mount 0.105" 1/16 0.094 Brass Silver YES
10-432-5-044
10-432-5-044
10-432-5-044
0.632" - - Swage Mount 0.195" 5/32 0.161 Brass Bright Tin YES
10-446-4-035
10-446-4-035
10-446-4-035
0.538" - SLOTTED/DOUBLE TURRET Swage Mount 0.156" 1/8 0.096 Brass Gold YES
10-462-6-035
10-462-6-035
10-462-6-035
0.365" - - Swage Mount 0.209" 3/16 0.052 Brass Gold YES
10-490-2-04
10-490-2-04
10-490-2-04
0.511" - TURRET/SLOTTED Swage Mount 0.105" 1/16 0.120 Brass Electro-Tin YES
10-504-4-044
10-504-4-044
10-504-4-044
0.563" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.094 Brass Bright Tin YES
10-510-4-044
10-510-4-044
10-510-4-044
0.532" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-520-3-044
10-520-3-044
10-520-3-044
1.072" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.266 Brass Bright Tin YES
10-532-4-044
10-532-4-044
10-532-4-044
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Bright Tin YES
10-550-3-044
10-550-3-044
10-550-3-044
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.206 Brass Bright Tin YES
10-601-6-044
10-601-6-044
10-601-6-044
0.520" - - Swage Mount 0.219" 3/16 0.094 Brass Bright Tin YES

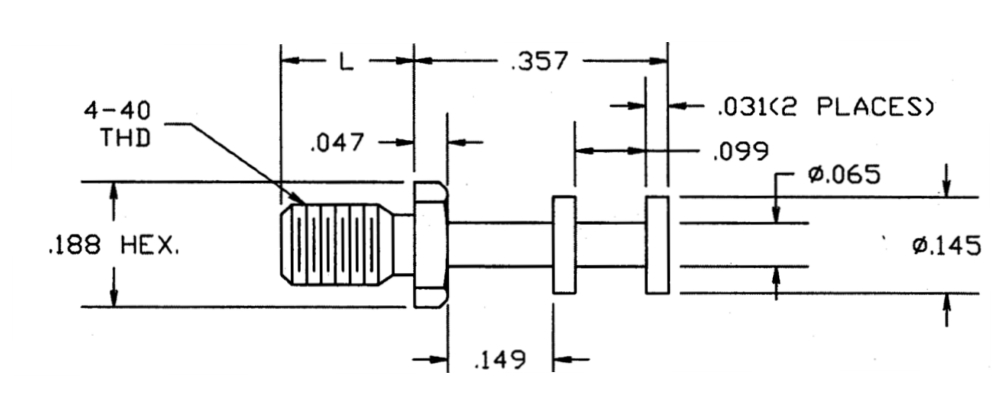

10-702-12-03
10-702-12-03
10-702-12-03
0.732" - - 4-40 - - 4-40 THREAD Brass Gold YES

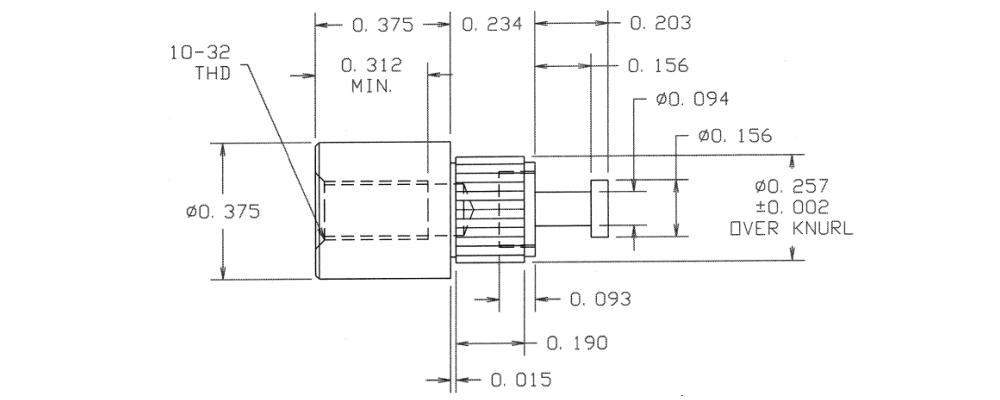

10-756-6-05
10-756-6-05
10-756-6-05
0.812" - TURRET/THREAD Swage Mount 0.234" 3/16 0.250 Brass Electro Solder NO

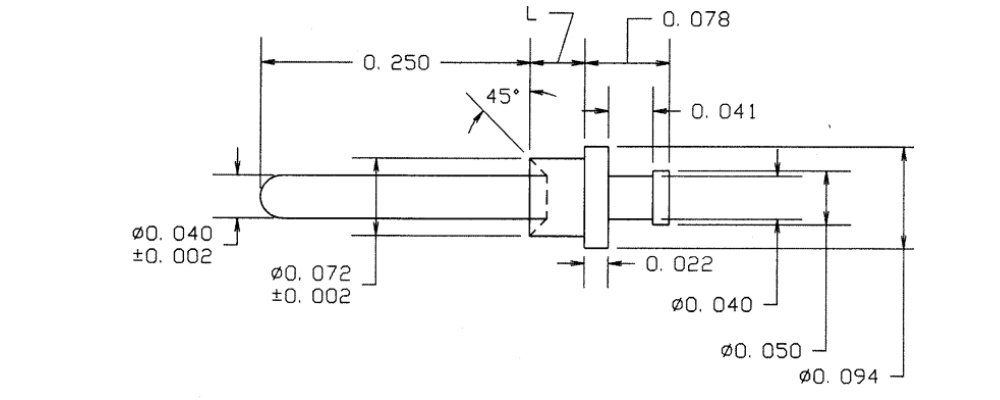

10-801-8-044
10-801-8-044
10-801-8-044
0.598" 0.040 TURRET/PIN Swage Mount 0.270" 1/4 0.076 Brass Bright Tin YES

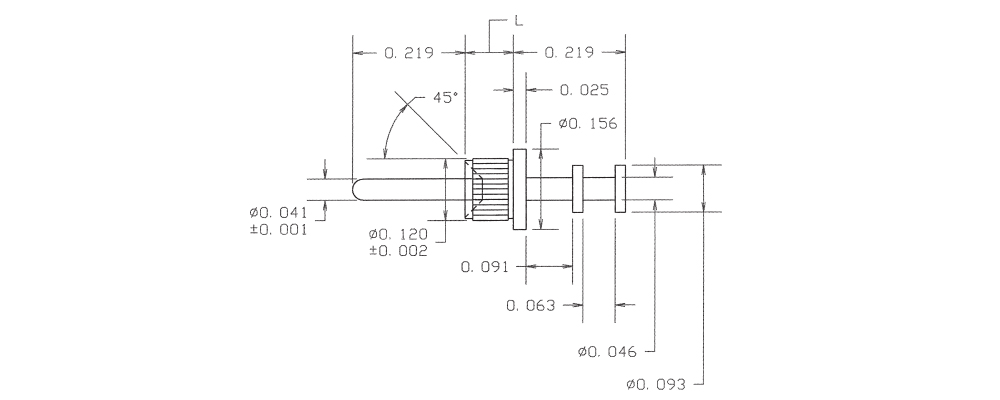

10-804-2-044
10-804-2-044
10-804-2-044
0.532" 0.041 DOUBLE TURRET/PIN Swage Mount 0.094" 1/16 0.125 Brass Bright Tin YES

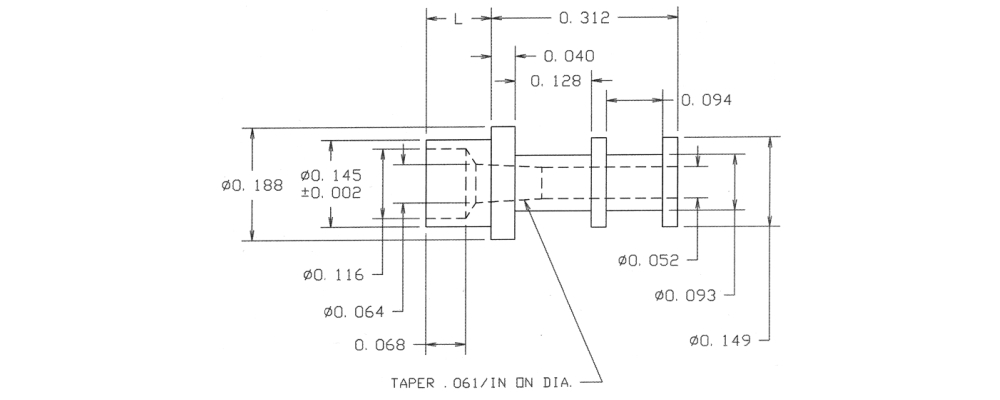

10-810-1-05
10-810-1-05
10-810-1-05
0.390" - - Swage Mount 0.078" 1/32 0.1495 Brass Electro Solder NO
10-817-2-035
10-817-2-035
10-817-2-035
0.629" - - Swage Mount 0.109" 1/16 0.1495 Brass Gold YES

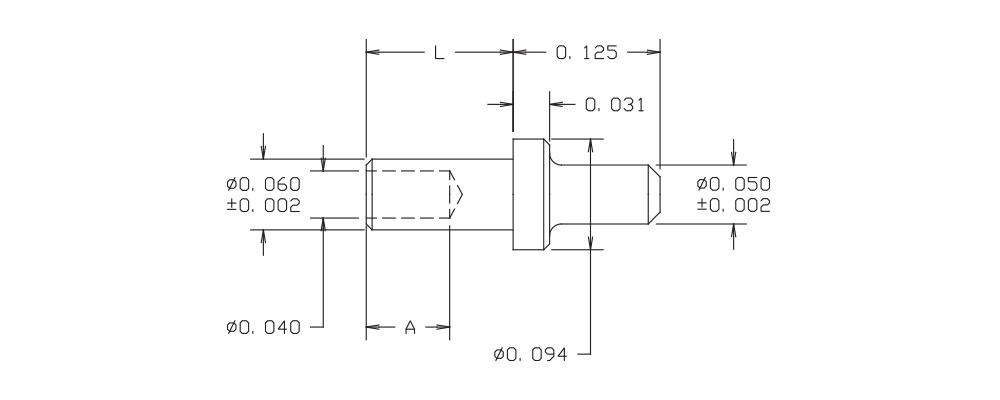

10-829-11-044
10-829-11-044
10-829-11-044
0.172" 0.050 - Swage Mount 0.047" 1/64 0.063 Brass Bright Tin YES
10-837-8-044
10-837-8-044
10-837-8-044
0.626" 0.050 Pin/Pin Swage Mount 0.281" 1/4 0.111 Brass Bright Tin YES
