Commercial
Non-Insulated
Terminals

Filter

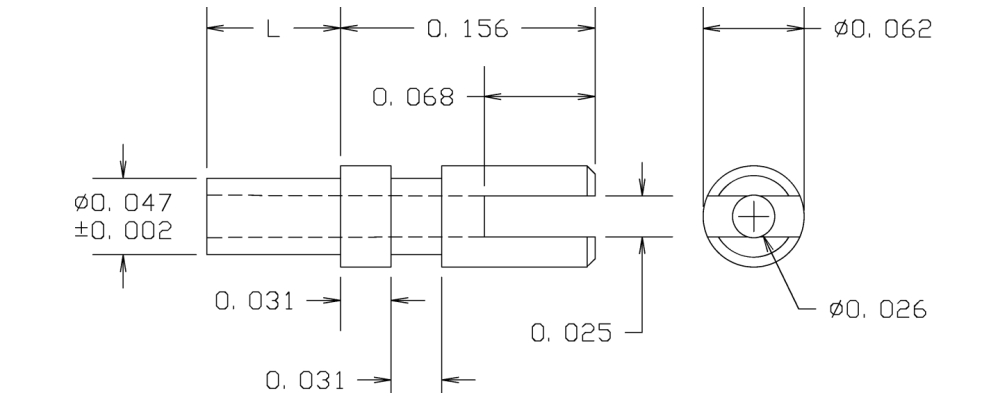

10-413-1-01
10-413-1-01
10-413-1-01
0.207" - - Swage Mount 0.051" 1/32 0.052 Brass Silver YES
10-447-11-044
10-447-11-044
10-447-11-044
0.318" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin YES
10-461-4-03
10-461-4-03
10-461-4-03
0.459" - - Swage Mount 0.147" 1/8 0.043 Brass Gold YES

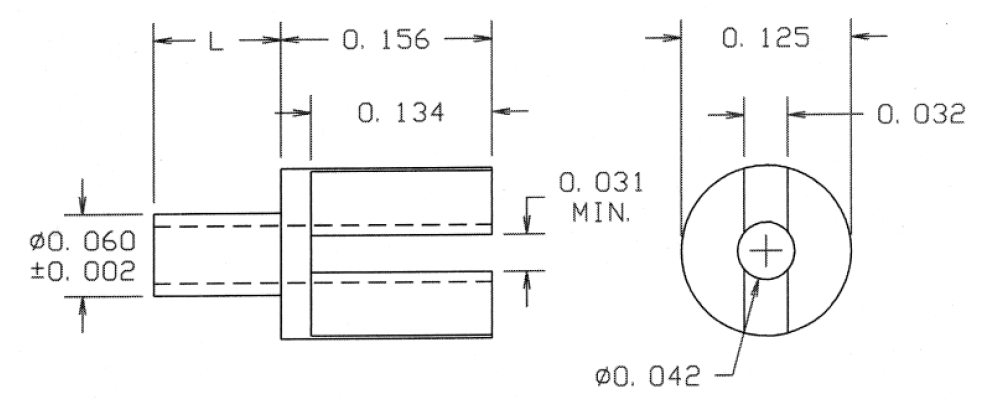

10-932-3-05
10-932-3-05
10-932-3-05
0.281" - - Swage Mount 0.125" 3/32 0.0635 Brass Electro Solder NO

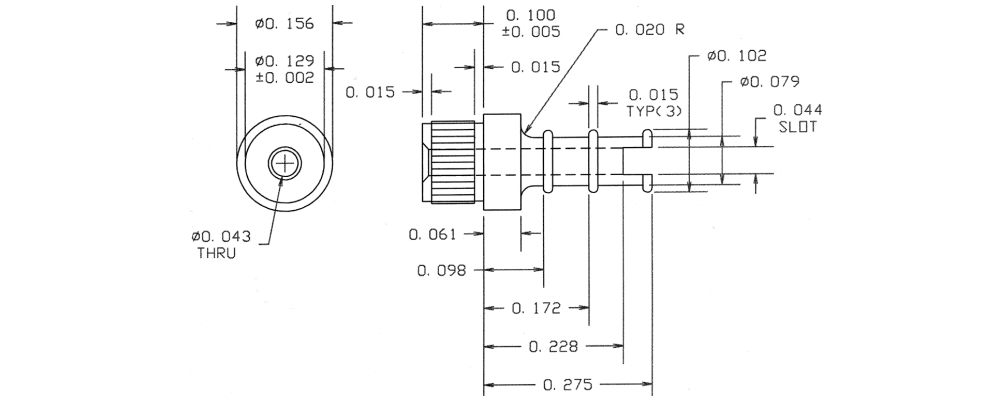

09-0037-2-03
09-0037-2-03
09-0037-2-03
0.375" - - Press Fit/Solder 0.100" 1/16 0.1285 Brass Gold YES

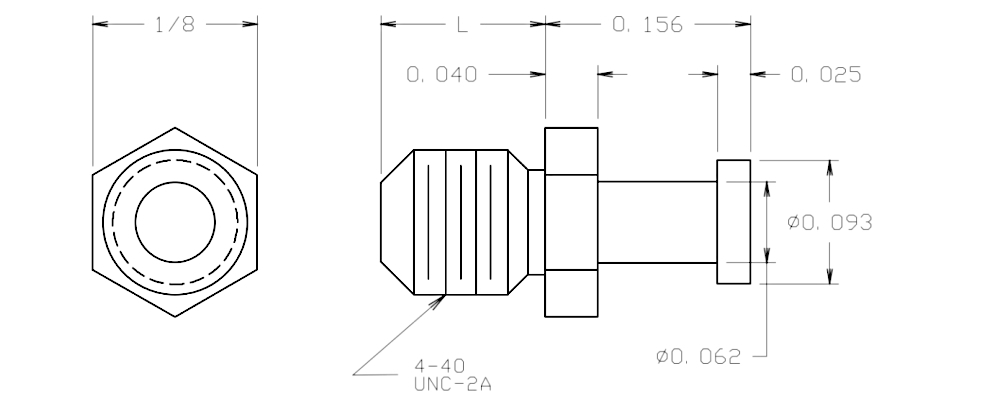

09-0104-10-04
09-0104-10-04
09-0104-10-04
0.466" - - 4-40 - - 4-40 THREAD Brass Electro-Tin YES

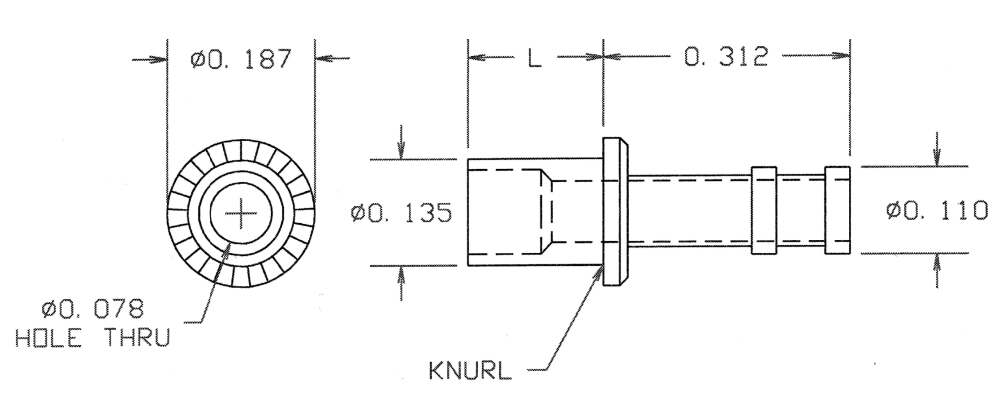

09-0168-4-044
09-0168-4-044
09-0168-4-044
0.484" - - Swage Mount 0.172" 1/8 0.141 Brass Bright Tin YES

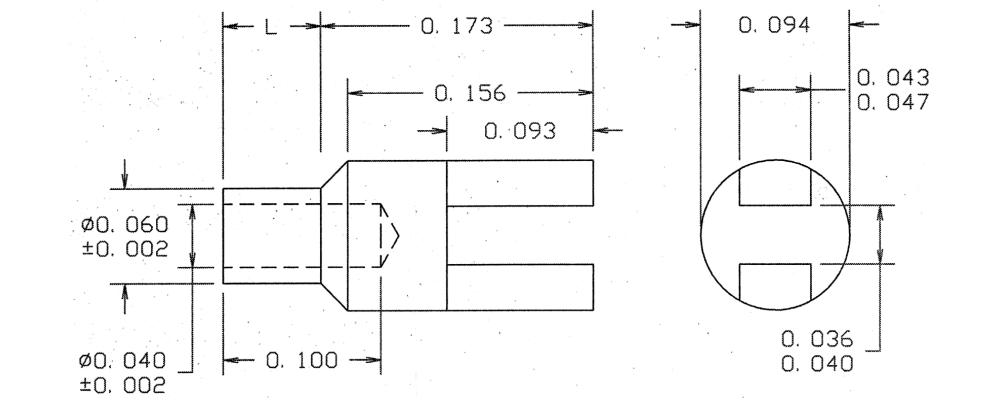

09-0208-4-05
09-0208-4-05
09-0208-4-05
0.329" - - Swage Mount 0.156" 1/8 0.067 LEADED Red Brass Electro Solder NO

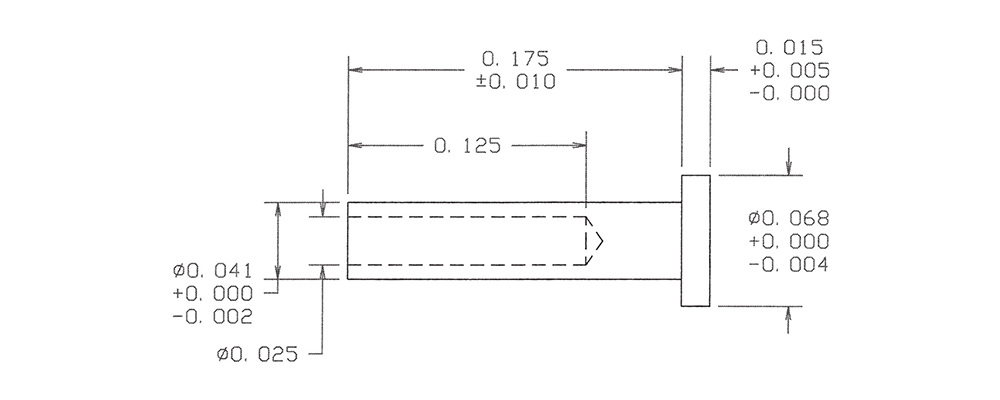

09-0246-1-088
09-0246-1-088
09-0246-1-088
0.190" 0.041 (+0.000/-0.002) - - - - - Brass Bright Tin-Lead NO

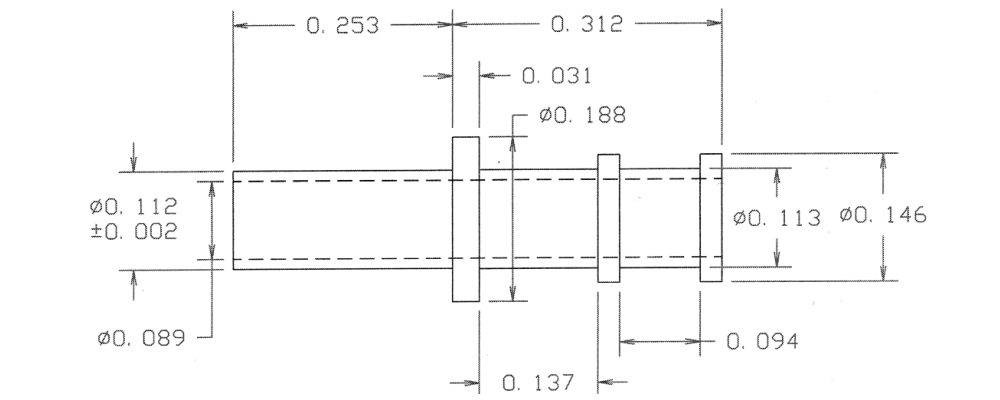

09-0294-7-044
09-0294-7-044
09-0294-7-044
0.565" - - Swage Mount 0.253" 7/32 0.116 Brass Bright Tin YES

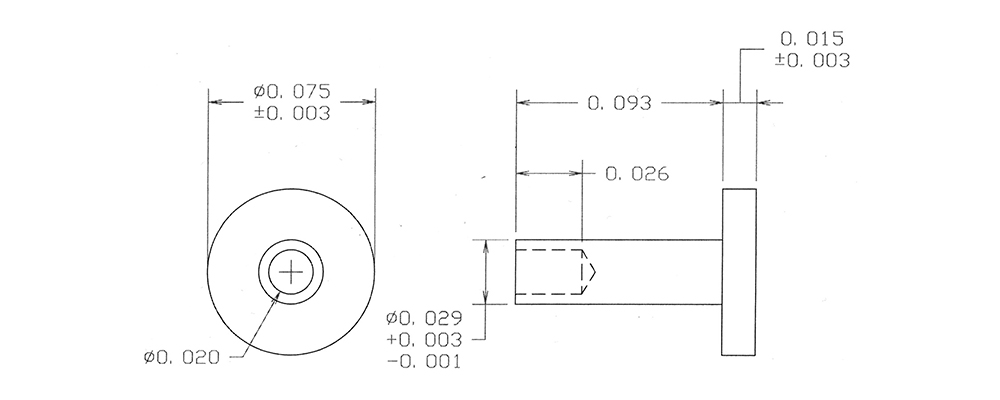

09-0356-1-044
09-0356-1-044
09-0356-1-044
0.108" 0.029 (+0.003/-0.001) - - 0.093" - - Brass Bright Tin YES

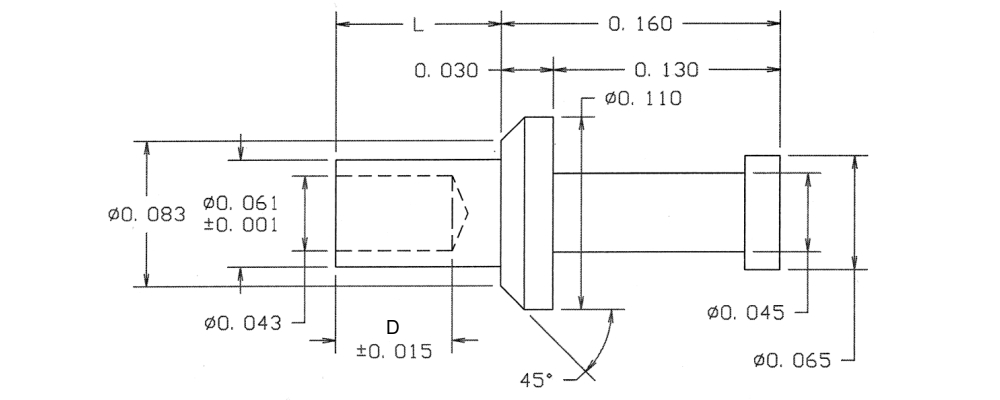

09-7013-3-01
09-7013-3-01
09-7013-3-01
0.285" - - Swage Mount 0.125" 3/32 0.067 LEADED Red Brass Silver YES

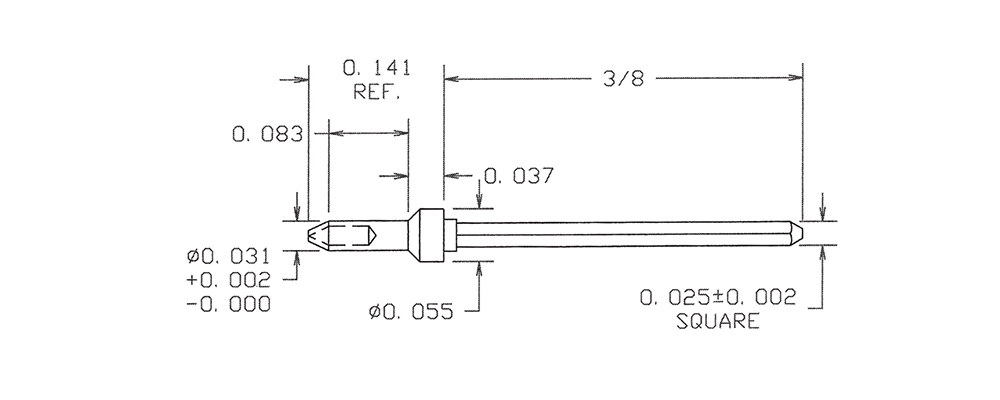

09-7122-1-03
09-7122-1-03
09-7122-1-03
0.516" 0.025 SQ. - RIVET MOUNT 0.083" 1/16 0.035 Brass Gold YES

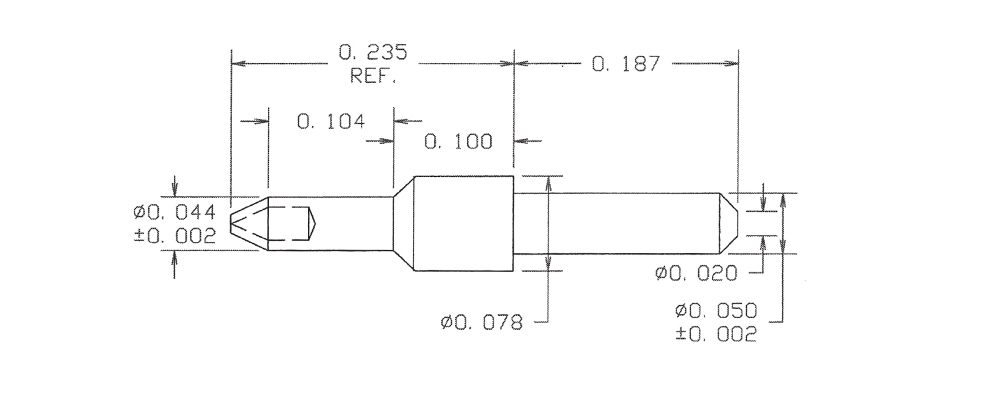

09-7151-2-05
09-7151-2-05
09-7151-2-05
0.422" 0.050 - RIVET MOUNT 0.104" 1/16 0.048 Brass Electro Solder NO

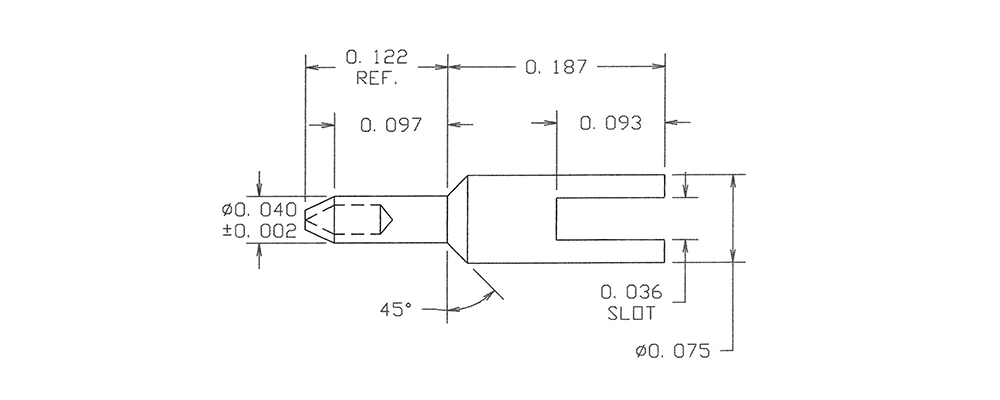

09-7184-2B-035
09-7184-2B-035
09-7184-2B-035
0.309" - - RIVET MOUNT 0.097" 9/128 0.044 Brass Gold YES
09-8028-1-088
09-8028-1-088
09-8028-1-088
0.101" 0.020 - Swage Mount 0.051" 1/32 0.031 Brass Bright Tin-Lead NO

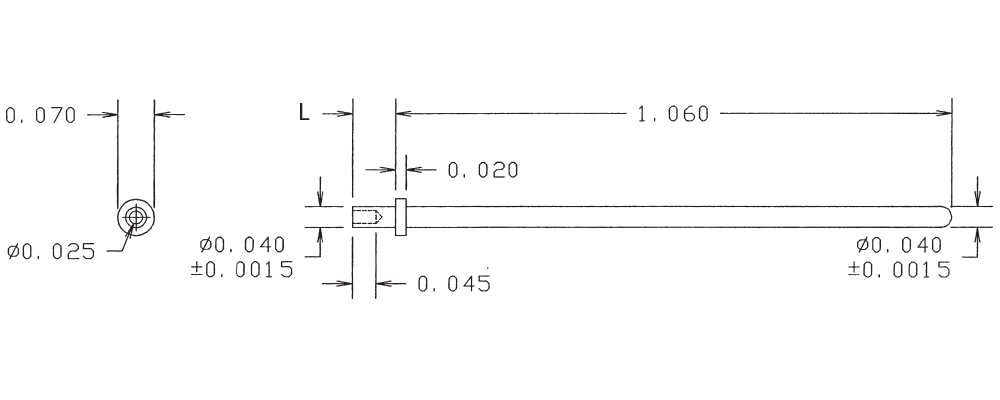

09-8061-1-035
09-8061-1-035
09-8061-1-035
1.111" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Gold YES

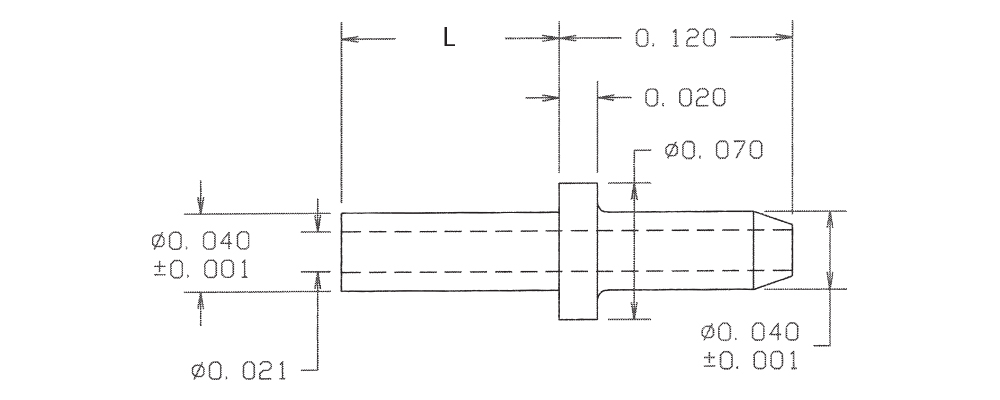

09-8113-1-088
09-8113-1-088
09-8113-1-088
0.171" 0.040 - Swage Mount 0.051" 1/32 0.043 Brass Bright Tin-Lead NO

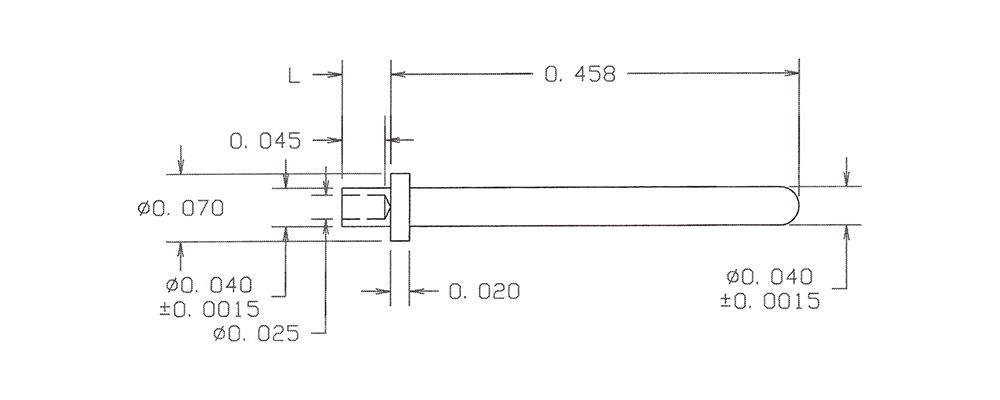

09-8157-1-04
09-8157-1-04
09-8157-1-04
0.509" 0.0405 - Swage Mount 0.051" 1/32 0.043 Brass Electro-Tin YES

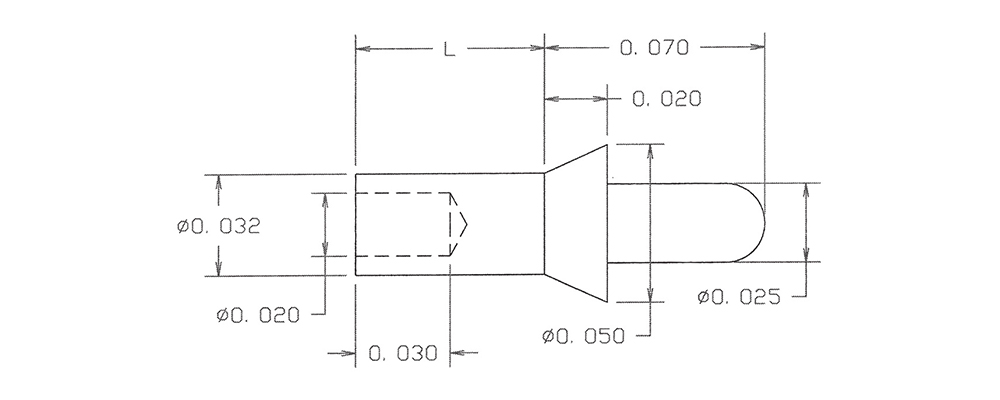

09-8186-2-01
09-8186-2-01
09-8186-2-01
0.145" 0.025 - Swage Mount 0.075" 1/16 0.035 Brass Silver YES
