Non-Insulated
PC Jacks

Filter
09-9003-2-04
09-9003-2-04
09-9003-2-04
0.040 0.195 " 0.432" Jack/Slotted Swage Mount 0.094" 1/16 0.129 Brass Electro-Tin Vertical
09-9169-1-03
09-9169-1-03
09-9169-1-03
0.030 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Gold Vertical
09-9659-1-035
09-9659-1-035
09-9659-1-035
0.015 - 0.021 0.140 " 0.160" - Solder - 1/32 - 3/32 0.042 Brass Gold Vertical
09-9663-1-088
09-9663-1-088
09-9663-1-088
0.015 - 0.021 0.123 " 0.140" - Solder - 1/32 - 1/16 0.042 Brass Bright Tin-Lead Vertical
09-9663-1-063
09-9663-1-063
09-9663-1-063
0.015 - 0.021 0.123 " 0.140" - Solder - 1/32 - 1/16 0.042 Brass Bright Tin-Lead Vertical
09-9169-1-04
09-9169-1-04
09-9169-1-04
0.030 0.190 " 0.206" - Press Fit/Solder - 3/32 - 5/32 0.076 Brass Electro-Tin Vertical
09-9283-1-035
09-9283-1-035
09-9283-1-035
0.080 0.325 " 0.550" Jack/Pin Solder - 1/32 - 1/16 0.043 Brass Gold Vertical

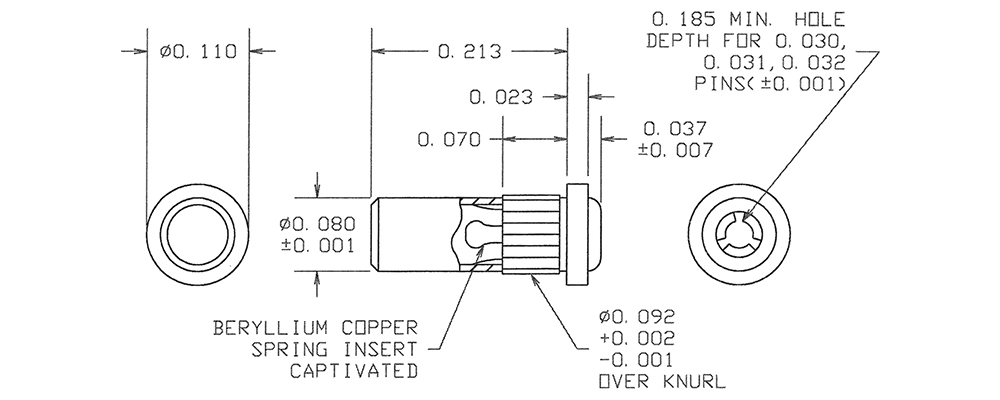

09-9031-1-06
09-9031-1-06
09-9031-1-06
0.030 - 0.032 0.185 " 0.250" - Press Fit/Solder - 1/16 - 3/16 0.089 Brass Electro-Tin Vertical
09-9730-1-06
09-9730-1-06
09-9730-1-06
0.032 - 0.046 0.200 " 0.240" - Solder - 1/32 - 3/16 0.089 Brass Electro-Tin Vertical
09-9730-1-04
09-9730-1-04
09-9730-1-04
0.032 - 0.046 0.200 " 0.240" - Solder - 1/32 - 3/16 0.089 Brass Electro-Tin Vertical
09-9729-1-063
09-9729-1-063
09-9729-1-063
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Bright Tin-Lead Vertical
09-9729-1-06
09-9729-1-06
09-9729-1-06
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Electro-Tin Vertical
09-9743-1-04
09-9743-1-04
09-9743-1-04
0.032 - 0.046 0.210 " 0.260" - Press Fit/Solder - 1/16 - 5/32 0.073 Brass Electro-Tin Vertical
09-9731-1-035
09-9731-1-035
09-9731-1-035
0.032 - 0.046 0.205 " 0.240" - Press Fit/Solder - 1/16 - 3/16 0.090 Brass Gold Vertical
09-9729-1-03
09-9729-1-03
09-9729-1-03
0.032 - 0.046 0.220 " 0.253" - Solder - 1/32 - 3/16 0.0935 Brass Gold Vertical
09-9653-1-088
09-9653-1-088
09-9653-1-088
0.032 - 0.046 0.190 " 0.343" Jack/Turret Press Fit/Solder - 1/16 - 5/32 0.090 Brass Bright Tin-Lead Vertical
09-9653-1-06
09-9653-1-06
09-9653-1-06
0.032 - 0.046 0.190 " 0.343" Jack/Turret Press Fit/Solder - 1/16 - 5/32 0.090 Brass Electro-Tin Vertical
09-9257-1-063
09-9257-1-063
09-9257-1-063
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Bright Tin-Lead Vertical
09-9257-1-04
09-9257-1-04
09-9257-1-04
0.040 0.225 " 0.372" - Press Fit/Solder - 1/16 - 1/4 0.092 Brass Electro-Tin Vertical
09-9039-1-04
09-9039-1-04
09-9039-1-04
0.080 0.333 " 0.412" - Solder - 1/32 - 1/4 0.144 Brass Electro-Tin Vertical
