Non-Insulated
PC Jacks

Filter

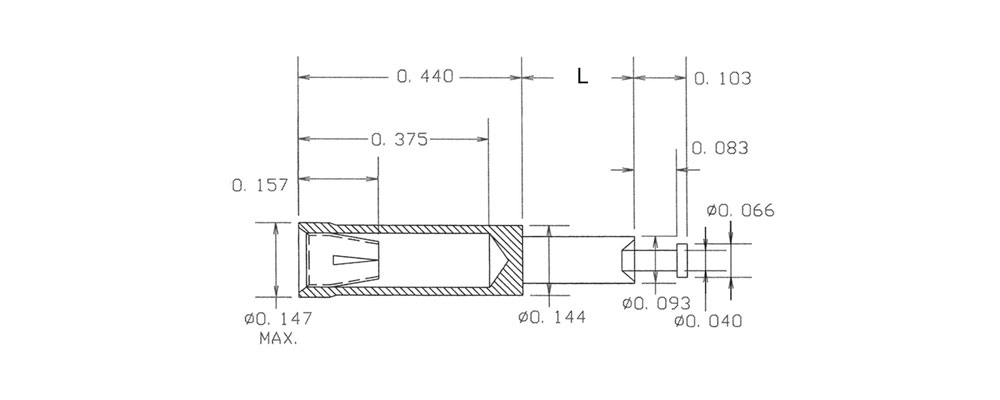

09-9642-4-03
09-9642-4-03
09-9642-4-03
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Gold Vertical

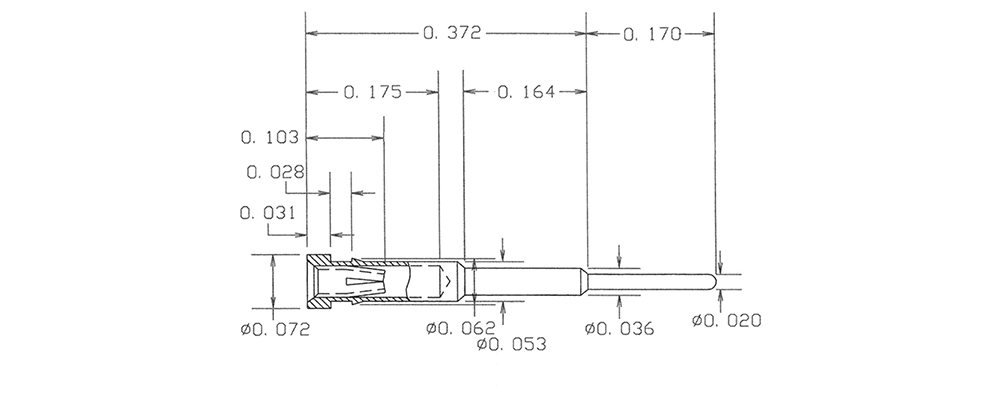

09-9682-1-063
09-9682-1-063
09-9682-1-063
0.015 - 0.025 0.175 " 0.572" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.059 Brass Bright Tin-Lead Vertical

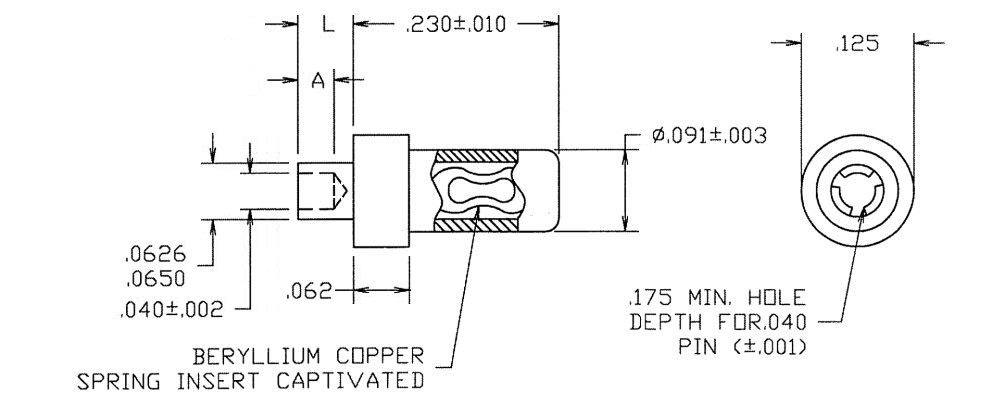

09-9035-2A-04
09-9035-2A-04
09-9035-2A-04
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Electro-Tin Vertical

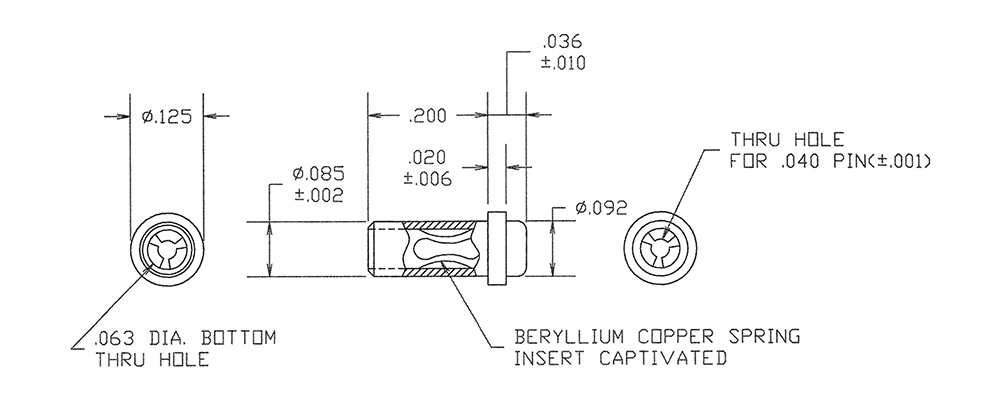

09-9002-1-06
09-9002-1-06
09-9002-1-06
0.040 0.207 " 0.236" - Solder - 1/32 - 1/8 0.089 (+0.002/-0.001) Brass Electro-Tin Vertical
09-9026-1-035
09-9026-1-035
09-9026-1-035
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Gold Vertical
09-9064-1-088
09-9064-1-088
09-9064-1-088
0.040 0.207 " 0.416" Jack/Pin Solder - 1/32 - 1/16 0.047 Brass Bright Tin-Lead Horizontal
09-9247-1-03
09-9247-1-03
09-9247-1-03
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Gold Vertical

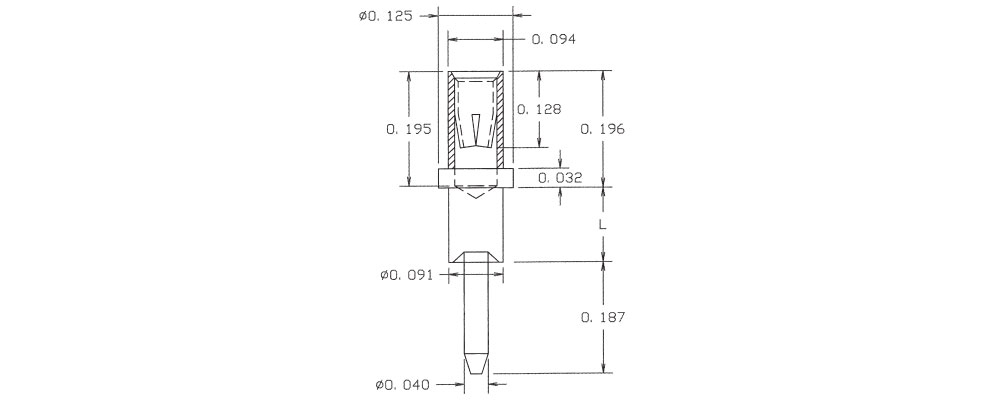

09-9605-4-06
09-9605-4-06
09-9605-4-06
0.032 - 0.046 0.195 " 0.539" Jack/Pin Swage Mount 0.156" 1/8 0.094 Brass Electro-Tin Vertical
09-9642-4-035
09-9642-4-035
09-9642-4-035
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Gold Vertical
09-9682-1-088
09-9682-1-088
09-9682-1-088
0.015 - 0.025 0.175 " 0.572" Jack/Pin Press Fit/Solder - 1/16 - 1/8 0.059 Brass Bright Tin-Lead Vertical
09-9035-2A-06
09-9035-2A-06
09-9035-2A-06
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Electro-Tin Vertical
09-9002-1-063
09-9002-1-063
09-9002-1-063
0.040 0.207 " 0.236" - Solder - 1/32 - 1/8 0.089 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
09-9026-1-04
09-9026-1-04
09-9026-1-04
0.016 - 0.019 0.207 " 0.235" - Solder - 1/32 - 3/16 0.052 Brass Electro-Tin Vertical
09-9065-1-03
09-9065-1-03
09-9065-1-03
0.040 0.211 " 0.411" Jack/Pin Solder - 1/32 - 1/16 0.038 Brass Gold Horizontal
09-9247-1-035
09-9247-1-035
09-9247-1-035
0.040 0.185 " 0.219" - Press Fit/Solder - 1/32 - 1/16 0.076 (+0.002/-0.001) Brass Gold Vertical
09-9605-4-063
09-9605-4-063
09-9605-4-063
0.032 - 0.046 0.195 " 0.539" Jack/Pin Swage Mount 0.156" 1/8 0.094 Brass Bright Tin-Lead Vertical
09-9642-4-04
09-9642-4-04
09-9642-4-04
0.065 - 0.082 0.375 " 0.699" Jack/Turret Swage Mount 0.156" 1/8 0.096 Brass Electro-Tin Vertical

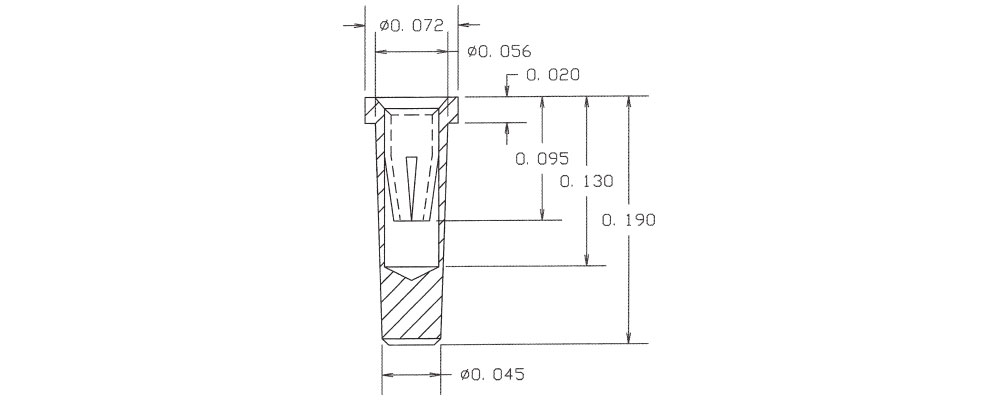

09-9683-1-03
09-9683-1-03
09-9683-1-03
0.015 - 0.025 0.130 " 0.190" - Solder - 1/32 - 1/8 0.056 Brass Gold Vertical
09-9035-2A-063
09-9035-2A-063
09-9035-2A-063
0.040 0.175 " 0.309" - Swage Mount 0.079" 1/16 0.067 Brass Bright Tin-Lead Vertical
09-9002-1-088
09-9002-1-088
09-9002-1-088
0.040 0.207 " 0.236" - Solder - 1/32 - 1/8 0.089 (+0.002/-0.001) Brass Bright Tin-Lead Vertical
