Military
Insulated
Terminals

Filter

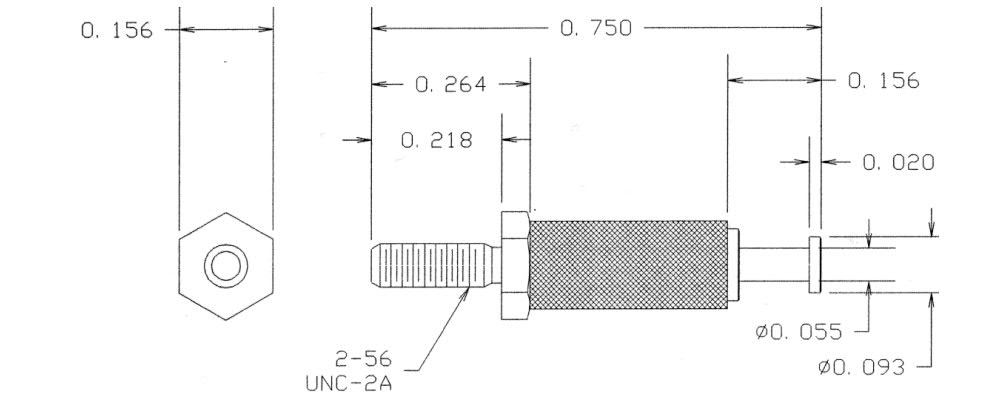

1127-69M-09516
1127-69M-09516
1127-69M-09516
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Blue M55155/186I02 AA59126/186I02

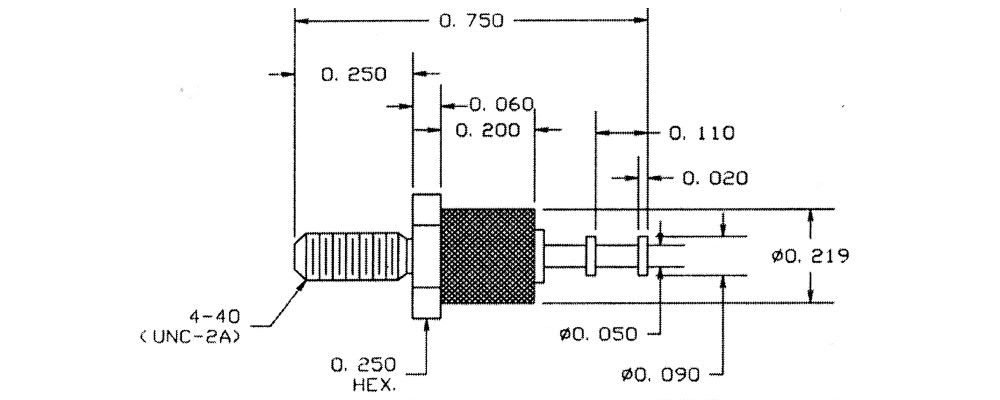

1169-37M-0516
1169-37M-0516
1169-37M-0516
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Blue M55155/096H04 AA59126/096H04

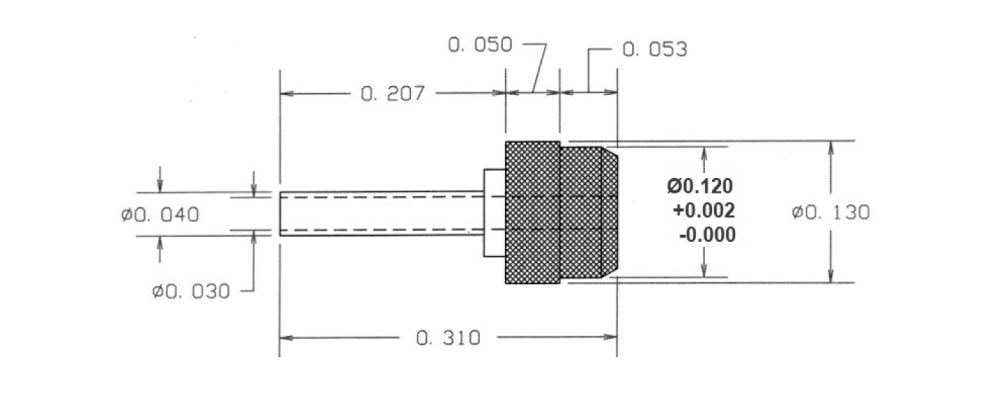

1114-08M-09519
1114-08M-09519
1114-08M-09519
0.310" - Press Fit 3/32 0.108 PTFE White M55155/059I02 AA59126/059I02

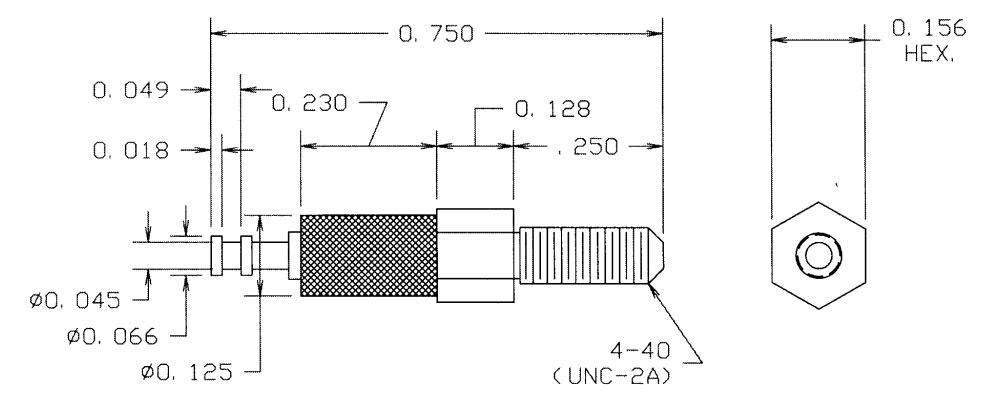

1125-43M-08814Z
1125-43M-08814Z
1125-43M-08814Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Yellow M55155/094D01 AA59126/094D01

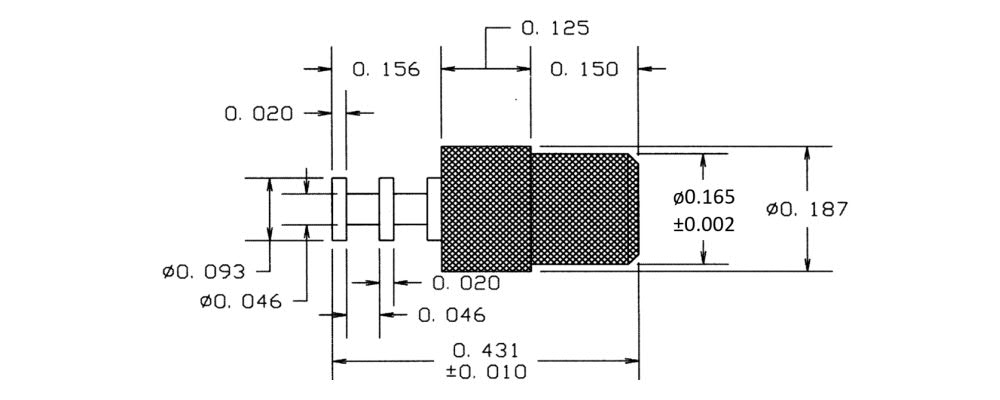

1102-31M-09516Z
1102-31M-09516Z
1102-31M-09516Z
0.431" - Press Fit 1/8 0.152 PTFE Blue M55155/076C02 AA59126/076C02

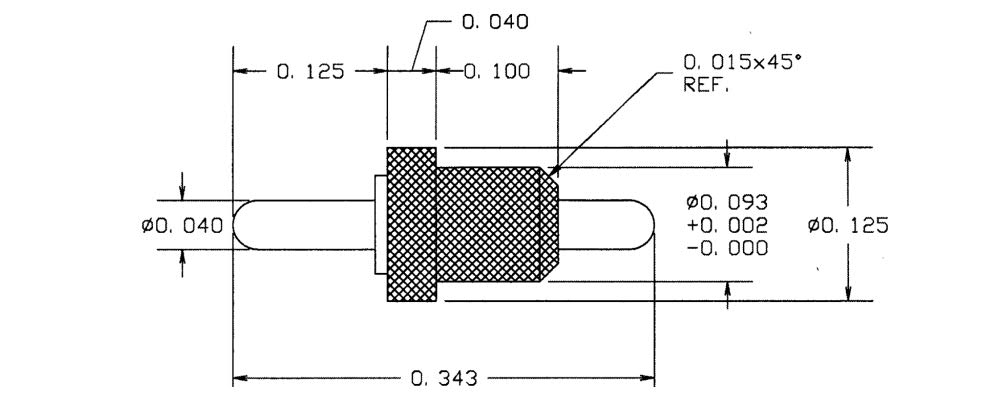

1110-75M-0514Z
1110-75M-0514Z
1110-75M-0514Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Yellow M55155/034B05 AA59126/034B05

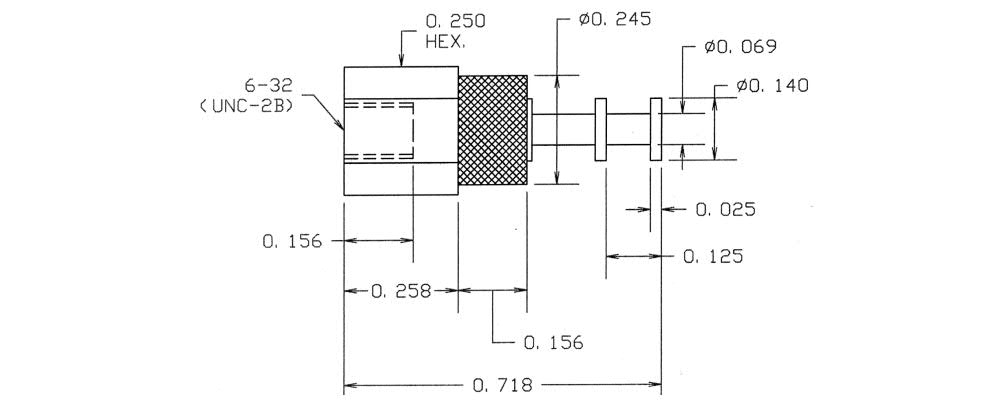

1125-46M-09517Z
1125-46M-09517Z
1125-46M-09517Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Violet M55155/107C02 AA59126/107C02

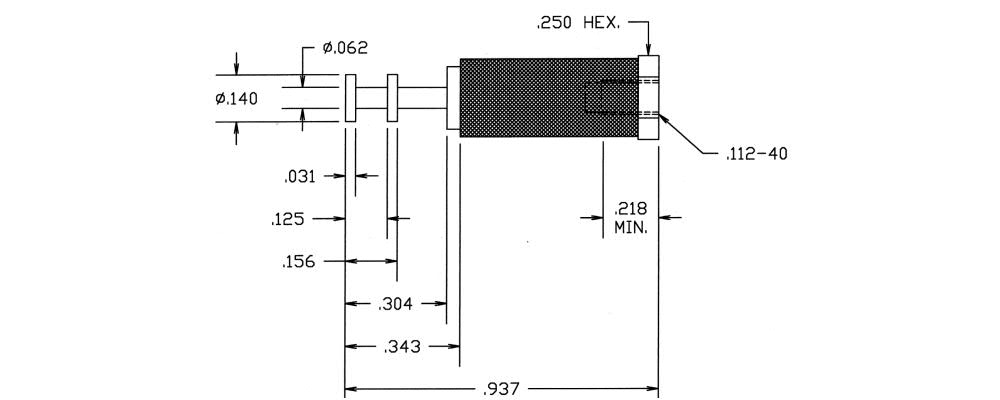

1127-05M-0515Z
1127-05M-0515Z
1127-05M-0515Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Green M55155/205B02 AA59126/205B02
1127-69M-09517
1127-69M-09517
1127-69M-09517
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Violet M55155/187I02 AA59126/187I02
1169-37M-0516Z
1169-37M-0516Z
1169-37M-0516Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Blue M55155/096B04 AA59126/096B04
1114-08M-09519Z
1114-08M-09519Z
1114-08M-09519Z
0.310" - Press Fit 3/32 0.108 PTFE White M55155/059C02 AA59126/059C02
1125-43M-08815Z
1125-43M-08815Z
1125-43M-08815Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Green M55155/095D01 AA59126/095D01
1102-31M-09517
1102-31M-09517
1102-31M-09517
0.431" - Press Fit 1/8 0.152 PTFE Violet M55155/077I02 AA59126/077I02
1110-75M-0515
1110-75M-0515
1110-75M-0515
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Green M55155/035H05 AA59126/035H05
1125-46M-09518
1125-46M-09518
1125-46M-09518
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Gray M55155/108I02 AA59126/108I02
1127-05M-0516
1127-05M-0516
1127-05M-0516
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Blue M55155/206H02 AA59126/206H02
1127-69M-09518
1127-69M-09518
1127-69M-09518
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Gray M55155/188I02 AA59126/188I02
1169-37M-0517
1169-37M-0517
1169-37M-0517
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Violet M55155/097H04 AA59126/097H04

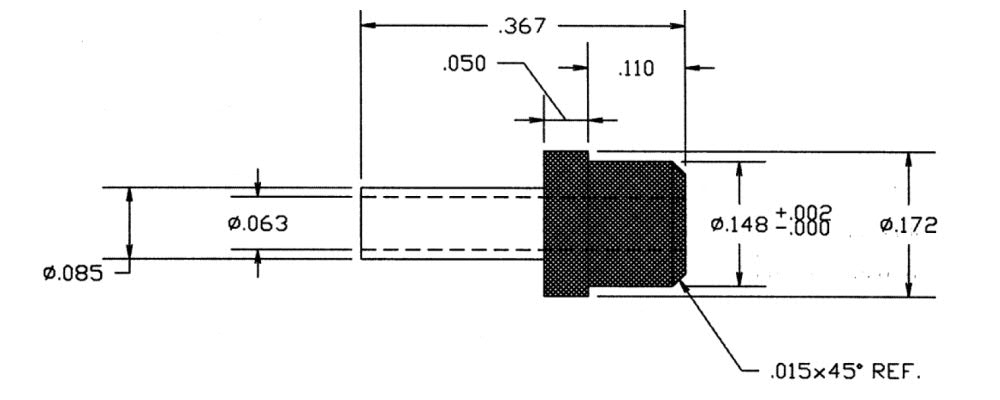

1114-23M-0510
1114-23M-0510
1114-23M-0510
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/050H03 AA59126/050H03
1125-43M-08816Z
1125-43M-08816Z
1125-43M-08816Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Blue M55155/096D01 AA59126/096D01

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
