Military
Insulated
Terminals

Filter
1102-31M-09512Z
1102-31M-09512Z
1102-31M-09512Z
0.431" - Press Fit 1/8 0.152 PTFE Red M55155/072C02 AA59126/072C02

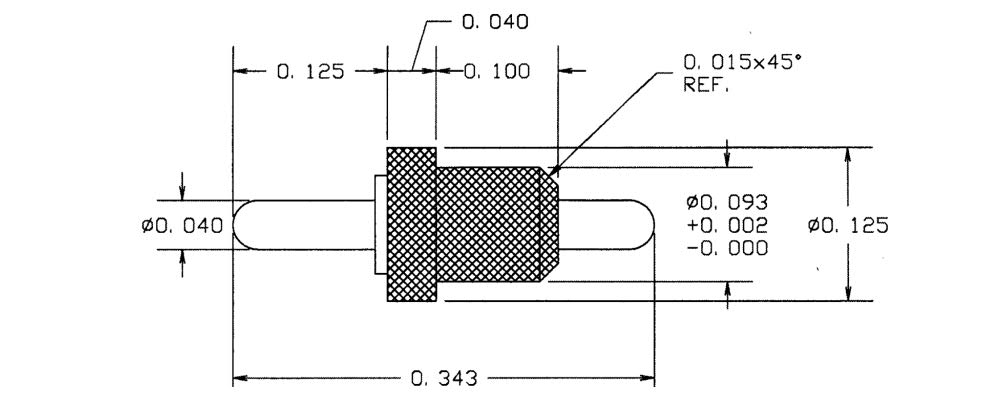

1110-75M-0510Z
1110-75M-0510Z
1110-75M-0510Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Black M55155/030B05 AA59126/030B05
1125-46M-09513Z
1125-46M-09513Z
1125-46M-09513Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Orange M55155/103C02 AA59126/103C02
1127-05M-0511Z
1127-05M-0511Z
1127-05M-0511Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Brown M55155/201B02 AA59126/201B02

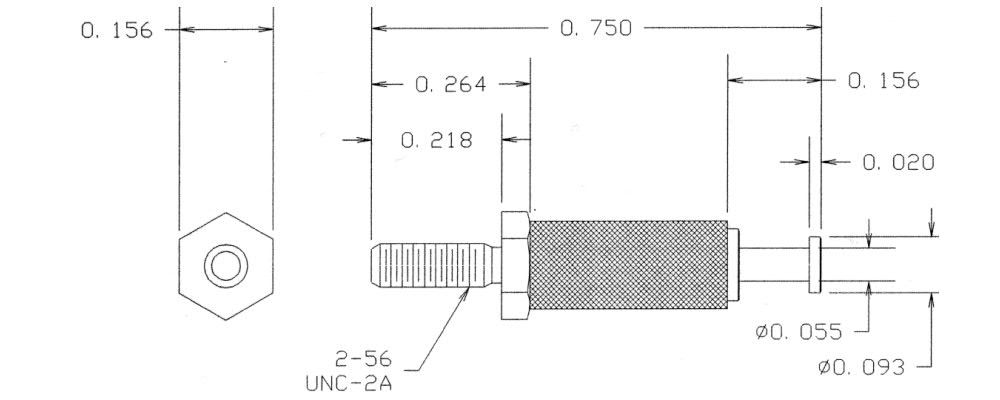

1127-69M-08819
1127-69M-08819
1127-69M-08819
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE White M55155/189J02 AA59126/189J02

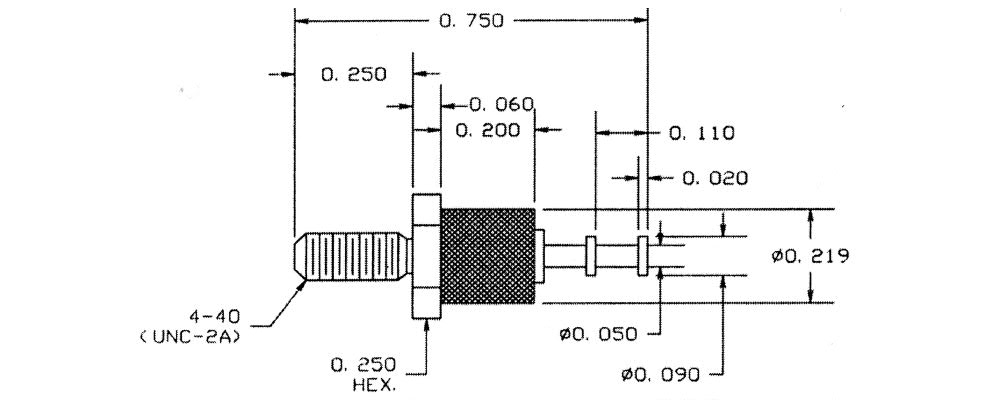

1169-37M-0512Z
1169-37M-0512Z
1169-37M-0512Z
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Red M55155/092B04 AA59126/092B04
1114-08M-09515Z
1114-08M-09515Z
1114-08M-09515Z
0.310" - Press Fit 3/32 0.108 PTFE Green M55155/055C02 AA59126/055C02

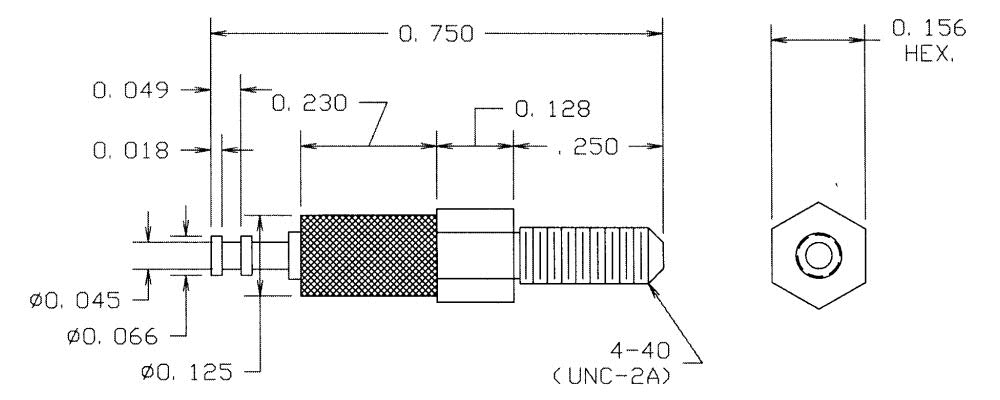

1125-43M-0517Z
1125-43M-0517Z
1125-43M-0517Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Violet M55155/097B01 AA59126/097B01
1102-31M-09513
1102-31M-09513
1102-31M-09513
0.431" - Press Fit 1/8 0.152 PTFE Orange M55155/073I02 AA59126/073I02
1110-75M-0511
1110-75M-0511
1110-75M-0511
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031H05 AA59126/031H05
1125-46M-09514
1125-46M-09514
1125-46M-09514
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104I02 AA59126/104I02
1127-05M-0512
1127-05M-0512
1127-05M-0512
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202H02 AA59126/202H02
1127-69M-09510
1127-69M-09510
1127-69M-09510
0.750" - 2-56 Nut 3/32 0.094 DIALLYL PHTHALATE Black M55155/180I02 AA59126/180I02
1169-37M-0513
1169-37M-0513
1169-37M-0513
0.750" - 4-40 Nut 1/8 0.120 DIALLYL PHTHALATE Orange M55155/093H04 AA59126/093H04
1114-08M-09516
1114-08M-09516
1114-08M-09516
0.310" - Press Fit 3/32 0.108 PTFE Blue M55155/056I02 AA59126/056I02
1125-43M-0518Z
1125-43M-0518Z
1125-43M-0518Z
0.750" - 4-40 Nut 1/8 0.120 PTFE Gray M55155/098B01 AA59126/098B01
1102-31M-09513Z
1102-31M-09513Z
1102-31M-09513Z
0.431" - Press Fit 1/8 0.152 PTFE Orange M55155/073C02 AA59126/073C02
1110-75M-0511Z
1110-75M-0511Z
1110-75M-0511Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031B05 AA59126/031B05
1125-46M-09514Z
1125-46M-09514Z
1125-46M-09514Z
0.718" - 6-32 Screw - CLEARANCE FOR Screw #6 PTFE Yellow M55155/104C02 AA59126/104C02
1127-05M-0512Z
1127-05M-0512Z
1127-05M-0512Z
0.937" - 4-40 Screw - CLEARANCE FOR Screw #4 DIALLYL PHTHALATE Red M55155/202B02 AA59126/202B02
