Commercial
Non-Insulated
Terminals

Filter
10-205-3-035
10-205-3-035
10-205-3-035
0.495" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-214-2-088
10-214-2-088
10-214-2-088
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin-Lead NO

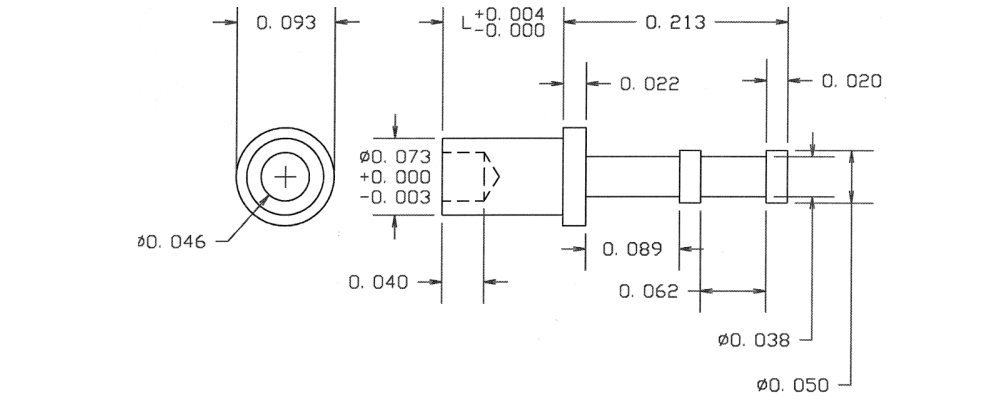

10-221-1-05
10-221-1-05
10-221-1-05
0.266" - - Swage Mount 0.053" 1/32 0.076 Brass Electro Solder NO
10-232-2-01
10-232-2-01
10-232-2-01
0.310" - - Swage Mount 0.080" 1/16 0.052 Brass Silver YES

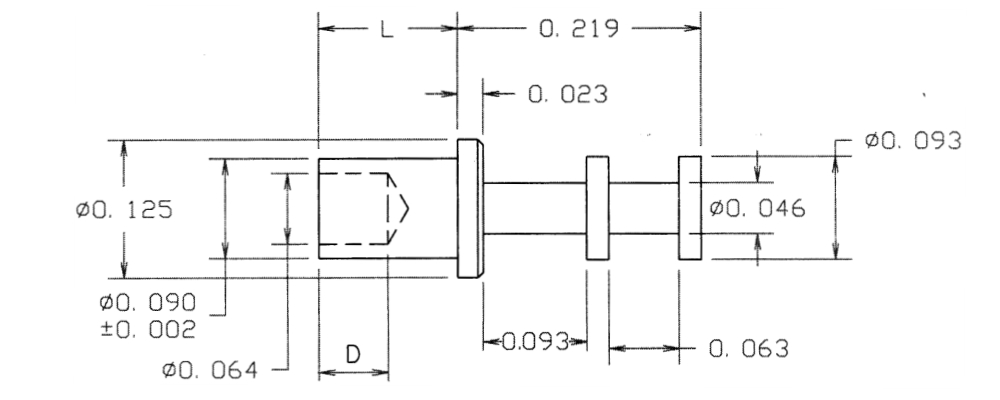

10-259-1-05
10-259-1-05
10-259-1-05
0.281" - - Swage Mount 0.062" 1/32 0.094 Brass Electro Solder NO

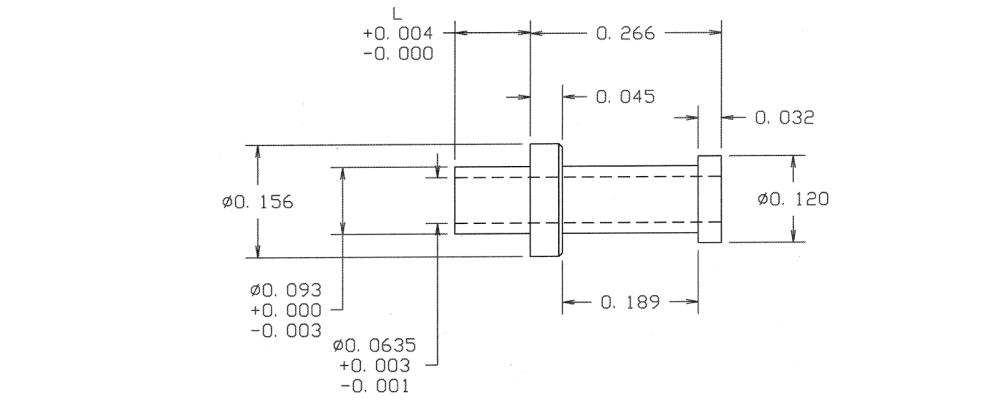

10-307-2-035
10-307-2-035
10-307-2-035
0.371" - - Swage Mount 0.105" 1/16 0.096 Brass Gold YES
10-315-2-088
10-315-2-088
10-315-2-088
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Bright Tin-Lead NO
10-329-6-04
10-329-6-04
10-329-6-04
0.562" - - Swage Mount 0.234" 3/16 0.125 Brass Electro-Tin YES
10-404-4-01
10-404-4-01
10-404-4-01
0.482" - - Swage Mount 0.165" 1/8 0.116 Brass Silver YES
10-419-1-05
10-419-1-05
10-419-1-05
0.466" - SLOTTED/DOUBLE TURRET Swage Mount 0.075" 1/32 0.094 Brass Electro Solder NO
10-432-5-03
10-432-5-03
10-432-5-03
0.632" - - Swage Mount 0.195" 5/32 0.161 Brass Gold YES
10-446-3-095
10-446-3-095
10-446-3-095
0.507" - SLOTTED/DOUBLE TURRET Swage Mount 0.125" 3/32 0.096 Brass Hot Solder Dip NO
10-462-4-095
10-462-4-095
10-462-4-095
0.303" - - Swage Mount 0.147" 1/8 0.052 Brass Hot Solder Dip NO
10-490-2-01
10-490-2-01
10-490-2-01
0.511" - TURRET/SLOTTED Swage Mount 0.105" 1/16 0.120 Brass Silver YES
10-504-4-03
10-504-4-03
10-504-4-03
0.563" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.094 Brass Gold YES
10-510-4-03
10-510-4-03
10-510-4-03
0.532" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.116 Brass Gold YES
10-520-3-03
10-520-3-03
10-520-3-03
1.072" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.266 Brass Gold YES
10-532-4-03
10-532-4-03
10-532-4-03
0.633" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.159 Brass Gold YES
10-550-3-03
10-550-3-03
10-550-3-03
0.604" - TURRET/DOUBLE TURRET Swage Mount 0.135" 3/32 0.206 Brass Gold YES
10-601-6-03
10-601-6-03
10-601-6-03
0.520" - - Swage Mount 0.219" 3/16 0.094 Brass Gold YES
