Commercial
Non-Insulated
Terminals

Filter

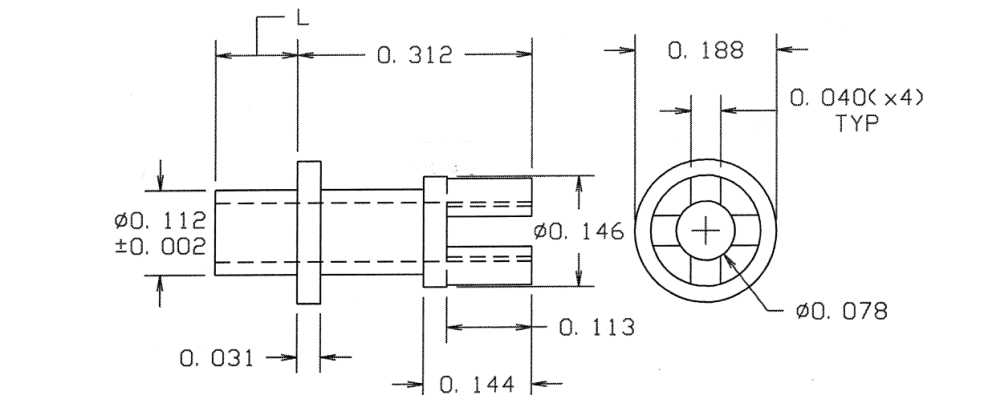

10-438-8-035
10-438-8-035
10-438-8-035
0.609" - - Swage Mount 0.297" 1/4 0.116 Brass Gold YES

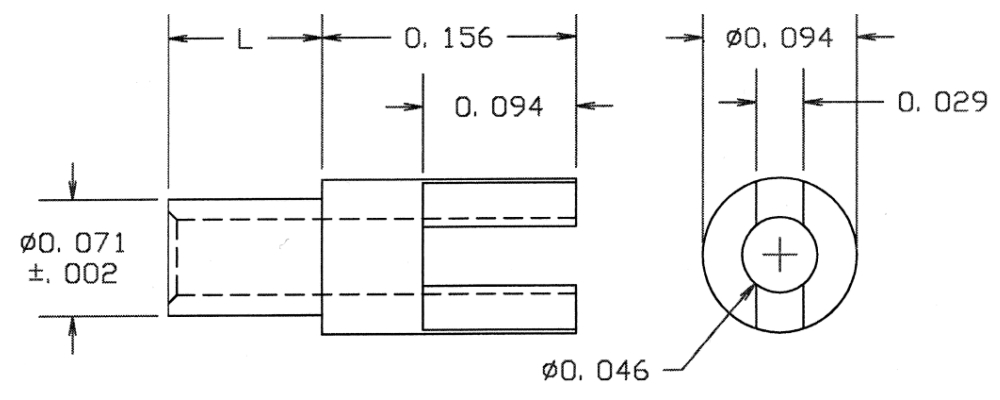

10-457-3-088
10-457-3-088
10-457-3-088
0.281" - - Swage Mount 0.125" 3/32 0.076 Brass Bright Tin-Lead NO

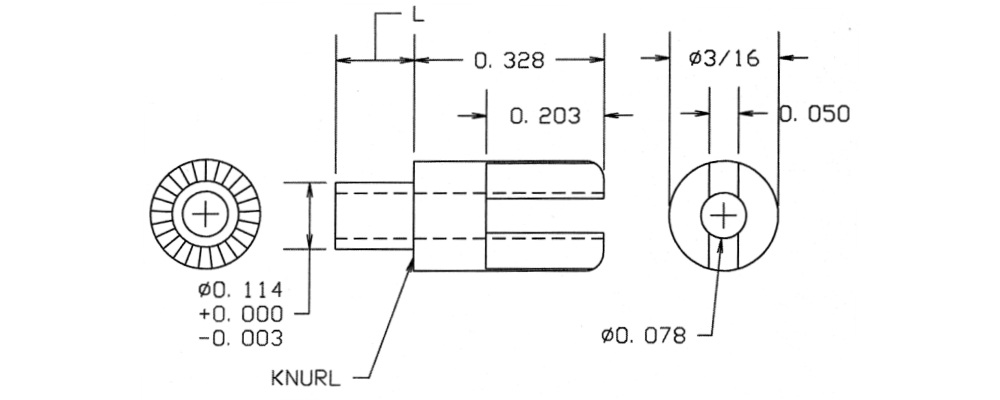

10-483-4-04
10-483-4-04
10-483-4-04
0.493" - - Swage Mount 0.165" 1/8 0.116 Brass Electro-Tin YES

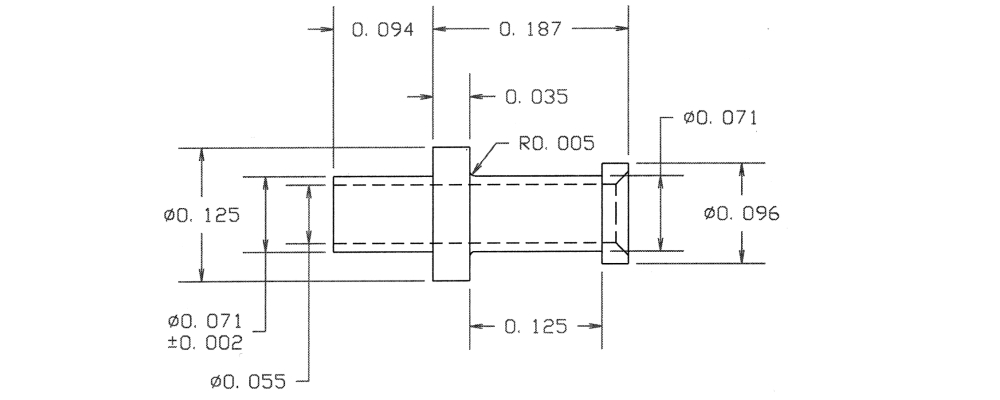

09-0026-2-04
09-0026-2-04
09-0026-2-04
0.281" - - Swage Mount 0.094" 1/16 0.076 Brass Electro-Tin YES

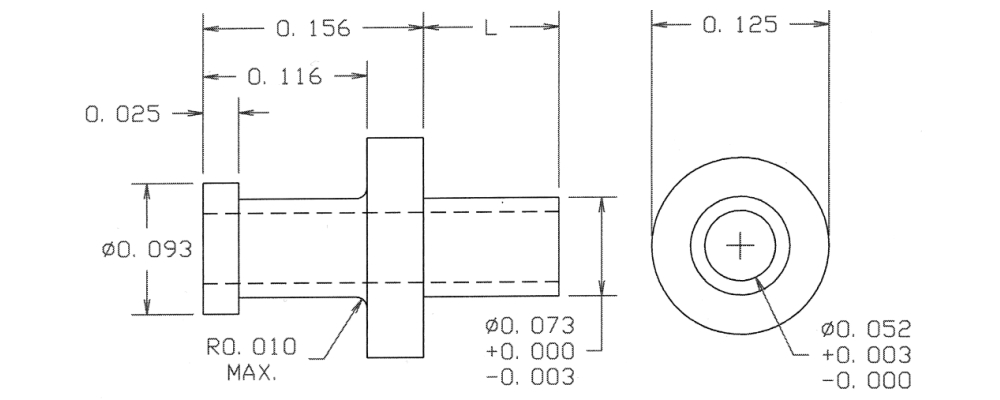

09-0078-2-04
09-0078-2-04
09-0078-2-04
0.252" - - Swage Mount 0.096" 1/16 0.076 Brass Electro-Tin YES

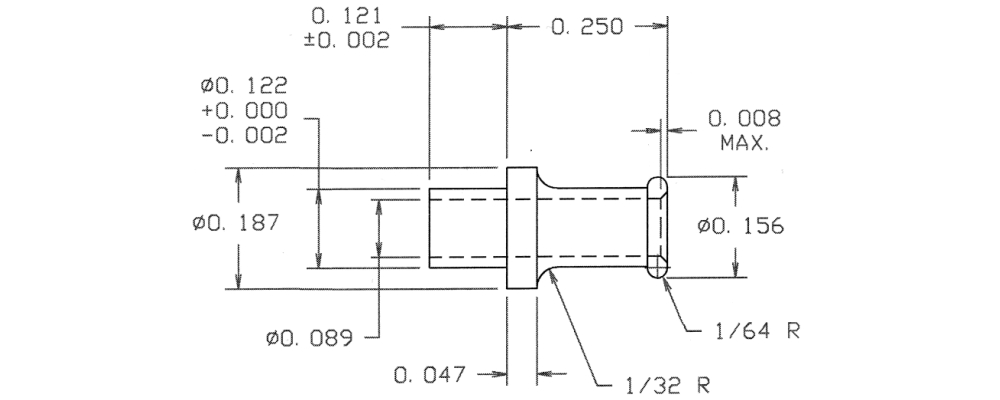

09-0164-3-044
09-0164-3-044
09-0164-3-044
0.371" - - Swage Mount 0.121" 3/32 0.125 Brass Bright Tin YES

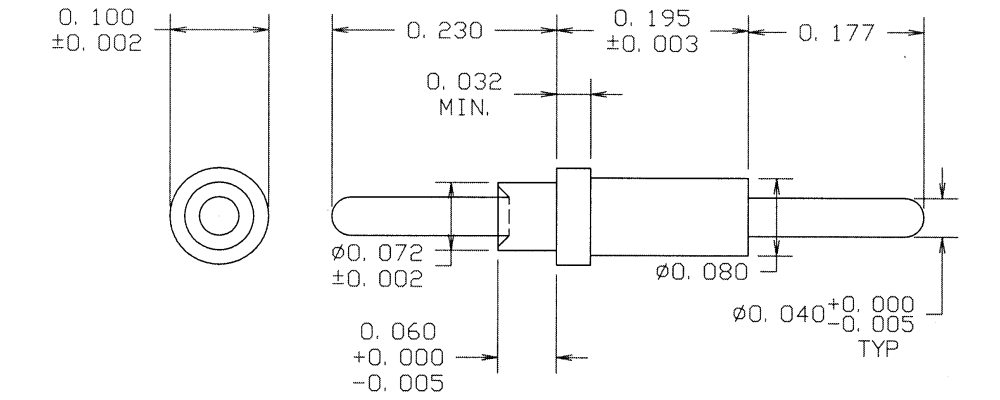

09-0194-1-01
09-0194-1-01
09-0194-1-01
0.602" 0.040 (+0.000/-0.005) Pin/Pin Swage Mount 0.060" 1/32 0.076 Brass Silver YES

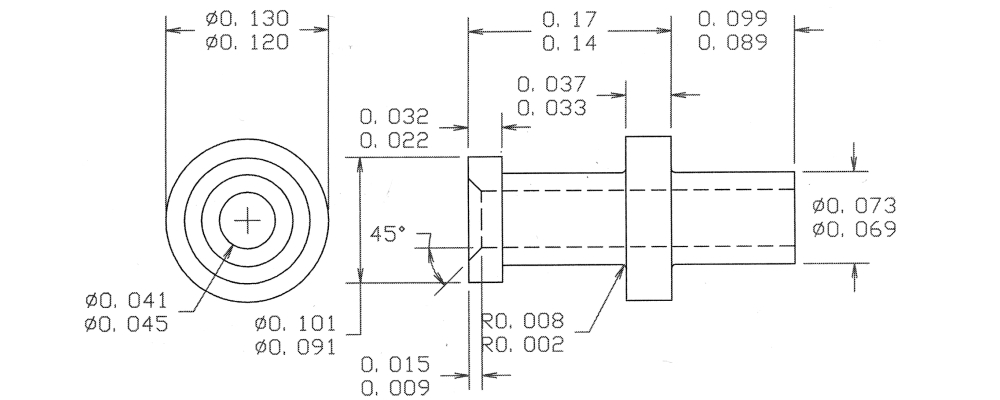

09-0236-2-05
09-0236-2-05
09-0236-2-05
0.264" - - Swage Mount 0.094" 1/16 0.076 Brass Electro Solder NO

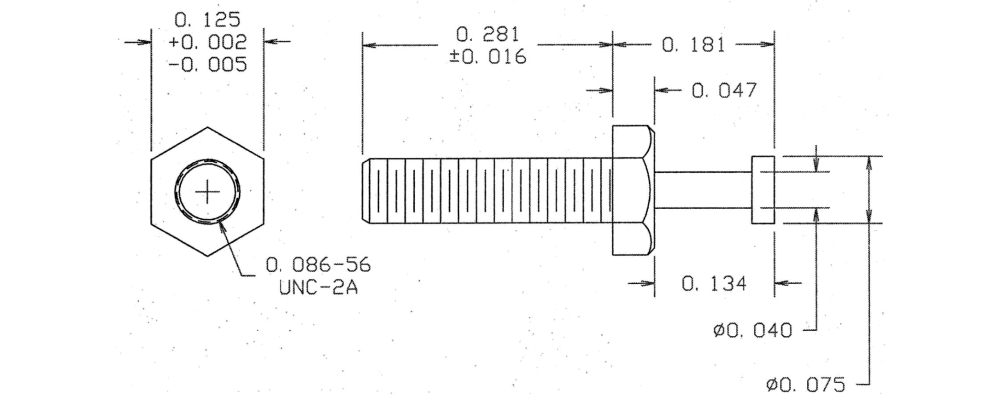

09-0284-9-088
09-0284-9-088
09-0284-9-088
0.462" - - 2-56 - - 2-56 THREAD Brass Bright Tin-Lead NO

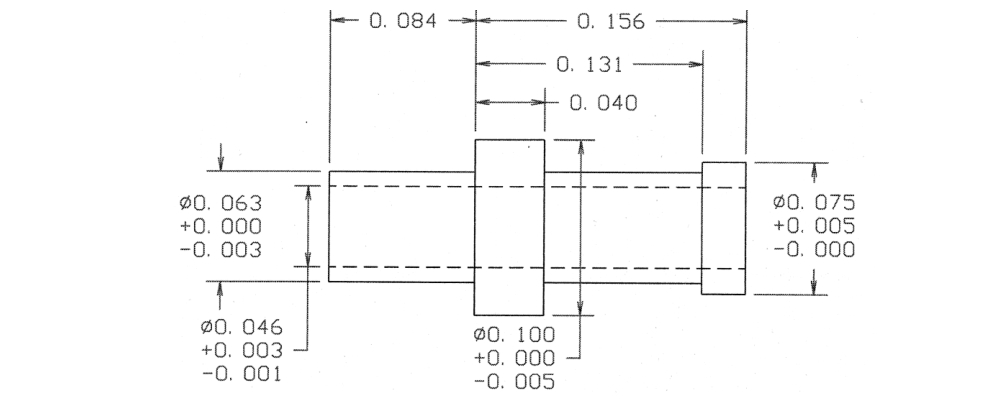

09-0346-2-088
09-0346-2-088
09-0346-2-088
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Bright Tin-Lead NO

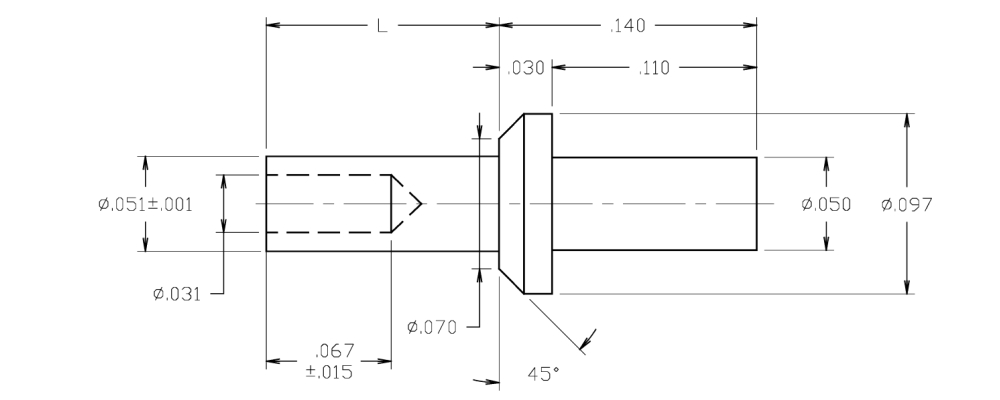

09-7010-4-05
09-7010-4-05
09-7010-4-05
0.291" 0.050 - Swage Mount 0.150" 1/8 0.055 Brass Electro Solder NO

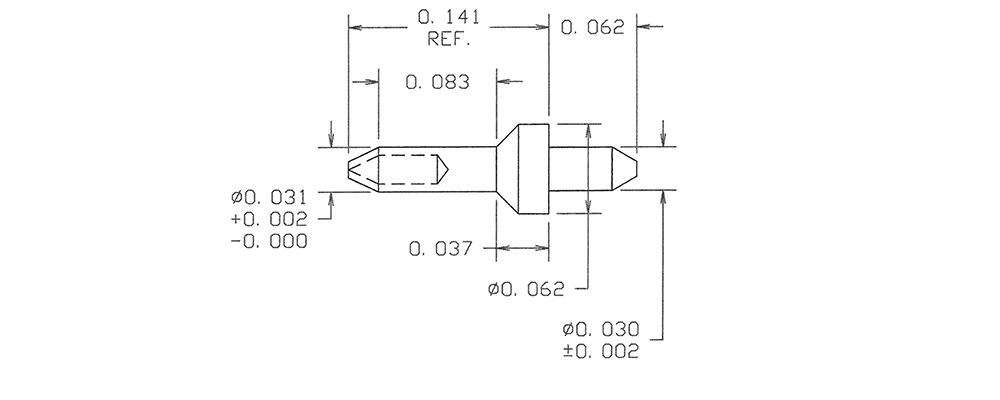

09-7113-2-088
09-7113-2-088
09-7113-2-088
0.203" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Bright Tin-Lead NO

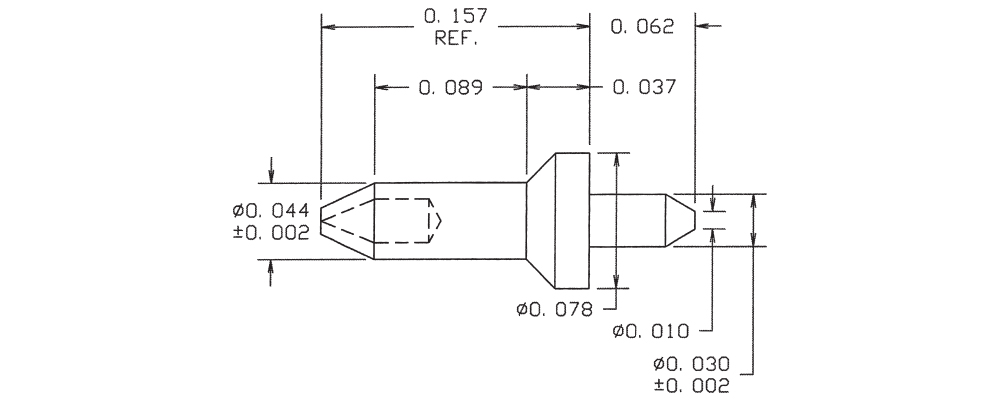

09-7147-2-04
09-7147-2-04
09-7147-2-04
0.219" 0.030 - RIVET MOUNT 0.089" 1/16 0.048 Brass Electro-Tin YES

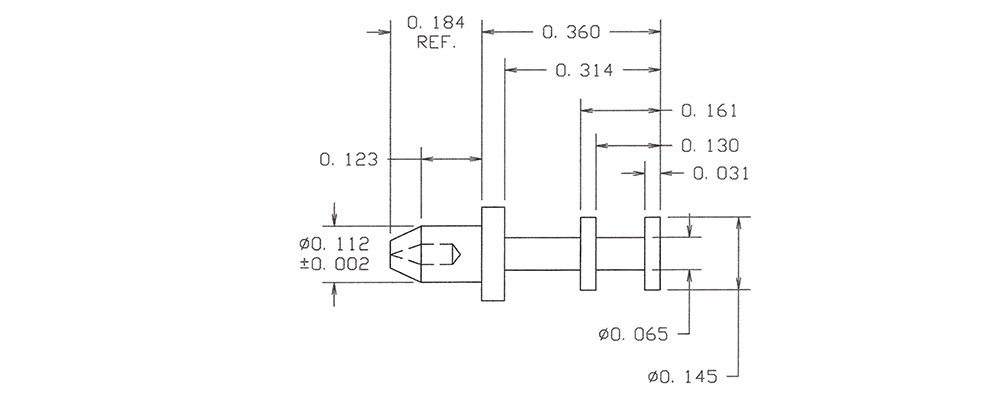

09-7178-2-01
09-7178-2-01
09-7178-2-01
0.544" - - RIVET MOUNT 0.123" 1/16 0.116 Brass Silver YES

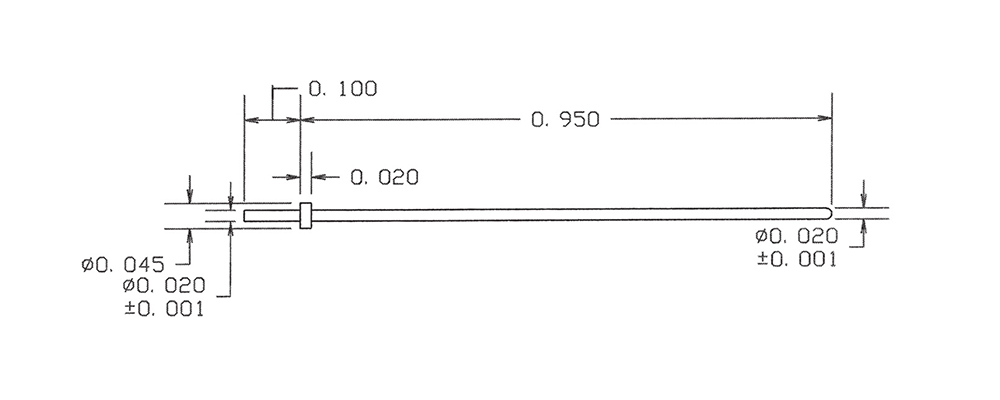

09-8018-2-044
09-8018-2-044
09-8018-2-044
1.050" 0.020 - Solder 0.100" 1/16 0.024 Brass Bright Tin YES

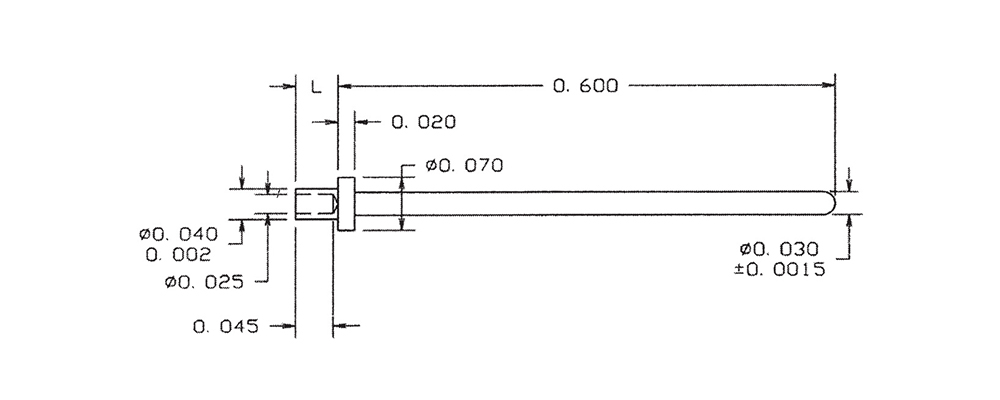

09-8055-2-01
09-8055-2-01
09-8055-2-01
0.142" 0.0305 - Swage Mount 0.082" 1/16 0.043 Brass Silver YES

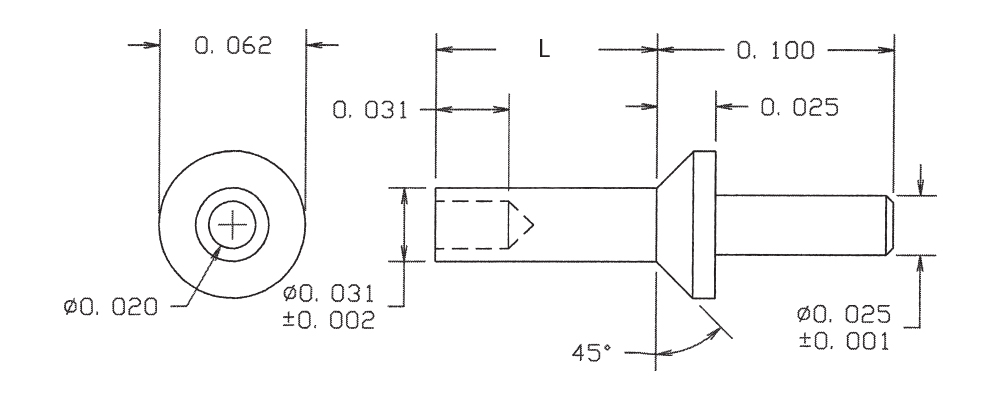

09-8094-2A-044
09-8094-2A-044
09-8094-2A-044
0.182" 0.025 - Swage Mount 0.082" 1/16 0.035 Brass Bright Tin YES

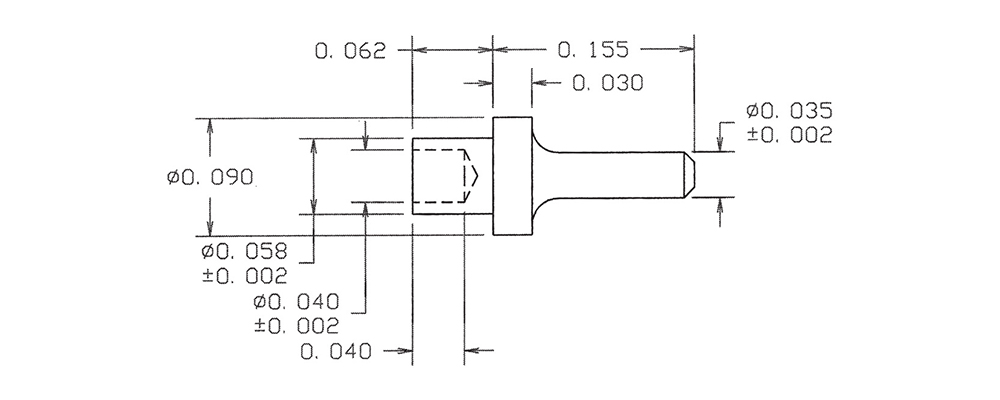

09-8152-1-03
09-8152-1-03
09-8152-1-03
0.217" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Gold YES

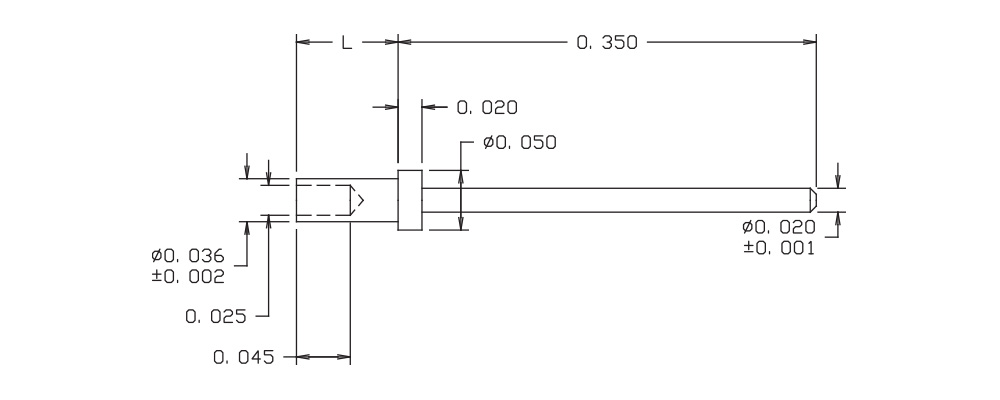

09-8180-2-05
09-8180-2-05
09-8180-2-05
0.435" 0.020 - Swage Mount 0.085" 1/16 0.039 Brass Electro Solder NO

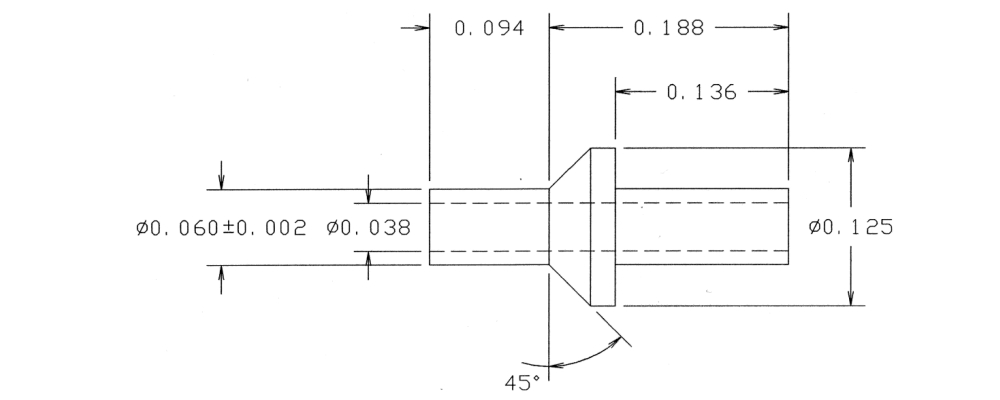

09-8343-2-05
09-8343-2-05
09-8343-2-05
0.282" - - Swage Mount 0.094" 1/16 0.067 Brass Electro Solder NO
