Commercial
Non-Insulated
Terminals

Filter

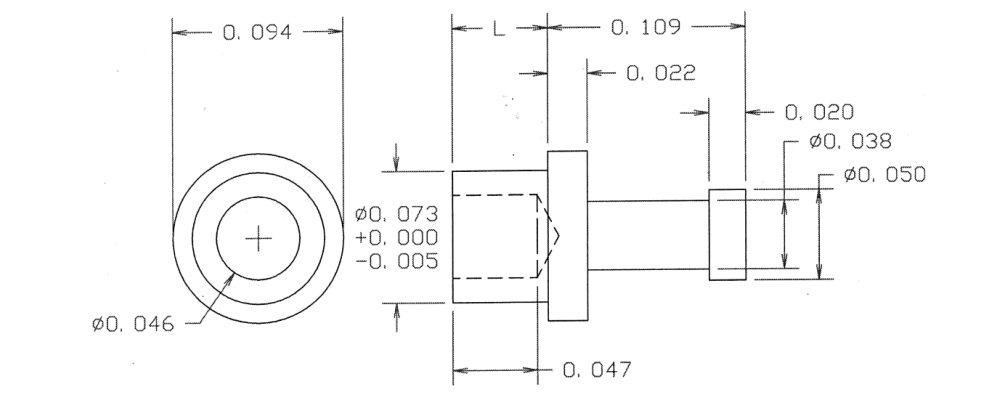

10-105-1-088
10-105-1-088
10-105-1-088
0.162" - - Swage Mount 0.053" 1/32 0.076 Brass Bright Tin-Lead NO

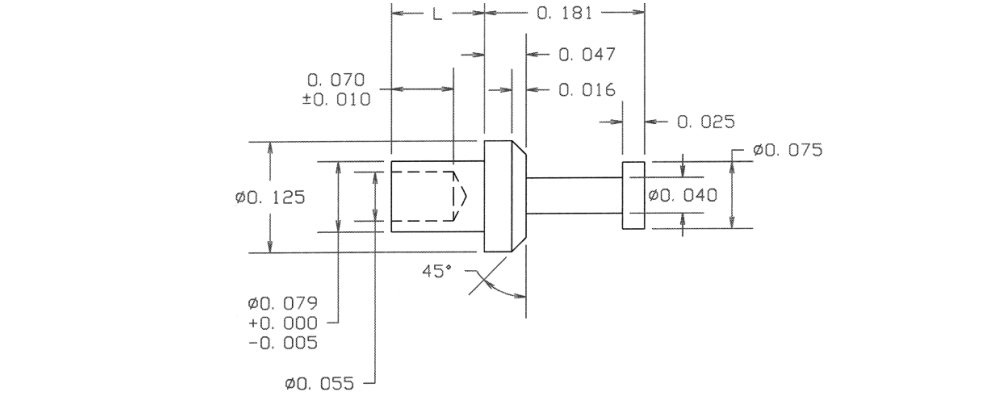

10-112-1-088
10-112-1-088
10-112-1-088
0.256" - - Swage Mount 0.075" 1/32 0.082 Brass Bright Tin-Lead NO

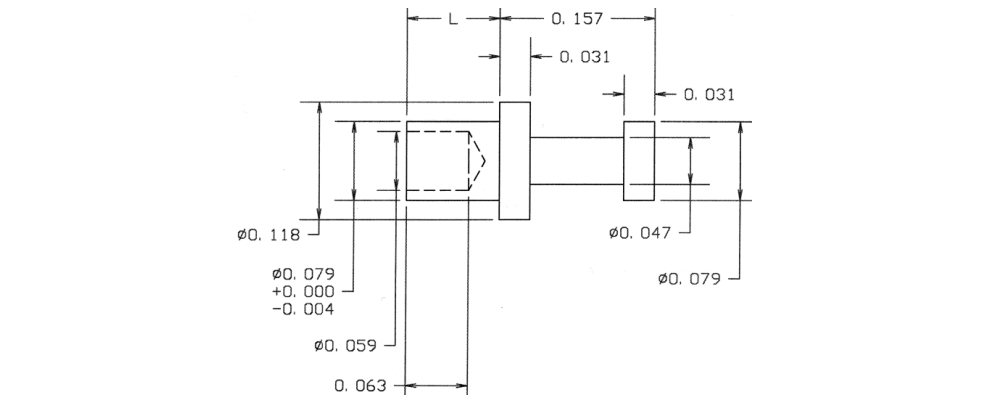

10-134-1-01
10-134-1-01
10-134-1-01
0.219" - - Swage Mount 0.062" 1/32 0.081 Brass Silver YES

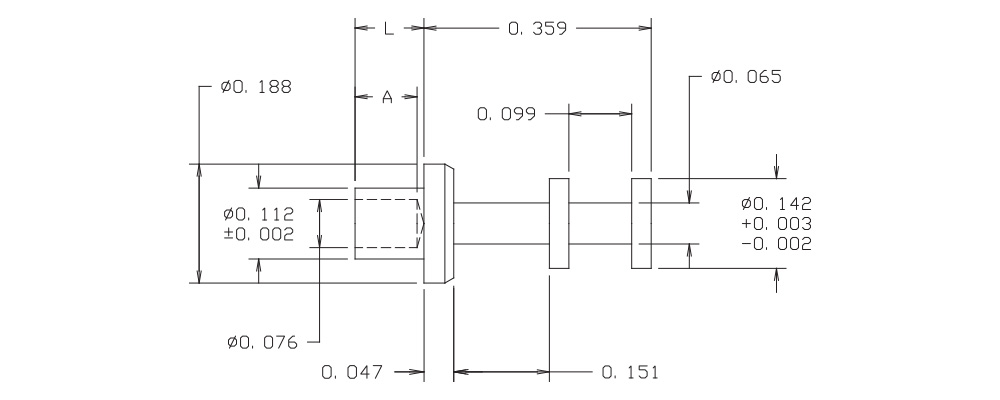

10-204-2-088
10-204-2-088
10-204-2-088
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead NO

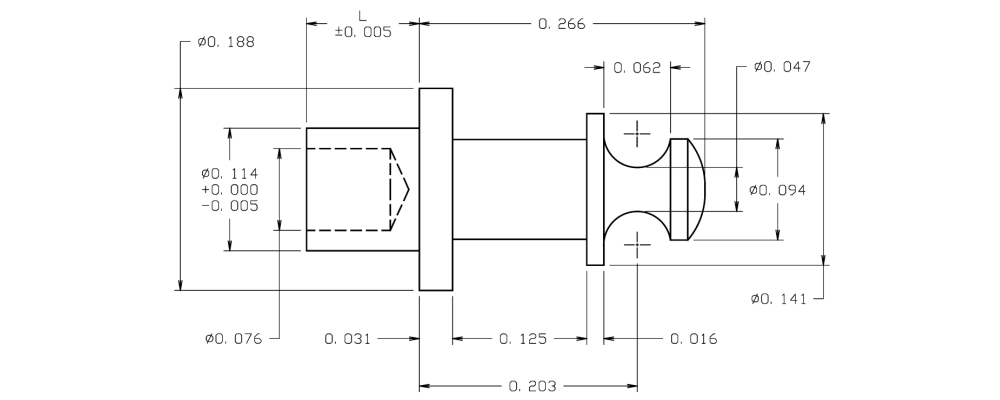

10-212-1-01
10-212-1-01
10-212-1-01
0.341" - - Swage Mount 0.075" 1/32 0.116 Brass Silver YES

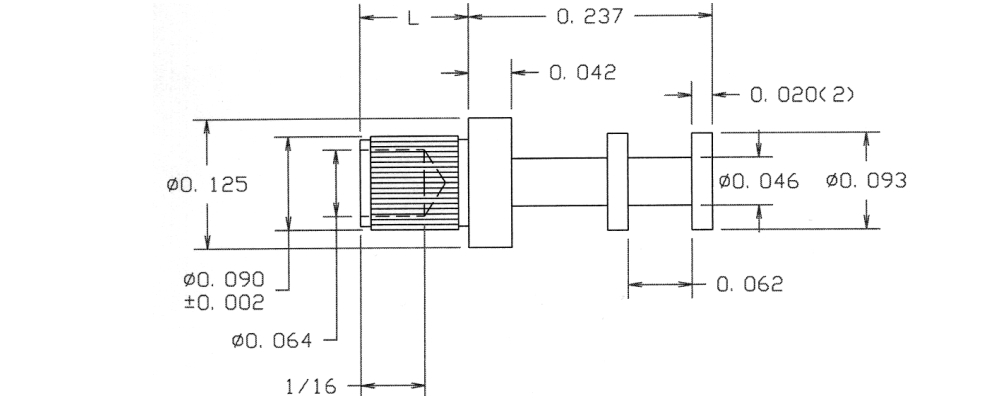

10-218-3-044
10-218-3-044
10-218-3-044
0.372" - - Swage Mount 0.135" 3/32 0.094 Brass Bright Tin YES

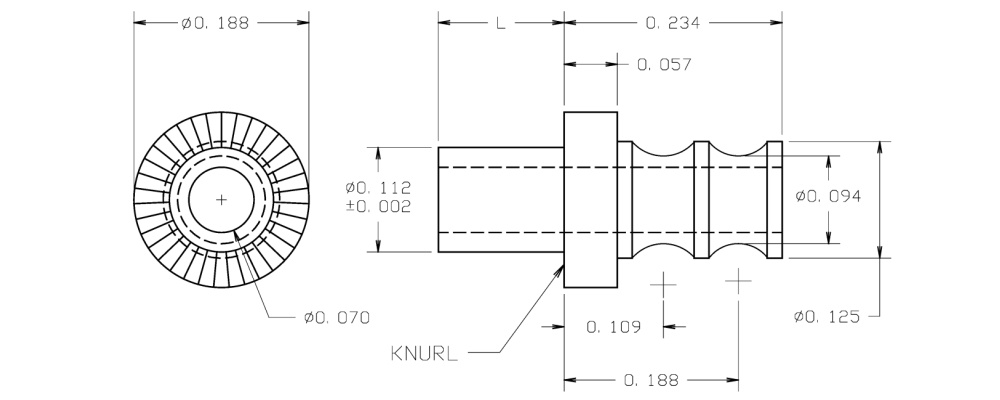

10-230-2-01
10-230-2-01
10-230-2-01
0.339" - - Swage Mount 0.105" 1/16 0.116 Brass Silver YES

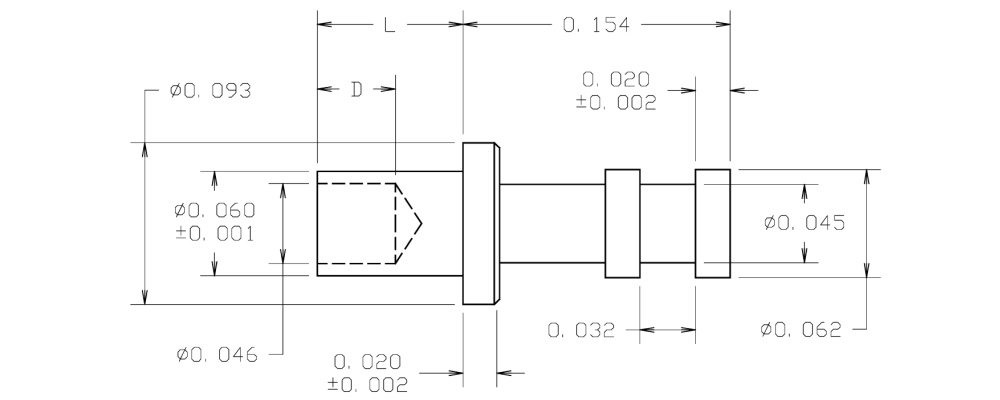

10-254-1-04
10-254-1-04
10-254-1-04
0.210" - - Swage Mount 0.054" 1/32 0.063 Brass Electro-Tin YES

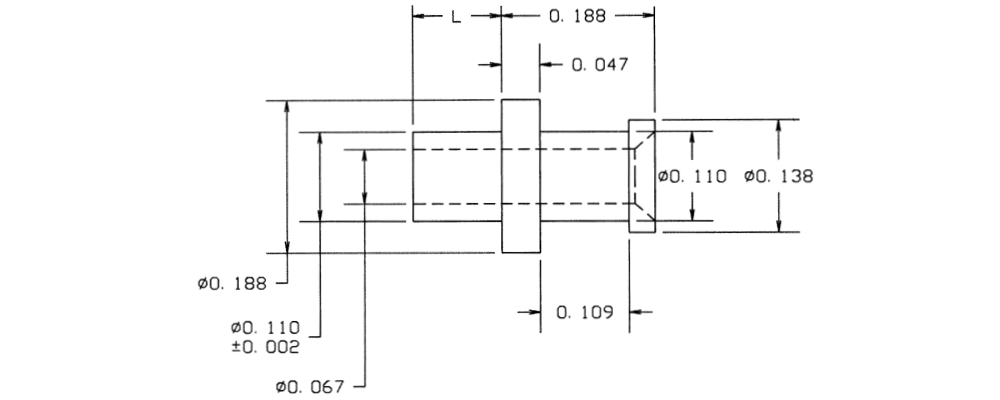

10-305-3-03
10-305-3-03
10-305-3-03
0.329" - - Swage Mount 0.141" 3/32 0.113 Brass Gold YES

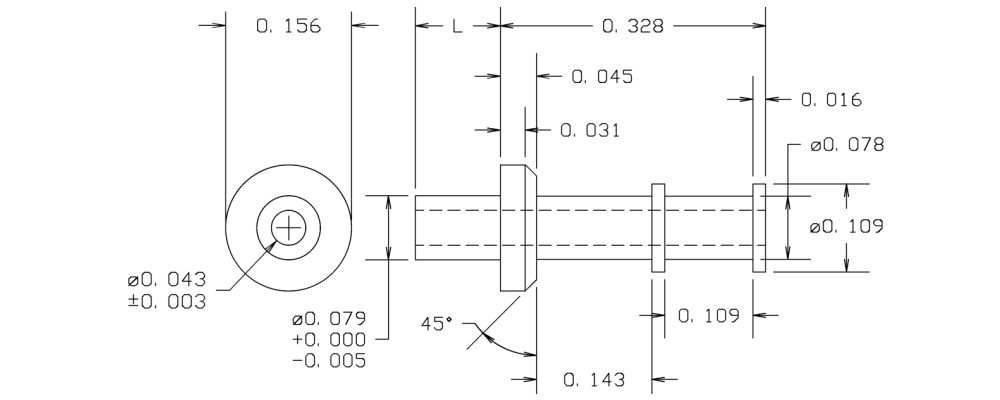

10-312-5-05
10-312-5-05
10-312-5-05
0.523" - - Swage Mount 0.195" 5/32 0.082 Brass Electro Solder NO

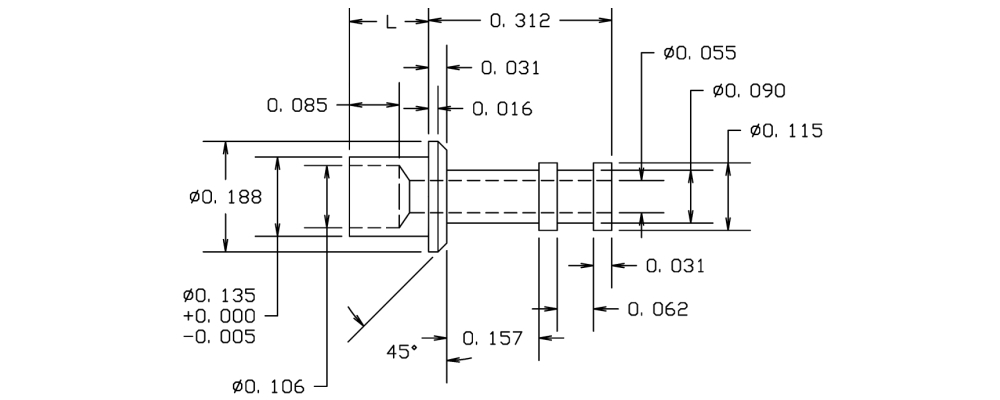

10-325-2-035
10-325-2-035
10-325-2-035
0.312" - - Swage Mount 0.105" 1/16 0.1405 Brass Gold YES

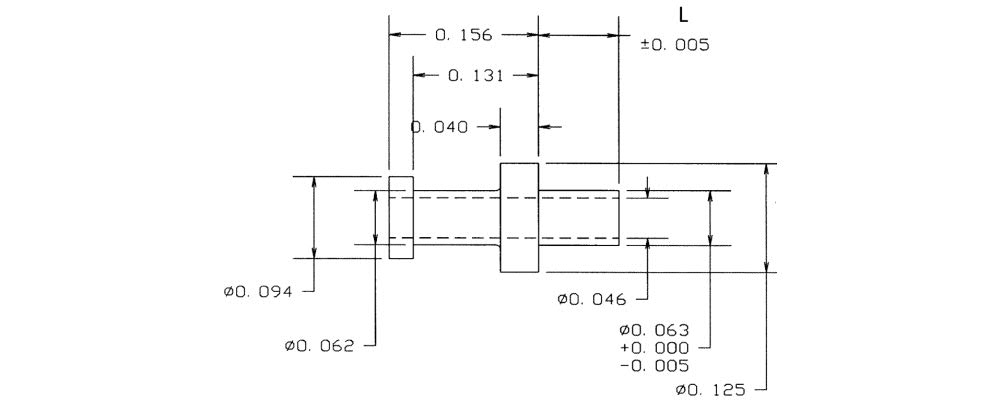

10-372-3-088
10-372-3-088
10-372-3-088
0.271" - - Swage Mount 0.115" 3/32 0.064 Brass Bright Tin-Lead NO

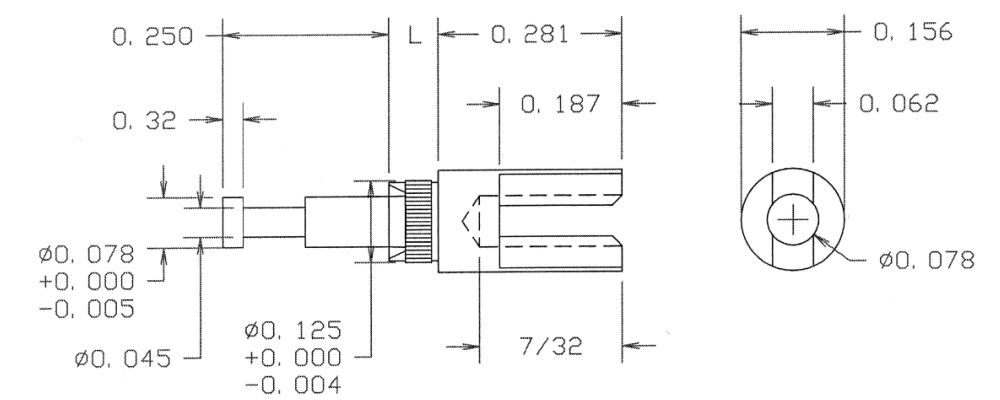

10-418-1-044
10-418-1-044
10-418-1-044
0.606" - Turret/Turret Swage Mount 0.075" 1/32 0.120 Brass Bright Tin YES

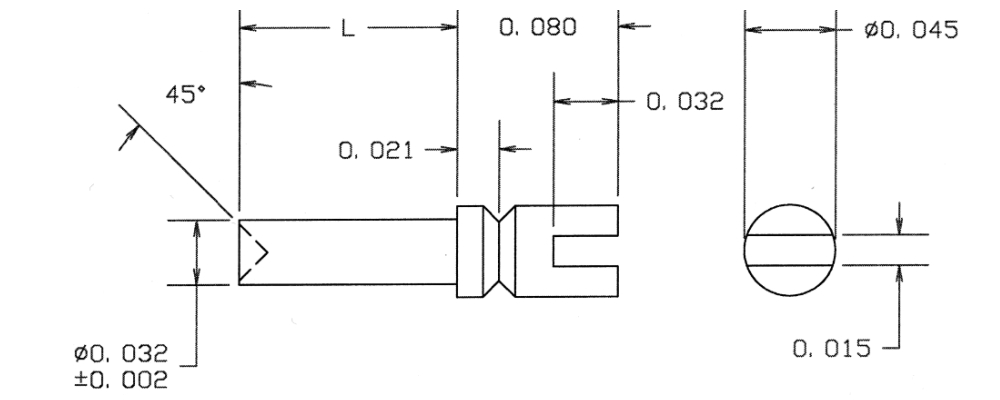

10-431-11-01
10-431-11-01
10-431-11-01
0.110" - - Swage Mount 0.030" 1/64 0.036 Brass Silver YES

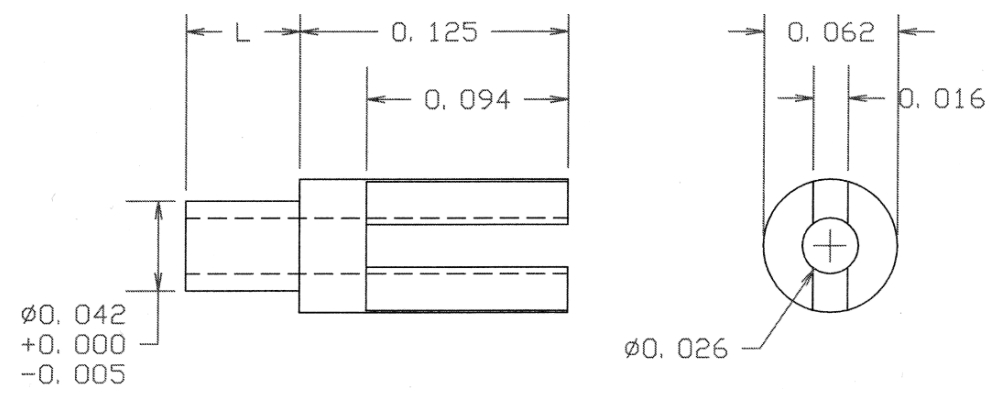

10-444-4-044
10-444-4-044
10-444-4-044
0.272" - - Swage Mount 0.147" 1/8 0.043 Brass Bright Tin YES
10-460-3-05
10-460-3-05
10-460-3-05
0.396" - - Swage Mount 0.115" 3/32 0.063 Brass Electro Solder NO

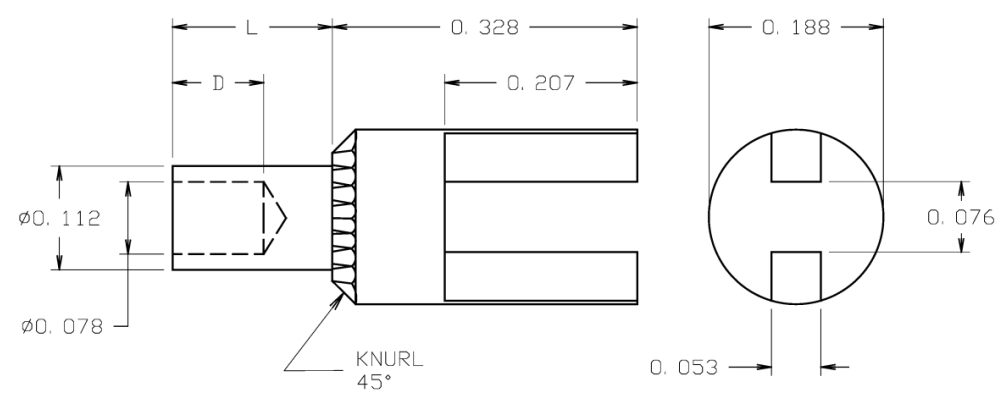

10-482-5-044
10-482-5-044
10-482-5-044
0.562" - - Swage Mount 0.234" 3/16 0.116 Brass Bright Tin YES

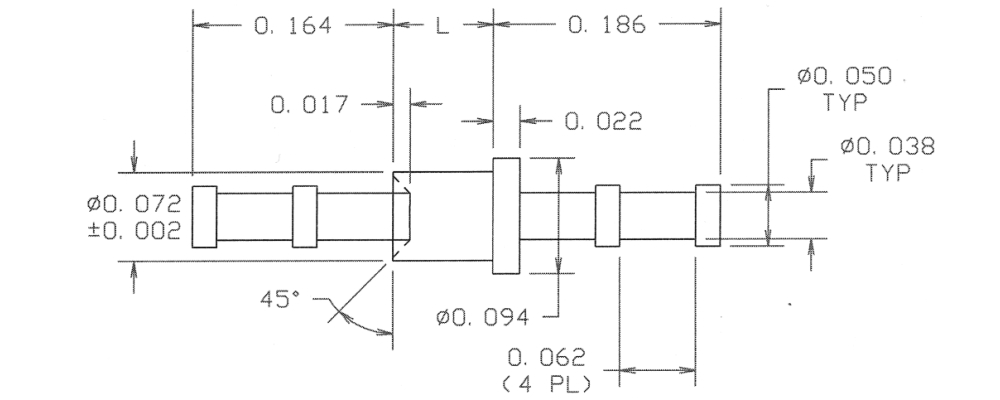

10-503-3-095
10-503-3-095
10-503-3-095
0.463" - Double Turret/Double Turret Swage Mount 0.113" 3/32 0.076 Brass Hot Solder Dip NO

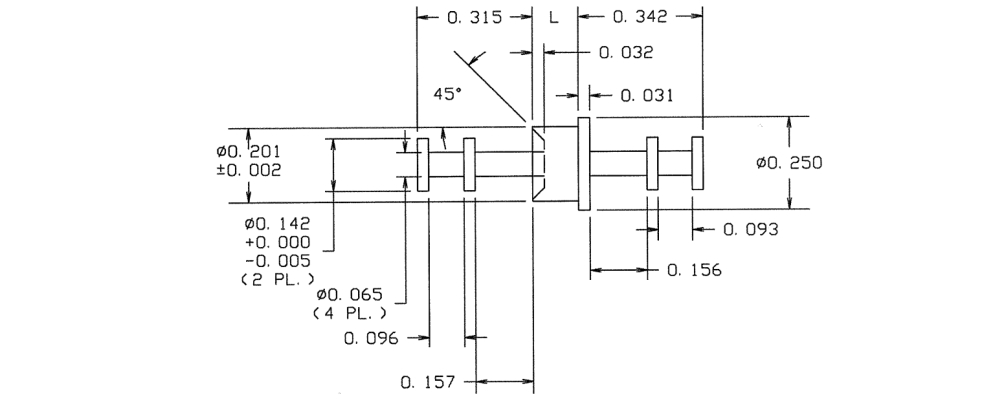

10-509-4-095
10-509-4-095
10-509-4-095
0.813" - Double Turret/Double Turret Swage Mount 0.156" 1/8 0.204 Brass Hot Solder Dip NO

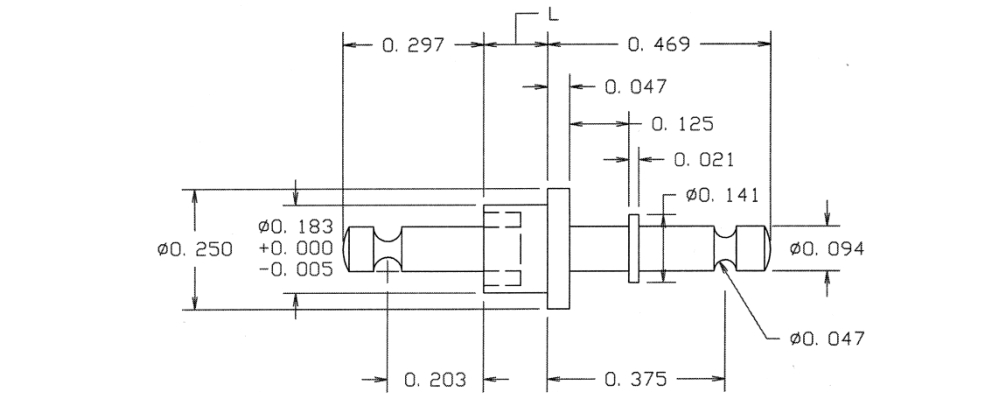

10-515-6-095
10-515-6-095
10-515-6-095
0.996" 0.094 TURRET/PIN Swage Mount 0.230" 3/16 0.185 Brass Hot Solder Dip NO
