Commercial
Insulated
Pin Terminals

Filter

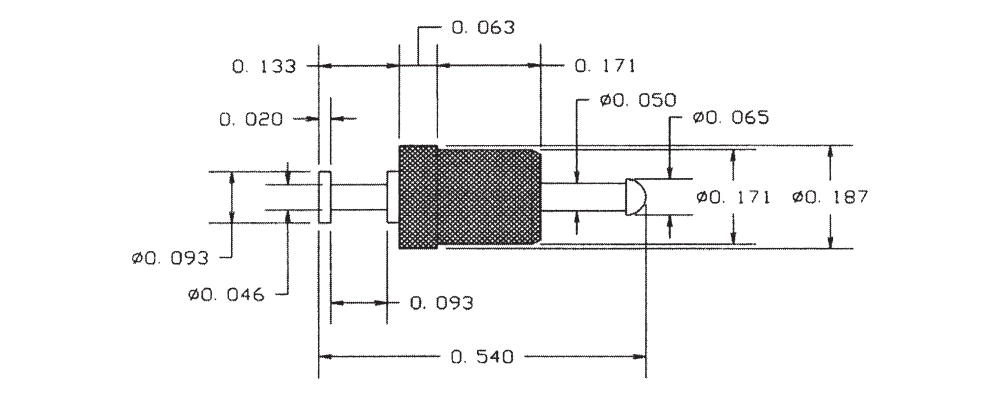

1121-30-04417
1121-30-04417
1121-30-04417
0.540" 0.046 Turret/Tip Press Fit 1/8 0.158 Brass Bright Tin - - PTFE Violet YES

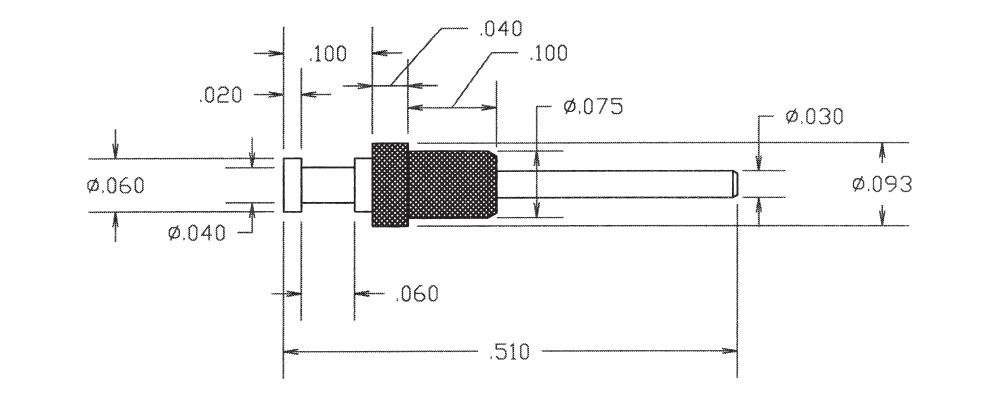

1121-51-08813
1121-51-08813
1121-51-08813
0.510" 0.030 TURRET/PIN Press Fit 1/16 0.070 Brass Bright Tin-Lead - - PTFE Orange NO

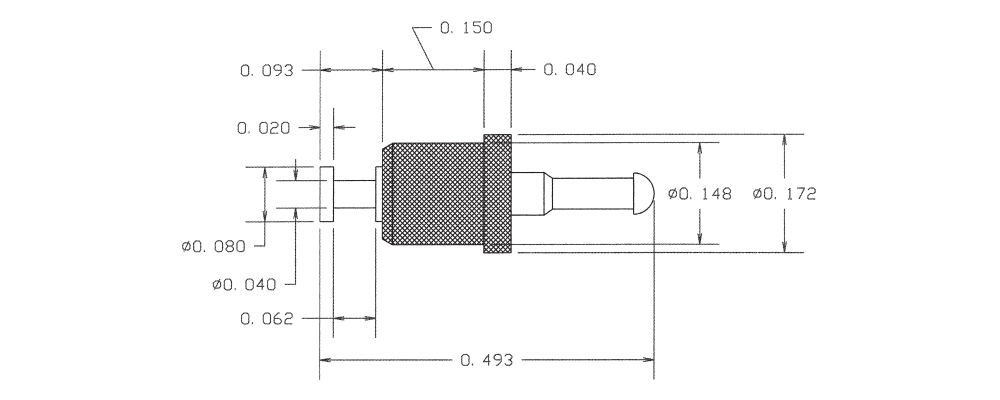

1121R-06-0119
1121R-06-0119
1121R-06-0119
0.493" 0.040 Turret/Tip Press Fit 1/8 0.136 Brass Silver - - PTFE White YES

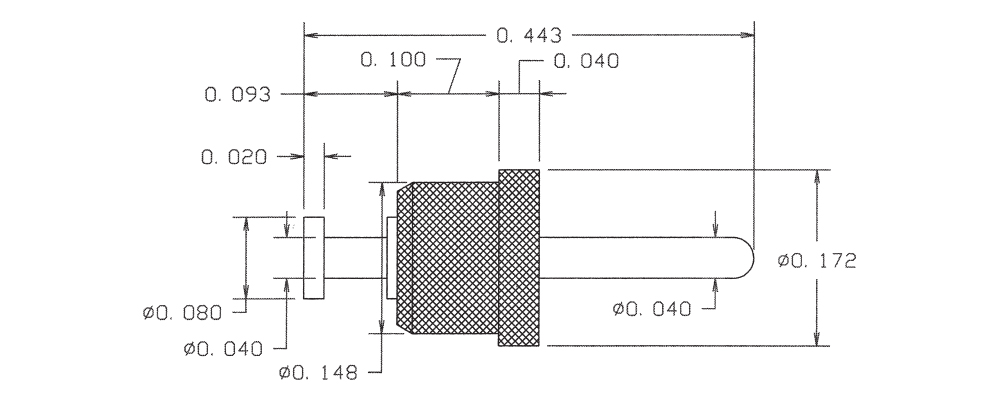

1121R-50-0415
1121R-50-0415
1121R-50-0415
0.433" 0.040 TURRET/PIN Press Fit 1/16 0.136 Brass Electro-Tin - - PTFE Green YES

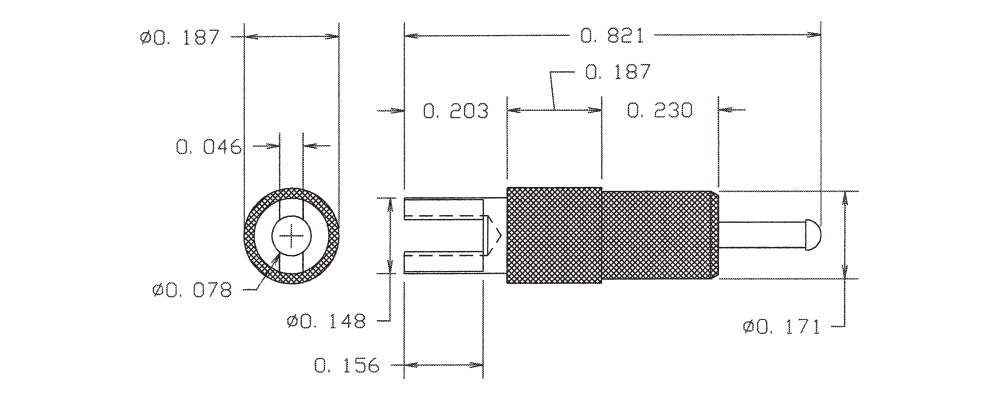

1123-03-0511
1123-03-0511
1123-03-0511
0.821" 0.050 TIP/SLOTTED Press Fit Up to 3/16 0.158 Brass Electro Solder - - PTFE Brown NO

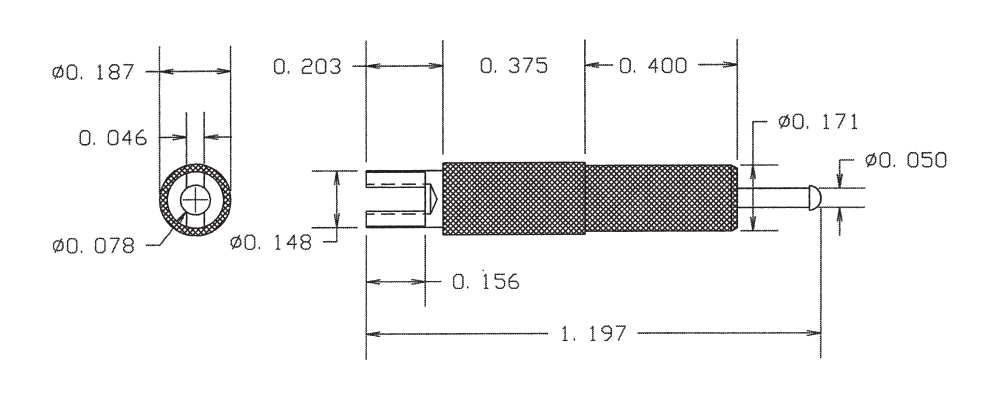

1123-07-08817
1123-07-08817
1123-07-08817
1.197" 0.050 TIP/SLOTTED Press Fit 11/32 0.158 Brass Bright Tin-Lead - - PTFE Violet NO

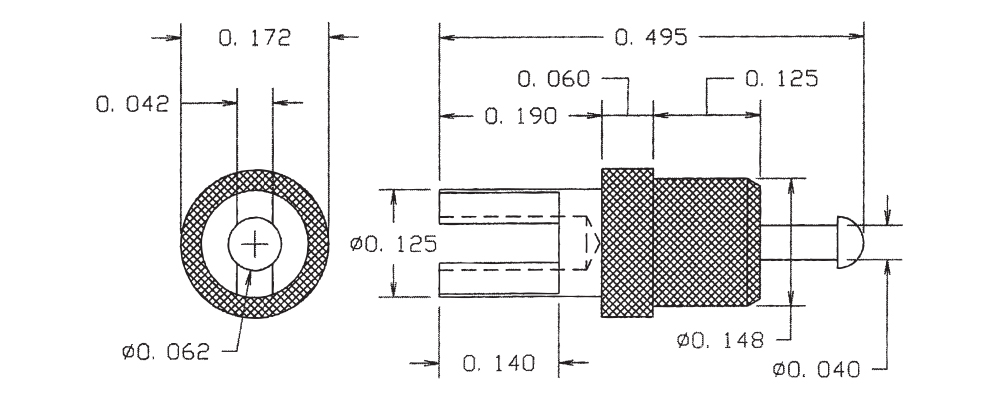

1123-72-0313
1123-72-0313
1123-72-0313
0.495" 0.040 TIP/SLOTTED Press Fit 3/32 0.136 Brass Gold - - PTFE Orange NO

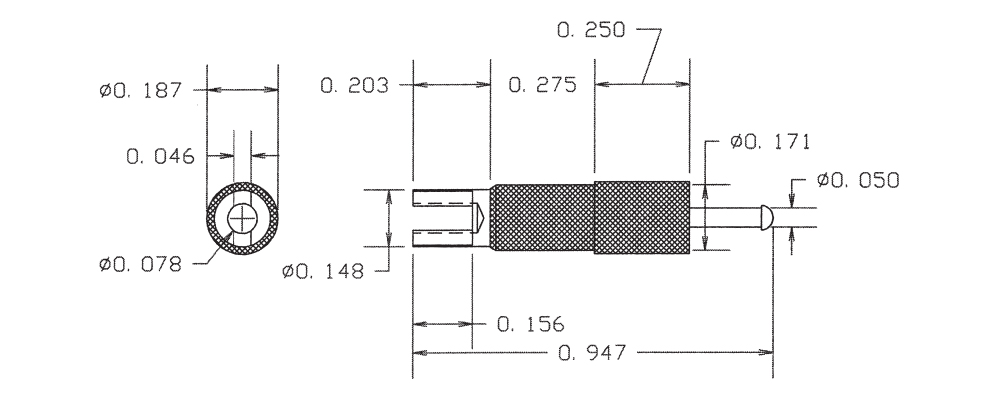

1123R-05-0419
1123R-05-0419
1123R-05-0419
0.947" 0.050 TIP/SLOTTED Press Fit 7/32 0.158 Brass Electro-Tin - - PTFE White YES

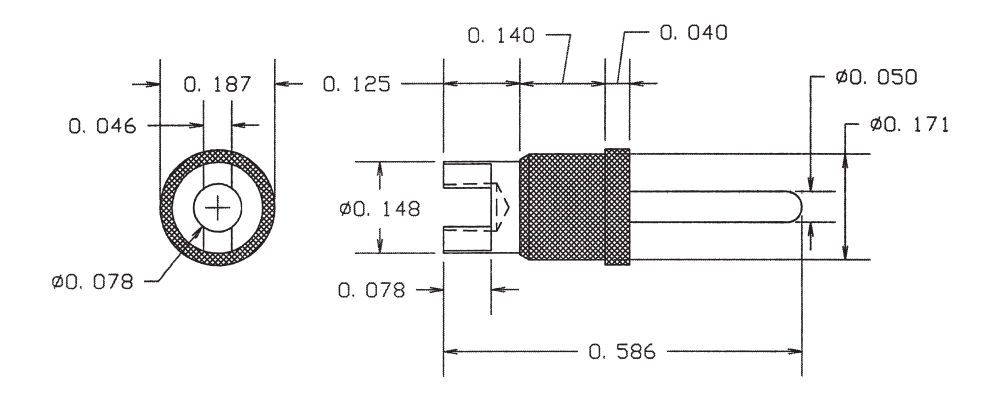

1123R-62-0515
1123R-62-0515
1123R-62-0515
0.586" 0.050 Pin/Slotted Press Fit 3/32 0.136 Brass Electro Solder - - PTFE Green NO

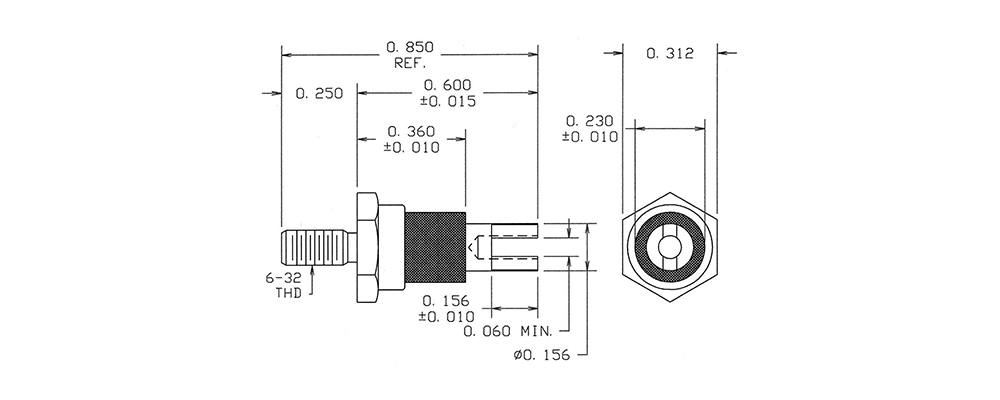

1125-35-0111
1125-35-0111
1125-35-0111
0.850" - - 6-32 Nut 1/8 0.144 Brass Silver Electro-Tin Brass PTFE Brown NO
1125-40-0317
1125-40-0317
1125-40-0317
0.912" - - 4-40 Nut Up to 3/16 0.120 Brass Gold Electro-Tin Brass PTFE Violet YES

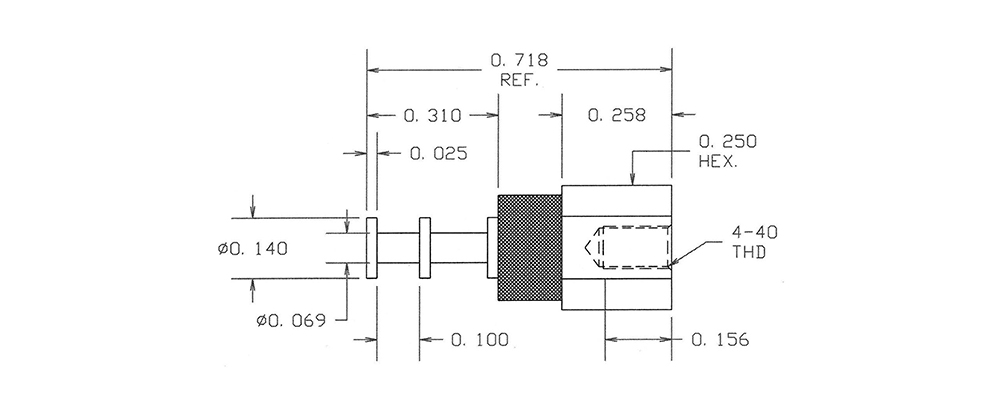

1125-44-04413
1125-44-04413
1125-44-04413
0.718" - - 4-40 Screw - CLEARANCE FOR #4 Screw Brass Bright Tin ZINC Brass PTFE Orange NO

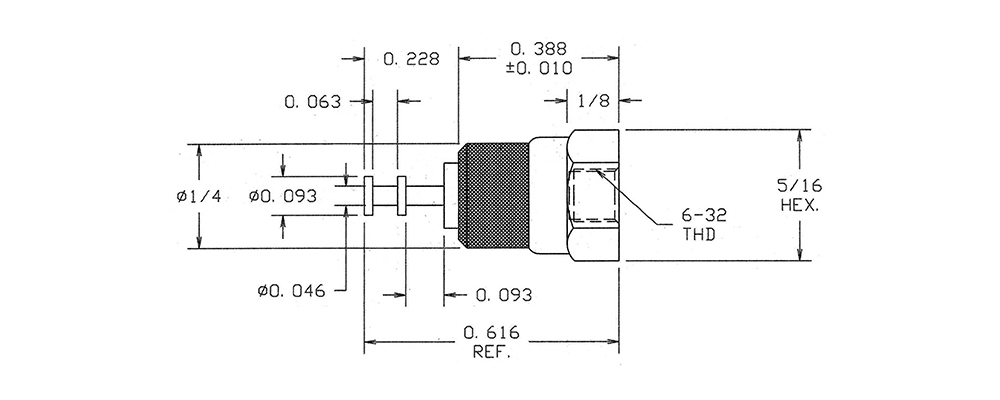

1125-48-0519
1125-48-0519
1125-48-0519
0.388" - - 6-32 Screw - CLEARANCE FOR #6 Screw Brass Electro Solder ZINC Brass PTFE White NO

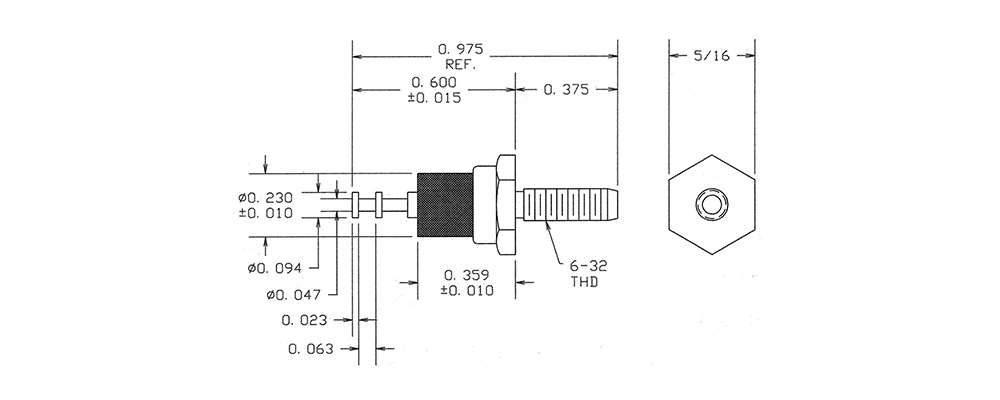

1125-53-0115
1125-53-0115
1125-53-0115
0.975" - - 6-32 Nut Up to 1/4 0.144 Brass Silver Electro-Tin Brass PTFE Green YES

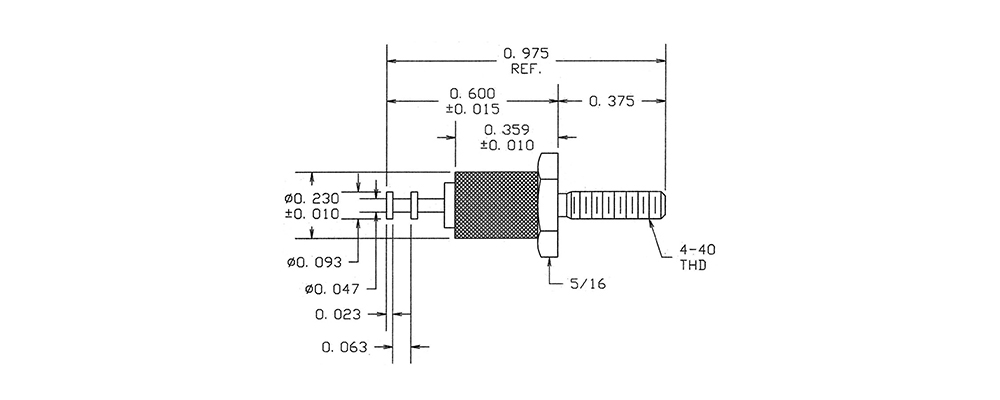

1125-57-0411
1125-57-0411
1125-57-0411
0.975" - - 4-40 Nut Up to 1/4 0.120 Brass Electro-Tin Electro-Tin Brass PTFE Brown NO

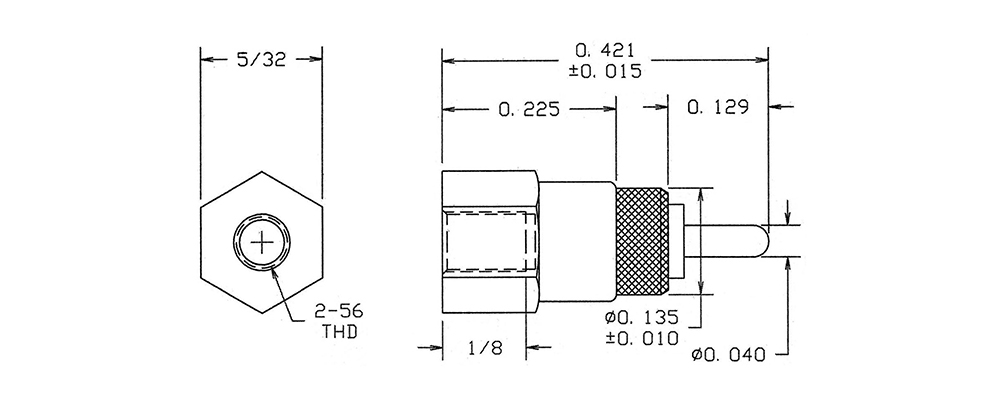

1125-62-04417
1125-62-04417
1125-62-04417
0.421" 0.040 - 2-56 Screw - CLEARANCE FOR #2 Screw Brass Bright Tin ZINC Brass PTFE Violet YES

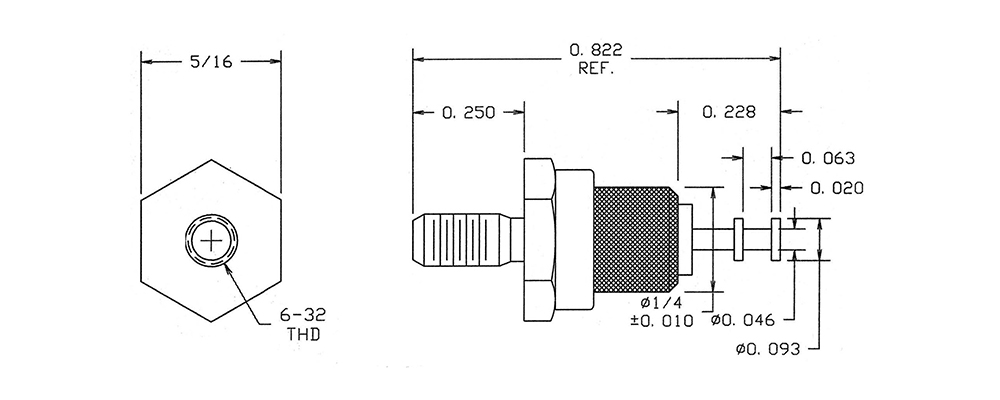

1125-73-08813
1125-73-08813
1125-73-08813
0.822" - - 6-32 Nut 1/8 0.144 Brass Bright Tin-Lead ZINC Brass PTFE Orange NO

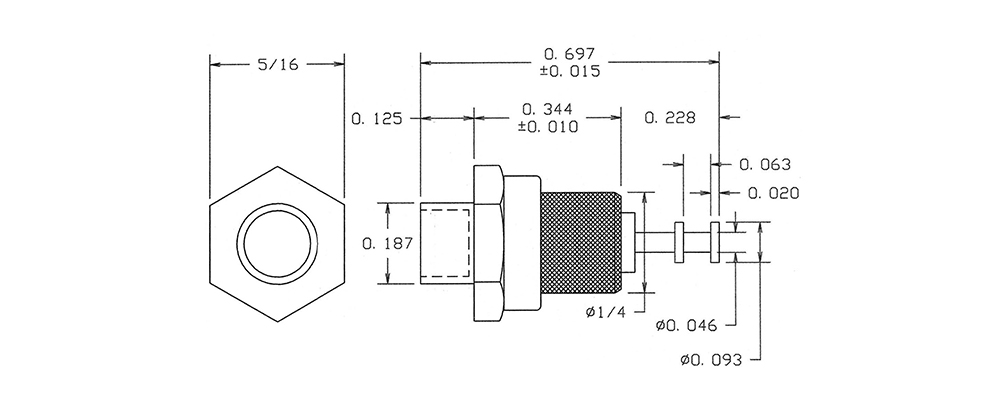

1125-78-0119
1125-78-0119
1125-78-0119
0.697" - - Swage Mount 3/32 0.194 Brass Silver ZINC Brass PTFE White YES

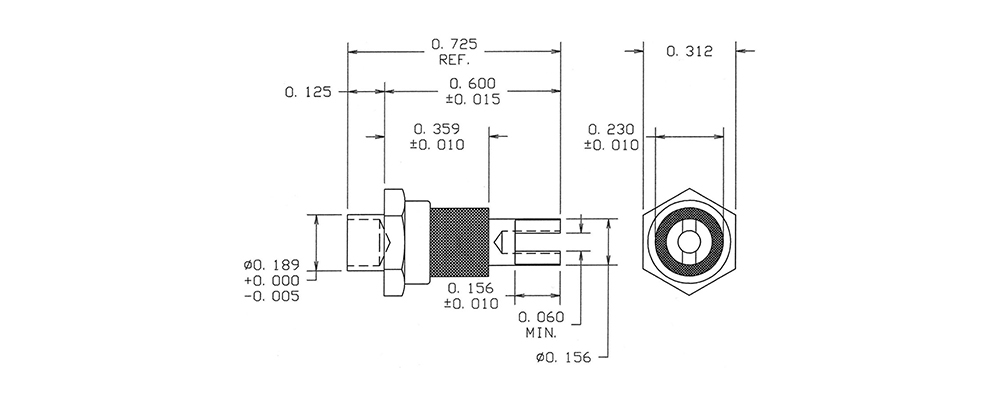

1125-83-0415
1125-83-0415
1125-83-0415
0.725" - - Swage Mount 3/32 0.191 Brass Electro-Tin Electro-Tin Brass PTFE Green YES

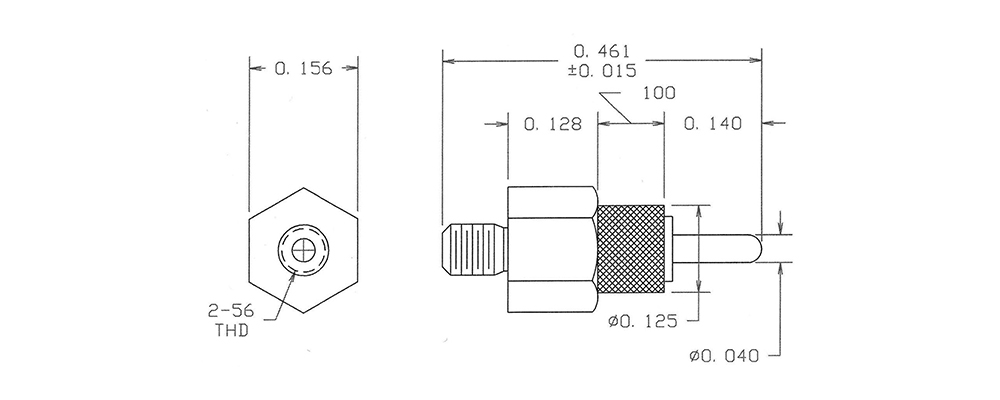

1125-87-0511
1125-87-0511
1125-87-0511
0.461" 0.040 - 2-56 - 2-56 THREAD Brass Electro Solder ZINC Brass PTFE Brown NO
