Insulated
PC Jacks

Filter

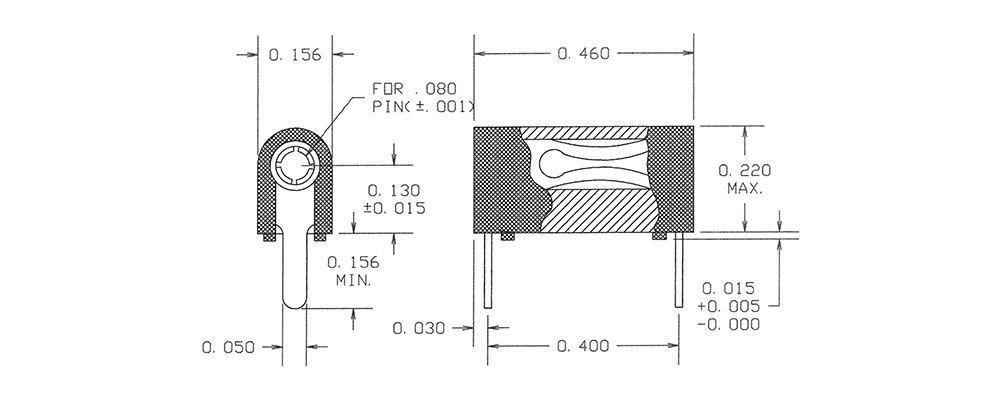

09-9306-1-0313
09-9306-1-0313
09-9306-1-0313
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Orange -

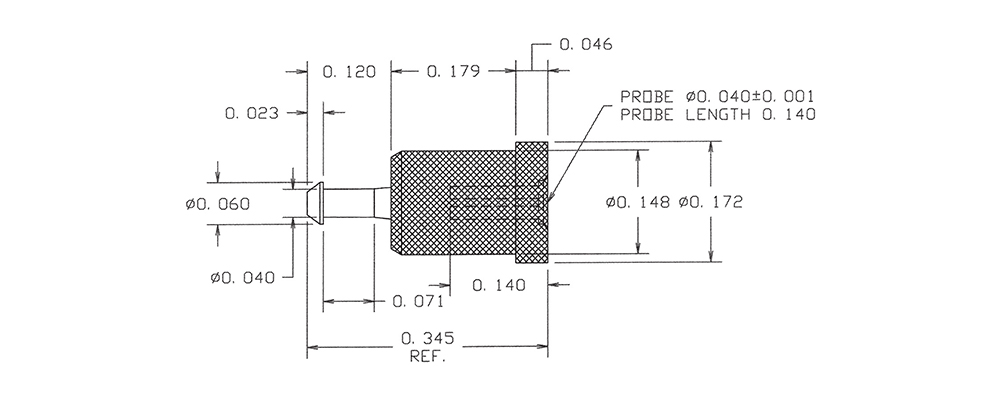

1128-08-0319
1128-08-0319
1128-08-0319
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE White -

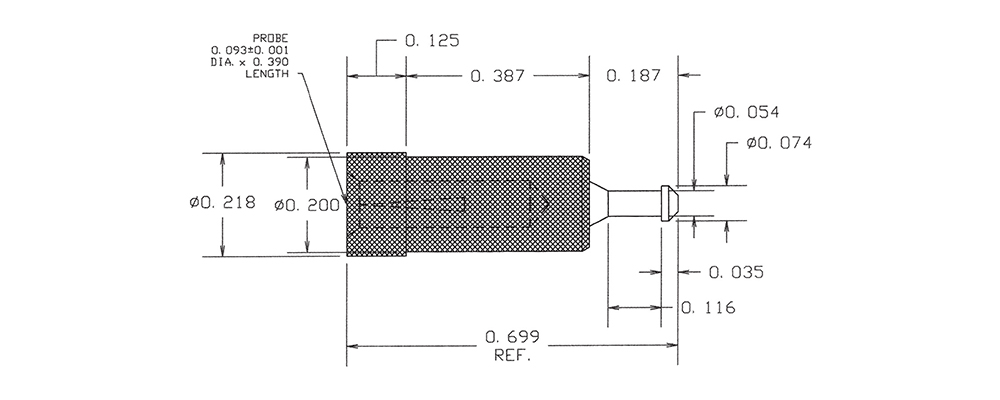

1128-28-03515
1128-28-03515
1128-28-03515
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Green -

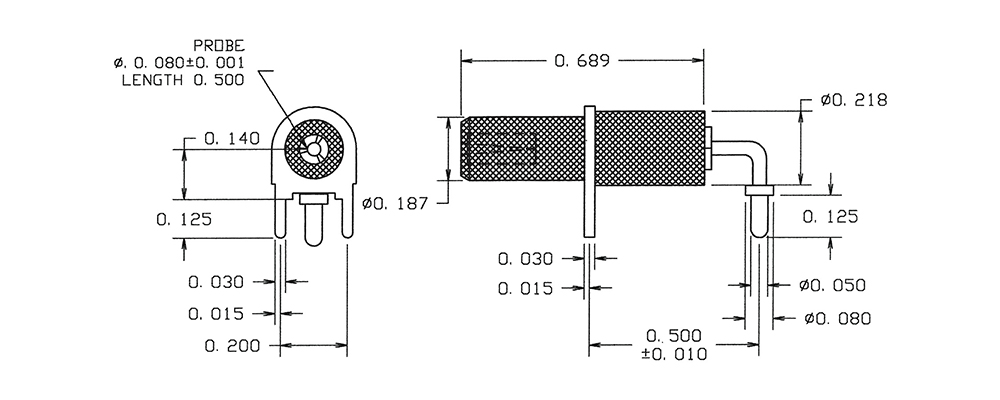

1128-51-03511
1128-51-03511
1128-51-03511
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Brown -

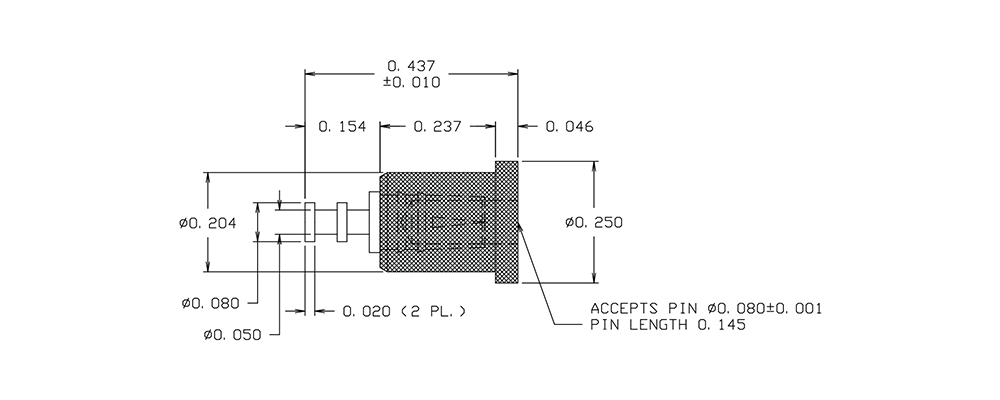

1128-73-03517
1128-73-03517
1128-73-03517
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Violet -

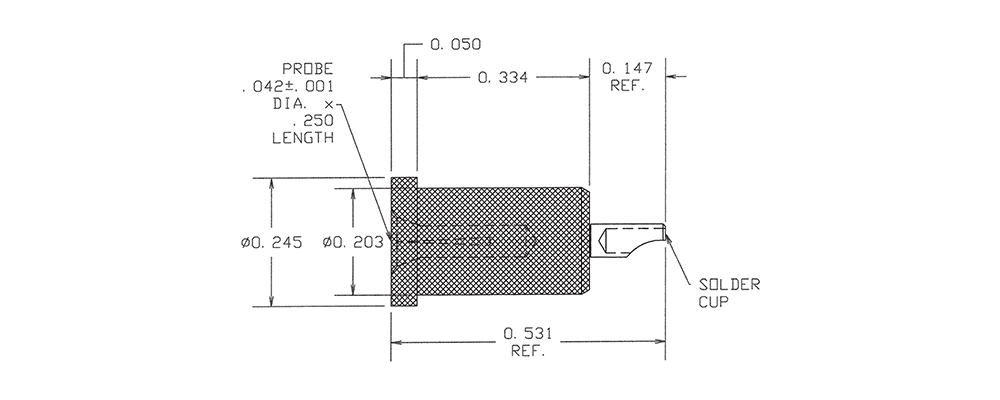

1138-30-0313
1138-30-0313
1138-30-0313
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Orange -
09-9063-1-03514
09-9063-1-03514
09-9063-1-03514
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Yellow -
09-9158-1-06312
09-9158-1-06312
09-9158-1-06312
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Red -

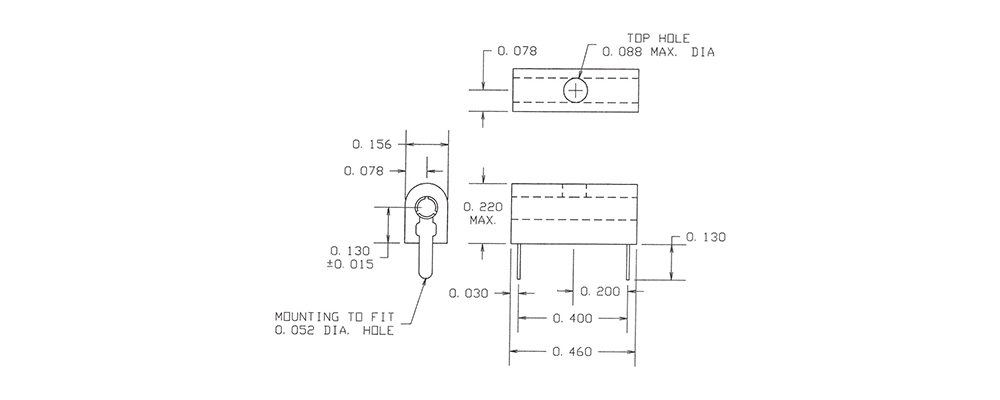

09-9208-1-04418
09-9208-1-04418
09-9208-1-04418
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon Gray -

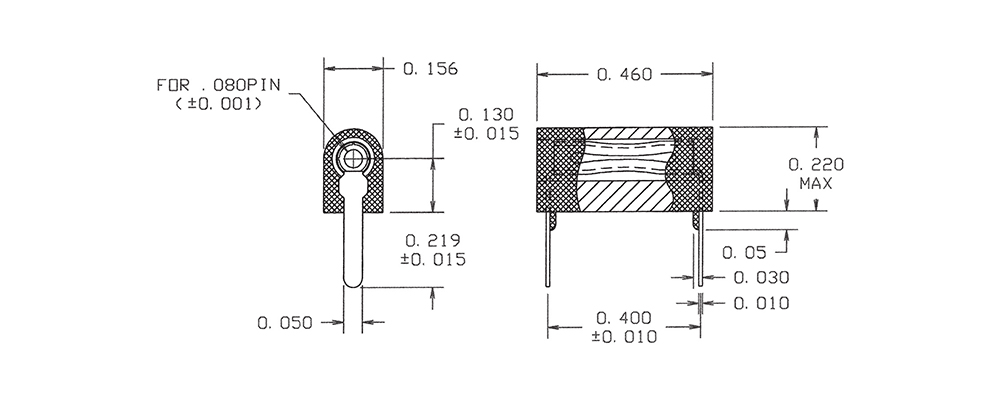

09-9302-1-04414
09-9302-1-04414
09-9302-1-04414
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Yellow -
09-9306-1-0314
09-9306-1-0314
09-9306-1-0314
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 5/64 Horizontal - - Nylon Yellow -
1128-08-03510
1128-08-03510
1128-08-03510
0.040 0.140 " 0.345" Jack/Turret Press Fit 0.136 1/32 - 1/8 Vertical - - PTFE Black -
1128-28-03516
1128-28-03516
1128-28-03516
0.093 0.390 " 0.699" Jack/Turret Press Fit 0.187 1/32 - 23/64 Vertical - - PTFE Blue -
1128-51-03512
1128-51-03512
1128-51-03512
0.080 0.500 " 0.898" - Solder 0.062  1/32 - 1/16 Horizontal - - PTFE Red -
1128-73-03518
1128-73-03518
1128-73-03518
0.080 0.145 " 0.437" Jack/Turret Press Fit 0.191 1/32 - 3/16 Vertical - - PTFE Gray -
1138-30-0314
1138-30-0314
1138-30-0314
0.042 0.250 " 0.531" Jack/Solder Cup Press Fit 0.190 1/32 - 19/64 Vertical - - PTFE Yellow -
09-9063-1-03515
09-9063-1-03515
09-9063-1-03515
0.080 0.325 " 0.603" Jack/Pin Solder 0.043 1/32 - 1/8 Vertical Brass Gold Polyolefin Green -
09-9158-1-06313
09-9158-1-06313
09-9158-1-06313
0.040 0.297 " 0.750" Jack/Pin Solder 0.047 1/32 - 21/64 Vertical Brass Bright Tin-Lead PTFE Orange -
09-9208-1-04419
09-9208-1-04419
09-9208-1-04419
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 1/16 Horizontal - - Nylon White -
09-9302-1-04415
09-9302-1-04415
09-9302-1-04415
0.080 0.400 " 0.460" - Solder 0.052  1/32 - 3/32 Horizontal - - Nylon Green -
