Insulated
PC Jacks

Part No	Mates With	Hole Depth	Length	Feed Thru Combination	Mounting	Hole Size	Board Thickness	Mounting Orientation	Body Material	Body Finish	Insulation Material	Color	MIL Part #
09-9057-1-06315	0.040	0.185 "	0.750"	-	-	-	-	-	Brass	Bright Tin-Lead	Polyolefin	Green	-
09-9059-1-06319	0.025	0.185 "	0.750"	-	-	-	-	-	Brass	Bright Tin-Lead	Polyolefin	White	-
09-9059-1-06314	0.025	0.185 "	0.750"	-	-	-	-	-	Brass	Bright Tin-Lead	Polyolefin	Yellow	-
09-9059-1-06310	0.025	0.185 "	0.750"	-	-	-	-	-	Brass	Bright Tin-Lead	Polyolefin	Black	-
09-9208-1-03512	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 1/16	Horizontal	-	-	Nylon	Red	M39024/11-42G
1128-52-0316	0.080	0.250 "	0.472"	-	Solder	0.062	1/32 - 1/16	Horizontal	-	-	PTFE	Blue	-
1138-02-03515	0.080	0.250 "	0.381"	-	Swage Mount	0.114	1/16	Vertical	-	-	PTFE	Green	-

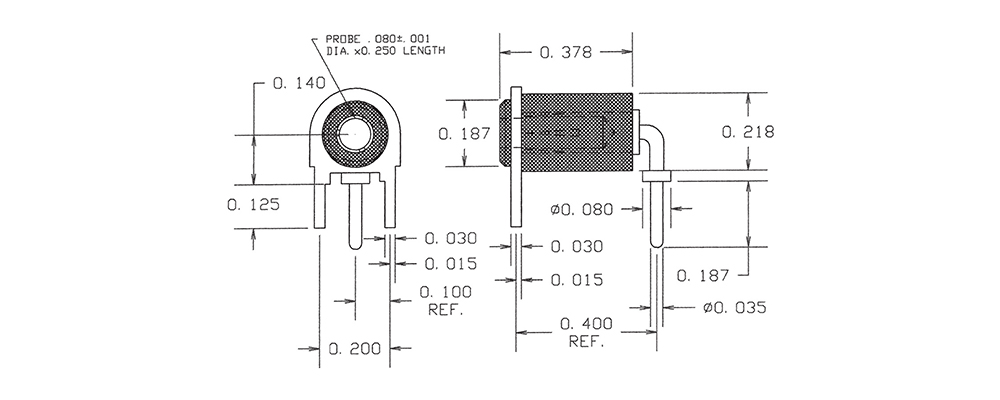

1128-53-0317	0.080	0.250 "	0.484"	-	Solder	0.047	1/32 - 1/16	Horizontal	-	-	PTFE	Violet	-
09-9208-1-0315	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 1/16	Horizontal	-	-	Nylon	Green	-
1138-01-0316	0.080	0.250 "	0.381"	-	Swage Mount	0.064	1/16	Vertical	-	-	PTFE	Blue	-
09-9252-1-0316	0.080	0.400 "	0.460"	-	Solder	0.052	1/32	Horizontal	-	-	Nylon	Blue	-
09-9225-1-0319	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 1/16	Horizontal	-	-	Nylon	White	-
09-9225-1-0312	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 1/16	Horizontal	-	-	Nylon	Red	-

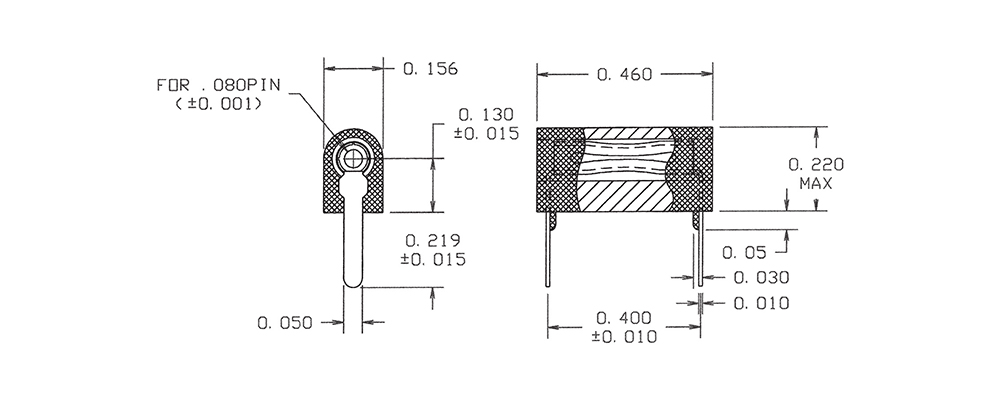

09-9302-1-04417	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 3/32	Horizontal	-	-	Nylon	Violet	-
20-9201-1-03512	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 1/16	Horizontal	-	-	Nylon	Red	-
09-9301-1-03515	0.080	0.400 "	0.460"	-	Solder	0.052	1/32 - 3/32	Horizontal	-	-	Nylon	Green	-
