Military
Insulated
Terminals

Filter
1127-07M-0515Z
1127-07M-0515Z
1127-07M-0515Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Green M55155/205B04 AA59126/205B04

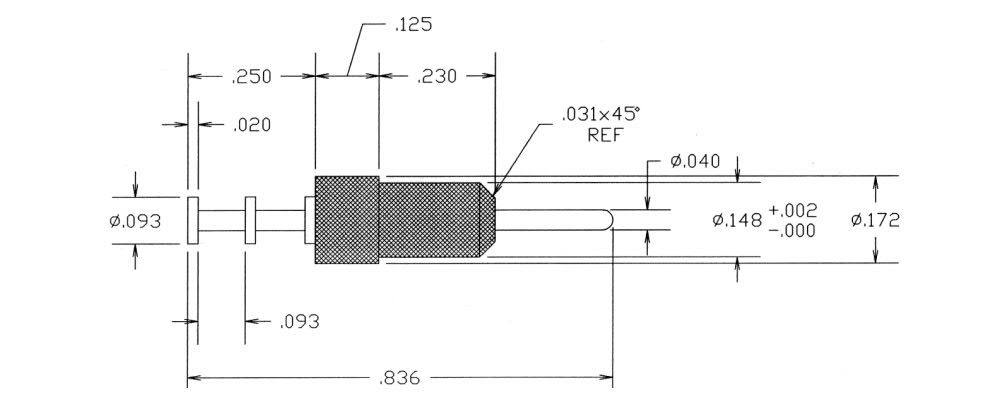

1133-02M-09518Z
1133-02M-09518Z
1133-02M-09518Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Gray M55155/048C02 AA59126/048C02

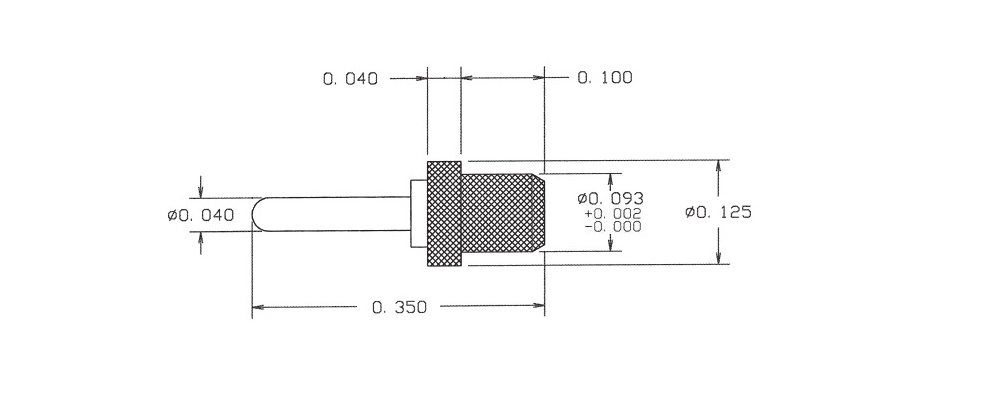

1100-07M-09511Z
1100-07M-09511Z
1100-07M-09511Z
0.350" - Press Fit 1/16 0.086 PTFE Brown M55155/081C02 AA59126/081C02

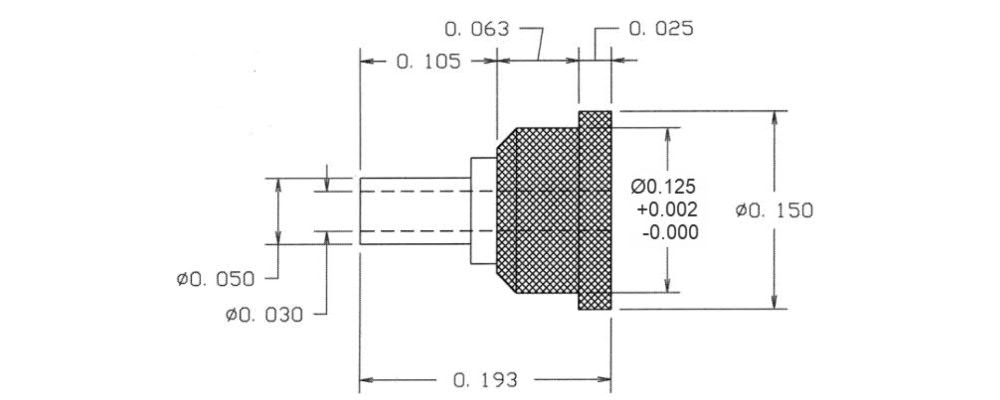

1114R-09M-09519Z
1114R-09M-09519Z
1114R-09M-09519Z
0.193" - Press Fit 1/32 0.113 PTFE White M55155/069C01 AA59126/069C01

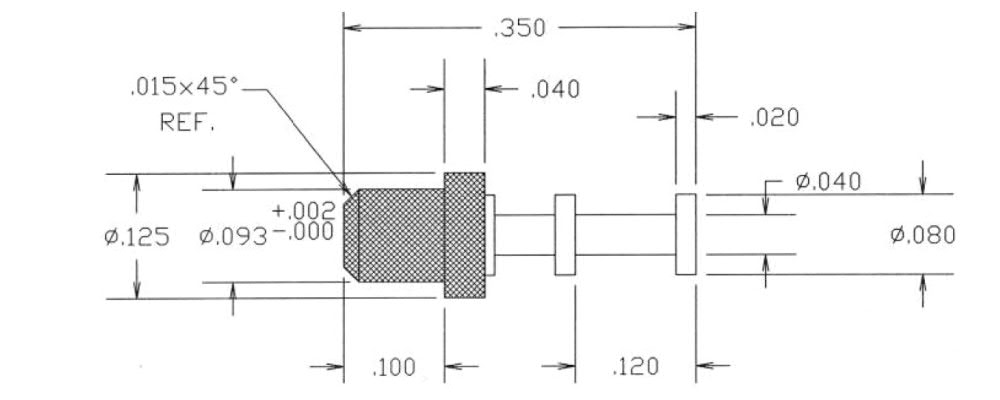

1102-03M-08819
1102-03M-08819
1102-03M-08819
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079J03 AA59126/079J03

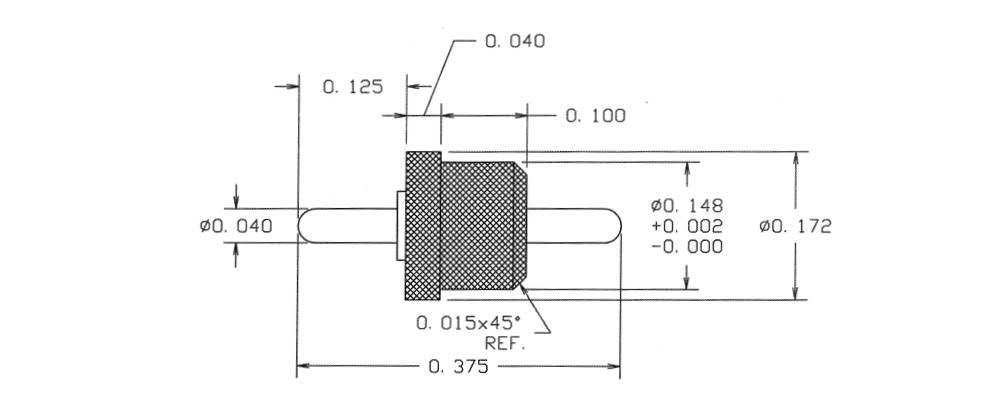

1110-16M-09517
1110-16M-09517
1110-16M-09517
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037I01 AA59126/037I01
1125-43M-08810
1125-43M-08810
1125-43M-08810
0.750" - 4-40 Nut 1/8 0.120 PTFE Black M55155/090J01 AA59126/090J01

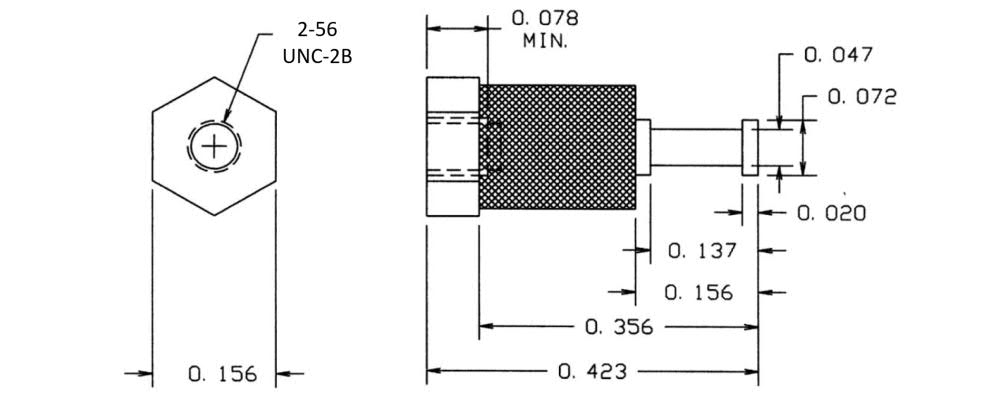

1127-02M-09518
1127-02M-09518
1127-02M-09518
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Gray M55155/198I02 AA59126/198I02
1127-07M-0516
1127-07M-0516
1127-07M-0516
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206H04 AA59126/206H04
1133-02M-09519
1133-02M-09519
1133-02M-09519
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE White M55155/049I02 AA59126/049I02
1100-07M-09512
1100-07M-09512
1100-07M-09512
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/082I02 AA59126/082I02
1114R-23M-0510
1114R-23M-0510
1114R-23M-0510
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060H02 AA59126/060H02
1102-03M-08819Z
1102-03M-08819Z
1102-03M-08819Z
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079D03 AA59126/079D03
1110-16M-09517Z
1110-16M-09517Z
1110-16M-09517Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037C01 AA59126/037C01
1125-43M-08811
1125-43M-08811
1125-43M-08811
0.750" - 4-40 Nut 1/8 0.120 PTFE Brown M55155/091J01 AA59126/091J01
1127-02M-09518Z
1127-02M-09518Z
1127-02M-09518Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Gray M55155/198C02 AA59126/198C02
1127-07M-0516Z
1127-07M-0516Z
1127-07M-0516Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Blue M55155/206B04 AA59126/206B04
1133-02M-09519Z
1133-02M-09519Z
1133-02M-09519Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE White M55155/049C02 AA59126/049C02
1100-07M-09512Z
1100-07M-09512Z
1100-07M-09512Z
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/082C02 AA59126/082C02
1114R-23M-0510Z
1114R-23M-0510Z
1114R-23M-0510Z
0.367" - Press Fit 1/16 0.136 PTFE Black M55155/060B02 AA59126/060B02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
