Military
Insulated
Terminals

Filter

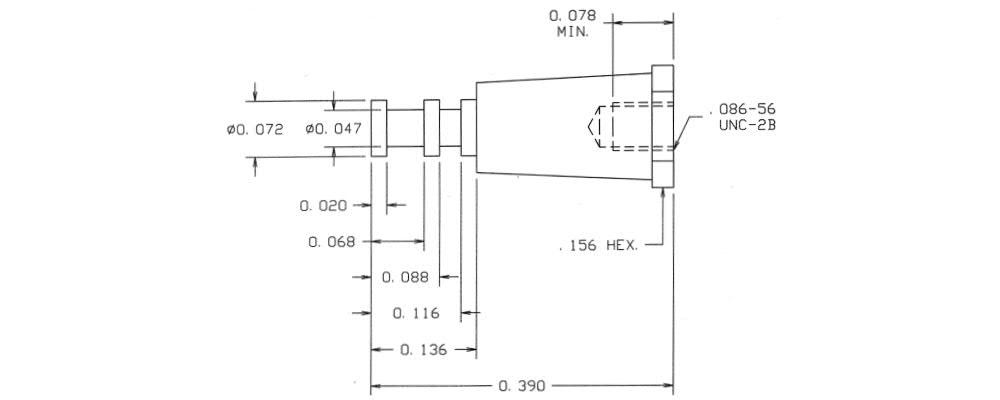

1127-06M-09515Z
1127-06M-09515Z
1127-06M-09515Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Green M55155/205C03 AA59126/205C03

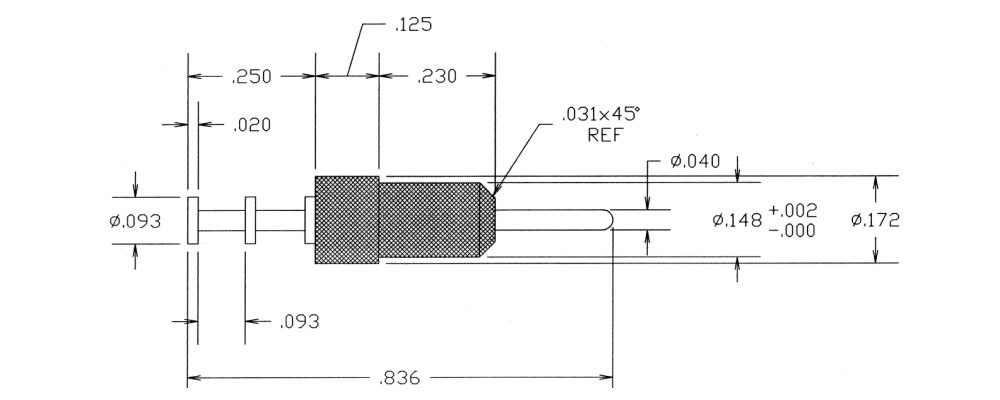

1133-02M-08818Z
1133-02M-08818Z
1133-02M-08818Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE Gray M55155/048D02 AA59126/048D02

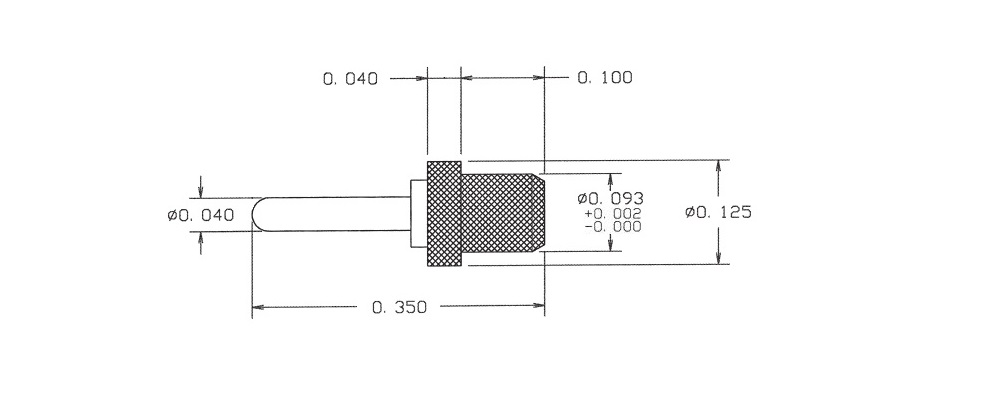

1100-07M-08811Z
1100-07M-08811Z
1100-07M-08811Z
0.350" - Press Fit 1/16 0.086 PTFE Brown M55155/081D02 AA59126/081D02

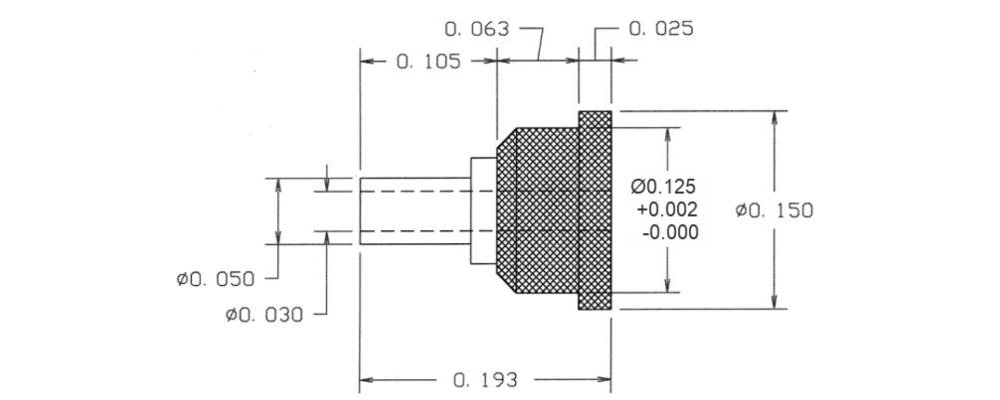

1114R-09M-08819Z
1114R-09M-08819Z
1114R-09M-08819Z
0.193" - Press Fit 1/32 0.113 PTFE White M55155/069D01 AA59126/069D01

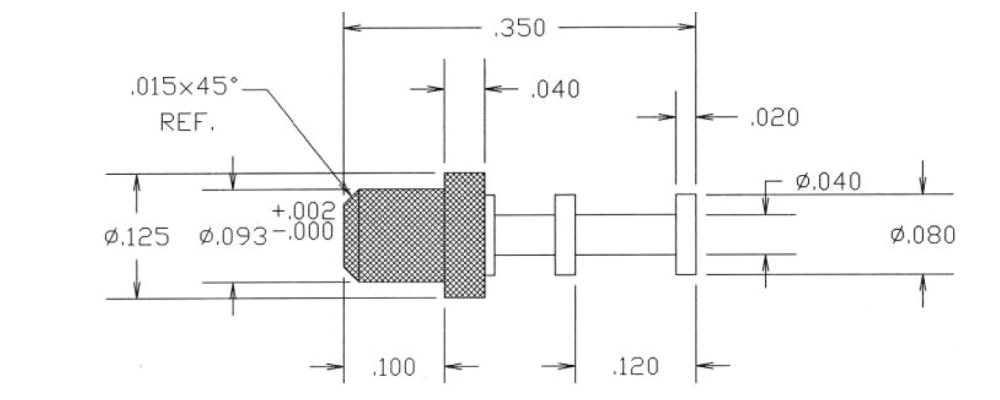

1102-03M-0519
1102-03M-0519
1102-03M-0519
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079H03 AA59126/079H03

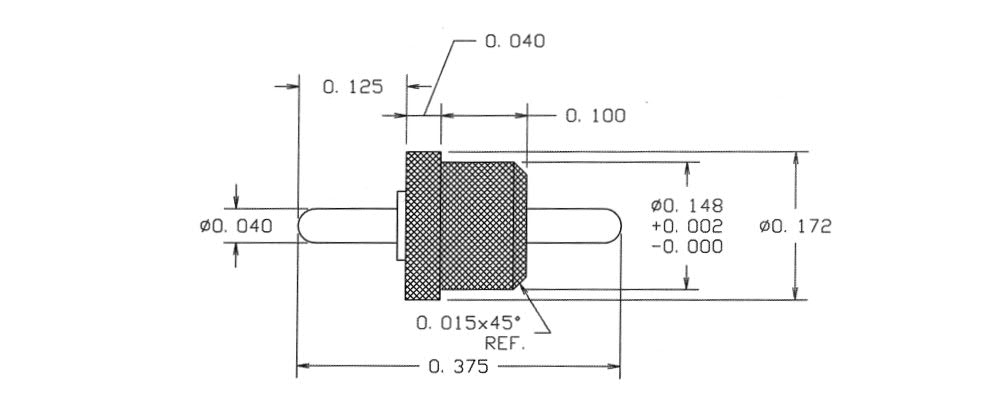

1110-16M-08817
1110-16M-08817
1110-16M-08817
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037J01 AA59126/037J01

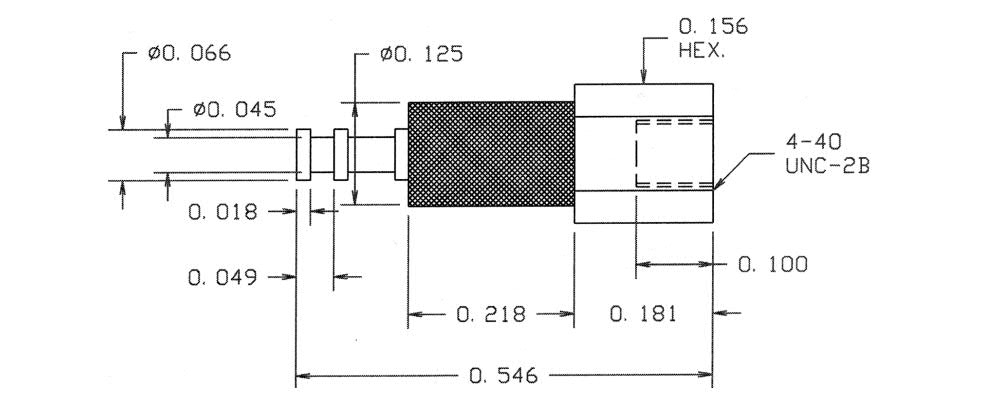

1125-42M-09515
1125-42M-09515
1125-42M-09515
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105I01 AA59126/105I01

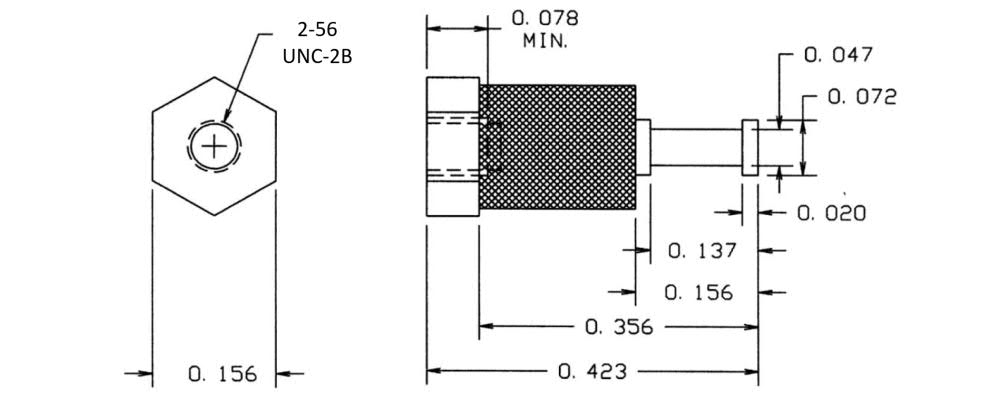

1127-02M-08818
1127-02M-08818
1127-02M-08818
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Gray M55155/198J02 AA59126/198J02
1127-06M-09516
1127-06M-09516
1127-06M-09516
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Blue M55155/206I03 AA59126/206I03
1133-02M-08819
1133-02M-08819
1133-02M-08819
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE White M55155/049J02 AA59126/049J02
1100-07M-08812
1100-07M-08812
1100-07M-08812
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/082J02 AA59126/082J02
1114R-09M-09510
1114R-09M-09510
1114R-09M-09510
0.193" - Press Fit 1/32 0.113 PTFE Black M55155/060I01 AA59126/060I01
1102-03M-0519Z
1102-03M-0519Z
1102-03M-0519Z
0.350" - Press Fit 1/16 0.086 PTFE White M55155/079B03 AA59126/079B03
1110-16M-08817Z
1110-16M-08817Z
1110-16M-08817Z
0.375" Pin/Pin Press Fit 1/16 0.136 PTFE Violet M55155/037D01 AA59126/037D01
1125-42M-09515Z
1125-42M-09515Z
1125-42M-09515Z
0.546" - 4-40 Screw - CLEARANCE FOR Screw #4 PTFE Green M55155/105C01 AA59126/105C01
1127-02M-08818Z
1127-02M-08818Z
1127-02M-08818Z
0.423" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Gray M55155/198D02 AA59126/198D02
1127-06M-09516Z
1127-06M-09516Z
1127-06M-09516Z
0.390" - 2-56 Screw - CLEARANCE FOR Screw #2 DIALLYL PHTHALATE Blue M55155/206C03 AA59126/206C03
1133-02M-08819Z
1133-02M-08819Z
1133-02M-08819Z
0.836" DOUBLE TURRET/PIN Press Fit Up to 3/16 0.136 PTFE White M55155/049D02 AA59126/049D02
1100-07M-08812Z
1100-07M-08812Z
1100-07M-08812Z
0.350" - Press Fit 1/16 0.086 PTFE Red M55155/082D02 AA59126/082D02
1114R-09M-09510Z
1114R-09M-09510Z
1114R-09M-09510Z
0.193" - Press Fit 1/32 0.113 PTFE Black M55155/060C01 AA59126/060C01
