Military
Insulated
Terminals

Filter
1114-08M-09512Z
1114-08M-09512Z
1114-08M-09512Z
0.310" - Press Fit 3/32 0.108 PTFE Red M55155/052C02 AA59126/052C02
1114-04M-08812Z
1114-04M-08812Z
1114-04M-08812Z
0.225" - Press Fit 1/32 0.086 PTFE Red M55155/052D01 AA59126/052D01
1117-01M-08817Z
1117-01M-08817Z
1117-01M-08817Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Violet M55155/027D01 AA59126/027D01
1114R-23M-09511Z
1114R-23M-09511Z
1114R-23M-09511Z
0.367" - Press Fit 1/16 0.136 PTFE Brown M55155/061C02 AA59126/061C02

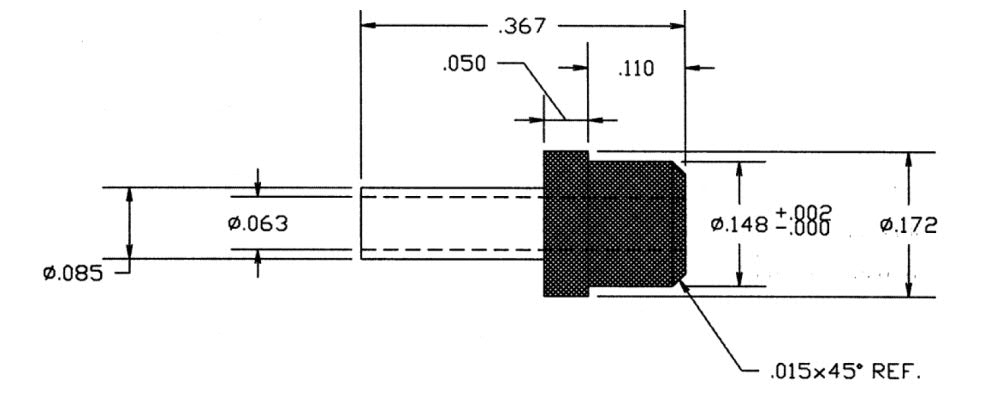

1114-23M-0513Z
1114-23M-0513Z
1114-23M-0513Z
0.367" - Press Fit 1/16 0.136 PTFE Orange M55155/053B03 AA59126/053B03
1117-01M-08818Z
1117-01M-08818Z
1117-01M-08818Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Gray M55155/028D01 AA59126/028D01
1117-01M-09512Z
1117-01M-09512Z
1117-01M-09512Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Red M55155/022C01 AA59126/022C01

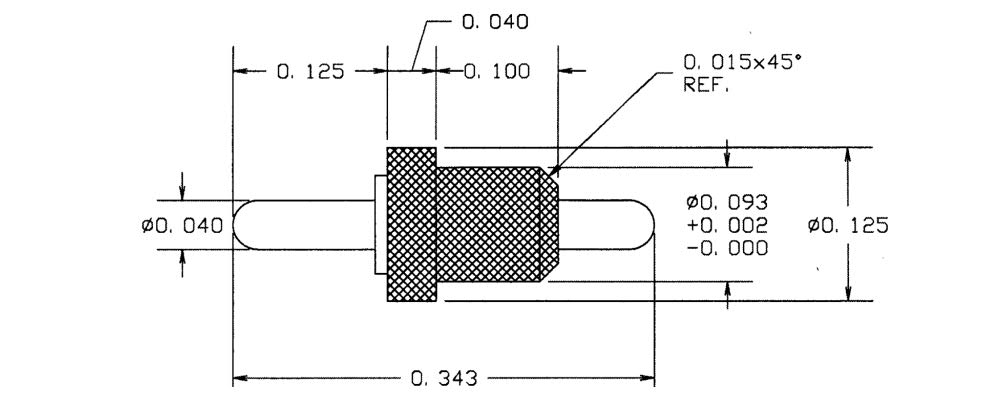

1110-75M-09511Z
1110-75M-09511Z
1110-75M-09511Z
0.343" Pin/Pin Press Fit 1/16 0.086 PTFE Brown M55155/031C05 AA59126/031C05
1110-40M-08812Z
1110-40M-08812Z
1110-40M-08812Z
0.675" Pin/Pin Press Fit 1/8 0.152 PTFE Red M55155/032D03 AA59126/032D03
1114-08M-0517Z
1114-08M-0517Z
1114-08M-0517Z
0.310" - Press Fit 3/32 0.108 PTFE Violet M55155/057B02 AA59126/057B02
1117-01M-09513Z
1117-01M-09513Z
1117-01M-09513Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Orange M55155/023C01 AA59126/023C01
1110-05M-0517Z
1110-05M-0517Z
1110-05M-0517Z
0.515" Pin/Pin Press Fit 1/16 0.086 PTFE Violet M55155/037B04 AA59126/037B04
1114-08M-0518Z
1114-08M-0518Z
1114-08M-0518Z
0.310" - Press Fit 3/32 0.108 PTFE Gray M55155/058B02 AA59126/058B02
1114-04M-0518Z
1114-04M-0518Z
1114-04M-0518Z
0.225" - Press Fit 1/32 0.086 PTFE Gray M55155/058B01 AA59126/058B01
1114R-09M-09517Z
1114R-09M-09517Z
1114R-09M-09517Z
0.193" - Press Fit 1/32 0.113 PTFE Violet M55155/067C01 AA59126/067C01
1117-01M-08819Z
1117-01M-08819Z
1117-01M-08819Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE White M55155/029D01 AA59126/029D01
1117-01M-08816Z
1117-01M-08816Z
1117-01M-08816Z
0.690" TURRET/PIN 12-28 Nut 3/32 0.221 PTFE Blue M55155/026D01 AA59126/026D01
1114R-23M-09515Z
1114R-23M-09515Z
1114R-23M-09515Z
0.367" - Press Fit 1/16 0.136 PTFE Green M55155/065C02 AA59126/065C02
1114R-23M-09512Z
1114R-23M-09512Z
1114R-23M-09512Z
0.367" - Press Fit 1/16 0.136 PTFE Red M55155/062C02 AA59126/062C02
1100-07M-08817Z
1100-07M-08817Z
1100-07M-08817Z
0.350" - Press Fit 1/16 0.086 PTFE Violet M55155/087D02 AA59126/087D02

About the Company

CONCORD ELECTRONICS, INC. is a leading manufacturer of high reliability, precision-machined interconnect components, hardware and test accessories. A majority of our parts are proudly Made in the USA and used in a wide variety of industries including: automotive, avionics, energy, industrial, instrumentation, marine, medical, military and telecommunications.  We are a MIL-DTL-39024 recognized manufacturer of both MIL-T-55155 (Group A) and A-A-59126 components
