Military
Insulated
Terminals

Filter

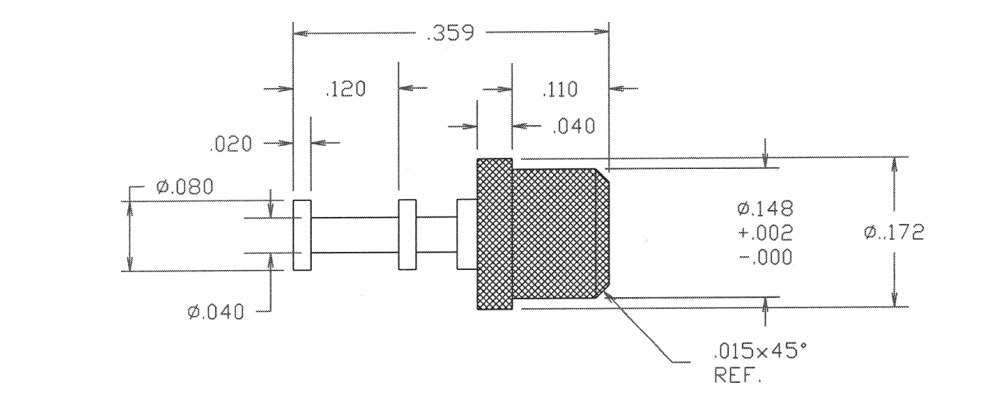

1102-14M-0512Z
1102-14M-0512Z
1102-14M-0512Z
0.359" - Press Fit 1/16 0.136 PTFE Red M55155/072B01 AA59126/072B01
1110-21M-08810Z
1110-21M-08810Z
1110-21M-08810Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Black M55155/030D02 AA59126/030D02
1125-45M-0513Z
1125-45M-0513Z
1125-45M-0513Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Orange M55155/093B02 AA59126/093B02
1127-03M-08811Z
1127-03M-08811Z
1127-03M-08811Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Brown M55155/191D03 AA59126/191D03

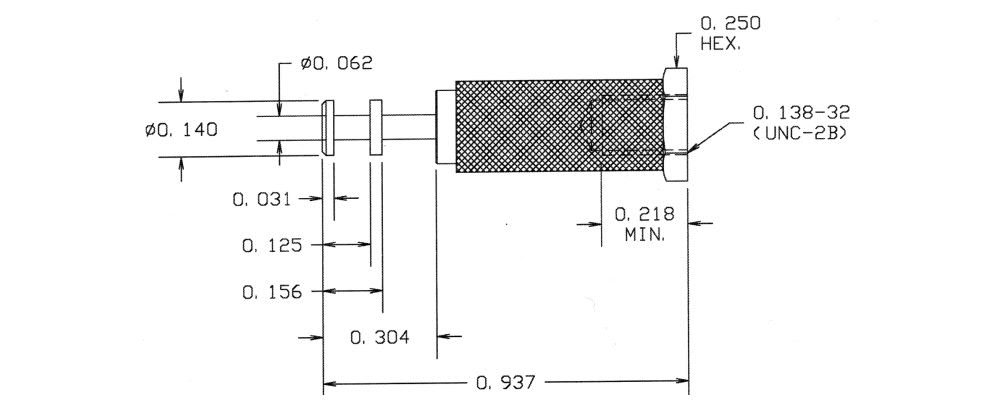

1127-07M-08819Z
1127-07M-08819Z
1127-07M-08819Z
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE White M55155/209D04 AA59126/209D04

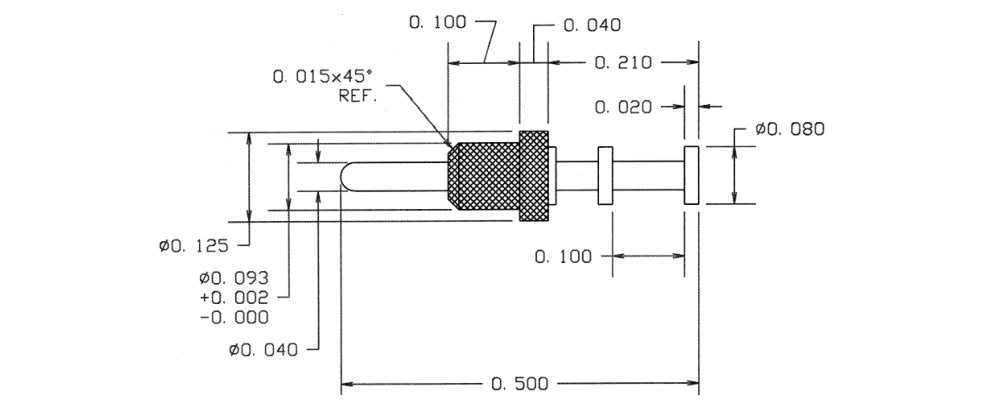

1133-03M-08812Z
1133-03M-08812Z
1133-03M-08812Z
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Red M55155/042D03 AA59126/042D03
1114-04M-0515Z
1114-04M-0515Z
1114-04M-0515Z
0.225" - Press Fit 1/32 0.086 PTFE Green M55155/055B01 AA59126/055B01
1114R-23M-08813Z
1114R-23M-08813Z
1114R-23M-08813Z
0.367" - Press Fit 1/16 0.136 PTFE Orange M55155/063D02 AA59126/063D02
1102-14M-0513
1102-14M-0513
1102-14M-0513
0.359" - Press Fit 1/16 0.136 PTFE Orange M55155/073H01 AA59126/073H01
1110-21M-08811
1110-21M-08811
1110-21M-08811
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031J02 AA59126/031J02
1125-45M-0514
1125-45M-0514
1125-45M-0514
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094H02 AA59126/094H02
1127-03M-08812
1127-03M-08812
1127-03M-08812
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Red M55155/192J03 AA59126/192J03
1127-07M-09510
1127-07M-09510
1127-07M-09510
0.937" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Black M55155/200I04 AA59126/200I04
1133-03M-08813
1133-03M-08813
1133-03M-08813
0.500" DOUBLE TURRET/PIN Press Fit 1/16 0.086 PTFE Orange M55155/043J03 AA59126/043J03
1114-04M-0516
1114-04M-0516
1114-04M-0516
0.225" - Press Fit 1/32 0.086 PTFE Blue M55155/056H01 AA59126/056H01
1114R-23M-08814
1114R-23M-08814
1114R-23M-08814
0.367" - Press Fit 1/16 0.136 PTFE Yellow M55155/064J02 AA59126/064J02
1102-14M-0513Z
1102-14M-0513Z
1102-14M-0513Z
0.359" - Press Fit 1/16 0.136 PTFE Orange M55155/073B01 AA59126/073B01
1110-21M-08811Z
1110-21M-08811Z
1110-21M-08811Z
0.515" Pin/Pin Press Fit 1/16 0.136 PTFE Brown M55155/031D02 AA59126/031D02
1125-45M-0514Z
1125-45M-0514Z
1125-45M-0514Z
0.890" - 6-32 Nut 1/8 0.144 PTFE Yellow M55155/094B02 AA59126/094B02
1127-03M-08812Z
1127-03M-08812Z
1127-03M-08812Z
0.593" - 6-32 Screw - CLEARANCE FOR Screw #6 DIALLYL PHTHALATE Red M55155/192D03 AA59126/192D03
