Commercial
Non-Insulated
Terminals

Filter

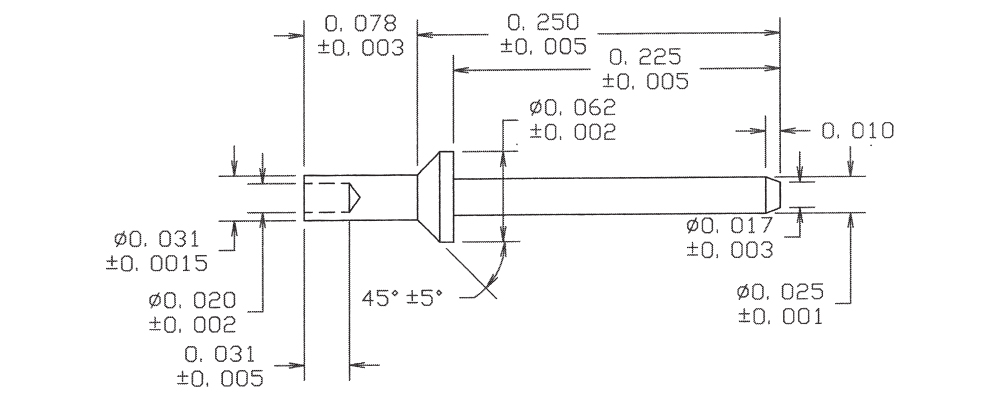

09-8390-2-03
09-8390-2-03
09-8390-2-03
0.328" 0.025 - Swage Mount 0.078" 1/16 0.035 Brass Gold YES

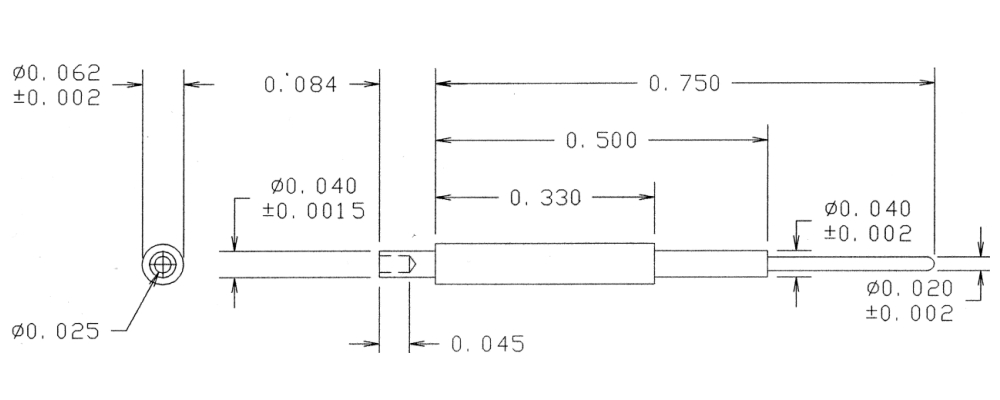

09-8617-2-05
09-8617-2-05
09-8617-2-05
0.834" 0.020 - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO

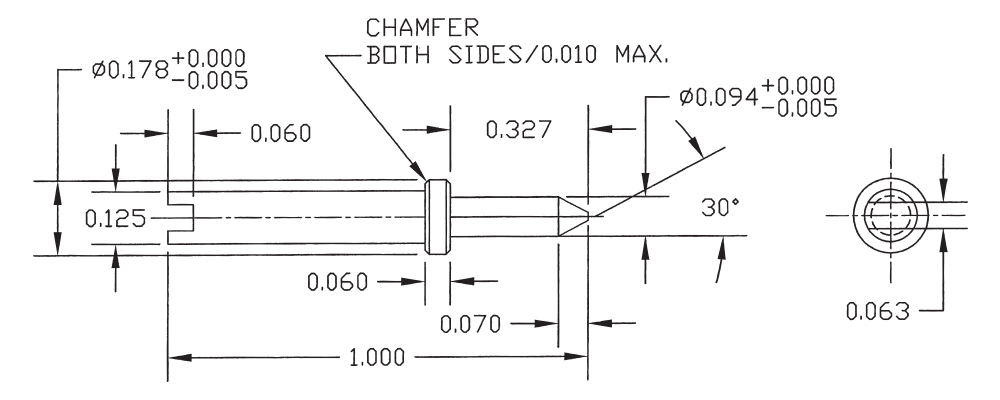

09-8724-1-03
09-8724-1-03
09-8724-1-03
1.000" 0.094 (+0.000/-0.005) SLOTTED/PIN - - - - Beryllium Copper Gold YES

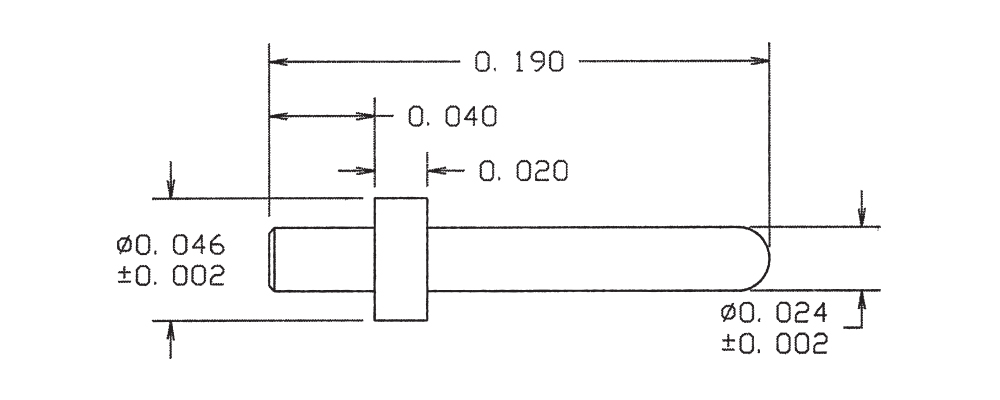

09-8827-1-01
09-8827-1-01
09-8827-1-01
0.190" 0.024 - Solder 0.040" 1/64 0.028 Brass Silver YES

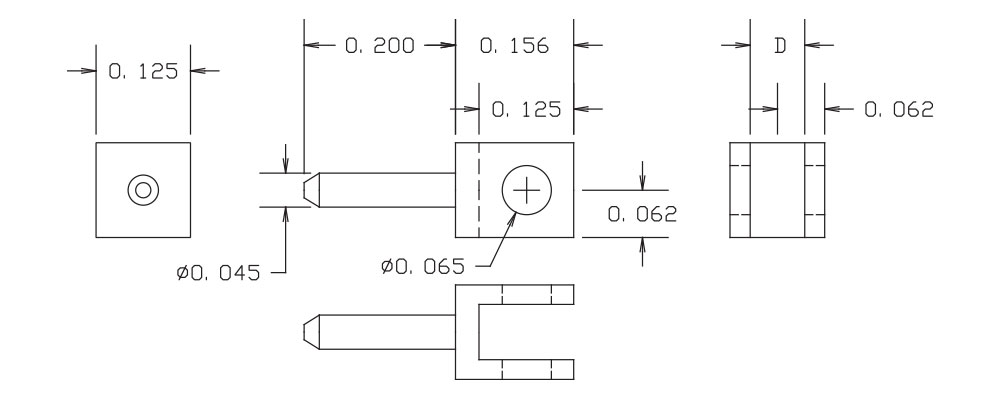

09-9504-1-03
09-9504-1-03
09-9504-1-03
0.356" 0.045 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Gold YES
10-106-2-088
10-106-2-088
10-106-2-088
0.286" - - Swage Mount 0.105" 1/16 0.094 Brass Bright Tin-Lead NO
10-114-2-05
10-114-2-05
10-114-2-05
0.178" - - Swage Mount 0.084" 1/16 0.043 Brass Electro Solder NO

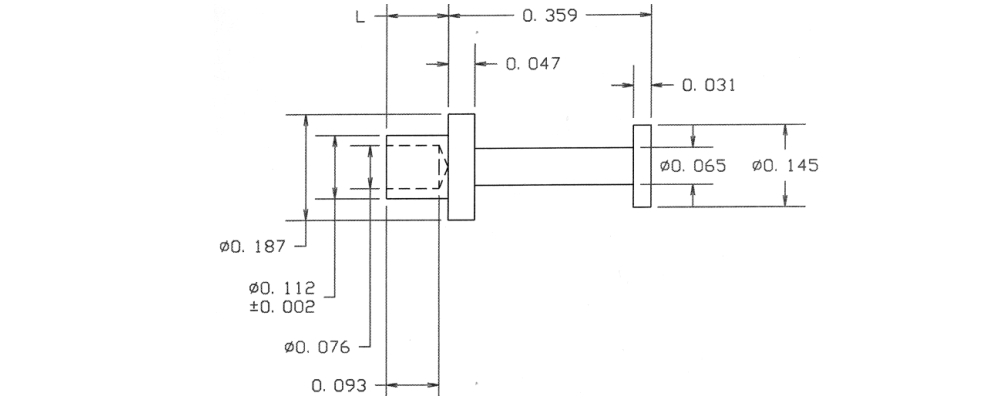

10-135-2-095
10-135-2-095
10-135-2-095
0.468" - - Swage Mount 0.109" 1/16 0.116 Brass Hot Solder Dip NO

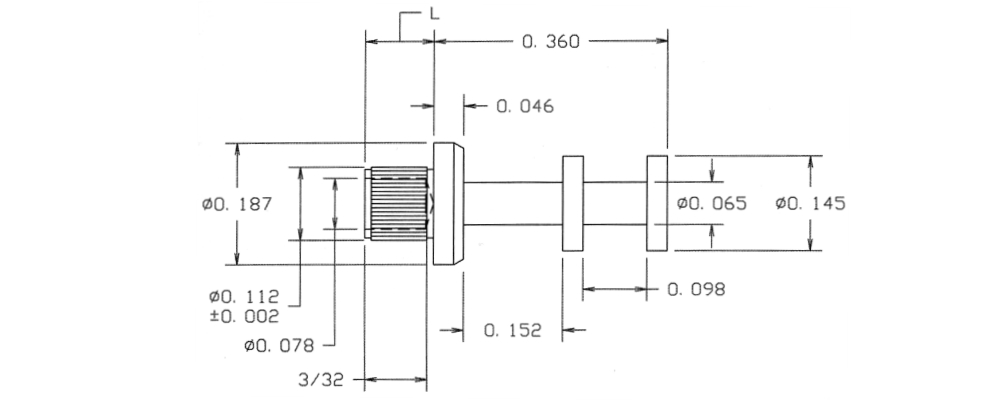

10-205-2-088
10-205-2-088
10-205-2-088
0.465" - - Swage Mount 0.105" 1/16 0.116 Brass Bright Tin-Lead NO

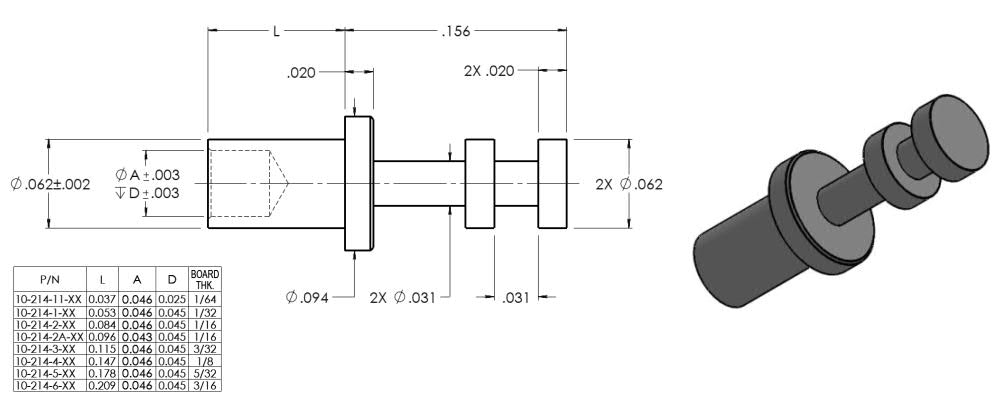

10-214-2-04
10-214-2-04
10-214-2-04
0.240" - - Swage Mount 0.084" 1/16 0.067 Brass Electro-Tin YES

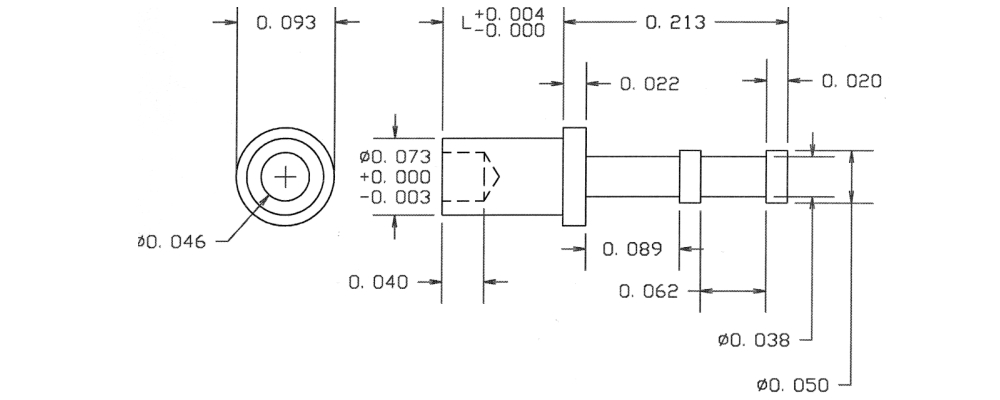

10-221-1-035
10-221-1-035
10-221-1-035
0.266" - - Swage Mount 0.053" 1/32 0.076 Brass Gold YES

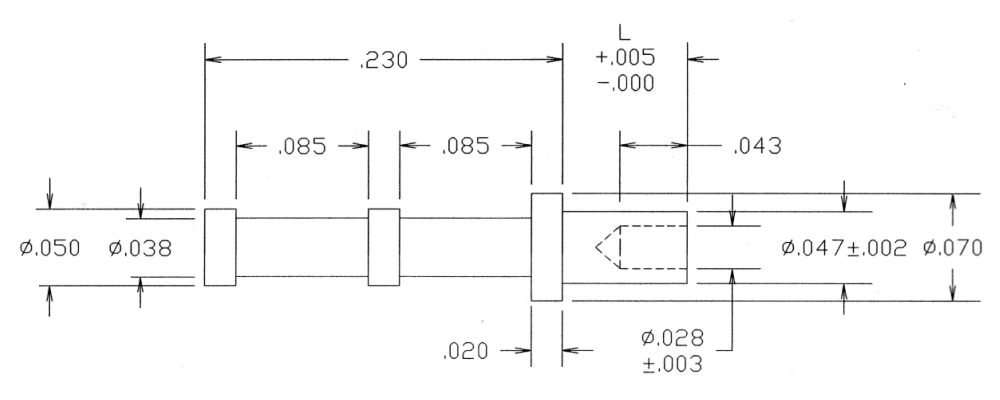

10-232-1-05
10-232-1-05
10-232-1-05
0.277" - - Swage Mount 0.047" 1/32 0.052 Brass Electro Solder NO

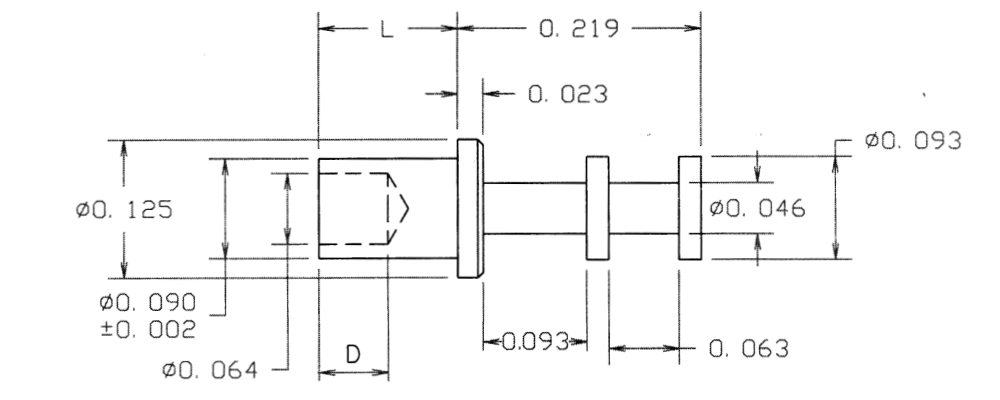

10-259-1-035
10-259-1-035
10-259-1-035
0.281" - - Swage Mount 0.062" 1/32 0.094 Brass Gold YES

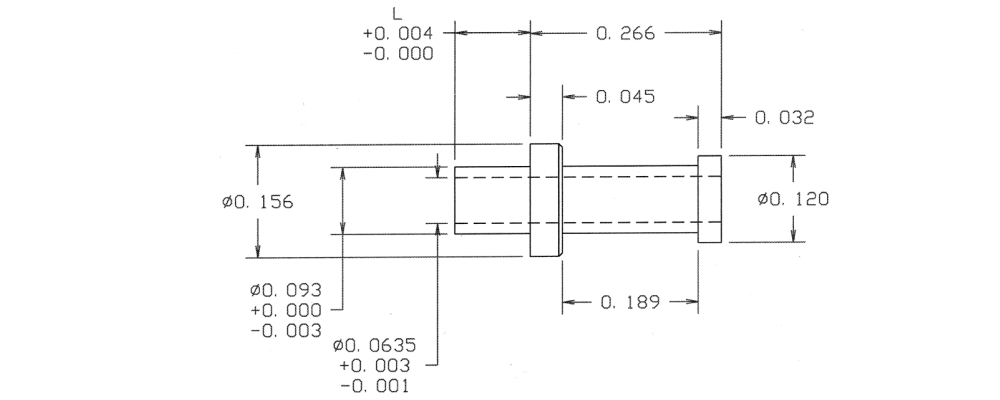

10-307-1-088
10-307-1-088
10-307-1-088
0.341" - - Swage Mount 0.075" 1/32 0.096 Brass Bright Tin-Lead NO
10-315-2-04
10-315-2-04
10-315-2-04
0.433" - - Swage Mount 0.105" 1/16 0.082 Brass Electro-Tin YES

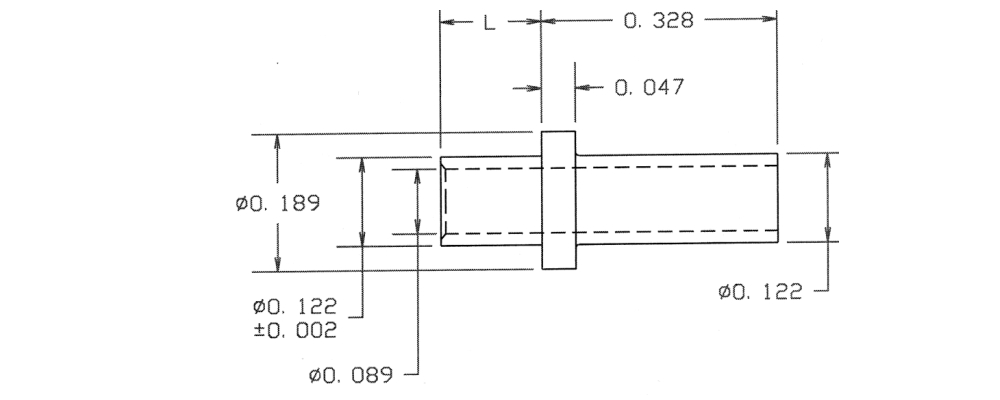

10-329-6-01
10-329-6-01
10-329-6-01
0.562" - - Swage Mount 0.234" 3/16 0.125 Brass Silver YES

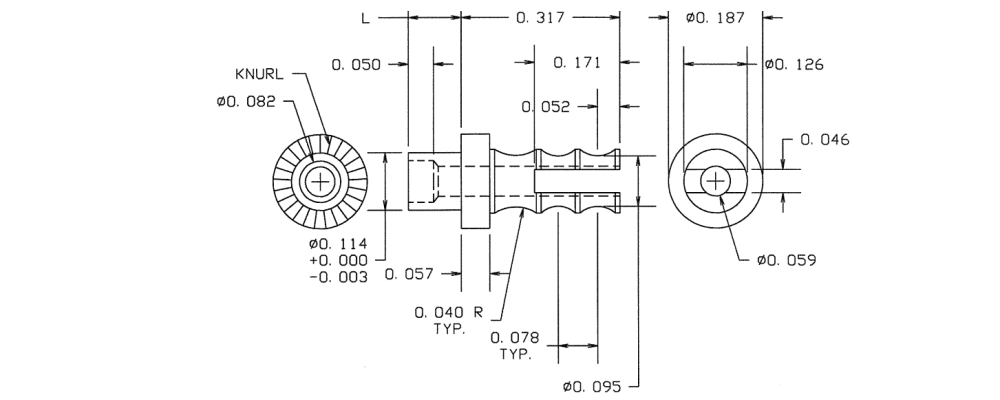

10-404-3-044
10-404-3-044
10-404-3-044
0.452" - - Swage Mount 0.135" 3/32 0.116 Brass Bright Tin YES

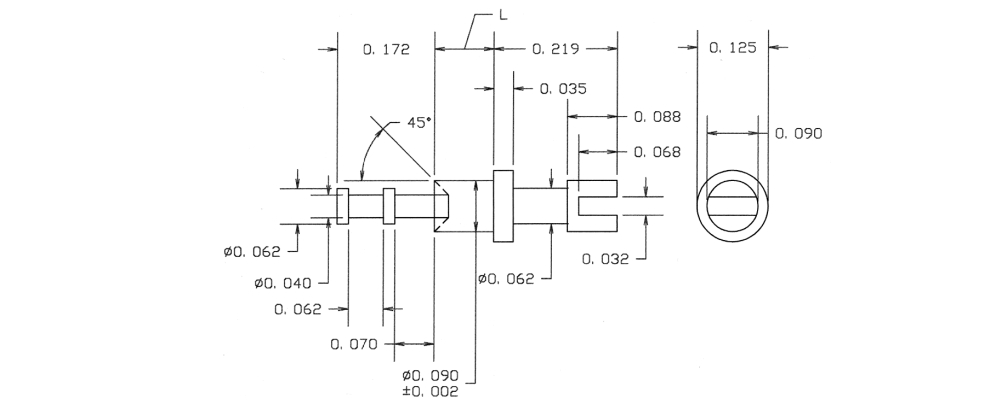

10-419-1-035
10-419-1-035
10-419-1-035
0.466" - SLOTTED/DOUBLE TURRET Swage Mount 0.075" 1/32 0.094 Brass Gold YES
10-432-4-05
10-432-4-05
10-432-4-05
0.602" - - Swage Mount 0.165" 1/8 0.161 Brass Electro Solder NO
10-446-3-044
10-446-3-044
10-446-3-044
0.507" - SLOTTED/DOUBLE TURRET Swage Mount 0.125" 3/32 0.096 Brass Bright Tin YES
