Commercial
Non-Insulated
Terminals

Filter
10-489-1-04
10-489-1-04
10-489-1-04
0.201" - - Swage Mount 0.045" 1/32 0.067 Brass Electro-Tin YES

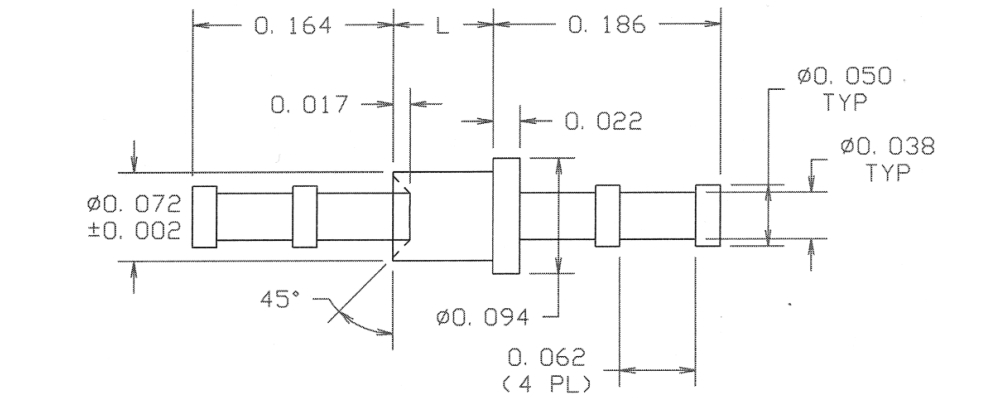

10-503-4-05
10-503-4-05
10-503-4-05
0.495" - Double Turret/Double Turret Swage Mount 0.145" 1/8 0.076 Brass Electro Solder NO

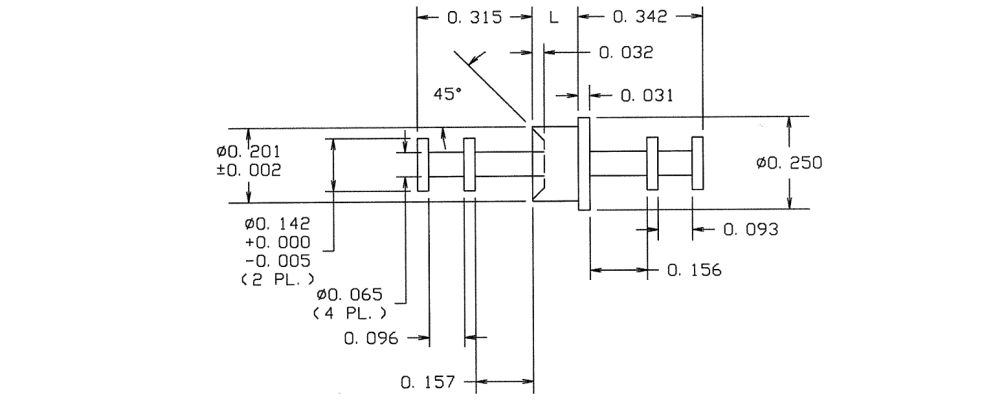

10-509-5-05
10-509-5-05
10-509-5-05
0.852" - Double Turret/Double Turret Swage Mount 0.195" 5/32 0.204 Brass Electro Solder NO

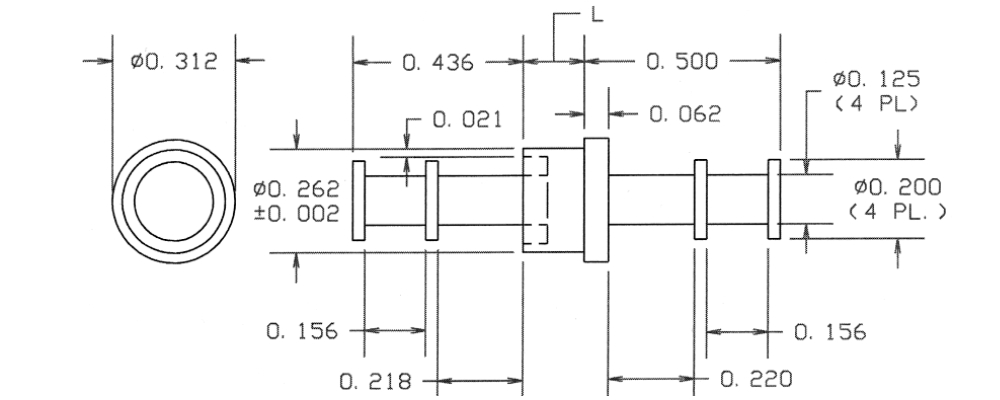

10-519-2-05
10-519-2-05
10-519-2-05
1.030" - Double Turret/Double Turret Swage Mount 0.094" 1/16 0.266 Brass Electro Solder NO

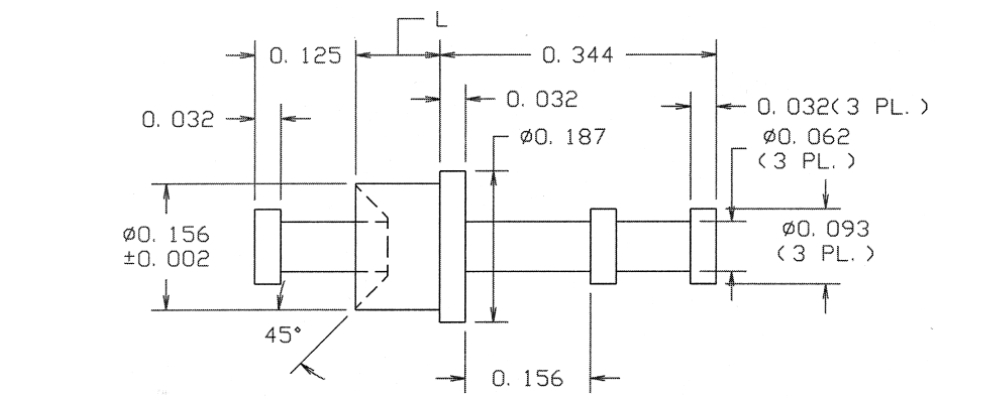

10-530-4-05
10-530-4-05
10-530-4-05
0.634" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.159 Brass Electro Solder NO
10-549-3-05
10-549-3-05
10-549-3-05
0.814" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.206 Brass Electro Solder NO

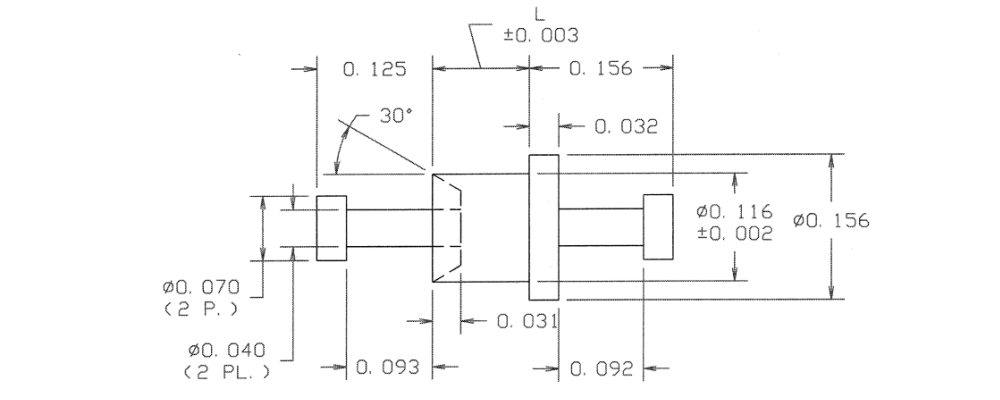

10-576-3-05
10-576-3-05
10-576-3-05
0.416" - Turret/Turret Swage Mount 0.135" 3/32 0.120 Brass Electro Solder NO

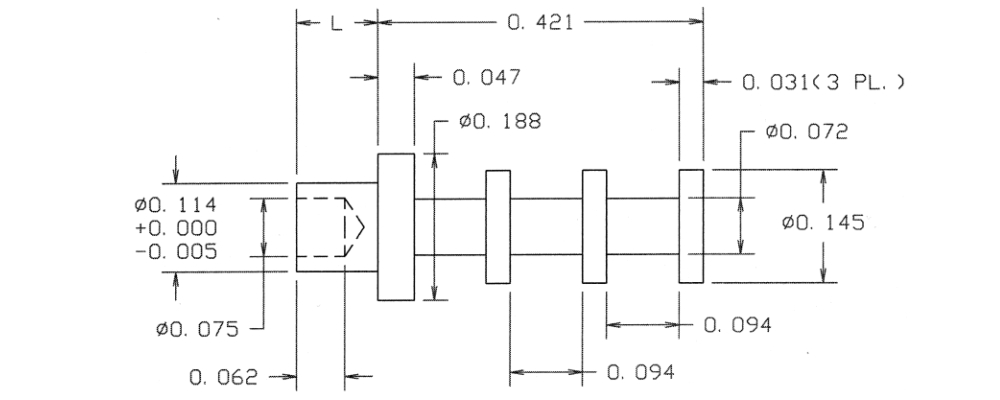

10-607-4-03
10-607-4-03
10-607-4-03
0.586" - - Swage Mount 0.165" 1/8 0.116 Brass Gold YES

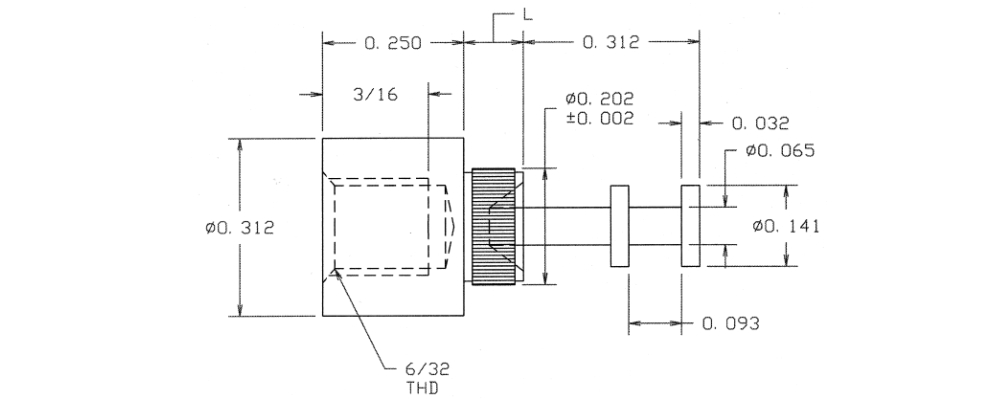

10-714-5-01
10-714-5-01
10-714-5-01
0.757" - DOUBLE TURRET/THREAD Swage Mount 0.195" 5/32 0.204 Brass Silver YES

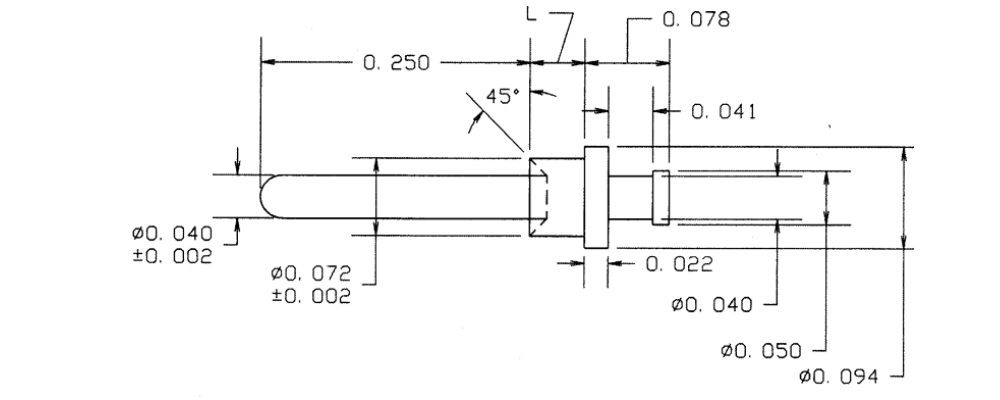

10-801-6-095
10-801-6-095
10-801-6-095
0.535" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Hot Solder Dip NO

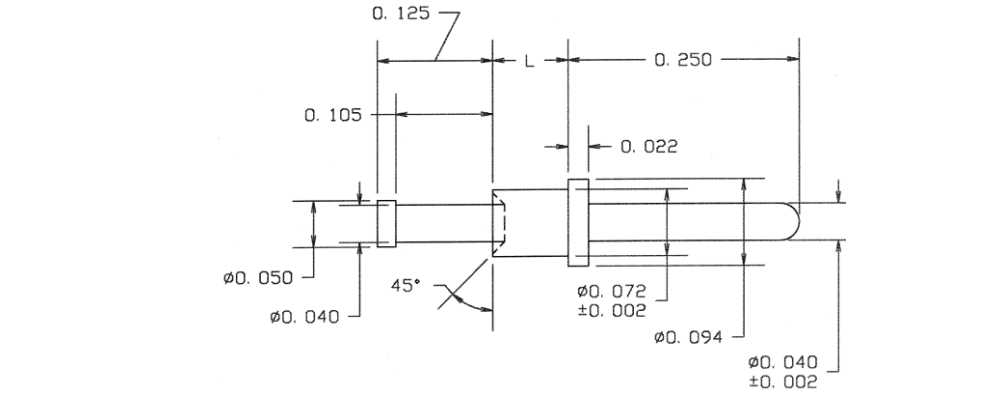

10-803-2-044
10-803-2-044
10-803-2-044
0.457" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Bright Tin YES
10-809-1-01
10-809-1-01
10-809-1-01
0.258" - - Swage Mount 0.078" 1/32 0.116 Brass Silver YES
10-816-1-044
10-816-1-044
10-816-1-044
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Bright Tin YES

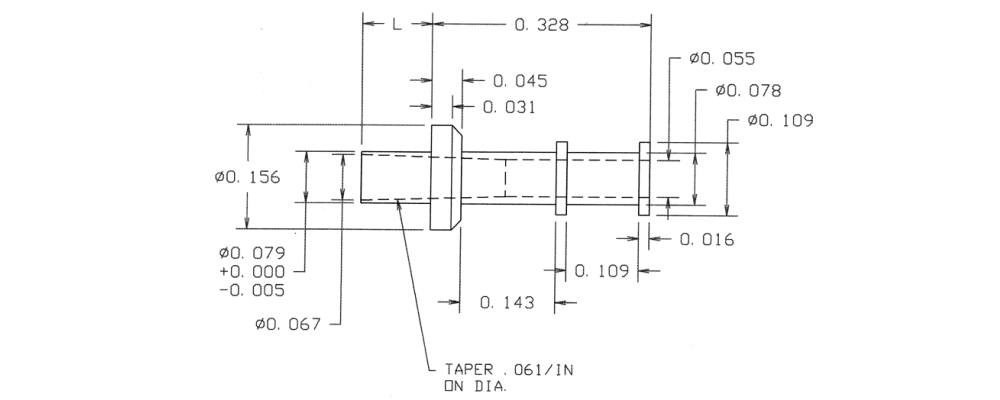

10-826-2-01
10-826-2-01
10-826-2-01
0.433" - - Swage Mount 0.105" 1/16 0.081 Brass Silver YES

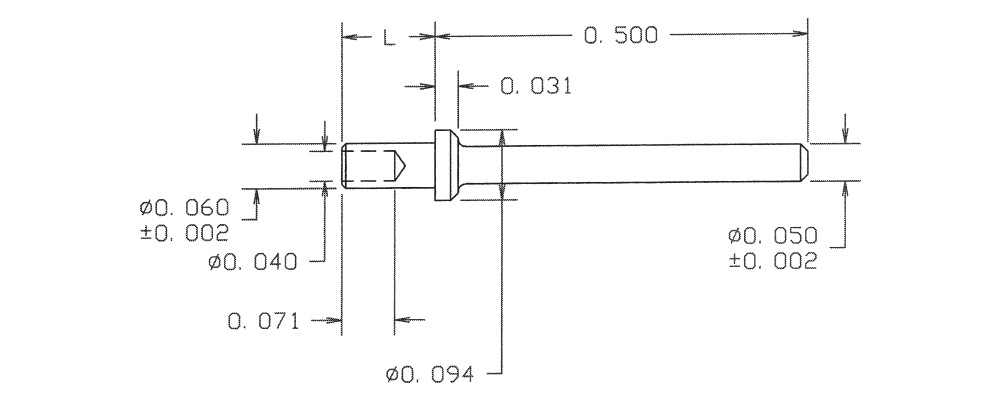

10-836-3-088
10-836-3-088
10-836-3-088
0.625" 0.050 - Swage Mount 0.125" 3/32 0.064 Brass Bright Tin-Lead NO

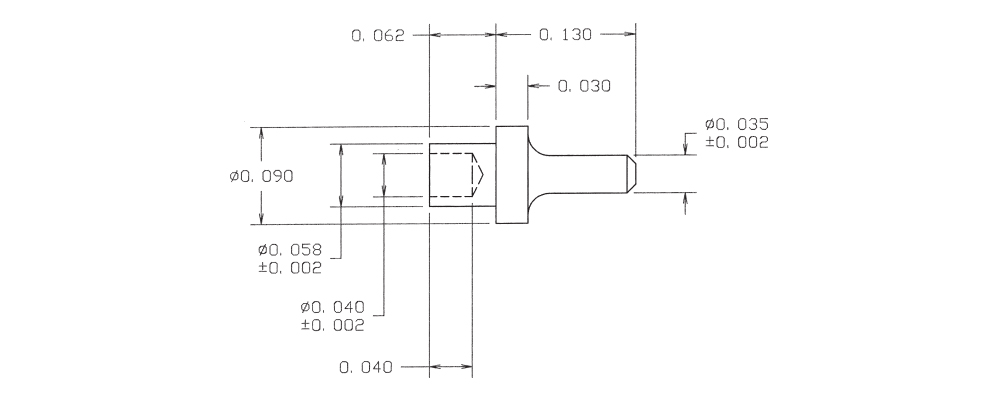

10-849-1-04
10-849-1-04
10-849-1-04
0.192" 0.035 - Swage Mount 0.062" 1/32 0.062 Brass Electro-Tin YES

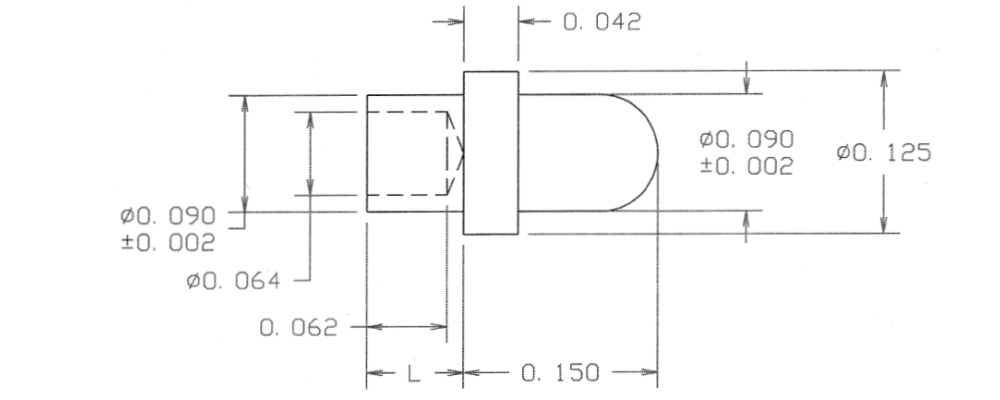

10-873-1-095
10-873-1-095
10-873-1-095
0.225" 0.090 - Swage Mount 0.075" 1/32 0.094 Brass Hot Solder Dip NO

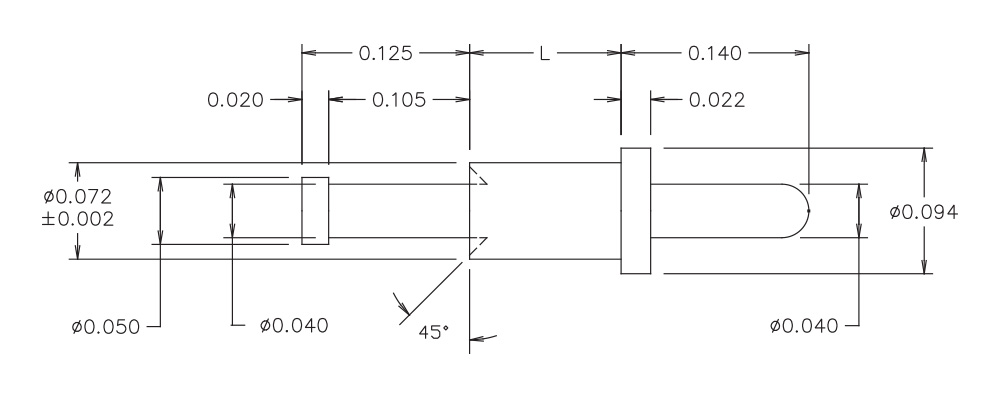

10-894-2-05
10-894-2-05
10-894-2-05
0.347" 0.040 TURRET/PIN Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

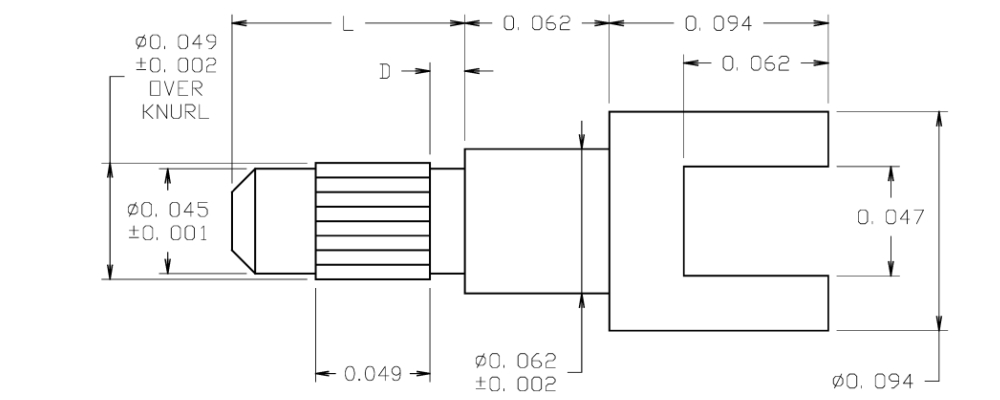

10-907-1-04
10-907-1-04
10-907-1-04
0.453" 0.045 SLOTTED/PIN Press Fit/Solder 0.297" 1/16 0.047 Brass Electro-Tin YES

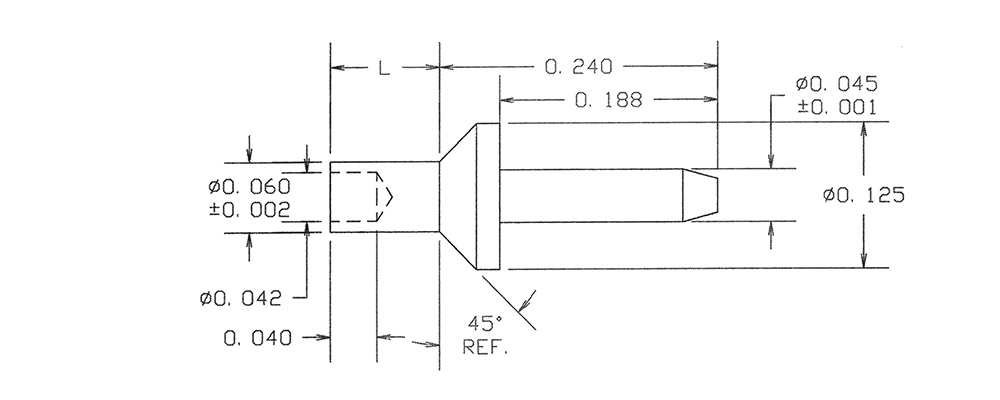

10-922-2-04
10-922-2-04
10-922-2-04
0.334" 0.045 - Swage Mount 0.094" 1/16 0.064 Brass Electro-Tin YES
