Commercial
Non-Insulated
Terminals

Filter

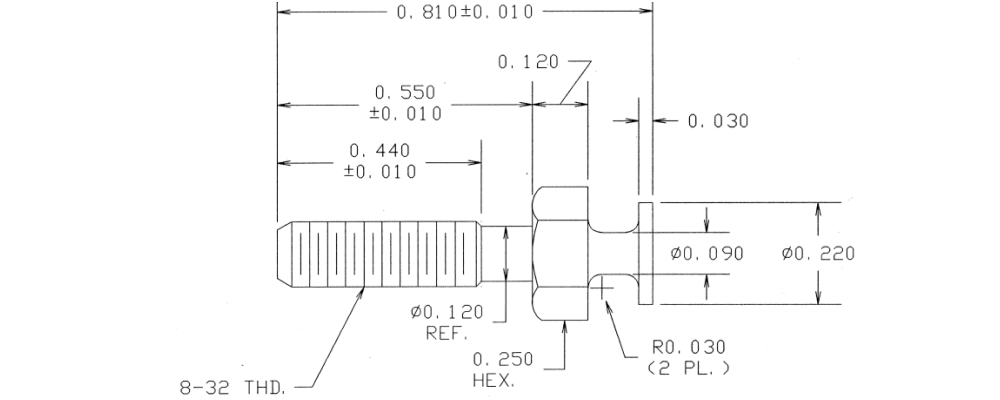

09-0244-1-04
09-0244-1-04
09-0244-1-04
0.810" - - 8-32 - - 8-32 THREAD Brass Electro-Tin YES

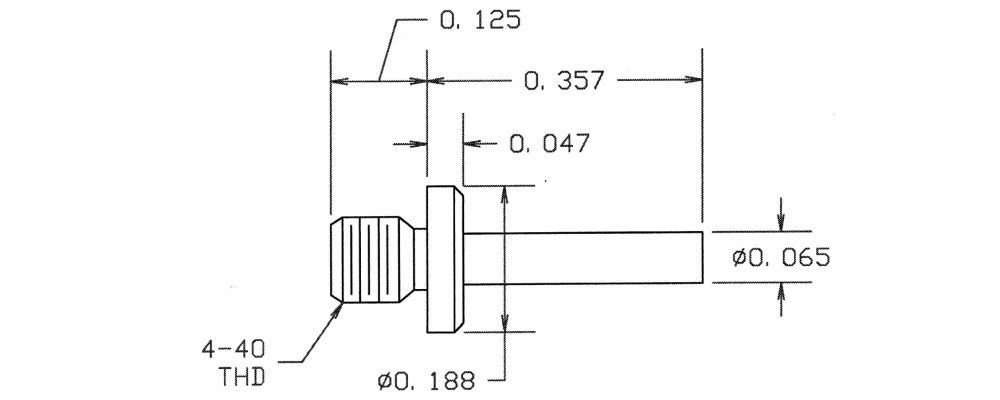

09-0292-4-035
09-0292-4-035
09-0292-4-035
0.482" 0.065 - 4-40 - - 4-40 THREAD Brass Gold YES

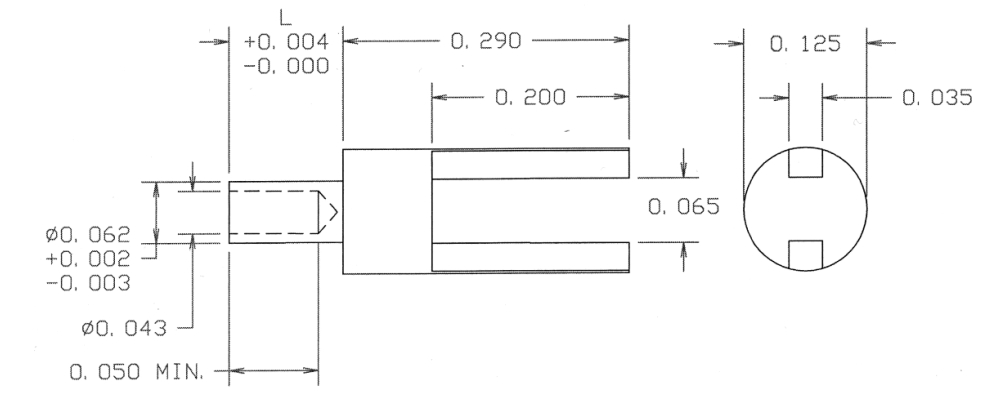

09-0353-4-04
09-0353-4-04
09-0353-4-04
0.438" - - Swage Mount 0.148" 1/8 0.067 Brass Electro-Tin YES

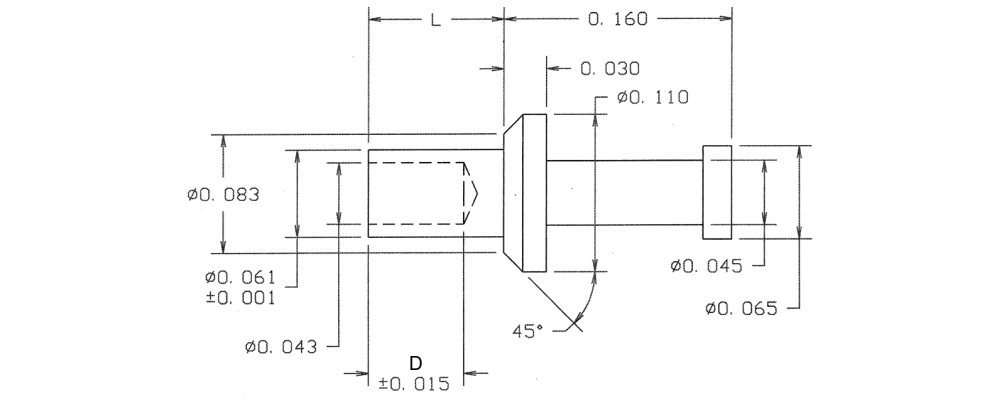

09-7012-4-095
09-7012-4-095
09-7012-4-095
0.310" - - Swage Mount 0.150" 1/8 0.067 Brass Hot Solder Dip NO

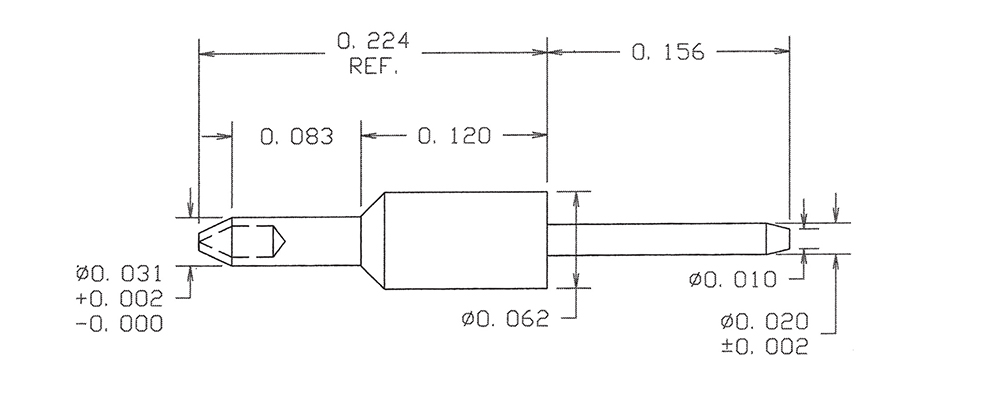

09-7119-2-05
09-7119-2-05
09-7119-2-05
0.380" 0.020 - RIVET MOUNT 0.083" 1/16 0.035 Brass Electro Solder NO

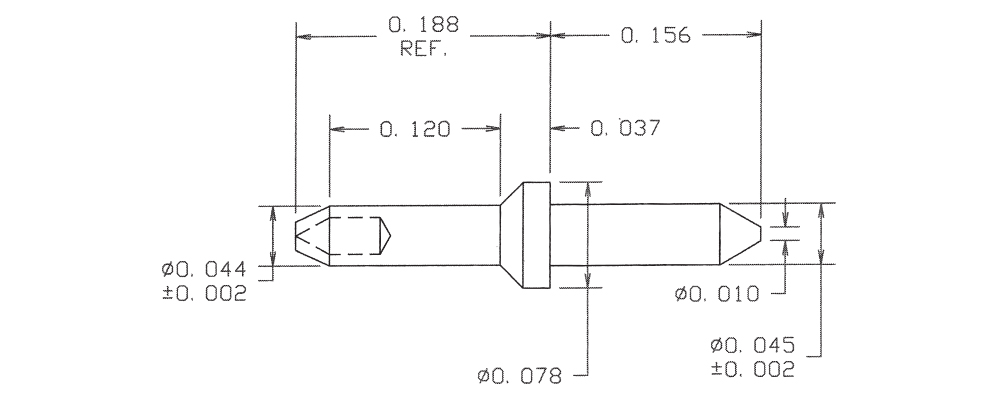

09-7149-3-035
09-7149-3-035
09-7149-3-035
0.344" 0.045 - RIVET MOUNT 0.120" 3/32 0.048 Brass Gold YES

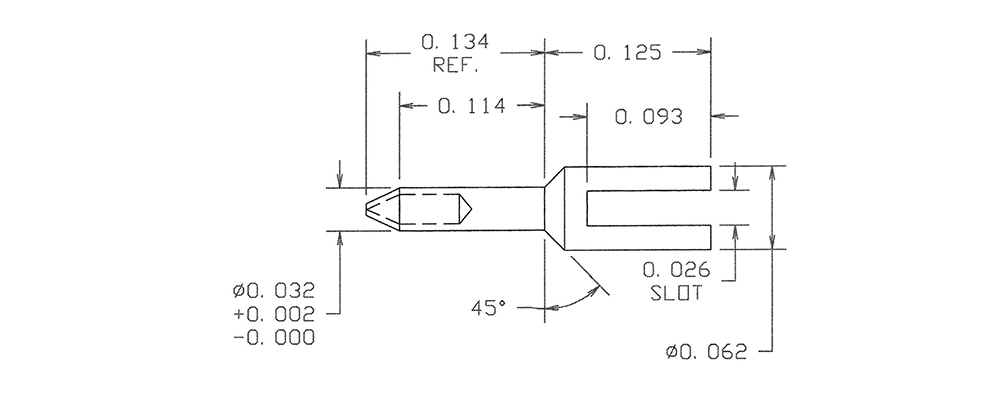

09-7181-3-088
09-7181-3-088
09-7181-3-088
0.259" - - RIVET MOUNT 0.114" 3/32 0.036 Brass Bright Tin-Lead NO

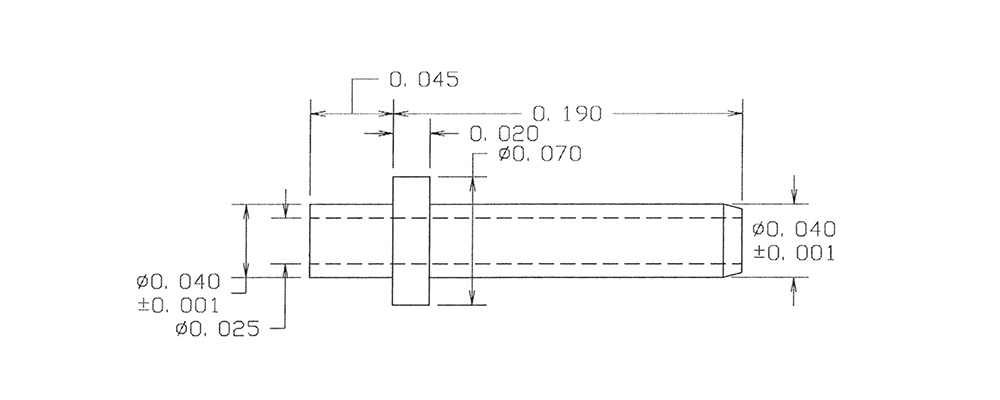

09-8025-1-04
09-8025-1-04
09-8025-1-04
0.235" 0.040 - Swage Mount 0.045" 1/64 0.043 Brass Electro-Tin YES

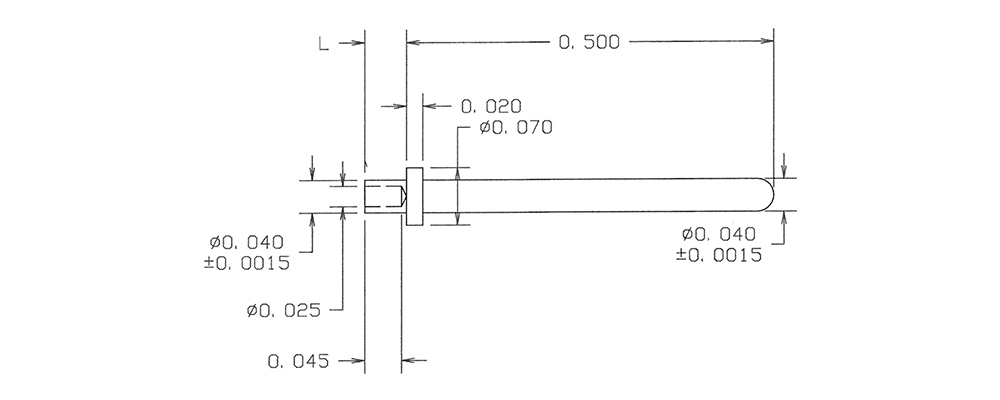

09-8059-2-088
09-8059-2-088
09-8059-2-088
0.582" 0.0405 - Swage Mount 0.082" 1/16 0.043 Brass Bright Tin-Lead NO

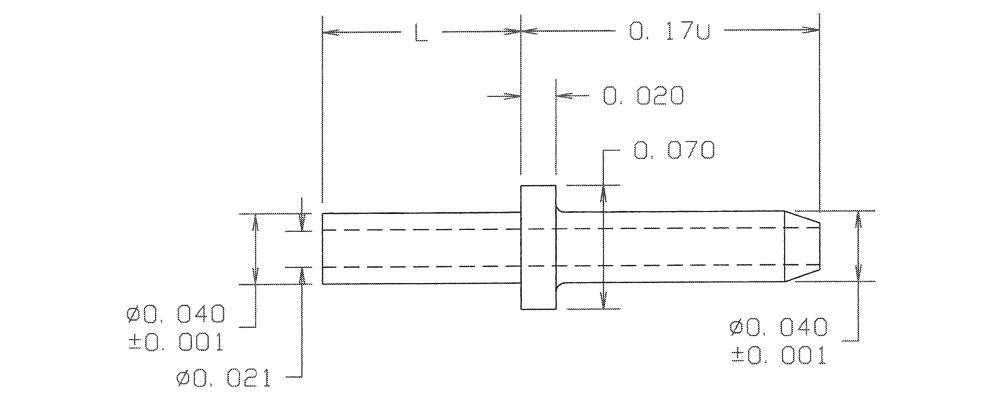

09-8112-2-04
09-8112-2-04
09-8112-2-04
0.252" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

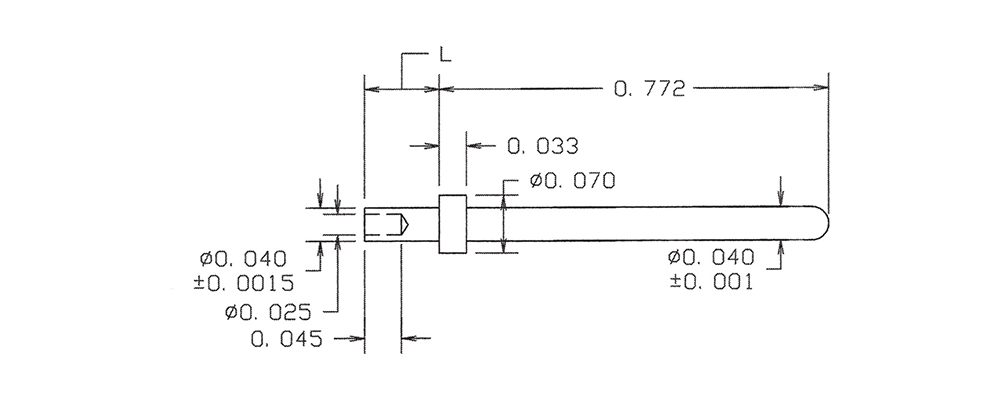

09-8155-2-01
09-8155-2-01
09-8155-2-01
0.863" 0.040 - Swage Mount 0.091" 1/16 0.043 Brass Silver YES

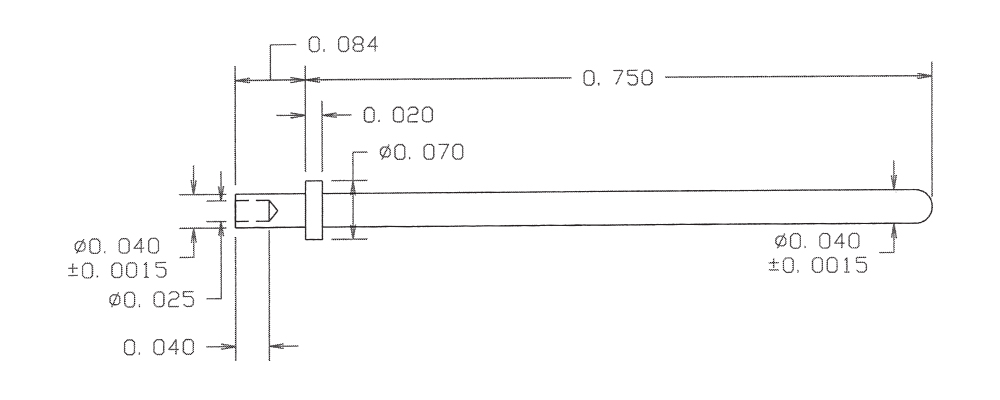

09-8184-2-044
09-8184-2-044
09-8184-2-044
0.834" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin YES

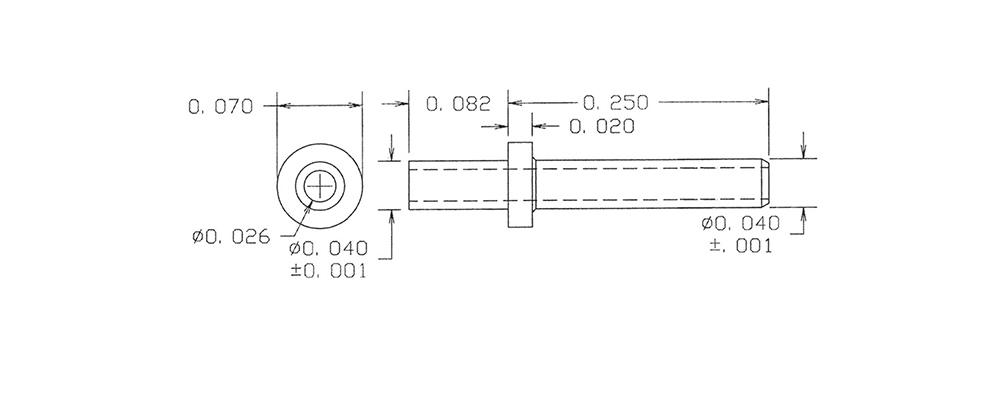

09-8356-2-04
09-8356-2-04
09-8356-2-04
0.332" 0.040 - Swage Mount 0.082" 1/16 0.043 Brass Electro-Tin YES

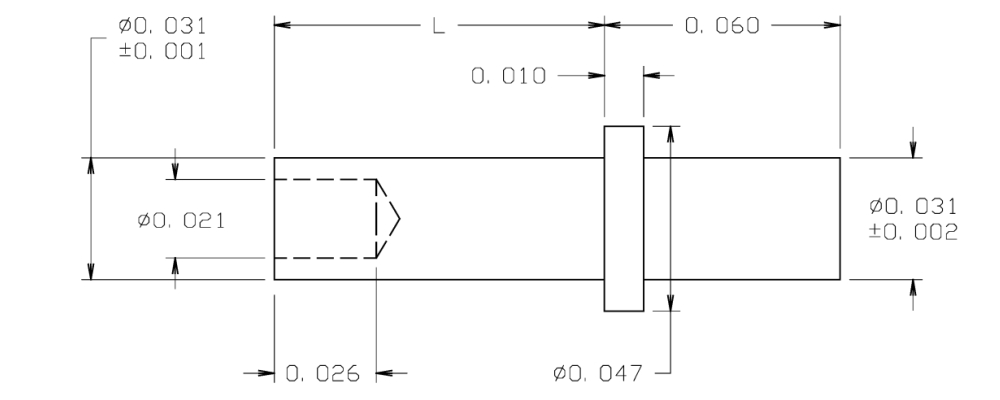

09-8598-3A-03
09-8598-3A-03
09-8598-3A-03
0.182" - - Swage Mount 0.122" 3/32 0.035 Brass Gold YES

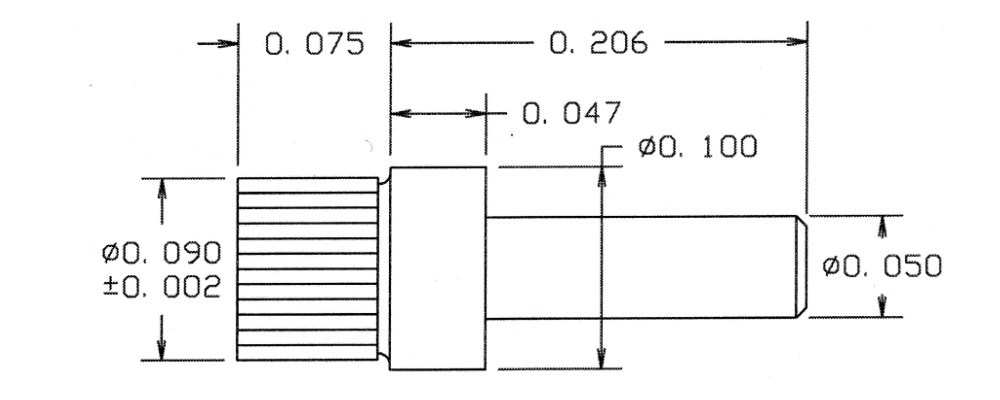

09-8706-1-05
09-8706-1-05
09-8706-1-05
0.281" 0.050 - Press Fit/Solder 0.075" 1/16 0.086 Brass Electro Solder NO
09-8825-1-035
09-8825-1-035
09-8825-1-035
0.488" 0.020 - Solder 0.113" 1/64 TO 3/32 0.035 Brass Gold YES

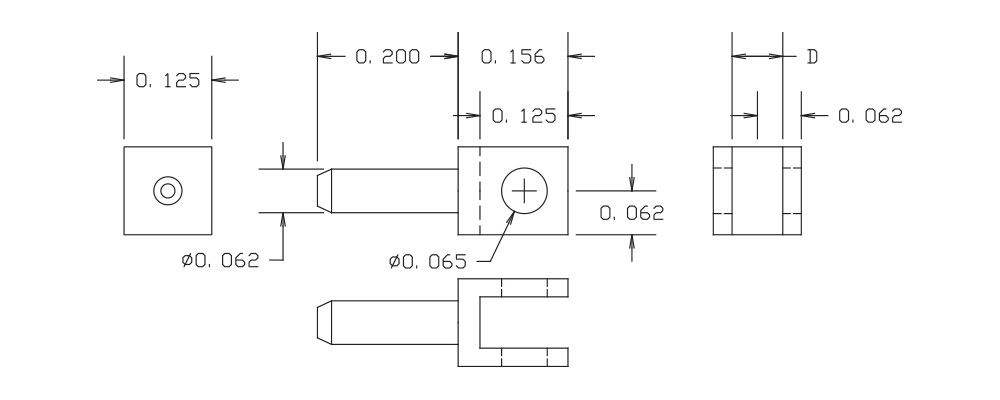

09-9503-1-04
09-9503-1-04
09-9503-1-04
0.356" 0.062 - 0-80 Screw - 1/32 CLEARANCE FOR #0 Screw Brass Electro-Tin YES

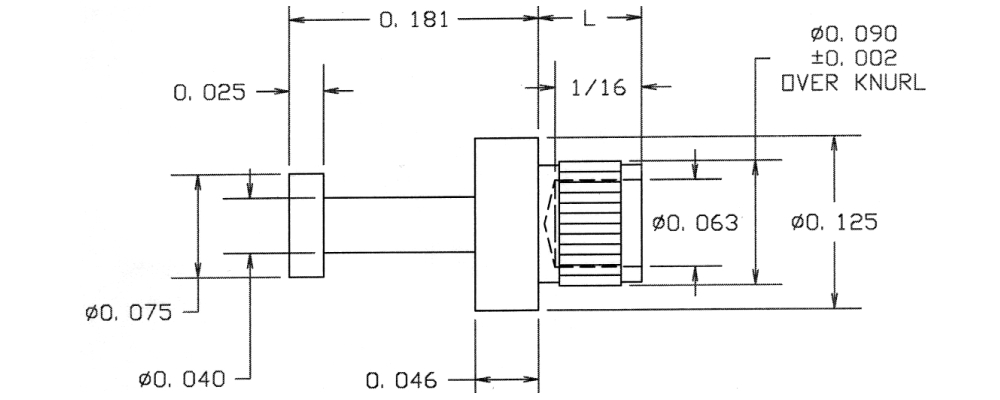

10-106-1-03
10-106-1-03
10-106-1-03
0.256" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES

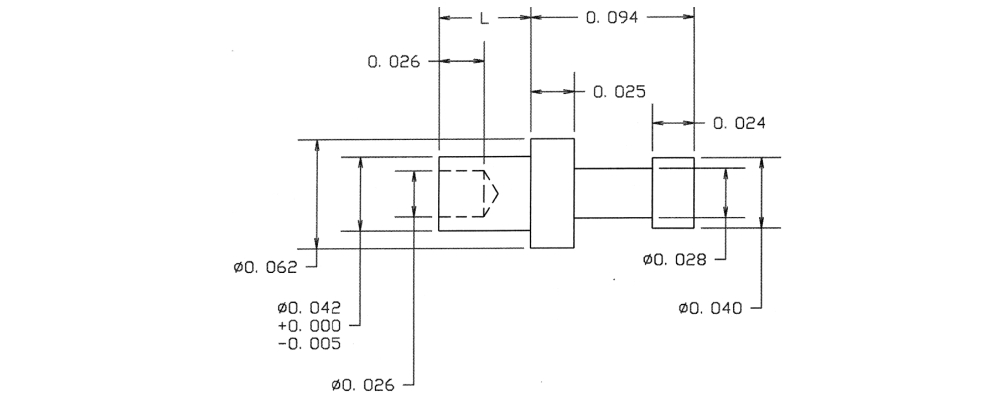

10-114-11-03
10-114-11-03
10-114-11-03
0.131" - - Swage Mount 0.037" 1/64 0.043 Brass Gold YES

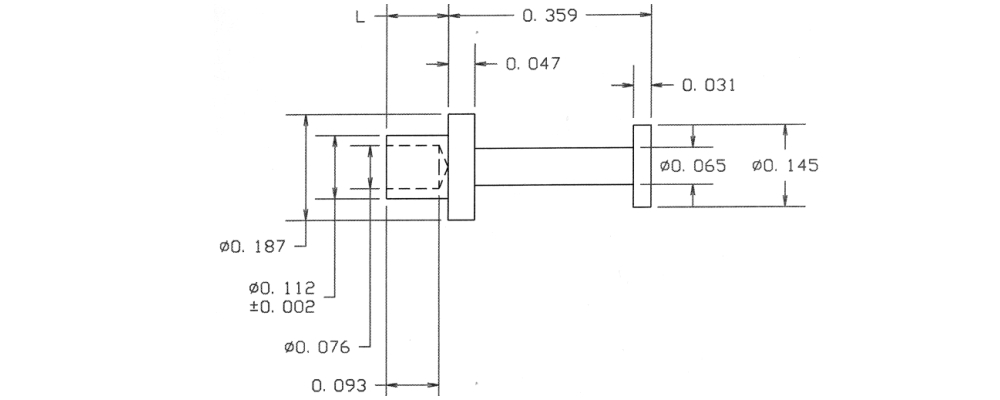

10-135-1-04
10-135-1-04
10-135-1-04
0.437" - - Swage Mount 0.078" 1/32 0.116 Brass Electro-Tin YES
