Commercial
Non-Insulated
Terminals

Filter
09-7145-3-04
09-7145-3-04
09-7145-3-04
0.313" 0.030 - RIVET MOUNT 0.120" 3/32 0.048 Brass Electro-Tin YES

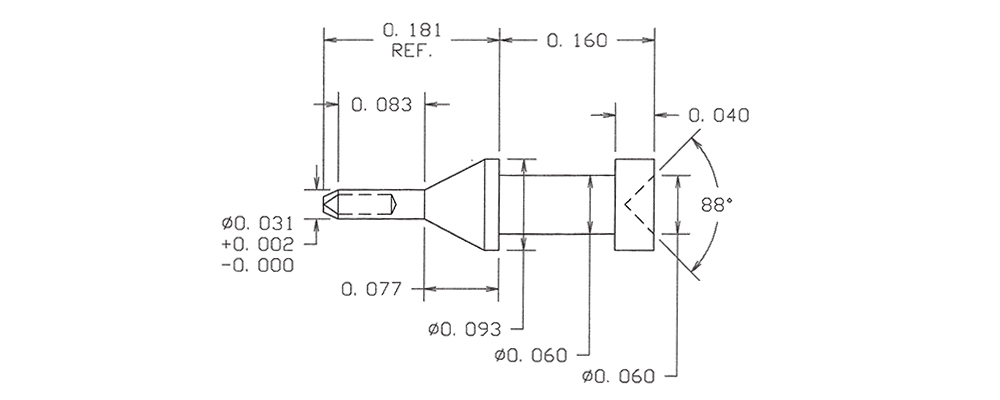

09-7172-2-01
09-7172-2-01
09-7172-2-01
0.341" - - RIVET MOUNT 0.089" 1/16 0.035 Brass Silver YES

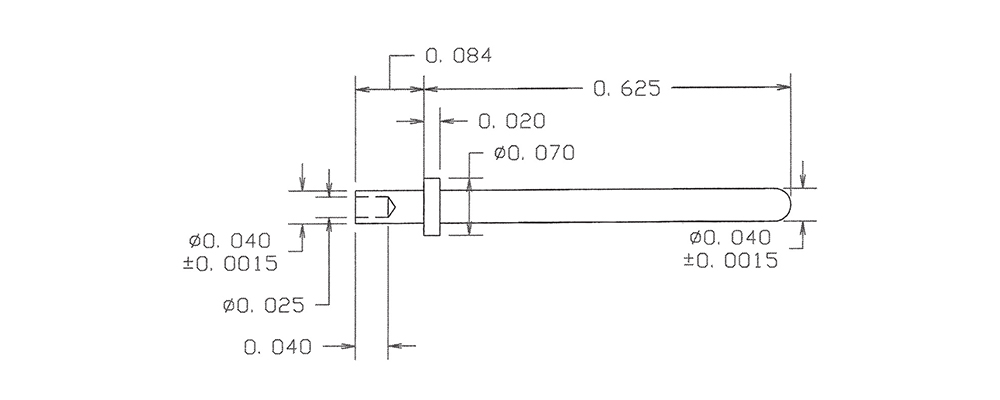

09-8013-2-044
09-8013-2-044
09-8013-2-044
0.709" 0.0405 - Swage Mount 0.084" 1/16 0.043 Brass Bright Tin YES

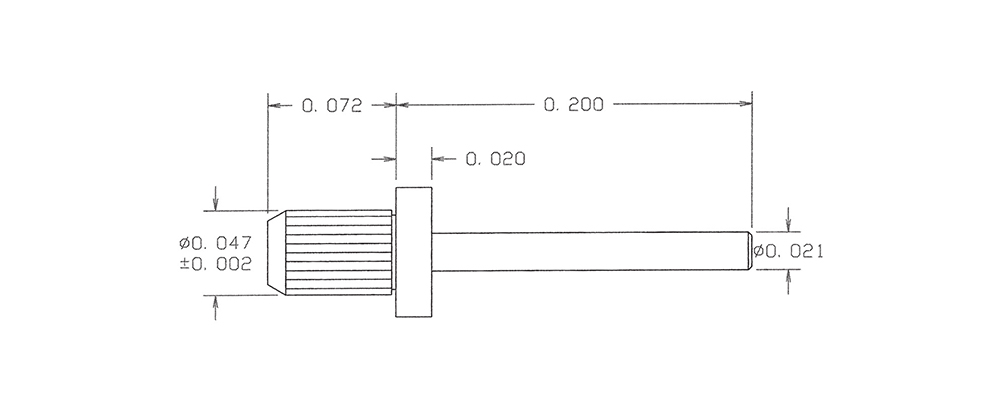

09-8049-1-03
09-8049-1-03
09-8049-1-03
0.272" 0.021 - Press Fit/Solder 0.072" 1/64 TO 1/16 0.0465 Brass Gold YES

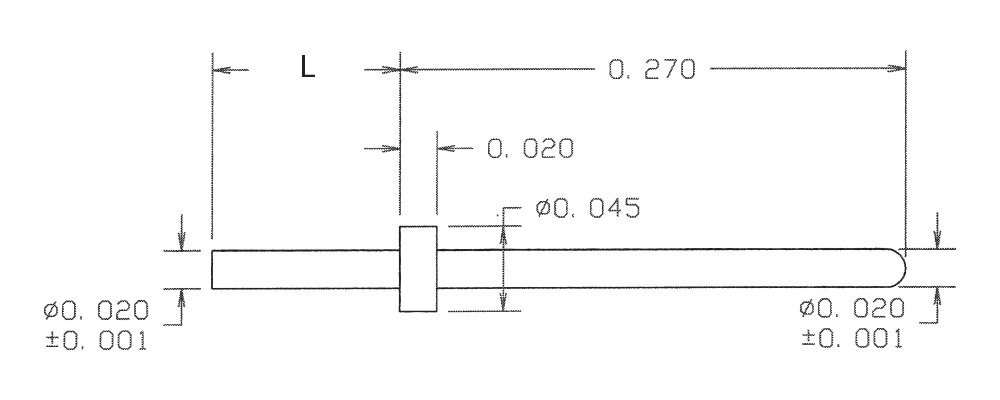

09-8090-2-044
09-8090-2-044
09-8090-2-044
0.370" 0.020 - Solder 0.100" 1/16 0.024 Brass Bright Tin YES

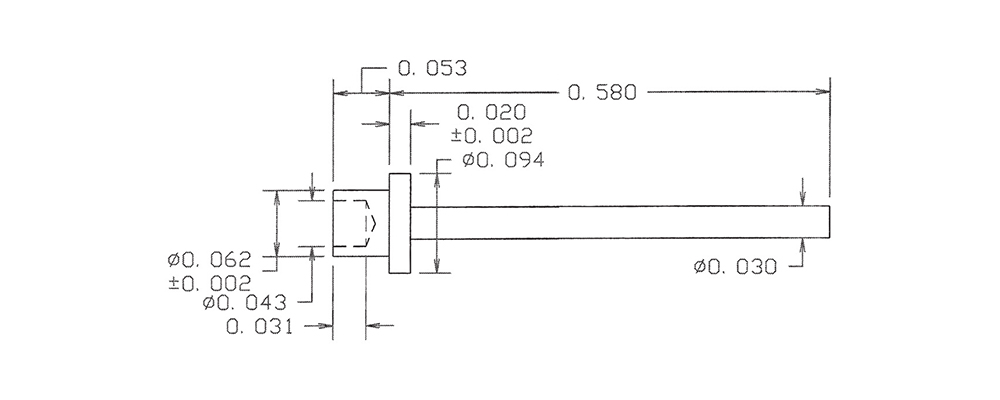

09-8148-1-03
09-8148-1-03
09-8148-1-03
0.633" 0.030 - Swage Mount 0.053" 1/32 0.067 Brass Gold YES

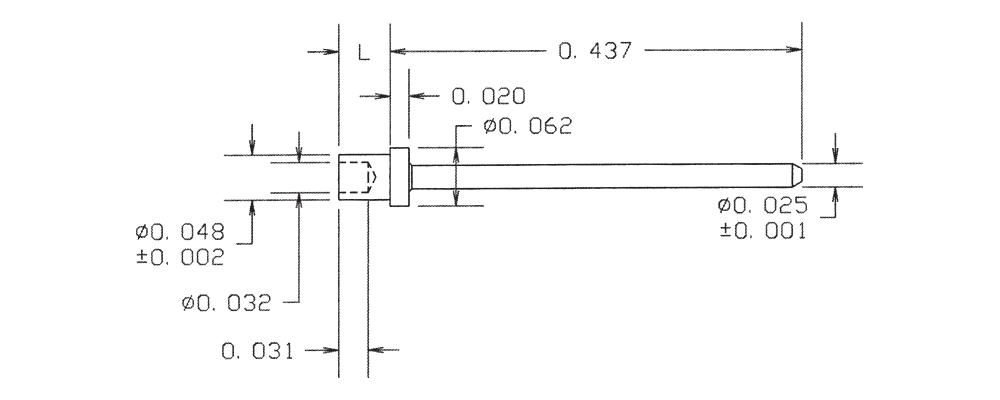

09-8176-1-05
09-8176-1-05
09-8176-1-05
0.491" 0.025 - Swage Mount 0.054" 1/32 0.052 Brass Electro Solder NO

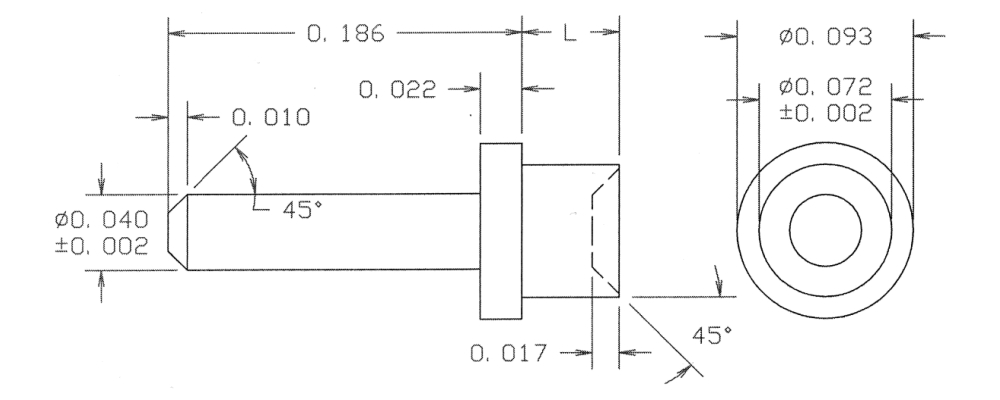

09-8311-2-05
09-8311-2-05
09-8311-2-05
0.268" 0.040 - Swage Mount 0.082" 1/16 0.076 Brass Electro Solder NO

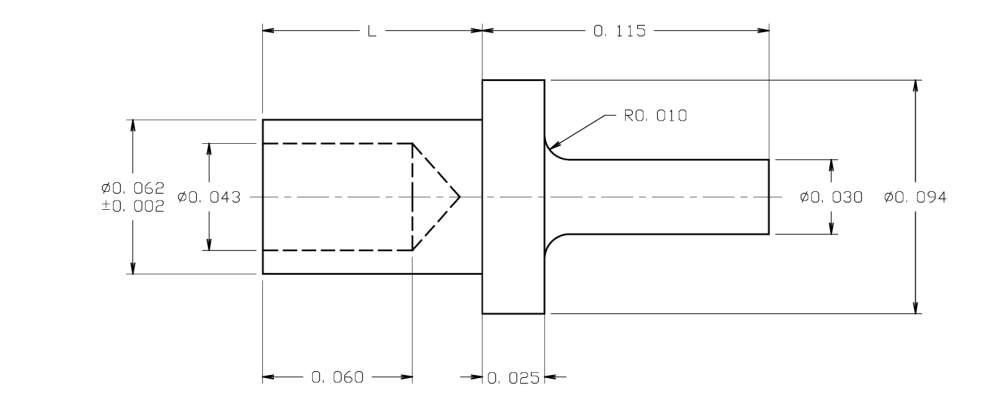

09-8564-2-088
09-8564-2-088
09-8564-2-088
0.214" 0.030 - Swage Mount 0.098" 1/16 0.067 LEADED Red Brass Bright Tin-Lead NO

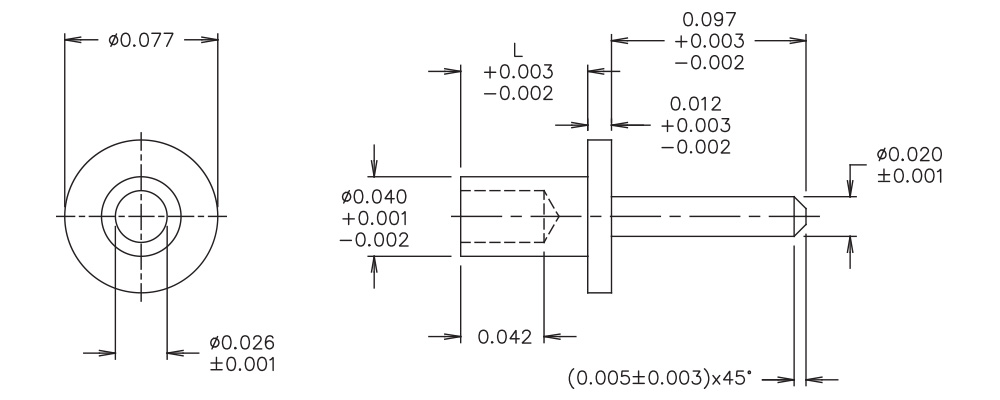

09-8689-4-044
09-8689-4-044
09-8689-4-044
0.235" 0.020 - Swage Mount 0.124" 3/32 0.043 Brass Bright Tin YES

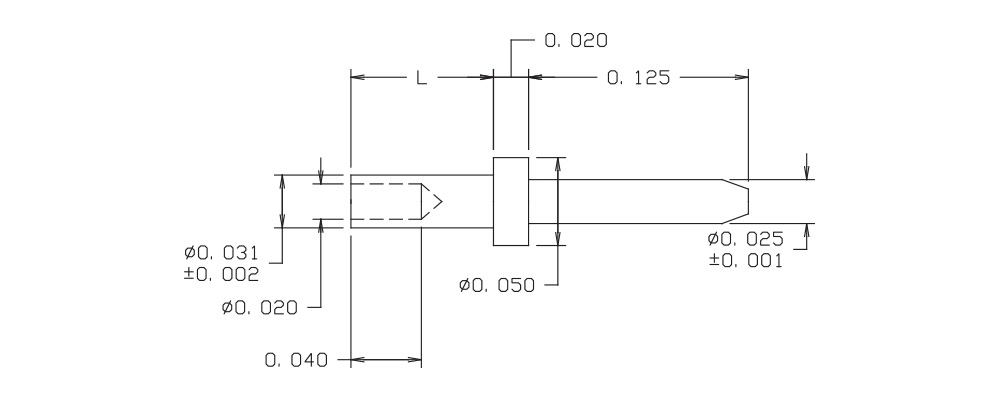

09-8807-1-035
09-8807-1-035
09-8807-1-035
0.196" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

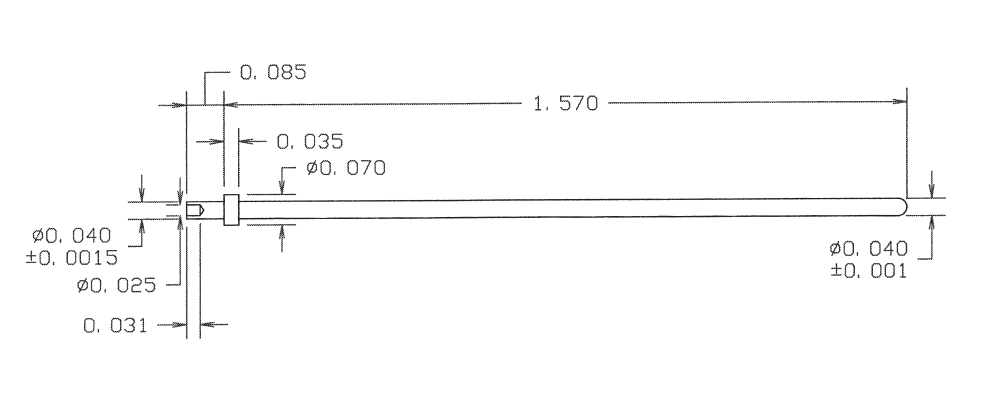

09-8864-2-05
09-8864-2-05
09-8864-2-05
1.655" 0.040 - Swage Mount 0.085" 1/16 0.043 Brass Electro Solder NO

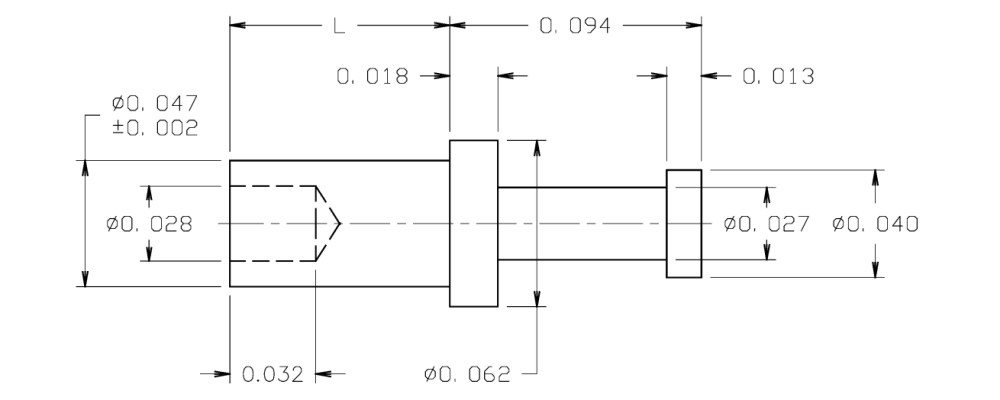

10-104-2-04
10-104-2-04
10-104-2-04
0.176" - - Swage Mount 0.082" 1/16 0.052 Brass Electro-Tin YES

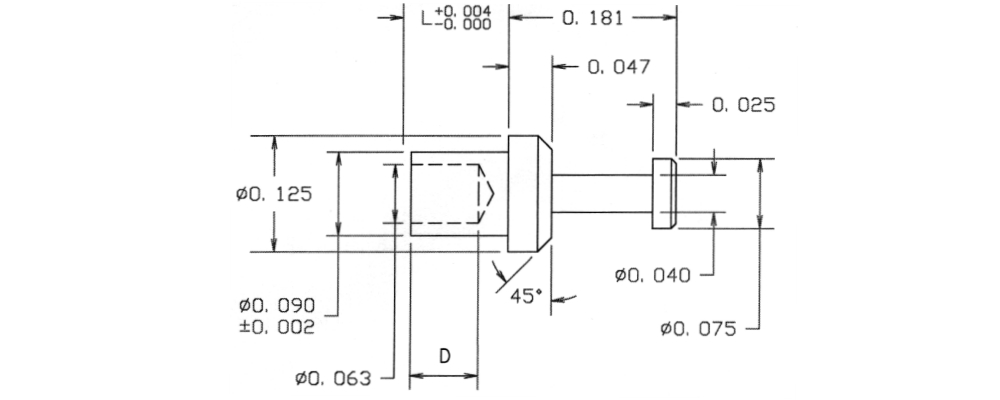

10-111-3-04
10-111-3-04
10-111-3-04
0.316" - - Swage Mount 0.135" 3/32 0.094 Brass Electro-Tin YES

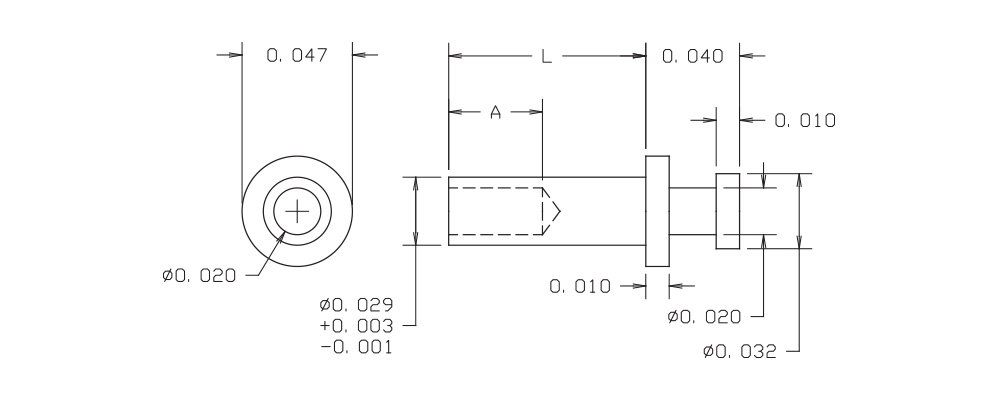

10-133-1-05
10-133-1-05
10-133-1-05
0.093" - - Swage Mount 0.053" 1/32 0.033 Brass Electro Solder NO

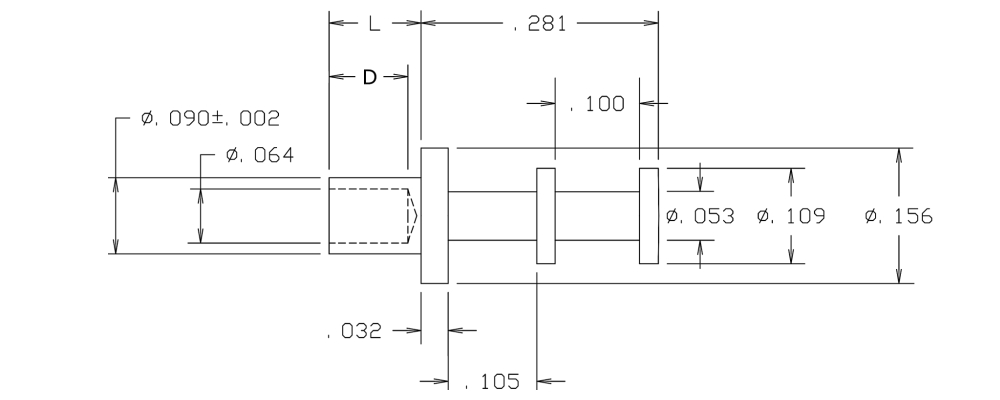

10-203-6-04
10-203-6-04
10-203-6-04
0.515" - - Swage Mount 0.234" 3/16 0.094 Brass Electro-Tin YES

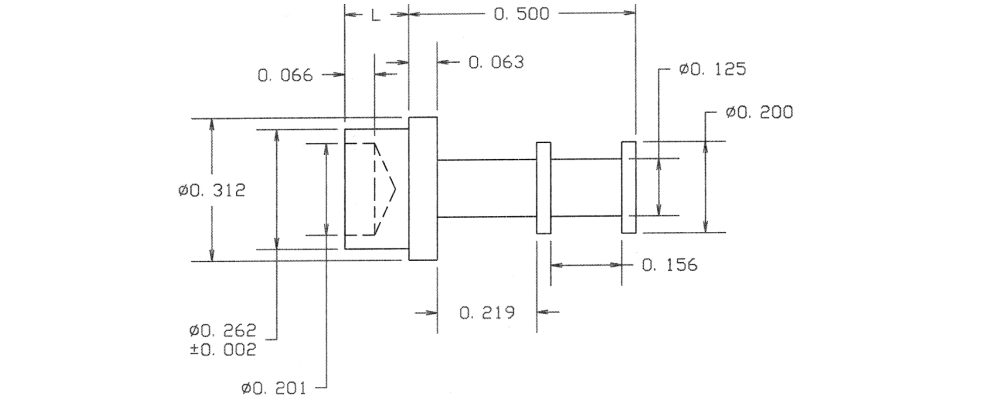

10-211-3-05
10-211-3-05
10-211-3-05
0.641" - - Swage Mount 0.141" 3/32 0.266 Brass Electro Solder NO

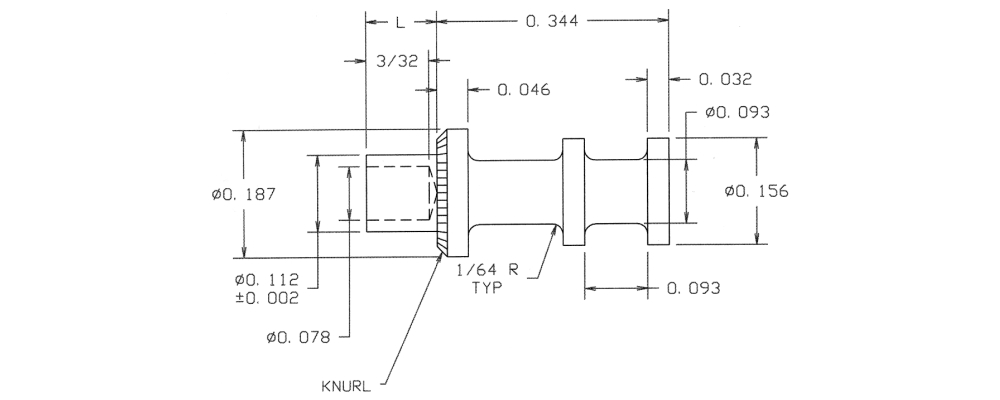

10-217-5-05
10-217-5-05
10-217-5-05
0.539" - - Swage Mount 0.195" 5/32 0.116 Brass Electro Solder NO

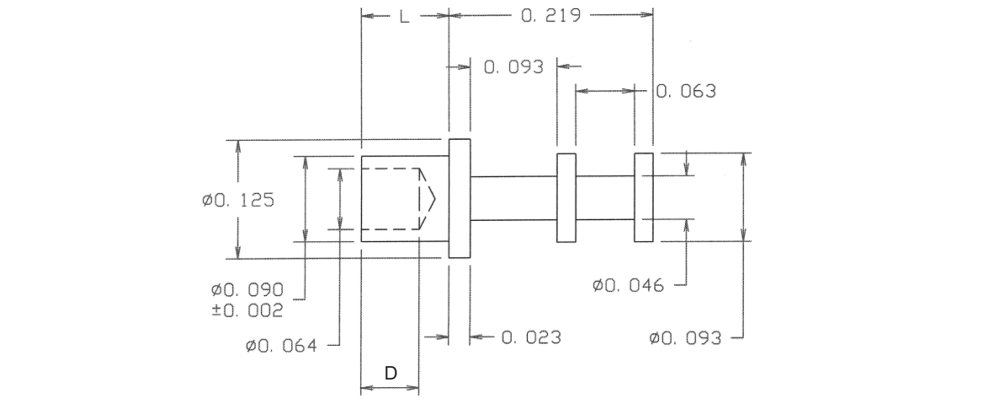

10-228-4-01
10-228-4-01
10-228-4-01
0.375" - - Swage Mount 0.156" 1/8 0.094 ALUMINUM Silver YES

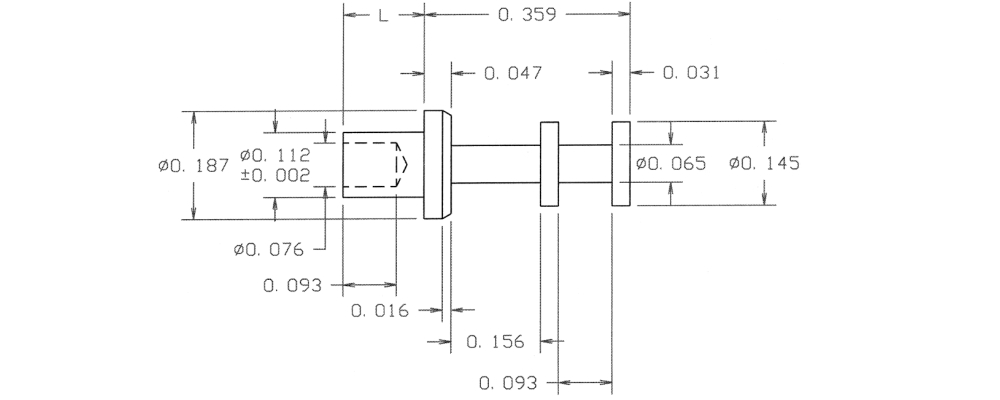

10-247-8-01
10-247-8-01
10-247-8-01
0.656" - - Swage Mount 0.297" 1/4 0.116 Brass Silver YES
