Commercial
Non-Insulated
Terminals

Filter
10-417-2-088
10-417-2-088
10-417-2-088
0.500" - - Swage Mount 0.109" 1/16 0.116 Brass Bright Tin-Lead NO
10-426-1-03
10-426-1-03
10-426-1-03
0.294" - - Swage Mount 0.075" 1/32 0.094 Brass Gold YES

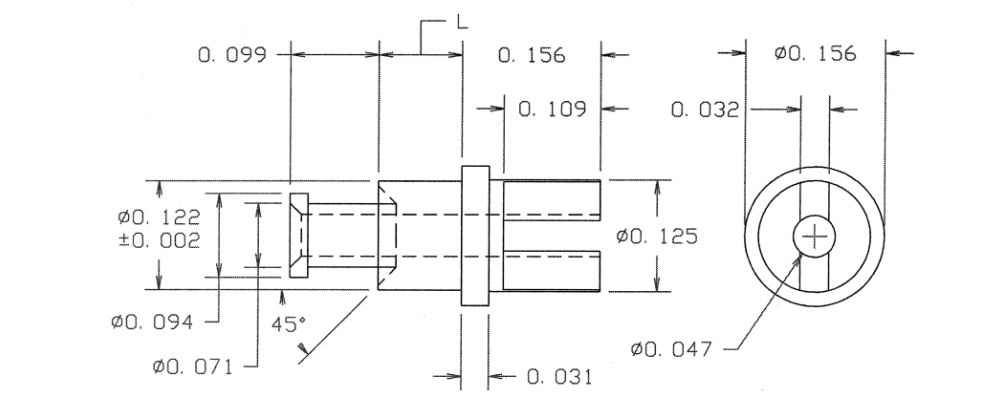

10-443-6-03
10-443-6-03
10-443-6-03
0.474" - SLOTTED/TURRET Swage Mount 0.219" 3/16 0.125 Brass Gold YES

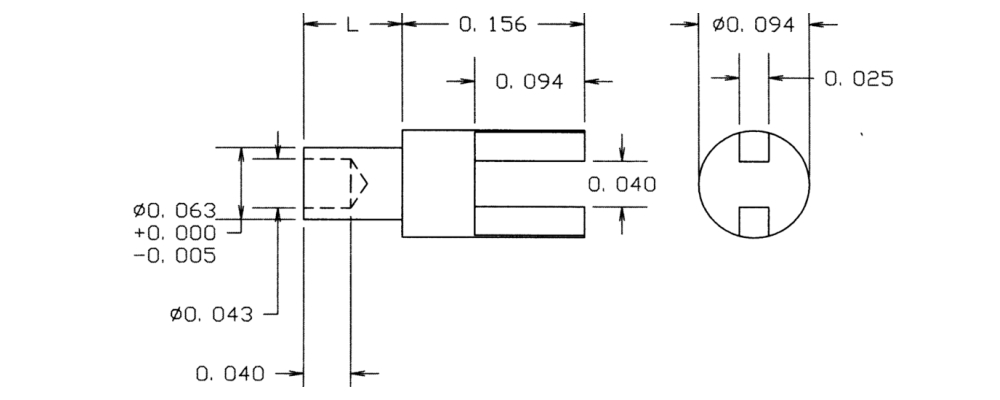

10-459-5-095
10-459-5-095
10-459-5-095
0.334" - - Swage Mount 0.178" 5/32 0.064 Brass Hot Solder Dip NO

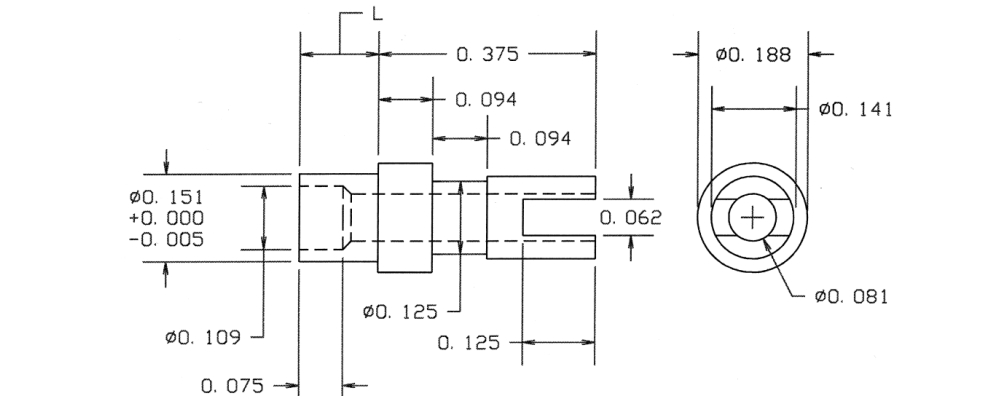

10-470-4-03
10-470-4-03
10-470-4-03
0.540" - - Swage Mount 0.165" 1/8 0.154 Brass Gold YES
10-502-6-03
10-502-6-03
10-502-6-03
0.475" - TURRET/DOUBLE TURRET Swage Mount 0.207" 3/16 0.076 Brass Gold YES
10-508-4A-03
10-508-4A-03
10-508-4A-03
0.609" - TURRET/DOUBLE TURRET Swage Mount 0.165" 1/8 0.206 Brass Gold YES
10-515-2-03
10-515-2-03
10-515-2-03
0.871" 0.094 TURRET/PIN Swage Mount 0.105" 1/16 0.185 Brass Gold YES
10-526-3-03
10-526-3-03
10-526-3-03
0.656" - TURRET/DOUBLE TURRET Swage Mount 0.125" 3/32 0.206 Brass Gold YES
10-544-2-03
10-544-2-03
10-544-2-03
0.335" - Turret/Turret Swage Mount 0.094" 1/16 0.094 Brass Gold YES
10-562-3-03
10-562-3-03
10-562-3-03
0.603" - Double Turret/Double Turret Swage Mount 0.135" 3/32 0.159 Brass Gold YES
10-606-2-05
10-606-2-05
10-606-2-05
0.421" - - Swage Mount 0.105" 1/16 0.094 Brass Electro Solder NO

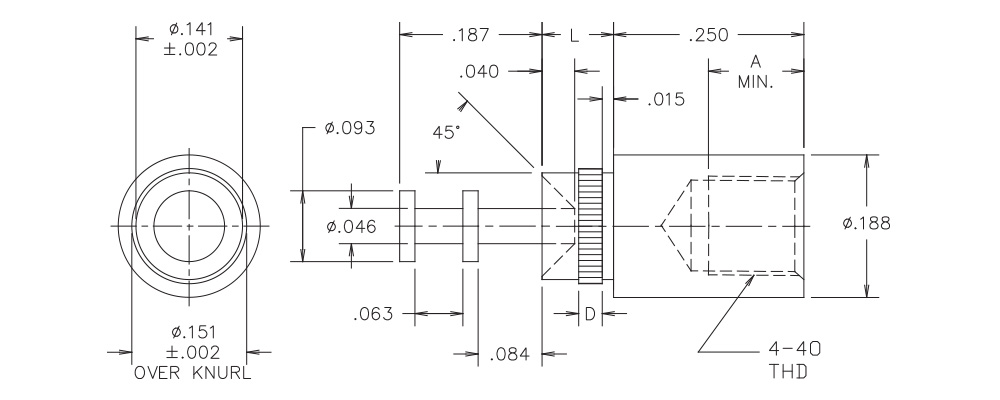

10-710-8-05
10-710-8-05
10-710-8-05
0.722" - DOUBLE TURRET/THREAD Swage Mount 0.285" 1/4 0.144 Brass Electro Solder NO
10-8015-1-05
10-8015-1-05
10-8015-1-05
0.426" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro Solder NO
10-8025-1-04
10-8025-1-04
10-8025-1-04
0.348" 0.040 TURRET/PIN Swage Mount 0.051" 1/32 0.076 Brass Electro-Tin YES
10-808-1-044
10-808-1-044
10-808-1-044
0.549" - - Swage Mount 0.078" 1/32 0.094 Brass Bright Tin YES
10-815-1-035
10-815-1-035
10-815-1-035
0.275" - - Swage Mount 0.075" 1/32 0.1495 Brass Gold YES

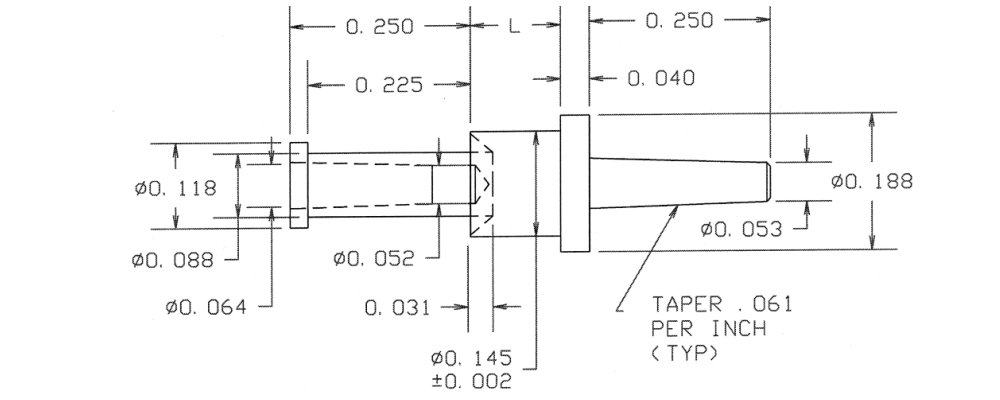

10-824-6-05
10-824-6-05
10-824-6-05
0.759" 0.053 (TAPER) TURRET/TAPER PIN Swage Mount 0.219" 3/16 0.147 Brass Electro Solder NO

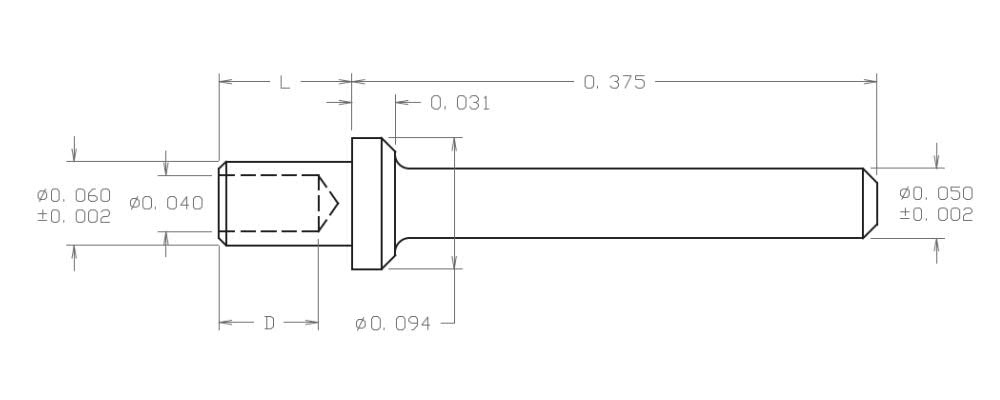

10-834-6-044
10-834-6-044
10-834-6-044
0.594" 0.050 - Swage Mount 0.219" 3/16 0.064 Brass Bright Tin YES
10-846-1-03
10-846-1-03
10-846-1-03
0.403" - - Swage Mount 0.075" 1/32 0.116 Brass Gold YES
