Commercial
Non-Insulated
Terminals

Filter
10-402-4-088
10-402-4-088
10-402-4-088
0.516" - - Swage Mount 0.172" 1/8 0.116 Brass Bright Tin-Lead NO
10-418-3A-044
10-418-3A-044
10-418-3A-044
0.654" - Turret/Turret Swage Mount 0.123" 3/32 0.120 Brass Bright Tin YES
10-432-2-01
10-432-2-01
10-432-2-01
0.542" - - Swage Mount 0.105" 1/16 0.161 Brass Silver YES
10-446-1-03
10-446-1-03
10-446-1-03
0.445" - SLOTTED/DOUBLE TURRET Swage Mount 0.062" 1/32 0.096 Brass Gold YES
10-462-2-03
10-462-2-03
10-462-2-03
0.240" - - Swage Mount 0.084" 1/16 0.052 Brass Gold YES
10-489-3-03
10-489-3-03
10-489-3-03
0.281" - - Swage Mount 0.125" 3/32 0.067 Brass Gold YES
10-504-1-04
10-504-1-04
10-504-1-04
0.469" - Double Turret/Double Turret Swage Mount 0.062" 1/32 0.094 Brass Electro-Tin YES
10-510-1-04
10-510-1-04
10-510-1-04
0.442" - TURRET/DOUBLE TURRET Swage Mount 0.075" 1/32 0.116 Brass Electro-Tin YES
10-519-6-04
10-519-6-04
10-519-6-04
1.155" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.266 Brass Electro-Tin YES
10-532-1-04
10-532-1-04
10-532-1-04
0.543" - Double Turret/Double Turret Swage Mount 0.075" 1/32 0.159 Brass Electro-Tin YES
10-549-6-04
10-549-6-04
10-549-6-04
0.909" - Double Turret/Double Turret Swage Mount 0.230" 3/16 0.206 Brass Electro-Tin YES
10-601-2-04
10-601-2-04
10-601-2-04
0.395" - - Swage Mount 0.094" 1/16 0.094 Brass Electro-Tin YES
10-615-2-095
10-615-2-095
10-615-2-095
0.445" - - Swage Mount 0.105" 1/16 0.090 Brass Hot Solder Dip NO

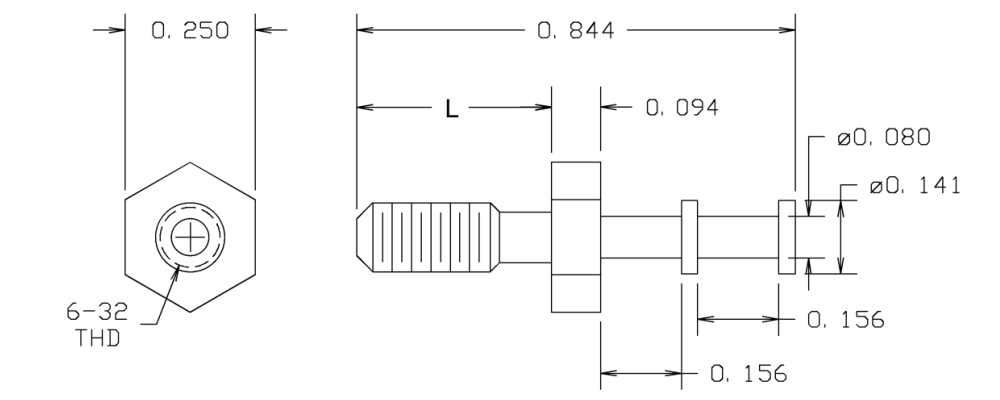

10-717-8-03
10-717-8-03
10-717-8-03
0.719" - - 6-32 - - 6-32 THREAD Brass Gold YES

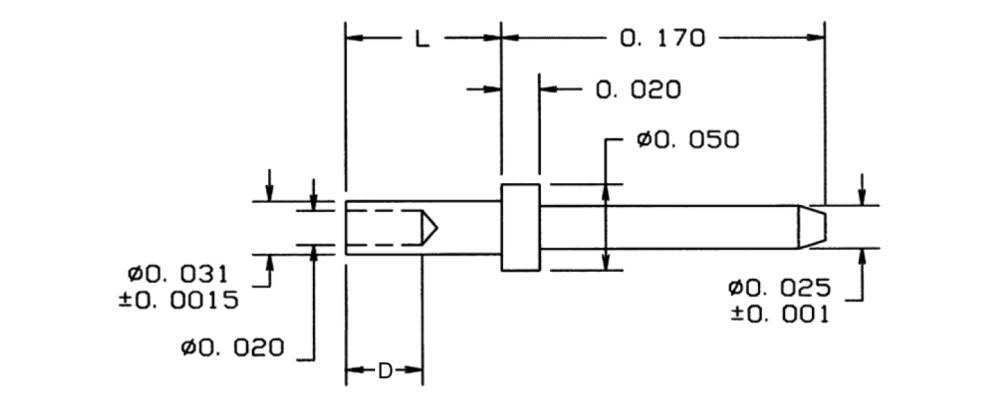

10-8017-1-01
10-8017-1-01
10-8017-1-01
0.221" 0.025 - Swage Mount 0.051" 1/32 0.035 Brass Silver YES
10-803-6-035
10-803-6-035
10-803-6-035
0.582" 0.040 TURRET/PIN Swage Mount 0.207" 3/16 0.076 Brass Gold YES
10-809-4-03
10-809-4-03
10-809-4-03
0.258" - - Swage Mount 0.172" 1/8 0.116 Brass Gold YES
10-816-4-05
10-816-4-05
10-816-4-05
0.365" - - Swage Mount 0.165" 1/8 0.1495 Brass Electro Solder NO
10-826-5-03
10-826-5-03
10-826-5-03
0.523" - - Swage Mount 0.195" 5/32 0.081 Brass Gold YES
10-837-3-01
10-837-3-01
10-837-3-01
0.469" 0.050 Pin/Pin Swage Mount 0.125" 3/32 0.111 Brass Silver YES
