Military
Non-Insulated
Terminals

Filter

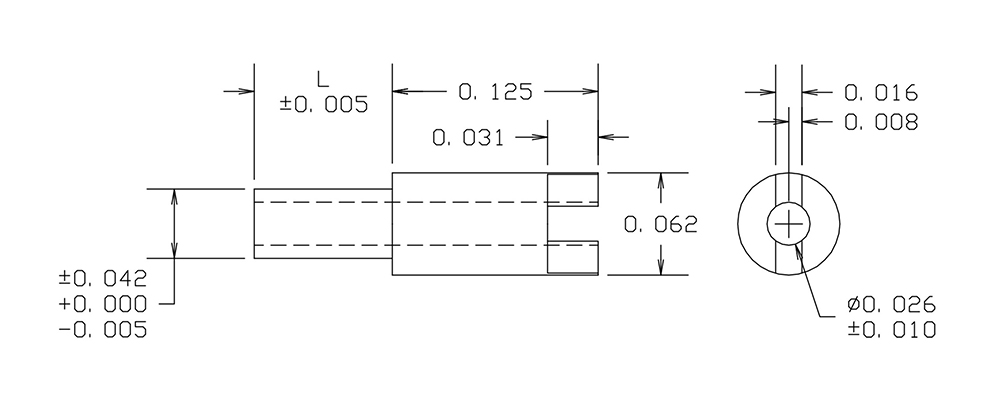

15-494-3-095
15-494-3-095
15-494-3-095
0.240" - Swage Mount 0.115" 3/32 0.043 Brass Hot Solder Dip M55155/24XI13 AA59126/24XI13

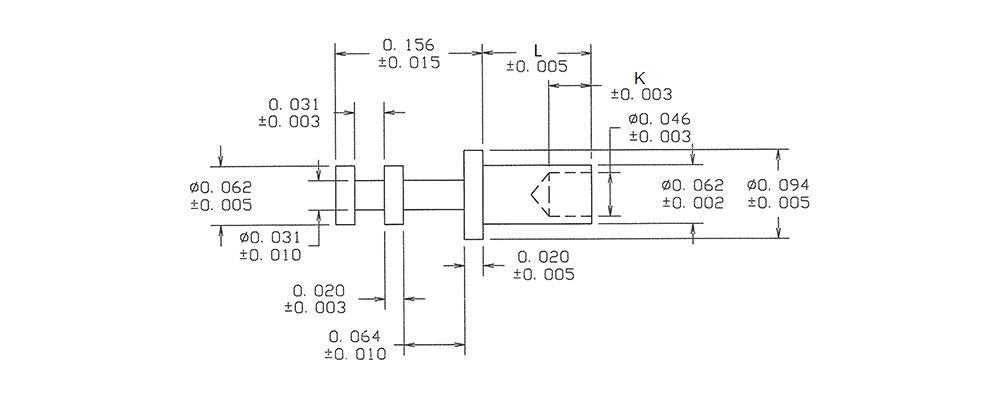

15R-214-4-05
15R-214-4-05
15R-214-4-05
0.303" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Electro Solder M55155/30XB13 AA59126/30XB13

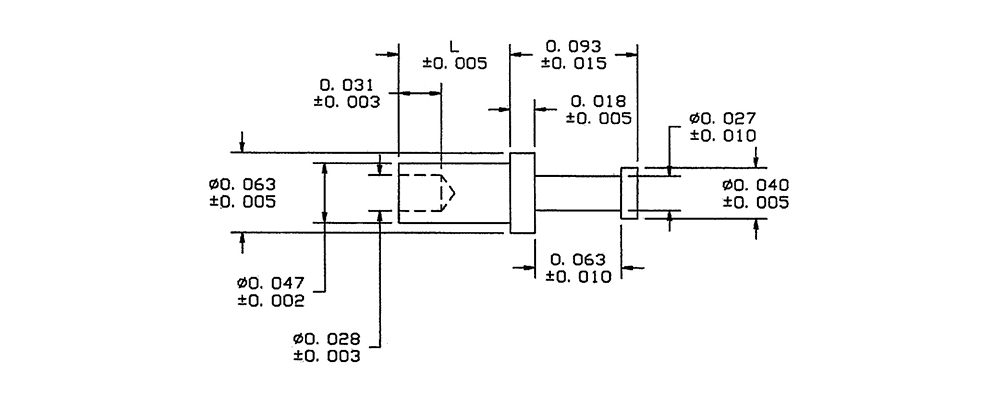

15-104-11-088
15-104-11-088
15-104-11-088
0.128" - Swage Mount 0.035" 1/64 0.052 Brass Bright Tin-Lead M55155/29XJ01 AA59126/29XJ01

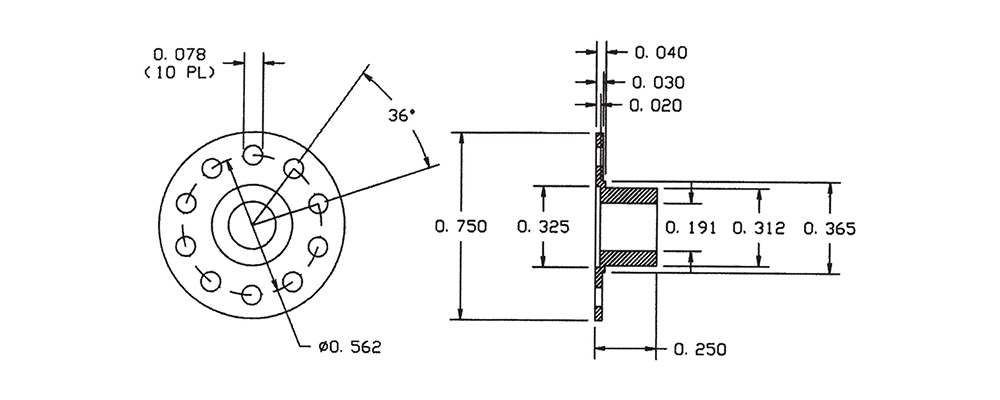

09-0017-1M-095
09-0017-1M-095
09-0017-1M-095
0.250" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Hot Solder Dip M55155/26XI02 AA59126/26II02
15-494-4-05
15-494-4-05
15-494-4-05
0.272" - Swage Mount 0.147" 1/8 0.043 Brass Electro Solder M55155/24XH14 AA59126/24XH14
15R-214-4-088
15R-214-4-088
15R-214-4-088
0.303" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Bright Tin-Lead M55155/30XD13 AA59126/30XD13
15-104-11-095
15-104-11-095
15-104-11-095
0.128" - Swage Mount 0.035" 1/64 0.052 Brass Hot Solder Dip M55155/29XI01 AA59126/29XI01

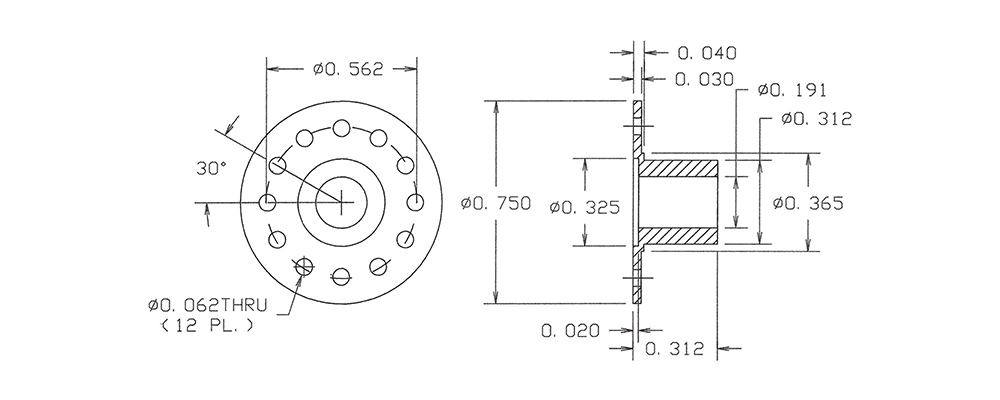

09-0018-1M-05
09-0018-1M-05
09-0018-1M-05
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Electro Solder M55155/26XH01 AA59126/26XH01
15-494-4-088
15-494-4-088
15-494-4-088
0.272" - Swage Mount 0.147" 1/8 0.043 Brass Bright Tin-Lead M55155/24XJ14 AA59126/24XJ14
15R-214-4-095
15R-214-4-095
15R-214-4-095
0.303" - Swage Mount 0.147" 1/8 0.067 Phosphor Bronze Hot Solder Dip M55155/30XC13 AA59126/30XC13

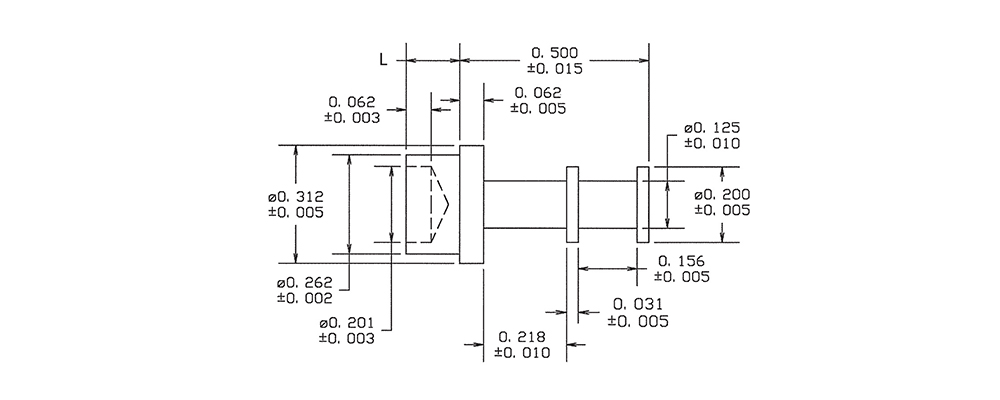

15-211-4-05
15-211-4-05
15-211-4-05
0.671" - Swage Mount 0.171" 1/8 0.266 Brass Electro Solder M55155/30XH16 AA59166/30XH16
09-0018-1M-088
09-0018-1M-088
09-0018-1M-088
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Bright Tin-Lead M55155/26XJ01 AA59126/26XJ01
15-494-4-095
15-494-4-095
15-494-4-095
0.272" - Swage Mount 0.147" 1/8 0.043 Brass Hot Solder Dip M55155/24XI14 AA59126/24XI14

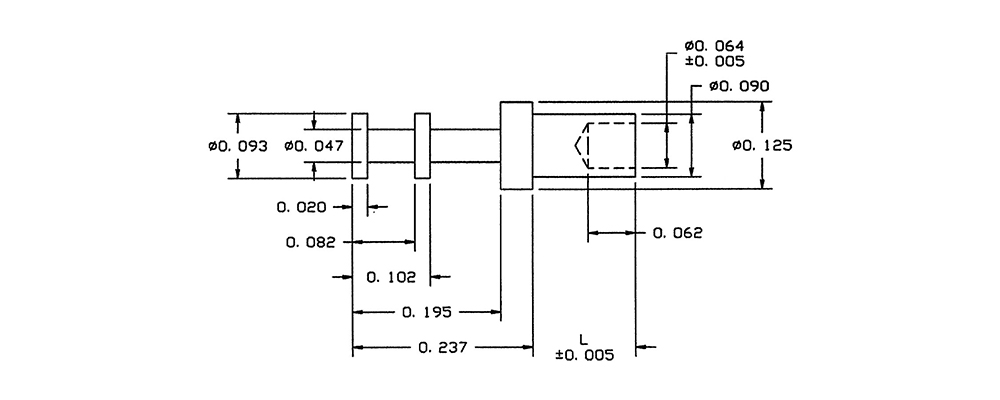

15R-216-2-05
15R-216-2-05
15R-216-2-05
0.342" - Swage Mount 0.105" 1/16 0.094 Phosphor Bronze Electro Solder M55155/12XB04 AA59126/12XB04
15-211-4-088
15-211-4-088
15-211-4-088
0.671" - Swage Mount 0.171" 1/8 0.266 Brass Bright Tin-Lead M55155/30XJ16 AA59166/30XJ16
09-0018-1M-095
09-0018-1M-095
09-0018-1M-095
0.312" - 8-32 Screw - - CLEARANCE FOR #8 Screw Brass Hot Solder Dip M55155/26XI01 AA59126/26XI01

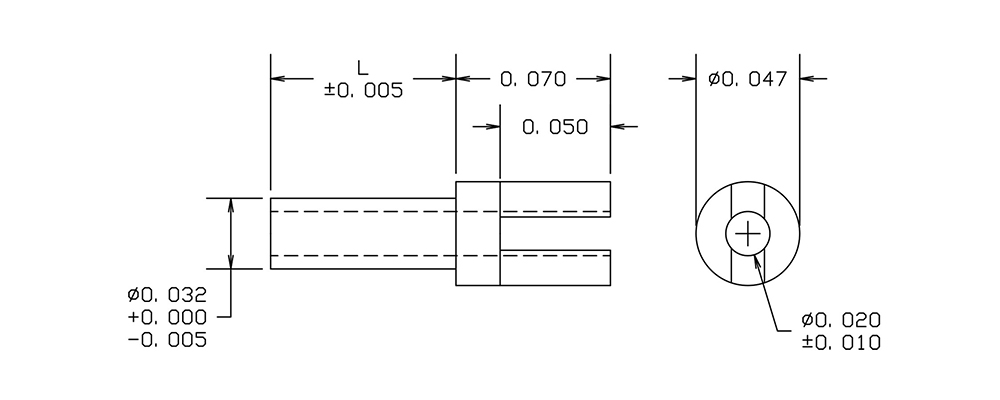

15-499-1-05
15-499-1-05
15-499-1-05
0.123" - Swage Mount 0.053" 1/32 0.033 Brass Electro Solder M55155/24XH15 AA59126/24XH15
15R-216-2-088
15R-216-2-088
15R-216-2-088
0.342" - Swage Mount 0.105" 1/16 0.094 Phosphor Bronze Bright Tin-Lead M55155/12XD04 AA59126/12XD04
15-211-4-095
15-211-4-095
15-211-4-095
0.671" - Swage Mount 0.171" 1/8 0.266 Brass Hot Solder Dip M55155/30XI16 AA59166/30XI16

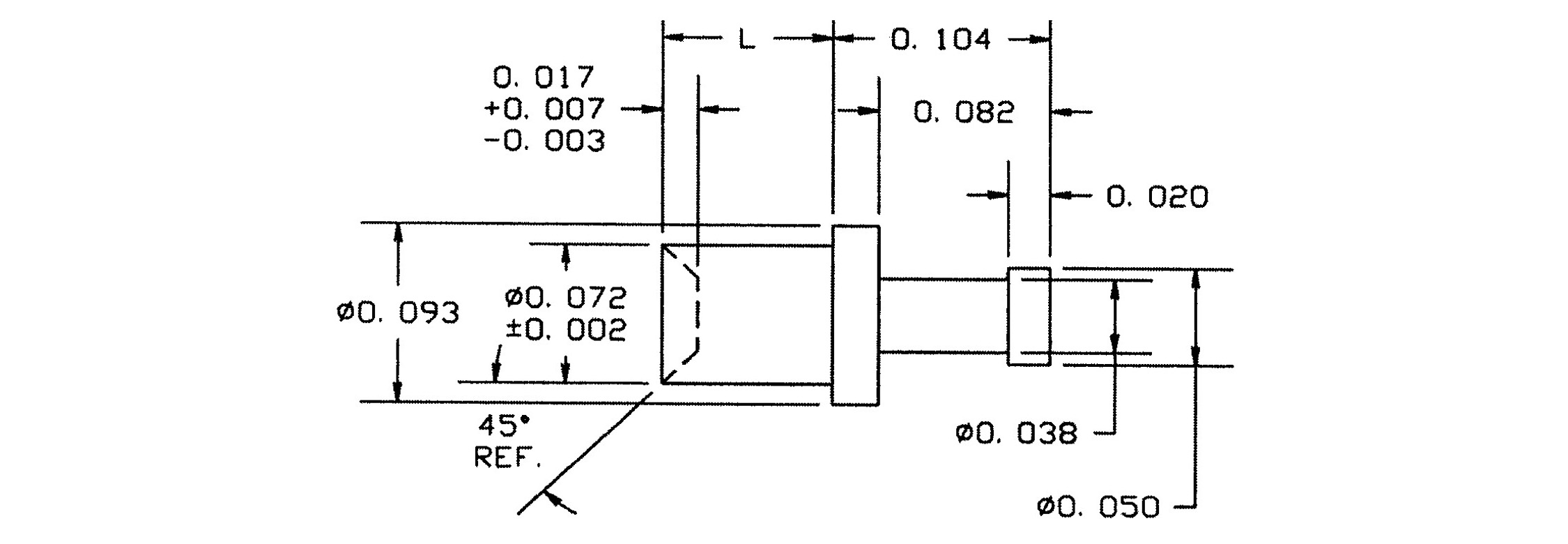

15-101-2-05
15-101-2-05
15-101-2-05
0.186" - Swage Mount 0.082" 1/16 0.076 Brass Electro Solder M55155/11XH01 AA59126/11XH01
