Commercial
Non-Insulated
Wire-Applied
Terminals

09-0220-4-035
09-0220-4-035
09-0220-4-035
Brass Gold 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG YES

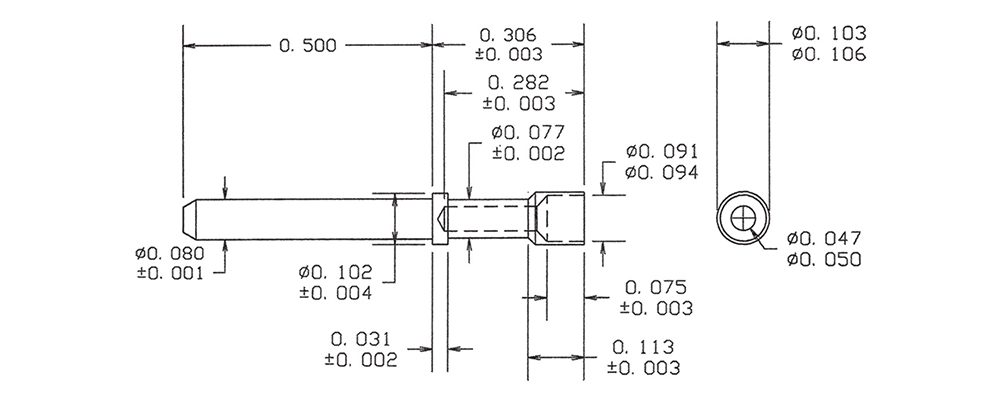

09-8834-1-04
09-8834-1-04
09-8834-1-04
Brass Electro-Tin 0.806" 0.080 0.169 " 22 AWG YES
09-8085-2-044
09-8085-2-044
09-8085-2-044
Brass Bright Tin 0.681" 0.080 0.169 " 22 AWG YES
09-0229-4-04
09-0229-4-04
09-0229-4-04
Brass Electro-Tin 0.280" 0.045 (+0.002/-0.001) 0.120 " 22 AWG YES
09-0211-4-04
09-0211-4-04
09-0211-4-04
Brass Electro-Tin 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0248-5-04
09-0248-5-04
09-0248-5-04
Brass Electro-Tin 0.560" 0.045 0.165 " 22 AWG YES
09-0211-4-05
09-0211-4-05
09-0211-4-05
Brass Electro Solder 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG NO
10-8501-3-088
10-8501-3-088
10-8501-3-088
Brass Bright Tin-Lead 0.796" 0.080 0.267 " 20 AWG NO
09-8106-1-088
09-8106-1-088
09-8106-1-088
Brass Bright Tin-Lead 0.313" 0.025 0.075 " 28 AWG NO

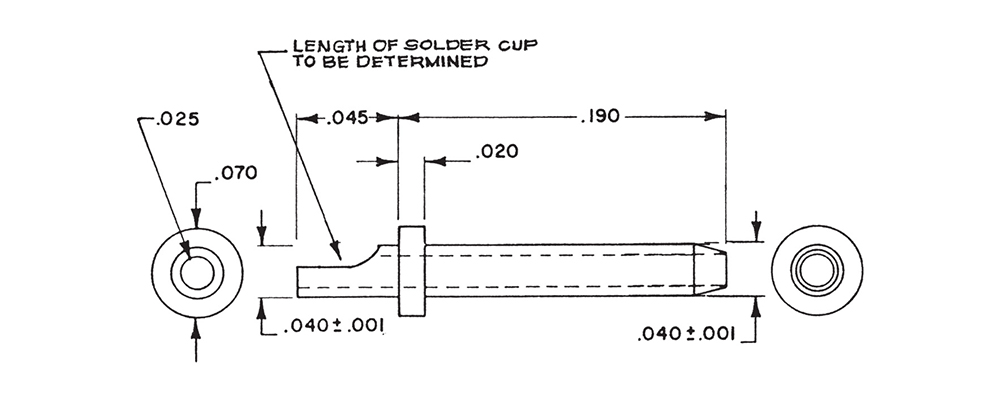

09-8639-1-088
09-8639-1-088
09-8639-1-088
Brass Bright Tin-Lead 0.235" 0.040 0.045 " 28 AWG NO
09-8883-1-088
09-8883-1-088
09-8883-1-088
Brass Bright Tin-Lead 0.388" 0.025 0.075 " 28 AWG NO
09-0220-4-088
09-0220-4-088
09-0220-4-088
Brass Bright Tin-Lead 0.380" 0.045 (+0.002/-0.001) 0.220 " 22 AWG NO
09-8862-1-03
09-8862-1-03
09-8862-1-03
Phosphor Bronze Gold 0.560" 0.040 0.110 " 24 AWG YES
09-8834-1-035
09-8834-1-035
09-8834-1-035
Brass Gold 0.806" 0.080 0.169 " 22 AWG YES
10-8501-2-03
10-8501-2-03
10-8501-2-03
Brass Gold 0.671" 0.080 0.267 " 20 AWG YES
10-8501-1-03
10-8501-1-03
10-8501-1-03
Brass Gold 0.496" 0.080 0.267 " 20 AWG YES
09-8085-2-035
09-8085-2-035
09-8085-2-035
Brass Gold 0.681" 0.080 0.169 " 22 AWG YES
09-0248-5-035
09-0248-5-035
09-0248-5-035
Brass Gold 0.560" 0.045 0.165 " 22 AWG YES
09-0211-4-035
09-0211-4-035
09-0211-4-035
Brass Gold 0.290" 0.045 (+0.002/-0.001) 0.220 " 20 AWG YES
09-0231-4-044
09-0231-4-044
09-0231-4-044
Brass Bright Tin 0.380" 0.045 (+0.002/-0.001) 0.220 " 18 AWG YES
