Commercial
Non-Insulated
Terminals

Filter

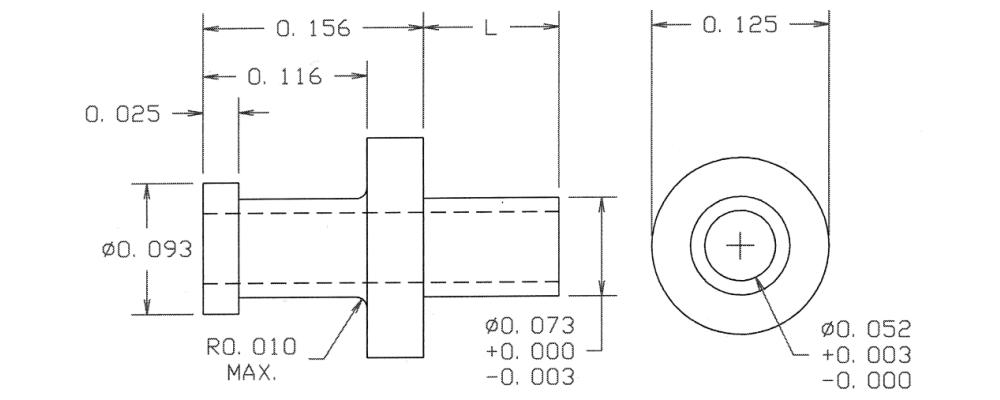

09-0078-3-088
09-0078-3-088
09-0078-3-088
0.271" - - Swage Mount 0.115" 3/32 0.076 Brass Bright Tin-Lead NO

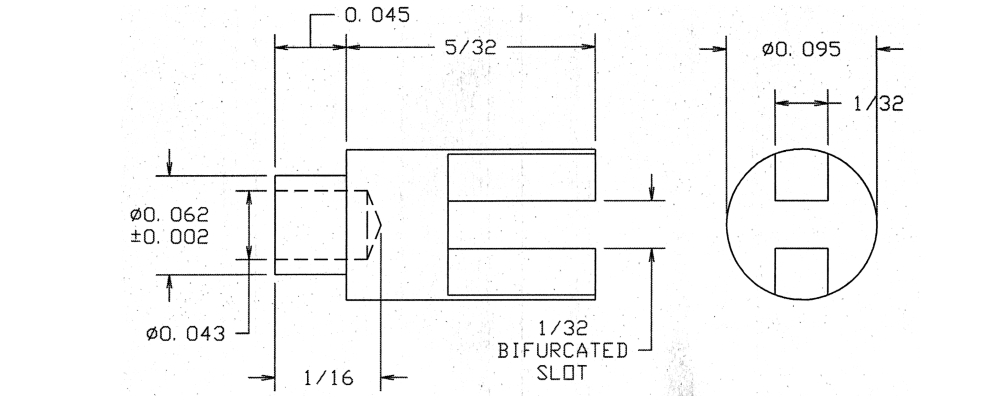

09-0166-1-01
09-0166-1-01
09-0166-1-01
0.201" - - Swage Mount 0.045" 1/32 0.067 Brass Silver YES

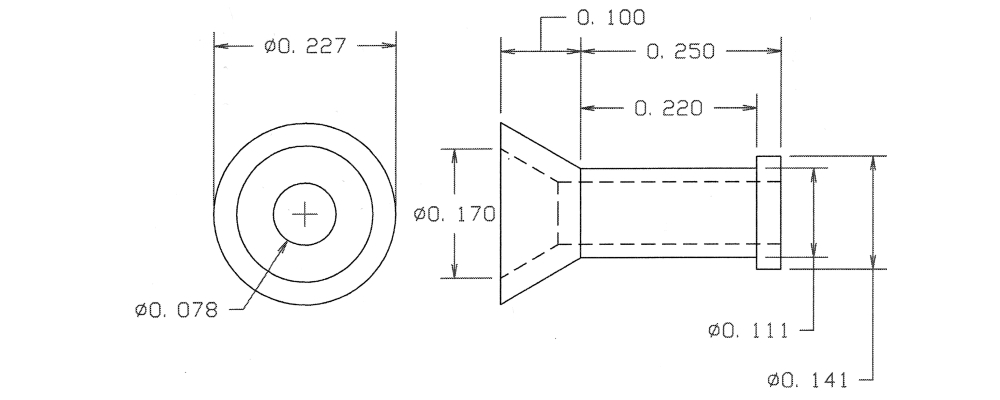

09-0205-1-035
09-0205-1-035
09-0205-1-035
0.350" - - Solder - - - Brass Gold YES

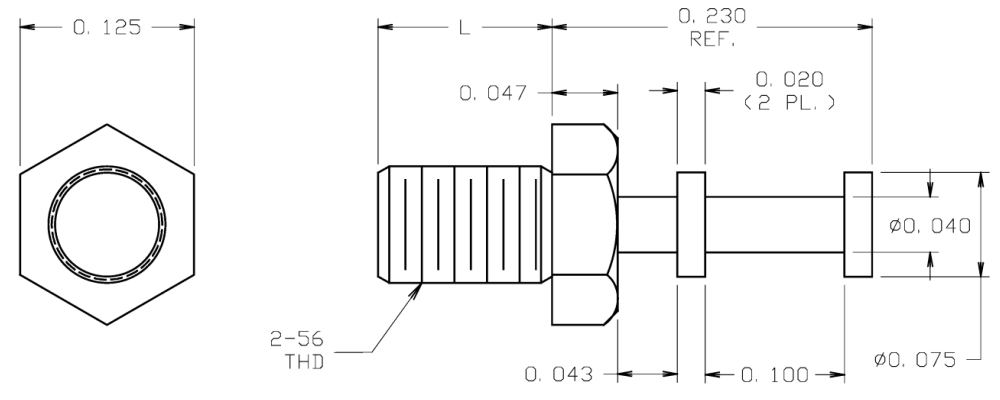

09-0241-1-01
09-0241-1-01
09-0241-1-01
0.293" - - 2-56 - - 2-56 THREAD Brass Silver YES

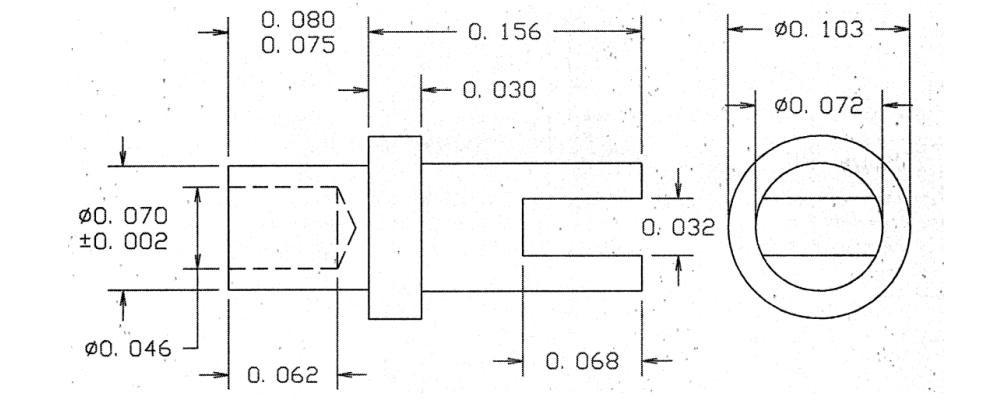

09-0286-2-03
09-0286-2-03
09-0286-2-03
0.234" - - Swage Mount 0.078" 1/16 0.076 Brass Gold YES

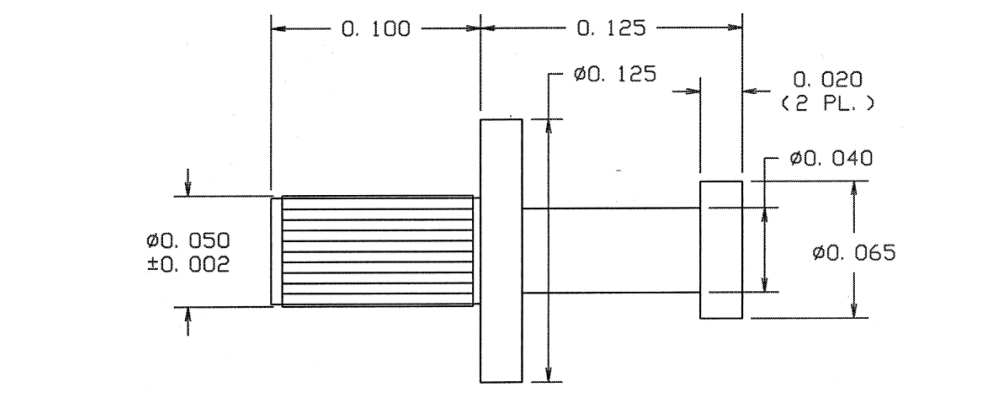

09-0352-3-035
09-0352-3-035
09-0352-3-035
0.225" - - Press Fit/Solder 0.100" 3/32 0.047 Brass Gold YES

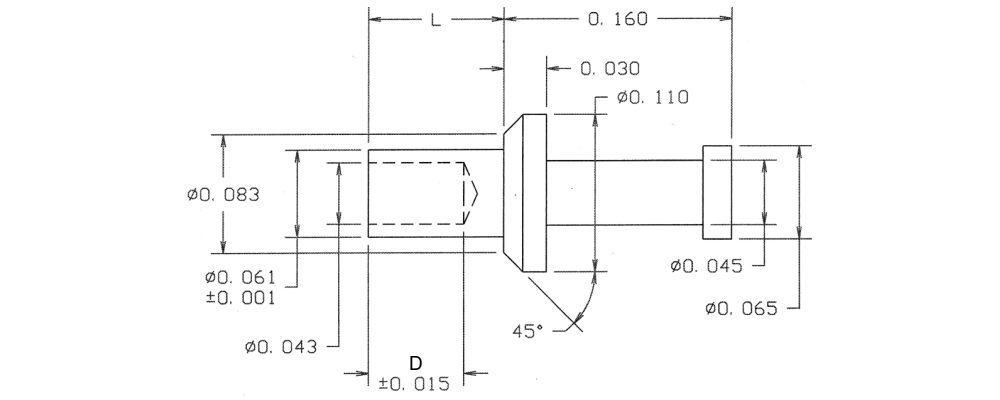

09-7012-1-095
09-7012-1-095
09-7012-1-095
0.222" - - Swage Mount 0.062" 1/32 0.067 Brass Hot Solder Dip NO

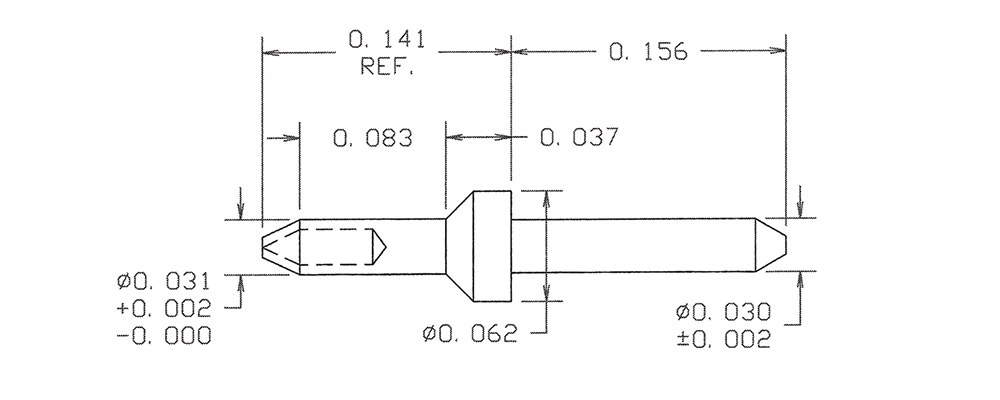

09-7115-2-035
09-7115-2-035
09-7115-2-035
0.297" 0.030 - RIVET MOUNT 0.083" 1/16 0.035 Brass Gold YES

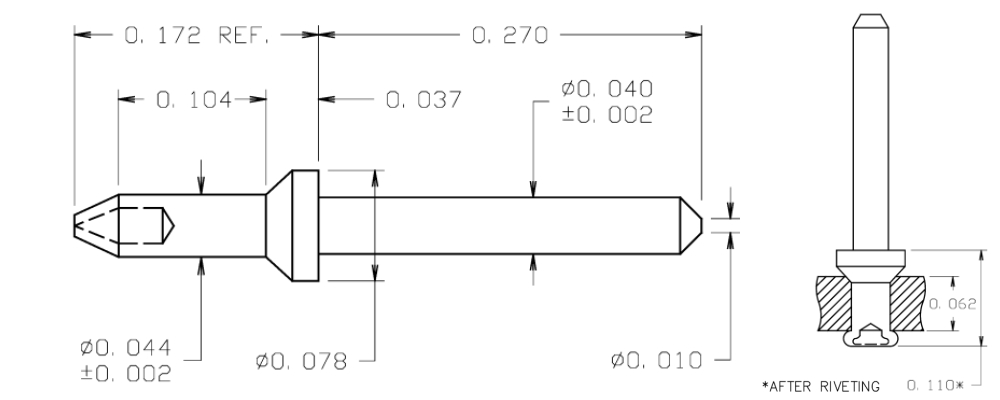

09-7148-2-088
09-7148-2-088
09-7148-2-088
0.442" 0.040 - RIVET MOUNT 0.104" 1/16 0.048 Brass Bright Tin-Lead NO

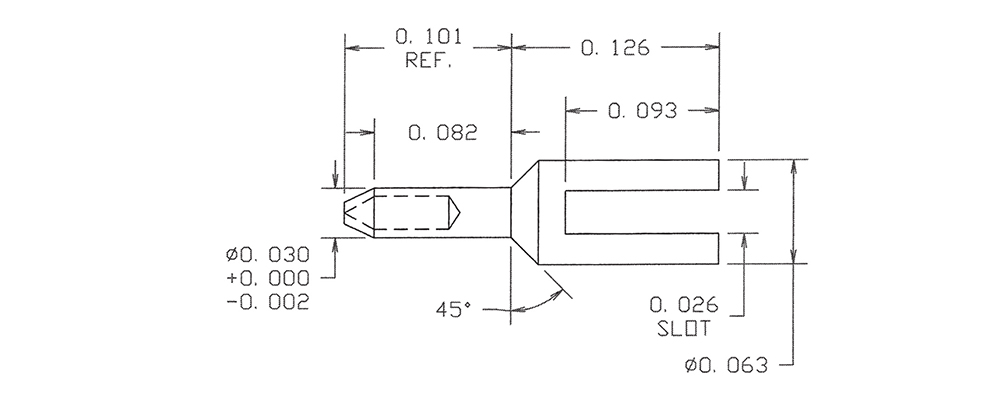

09-7180-2-04
09-7180-2-04
09-7180-2-04
0.227" - - RIVET MOUNT 0.083" 1/16 0.032 Brass Electro-Tin YES

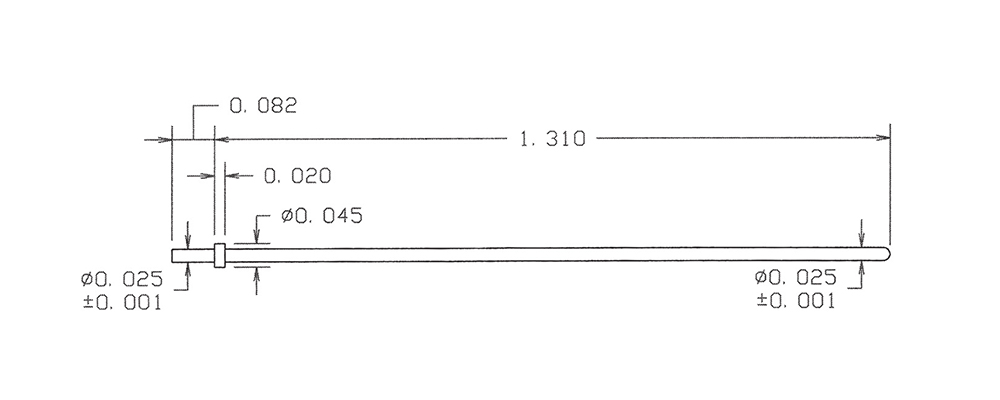

09-8021-2-01
09-8021-2-01
09-8021-2-01
1.392" 0.025 - Solder 0.082" 1/16 0.028 Brass Silver YES
09-8056-2-04
09-8056-2-04
09-8056-2-04
0.245" 0.020 - Swage Mount 0.085" 1/16 0.031 Brass Electro-Tin YES

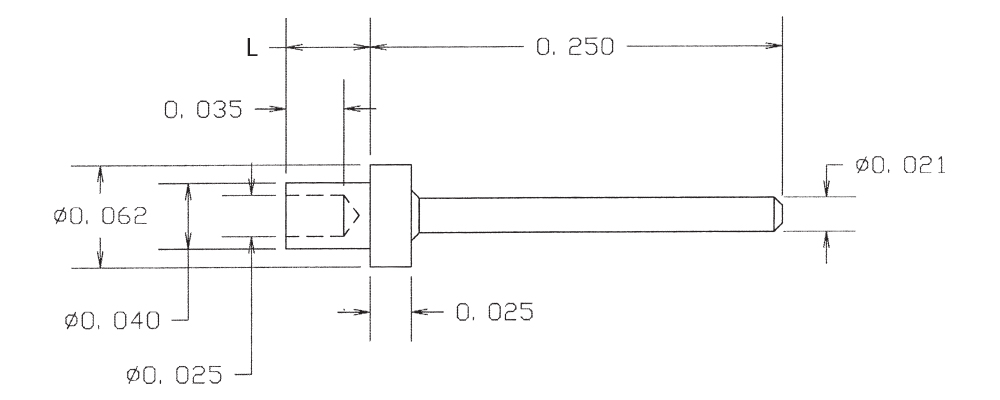

09-8096-1-01
09-8096-1-01
09-8096-1-01
0.301" 0.021 - Swage Mount 0.051" 1/32 0.043 Brass Silver YES

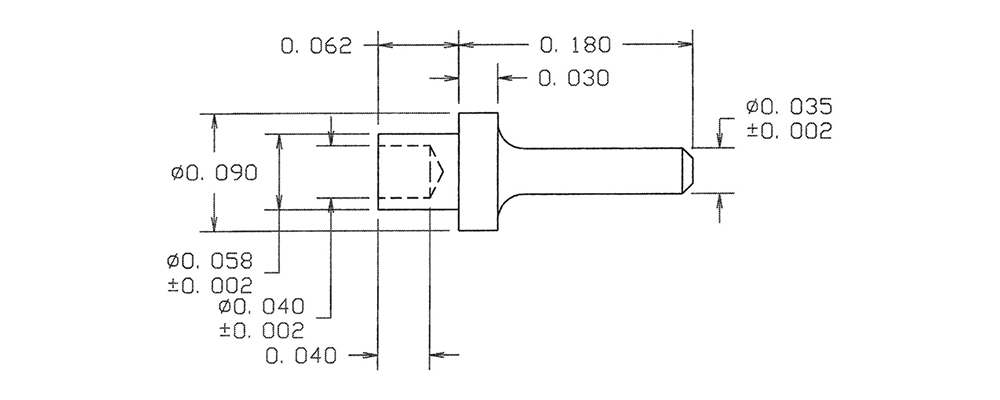

09-8153-1-044
09-8153-1-044
09-8153-1-044
0.242" 0.035 - Swage Mount 0.062" 1/32 0.0625 Brass Bright Tin YES

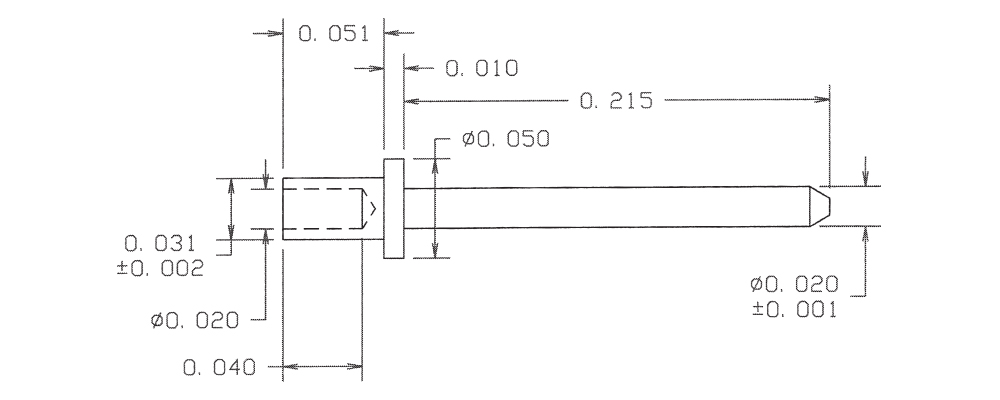

09-8181-1-03
09-8181-1-03
09-8181-1-03
0.276" 0.020 - Swage Mount 0.051" 1/32 0.035 Brass Gold YES

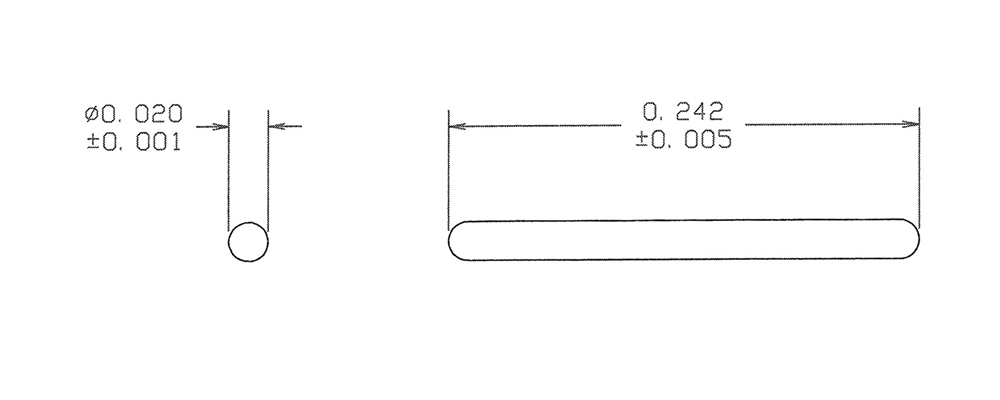

09-8345-1-02
09-8345-1-02
09-8345-1-02
0.242" 0.020 - - - - - Phosphor Bronze Nickel YES

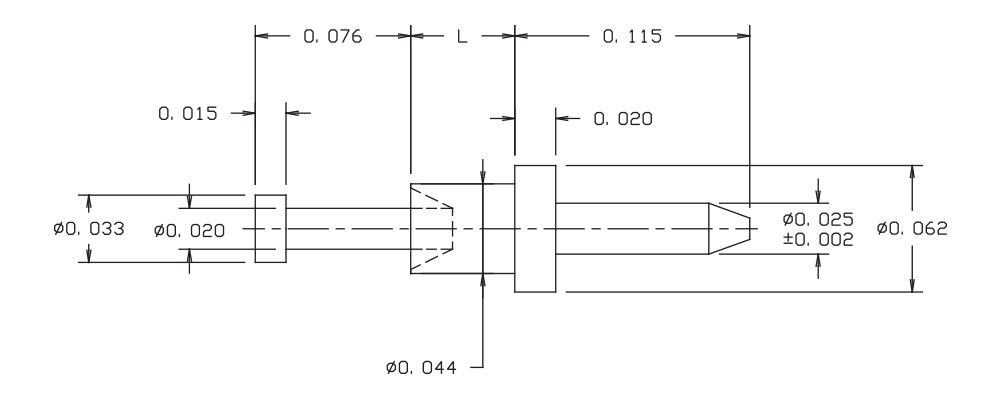

09-8584-2-088
09-8584-2-088
09-8584-2-088
0.273" 0.025 TURRET/PIN Swage Mount 0.082" 1/16 0.047 Brass Bright Tin-Lead NO

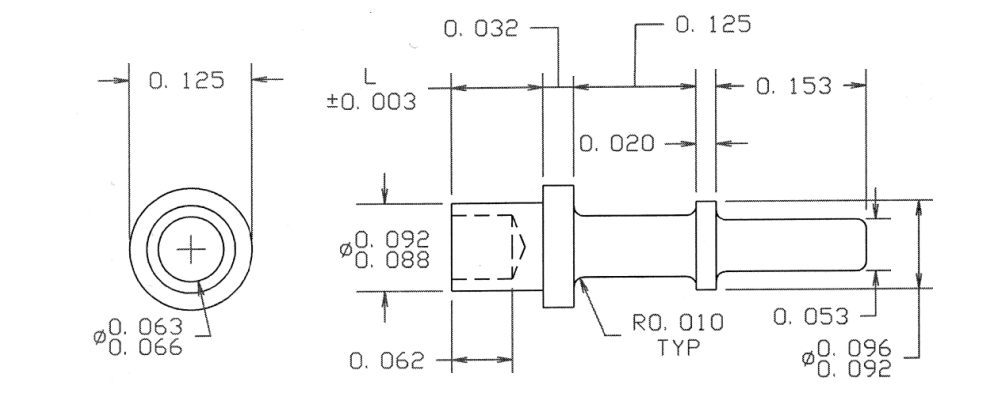

09-8705-2A-05
09-8705-2A-05
09-8705-2A-05
0.424" - - Swage Mount 0.094" 1/16 0.094 LEADED Red Brass Electro Solder NO

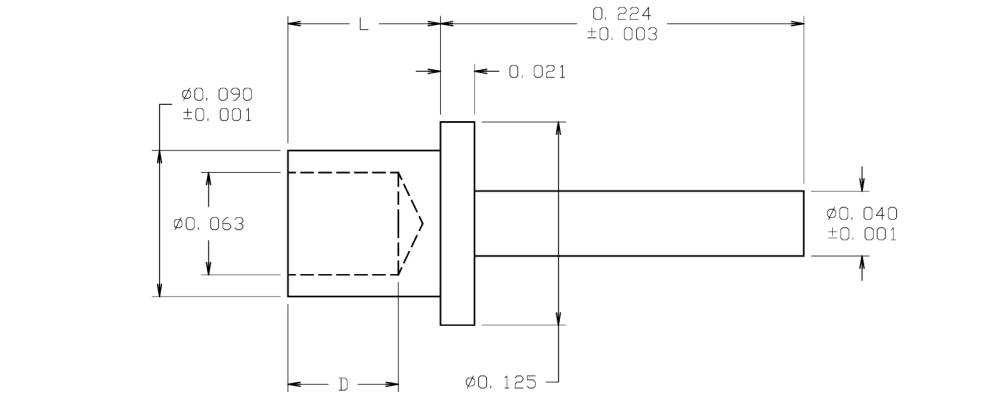

09-8816-2-035
09-8816-2-035
09-8816-2-035
0.318" 0.040 - Swage Mount 0.094" 1/16 0.094 Brass Gold YES

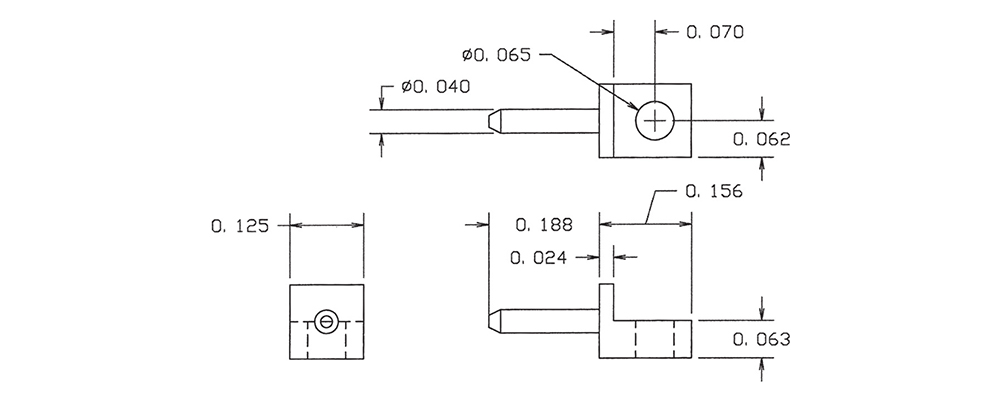

09-9501-1-01
09-9501-1-01
09-9501-1-01
0.344" 0.040 - 0-80 Screw - 1/16 CLEARANCE FOR #0 Screw Brass Silver YES
