Commercial
Non-Insulated
Terminals

Filter

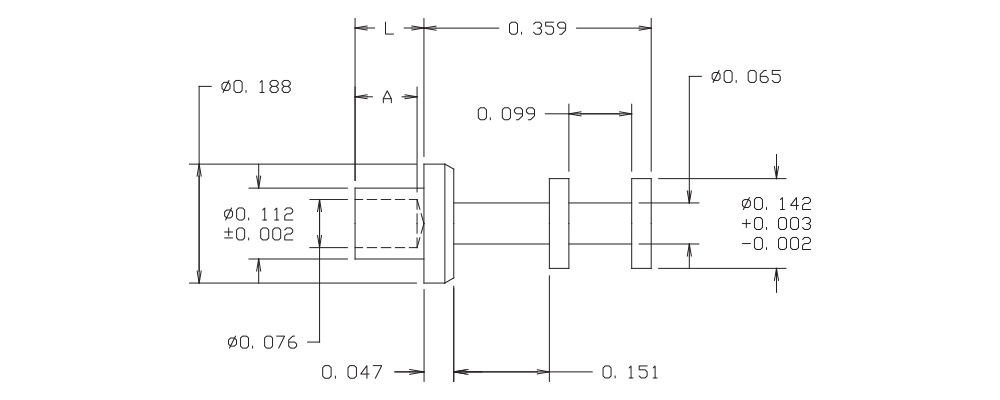

10-204-4-01
10-204-4-01
10-204-4-01
0.531" - - Swage Mount 0.172" 1/8 0.116 Brass Silver YES
10-212-2-04
10-212-2-04
10-212-2-04
0.371" - - Swage Mount 0.105" 1/16 0.116 Brass Electro-Tin YES

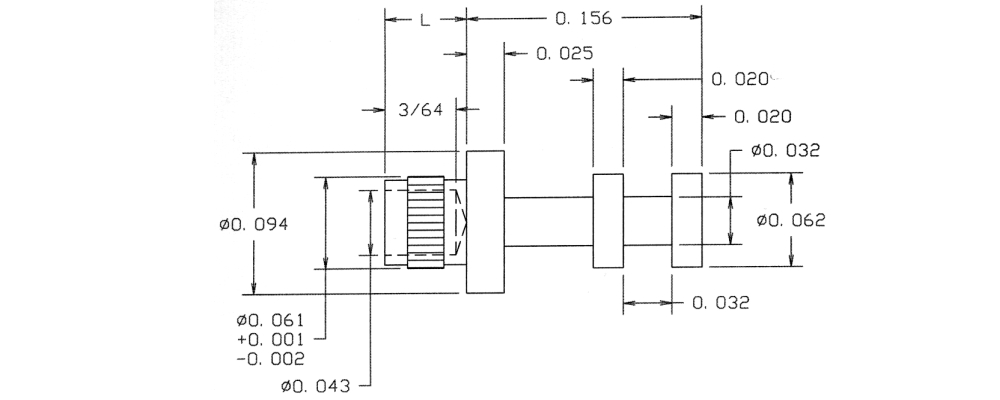

10-220-1-01
10-220-1-01
10-220-1-01
0.210" - - Swage Mount 0.054" 1/32 0.064 Brass Silver YES

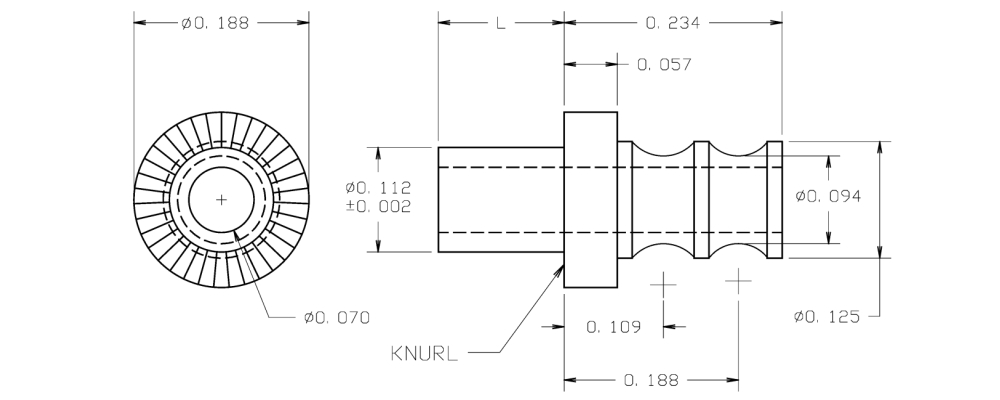

10-230-3-04
10-230-3-04
10-230-3-04
0.369" - - Swage Mount 0.135" 3/32 0.116 Brass Electro-Tin YES

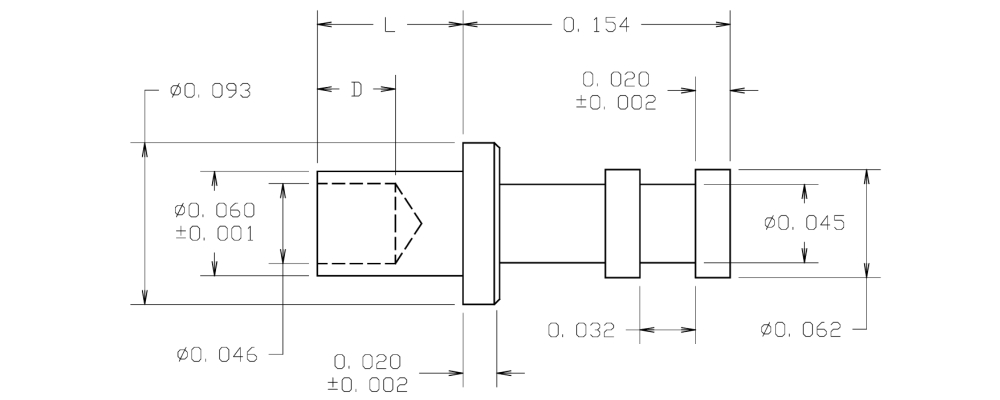

10-254-11-05
10-254-11-05
10-254-11-05
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Electro Solder NO

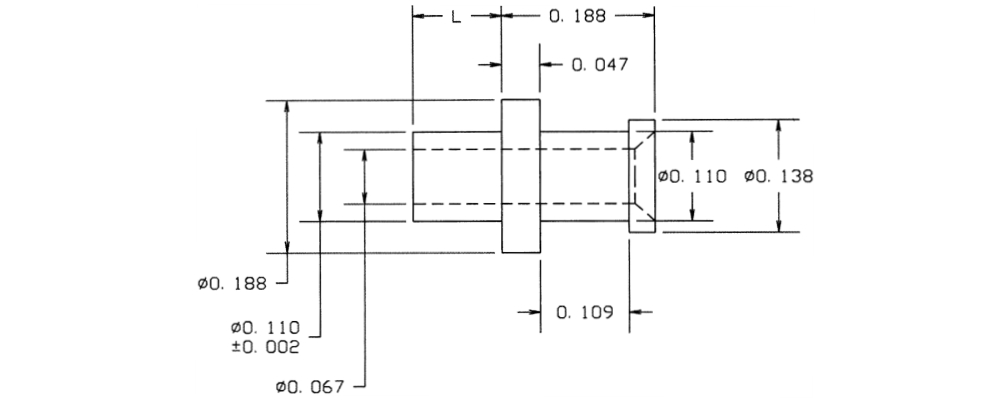

10-305-4-044
10-305-4-044
10-305-4-044
0.360" - - Swage Mount 0.172" 1/8 0.113 Brass Bright Tin YES

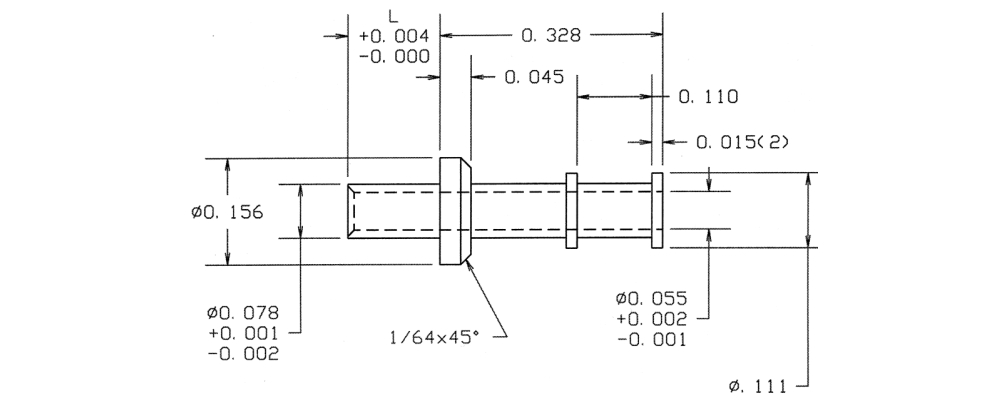

10-313-1-03
10-313-1-03
10-313-1-03
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Gold YES

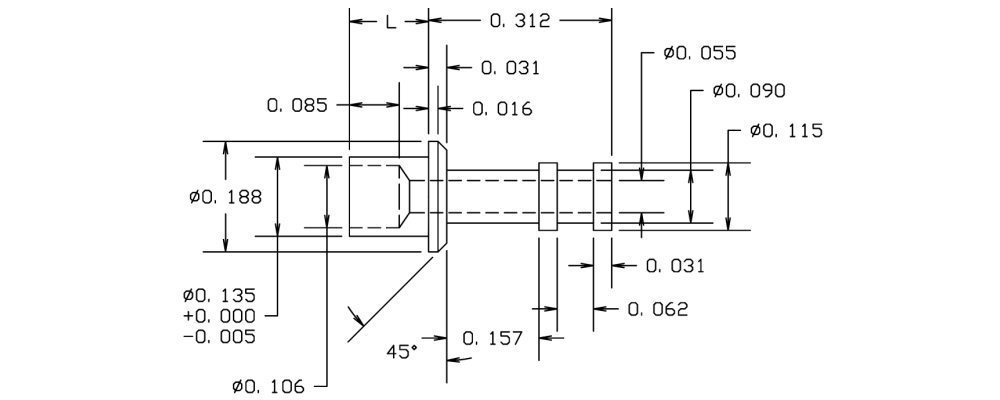

10-325-3-05
10-325-3-05
10-325-3-05
0.342" - - Swage Mount 0.135" 3/32 0.1405 Brass Electro Solder NO

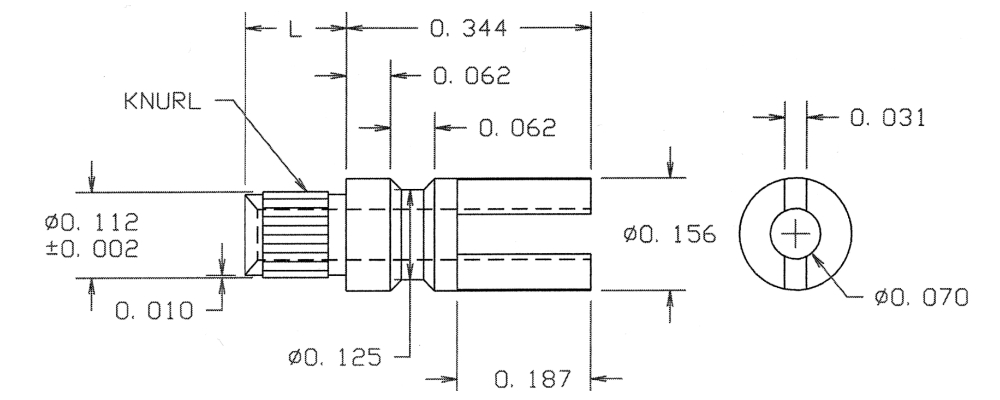

10-402-2-035
10-402-2-035
10-402-2-035
0.453" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES

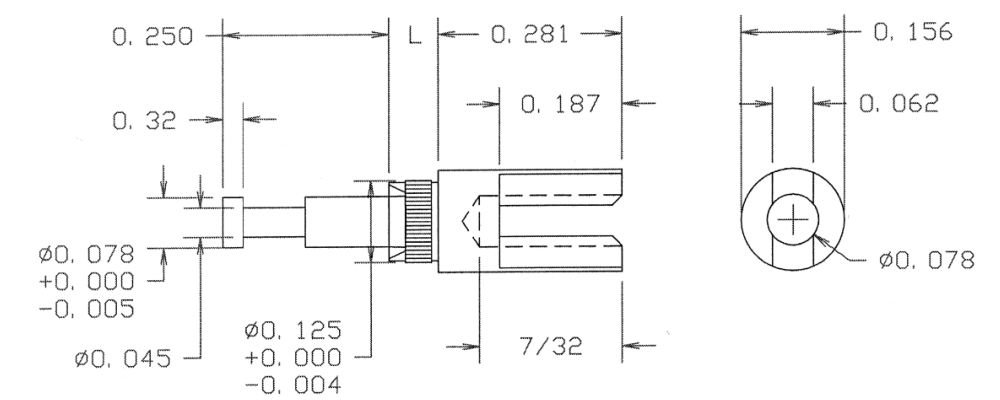

10-418-2A-01
10-418-2A-01
10-418-2A-01
0.622" - Turret/Turret Swage Mount 0.091" 1/16 0.120 Brass Silver YES

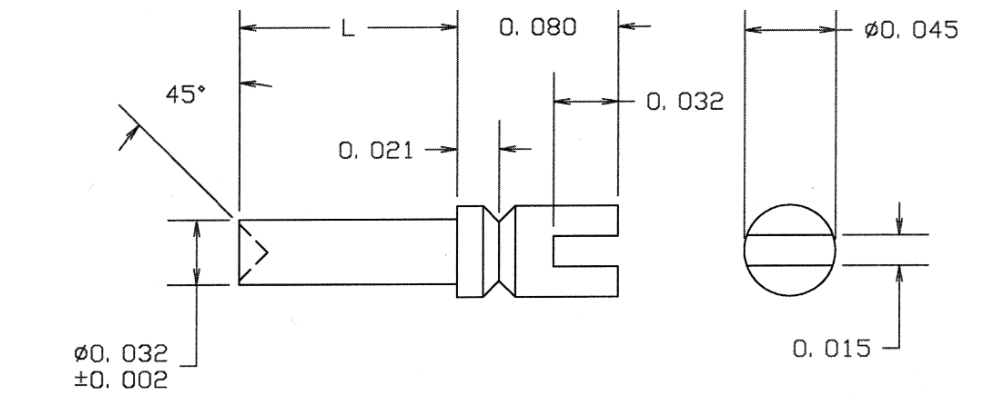

10-431-2-04
10-431-2-04
10-431-2-04
0.157" - - Swage Mount 0.077" 1/16 0.036 Brass Electro-Tin YES

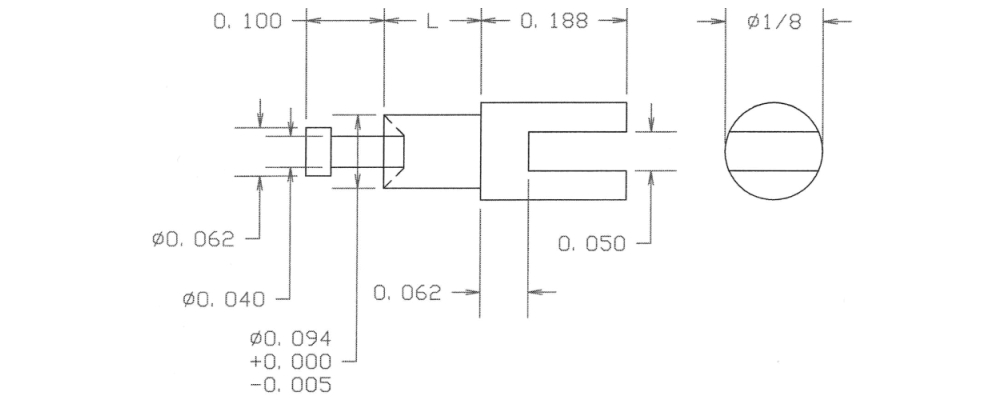

10-445-2-095
10-445-2-095
10-445-2-095
0.382" - SLOTTED/TURRET Swage Mount 0.094" 1/16 0.096 Brass Hot Solder Dip NO
10-460-4-095
10-460-4-095
10-460-4-095
0.428" - - Swage Mount 0.147" 1/8 0.063 Brass Hot Solder Dip NO

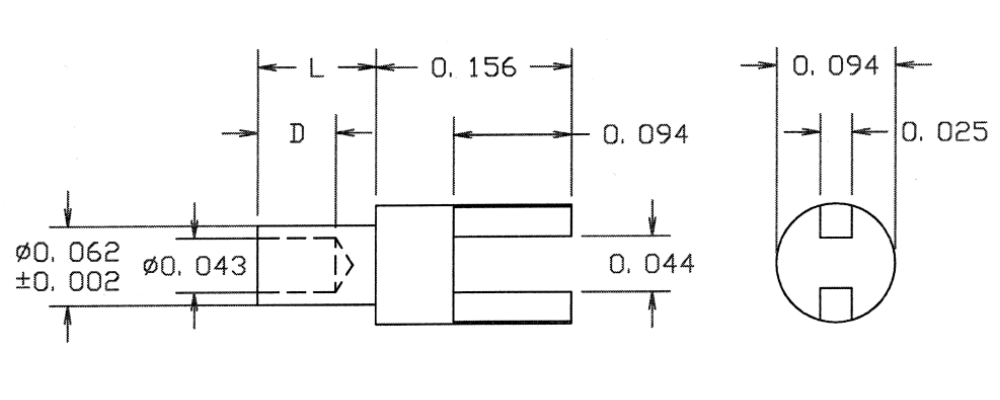

10-489-1-095
10-489-1-095
10-489-1-095
0.201" - - Swage Mount 0.045" 1/32 0.067 Brass Hot Solder Dip NO

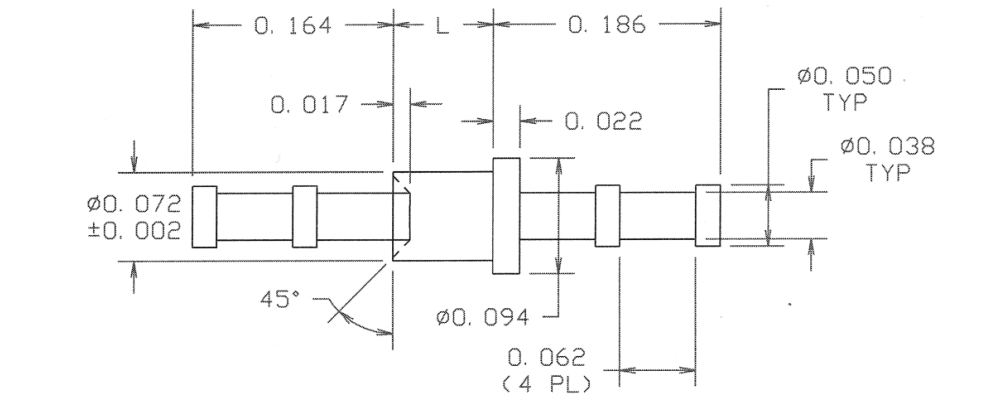

10-503-6-03
10-503-6-03
10-503-6-03
0.457" - Double Turret/Double Turret Swage Mount 0.207" 3/16 0.076 Brass Gold YES

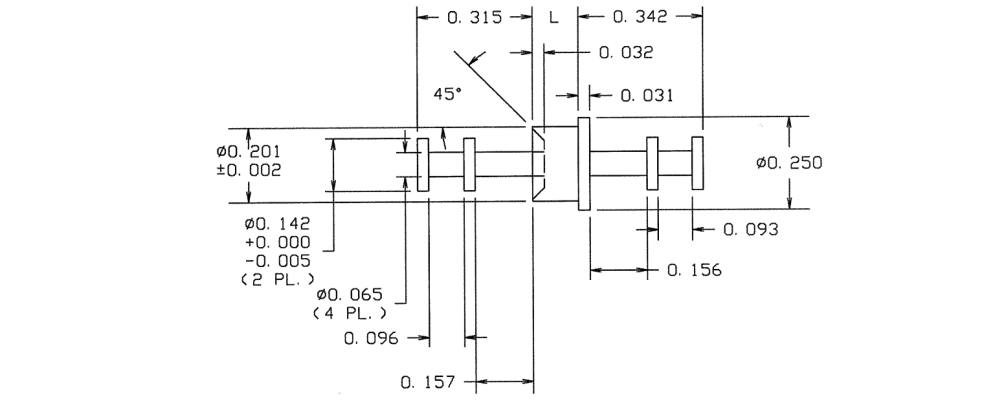

10-509-6-03
10-509-6-03
10-509-6-03
0.876" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.204 Brass Gold YES

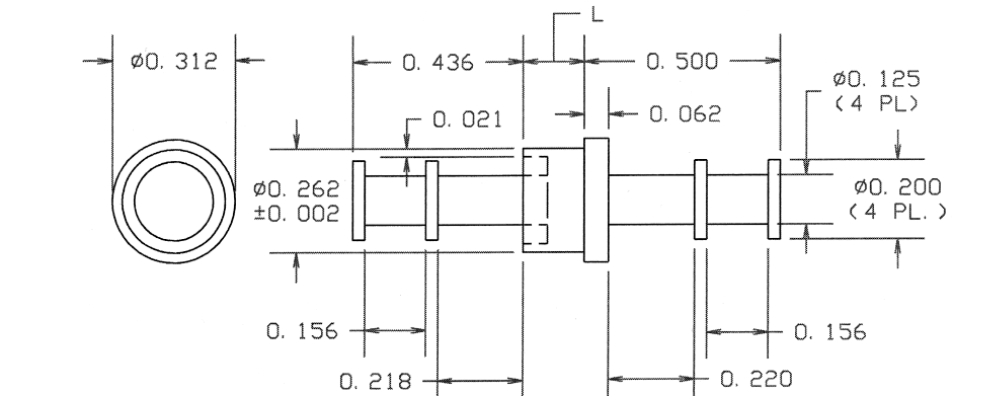

10-519-3-03
10-519-3-03
10-519-3-03
1.061" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.266 Brass Gold YES

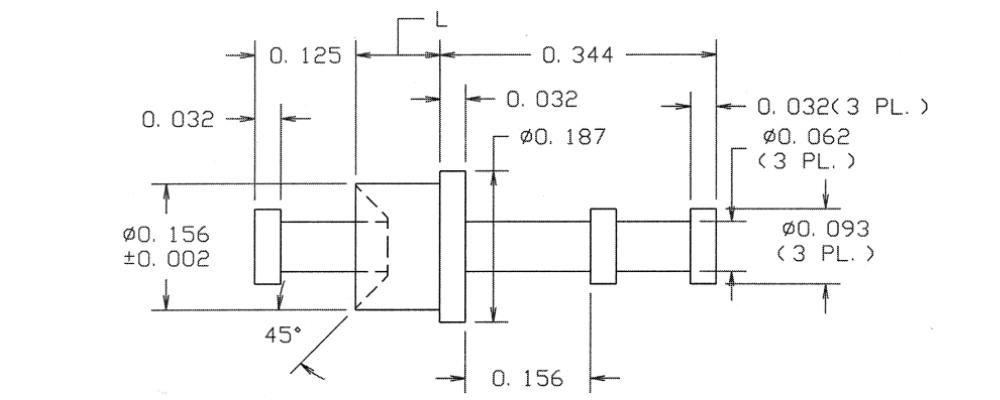

10-530-5-03
10-530-5-03
10-530-5-03
0.664" - TURRET/DOUBLE TURRET Swage Mount 0.195" 5/32 0.159 Brass Gold YES

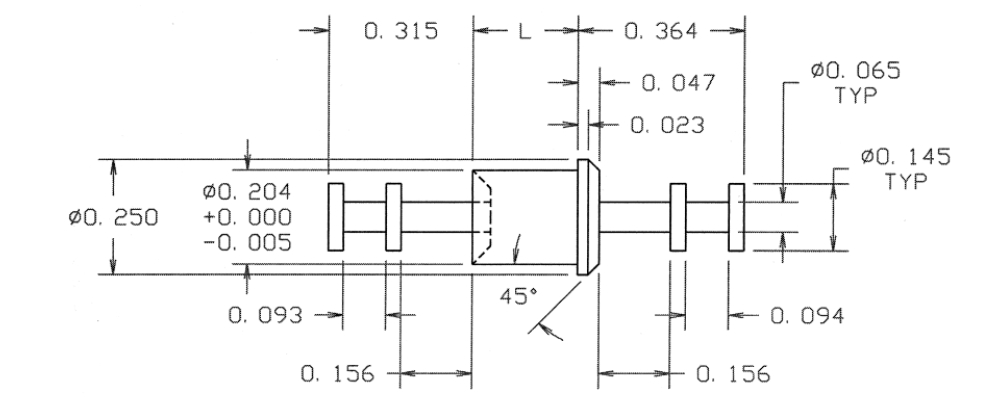

10-549-4-03
10-549-4-03
10-549-4-03
0.844" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.206 Brass Gold YES

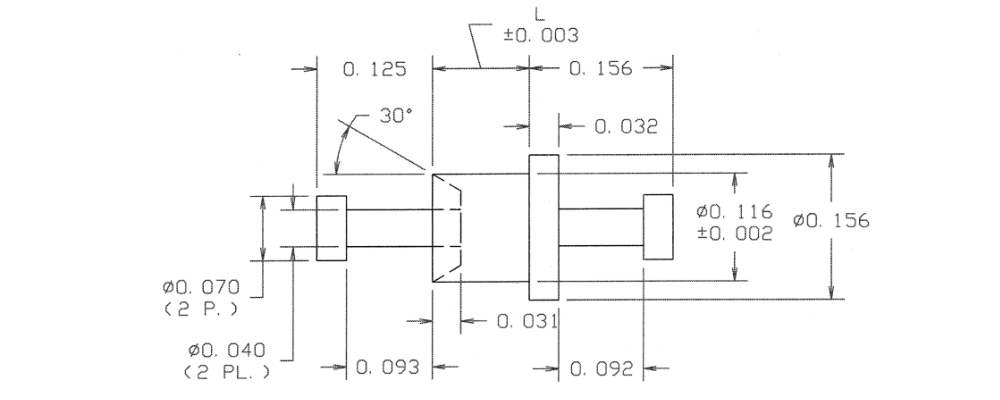

10-576-4-03
10-576-4-03
10-576-4-03
0.446" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Gold YES
