Commercial
Non-Insulated
Terminals

Filter
10-230-3-035
10-230-3-035
10-230-3-035
0.369" - - Swage Mount 0.135" 3/32 0.116 Brass Gold YES
10-254-11-044
10-254-11-044
10-254-11-044
0.193" - - Swage Mount 0.037" 1/64 0.063 Brass Bright Tin YES
10-305-4-04
10-305-4-04
10-305-4-04
0.360" - - Swage Mount 0.172" 1/8 0.113 Brass Electro-Tin YES
10-313-1-01
10-313-1-01
10-313-1-01
0.403" - - Swage Mount 0.075" 1/32 0.081 Brass Silver YES

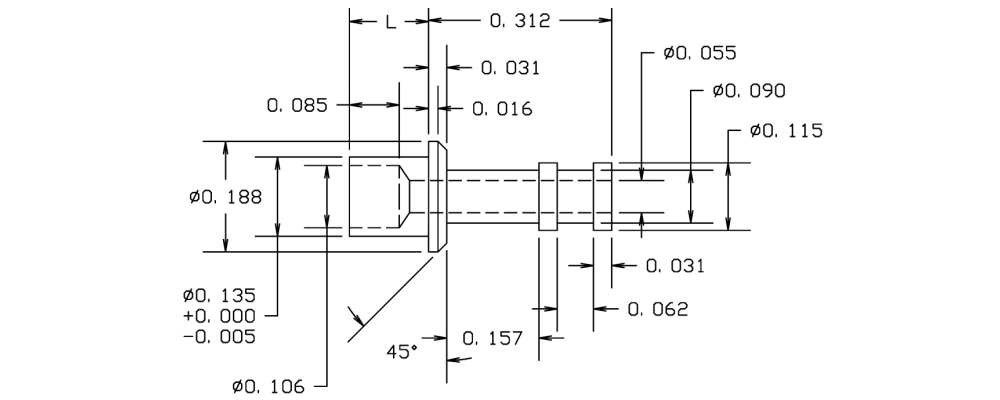

10-325-3-044
10-325-3-044
10-325-3-044
0.342" - - Swage Mount 0.135" 3/32 0.1405 Brass Bright Tin YES
10-402-2-03
10-402-2-03
10-402-2-03
0.453" - - Swage Mount 0.109" 1/16 0.116 Brass Gold YES
10-418-2-088
10-418-2-088
10-418-2-088
0.636" - Turret/Turret Swage Mount 0.105" 1/16 0.120 Brass Bright Tin-Lead NO
10-431-2-035
10-431-2-035
10-431-2-035
0.157" - - Swage Mount 0.077" 1/16 0.036 Brass Gold YES
10-445-2-088
10-445-2-088
10-445-2-088
0.382" - SLOTTED/TURRET Swage Mount 0.094" 1/16 0.096 Brass Bright Tin-Lead NO
10-460-4-088
10-460-4-088
10-460-4-088
0.428" - - Swage Mount 0.147" 1/8 0.063 Brass Bright Tin-Lead NO
10-489-1-088
10-489-1-088
10-489-1-088
0.201" - - Swage Mount 0.045" 1/32 0.067 Brass Bright Tin-Lead NO
10-503-6-01
10-503-6-01
10-503-6-01
0.457" - Double Turret/Double Turret Swage Mount 0.207" 3/16 0.076 Brass Silver YES
10-509-6-01
10-509-6-01
10-509-6-01
0.876" - Double Turret/Double Turret Swage Mount 0.219" 3/16 0.204 Brass Silver YES
10-519-3-01
10-519-3-01
10-519-3-01
1.061" - Double Turret/Double Turret Swage Mount 0.125" 3/32 0.266 Brass Silver YES
10-530-5-01
10-530-5-01
10-530-5-01
0.664" - TURRET/DOUBLE TURRET Swage Mount 0.195" 5/32 0.159 Brass Silver YES
10-549-4-01
10-549-4-01
10-549-4-01
0.844" - Double Turret/Double Turret Swage Mount 0.165" 1/8 0.206 Brass Silver YES

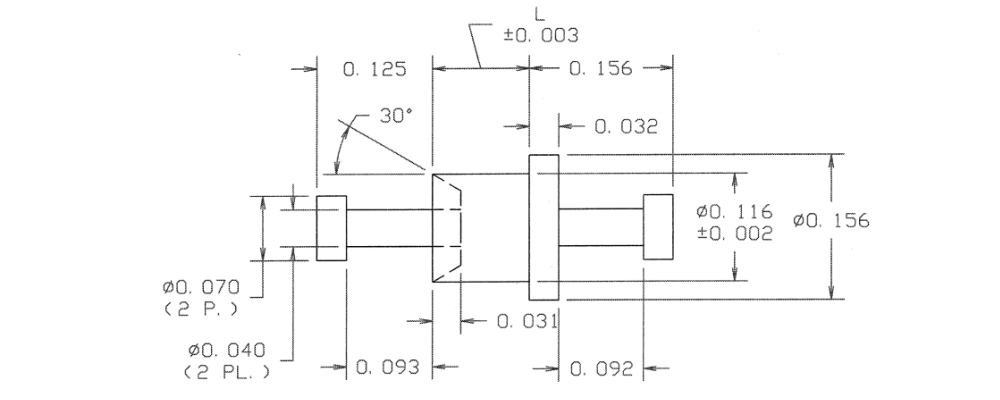

10-576-4-01
10-576-4-01
10-576-4-01
0.446" - Turret/Turret Swage Mount 0.165" 1/8 0.120 Brass Silver YES
10-607-4-044
10-607-4-044
10-607-4-044
0.586" - - Swage Mount 0.165" 1/8 0.116 Brass Bright Tin YES
10-714-5-04
10-714-5-04
10-714-5-04
0.757" - DOUBLE TURRET/THREAD Swage Mount 0.195" 5/32 0.204 Brass Electro-Tin YES
10-8016-1-035
10-8016-1-035
10-8016-1-035
0.581" 0.080 - Swage Mount 0.051" 1/32 0.094 Brass Gold YES
